融合空间自注意力感知的严重缺失多元时间序列插补算法

刘辉; 冯浩然; 马佳妮; 郑红党; 张林

doi:10.11999/JEIT250220

融合空间自注意力感知的严重缺失多元时间序列插补算法

doi: 10.11999/JEIT250220 cstr: 32379.14.JEIT250220

中国矿业大学信息与控制工程学院徐州 221116

基金项目: 国家自然科学基金(61971422)，徐州市重点研发计划(社会发展)(KC22112)

详细信息

作者简介:
刘辉：男，副教授，博士，研究方向为大数据分析与处理、生物信息处理、无线通信

冯浩然：男，硕士生，研究方向为大数据分析与处理、关联预测

马佳妮：女，博士，研究方向为大数据分析与处理、生物信息处理

郑红党：女，副教授，博士，研究方向为硬件系统设计、微波与天线

张林：女，教授，博士，研究方向为大数据分析与处理、生物信息处理、多模态融合

通讯作者:
张林　lin.zhang@cumt.edu.cn

中图分类号: TN92; TP181
计量
- 文章访问数: 26
- HTML全文浏览量: 10
- PDF下载量: 1
- 被引次数: 0
出版历程
- 收稿日期: 2025-03-31
- 修回日期: 2025-09-10
- 网络出版日期: 2025-09-16

Spatial Self-Attention Incorporated Imputation Algorithm for Severely Missing Multivariate Time Series

School of Information and Control Engineering, China University of Mining and Technology, Xuzhou 221116, China

Funds: The National Natural Science Foundation of China (61971422), Xuzhou Science and Technology Innovation Plan - Key Special Project for Social Development(KC22112)

摘要

摘要: 多元时间序列应用广泛，但极易发生缺失，影响相关规律的有效挖掘。已有插补方法大多面向低缺失率场景设计，应用至高缺失率场景通常面临梯度消失、时空依赖关系建模不足、复杂非线性特征表征困难等难题。该文提出一种融合空间自注意力感知的严重缺失多元时间序列插补算法(SSAImpute)。该算法采用双分支孪生结构，分别设计了空间自注意力感知和时域自注意力编码模块。其中，空间自注意力感知模块通过融合数据源位置等空间信息增强序列的相关性建模能力；时域自注意力编码模块设计了掩码自适应自注意力机制有效捕获时间层面的时间前后依赖性和特征相关性，避免了梯度消失现象。孪生分支之间通过动态加权融合，优化最终的插补输出。实现结果表明，与7个现有时间序列插补模型对比，该文所提方法在Inter-Sensor的4个子数据集均能有效提升严重缺失场景下的多元时间序列插补精度，在PeMS 3个子数据集的插补结果RMSE比次优方法分别提升5.7%, 7.4%和5.3%。该算法有望为严重缺失场景下的多元时间序列提供更准确的解决方案，进而为下游基于数据驱动的分析和决策任务提供更可靠的数据基础。
- 深度学习 /
- 多元时间序列 /
- 自注意力机制 /
- 数据插补 /
- 严重缺失数据
Abstract: Objective Multivariate time series data, characterized by their high dimensionality and temporal dynamics, are widely generated across diverse application domains, including healthcare monitoring, industrial sensor networks, and autonomous systems. However, these data are often subject to severe missingness caused by sensor malfunctions, transmission errors, or environmental disturbances, which obscures critical spatiotemporal patterns and hinders downstream analytical tasks such as anomaly detection, predictive maintenance, and decision support. Existing imputation methods, ranging from statistical approaches to machine learning models, are primarily tailored to low missing-rate scenarios. When applied to high missing-rate conditions, they face challenges such as gradient vanishing during model training, insufficient capture of spatiotemporal dependencies, and limited ability to represent complex nonlinear features, with performance deteriorating sharply as the missing rate increases. To address these limitations, this study proposes the Spatial Self-Attention Incorporated Imputation algorithm (SSAImpute), designed to enhance imputation performance specifically under severely missing conditions. Methods The proposed SSAImpute algorithm adopts a dual-branch Siamese architecture with adversarial fusion. Each branch comprises two core modules: a spatial self-attention–aware module and a subsequent temporal self-attention encoding module. The spatial self-attention–aware module constructs a dynamic adjacency matrix from the geolocations of data sources to explicitly quantify inter-variable spatial relationships. These spatial dependencies are then integrated with temporal features to strengthen sequence correlation modeling and enrich feature representations with embedded spatial information. The temporal self-attention encoding module employs a multi-dimensional residual attention mechanism with bidirectional temporal dependency learning. A missing-aware positional encoding scheme and a mask-adaptive self-attention mechanism are incorporated to effectively capture temporal dependencies and feature correlations, thereby mitigating severe missingness and alleviating the vanishing gradient problem. The two Siamese branches are fused through adversarial learning and dynamic weighting, which jointly refine the final imputation results. To evaluate the performance of SSAImpute against competing methods, three conventional metrics are used: Mean Absolute Error (MAE), Root Mean Square Error (RMSE), and Mean Relative Error (MRE). Results and Discussions Extensive experiments are conducted on four public datasets—Inter-Sensor, PeMS04, PeMS07, and PeMS11—in comparison with seven state-of-the-art time series imputation models: Mean, Median, K-Nearest Neighbor (KNN), Multi-directional Recurrent Neural Network (M-RNN), Bidirectional Recurrent Imputation for Time Series (BRITS), Transformer, and Self-Attention-based Imputation for Time Series (SAITS). The results show that the proposed method consistently improves imputation accuracy across all datasets, even under severe missingness. On the Inter-Sensor dataset, SSAImpute demonstrates superior performance compared with all competing methods. For all four time series, SSAImpute outperforms the others across all evaluation metrics, with improvements over the best-performing baseline (SAITS) of 15.9% in MAE, 0.19% in RMSE, and 16.6% in MRE for temperature; 11.1% in MAE, 1.7% in RMSE, and 11.7% in MRE for humidity; 9.8% in MAE, 10.2% in RMSE, and 24.3% in MRE for light; and 8.8% in MAE, 0.4% in RMSE, and 9.0% in MRE for voltage. On the PeMS datasets, SSAImpute also exceeds all competing methods across PeMS04, PeMS07, and PeMS11. The achieved MAE, RMSE, and MRE are 0.203, 0.328, and 22.4% for PeMS04; 0.153, 0.274, and 17.5% for PeMS07; and 0.180, 0.284, and 19.6% for PeMS11, respectively. The performance under different missing-ratio scenarios is further investigated. Although accuracy decreases exponentially with higher missingness, SSAImpute consistently outperforms the three strongest baselines. Visualization of the imputed time series further verifies its effectiveness, with reconstructed values closely aligned with the ground truth. These findings confirm the contributions of the spatial self-attention–aware module, the temporal self-attention encoding module, and the adversarial learning with dynamic weighting mechanism. Conclusions This study proposes a spatial self-attention–incorporated imputation method for severely missing multivariate time series data, built on a dual-branch Siamese framework. Each branch integrates a spatial self-attention–aware module, which incorporates geolocation information of the data source, followed by a temporal self-attention encoding mechanism to capture contextual dependencies. These modules jointly strengthen feature extraction of spatiotemporal dependencies, enabling more accurate reconstruction under high missingness. The proposed method provides a robust data foundation for downstream data-driven analysis and decision-making tasks in real-world applications.
- Deep learning /
- Multivariate time series /
- Self-attention /
- Imputation /
- Severe missing data

HTML全文

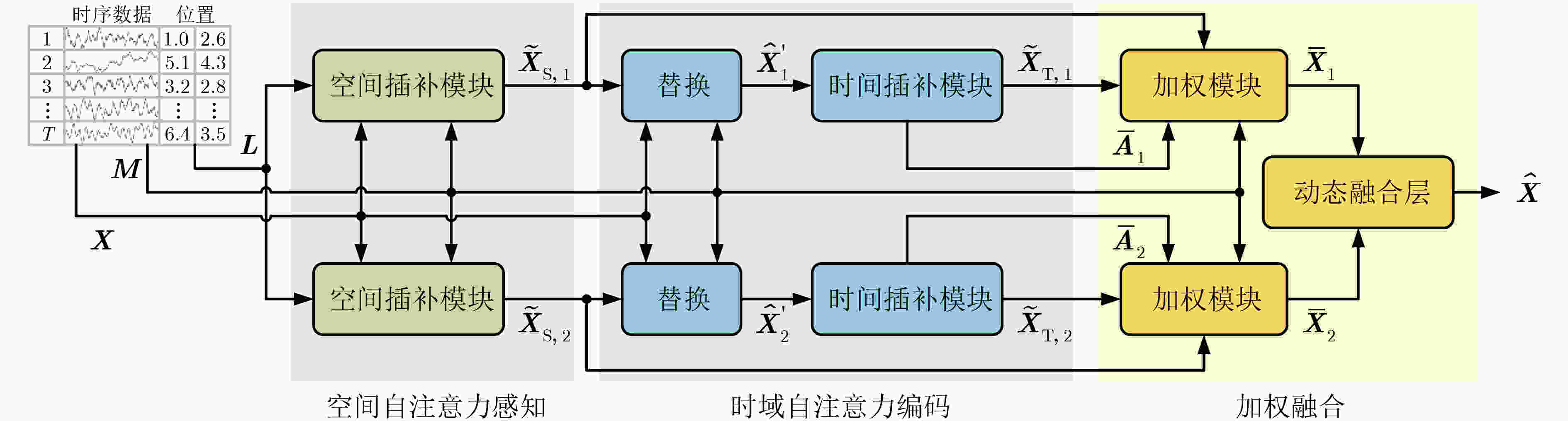

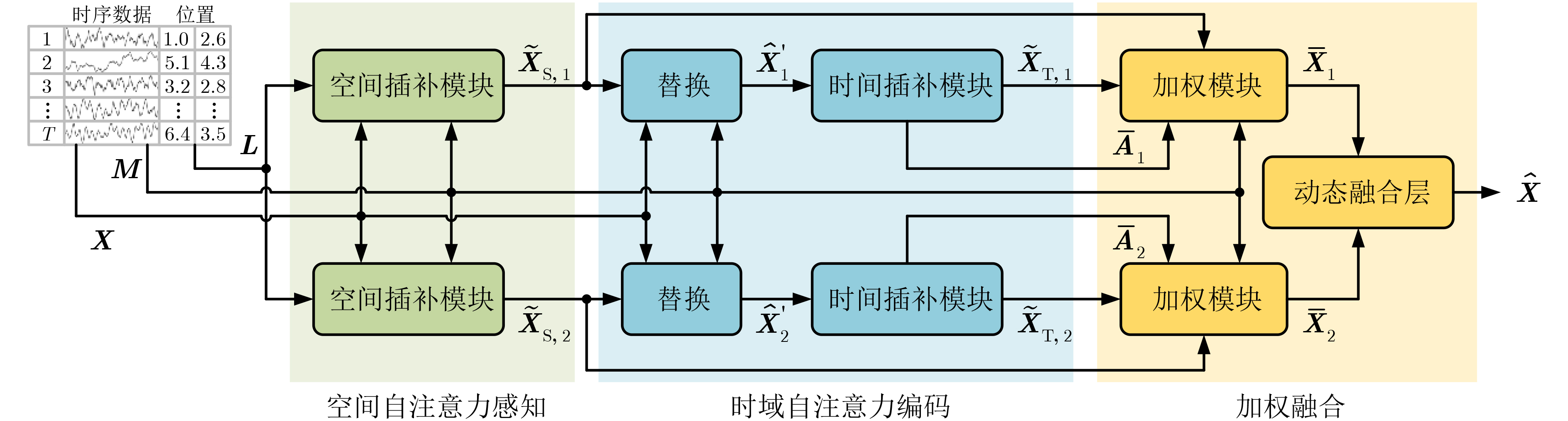

图 1 SSAImpute的整体框架

下载: 全尺寸图片幻灯片

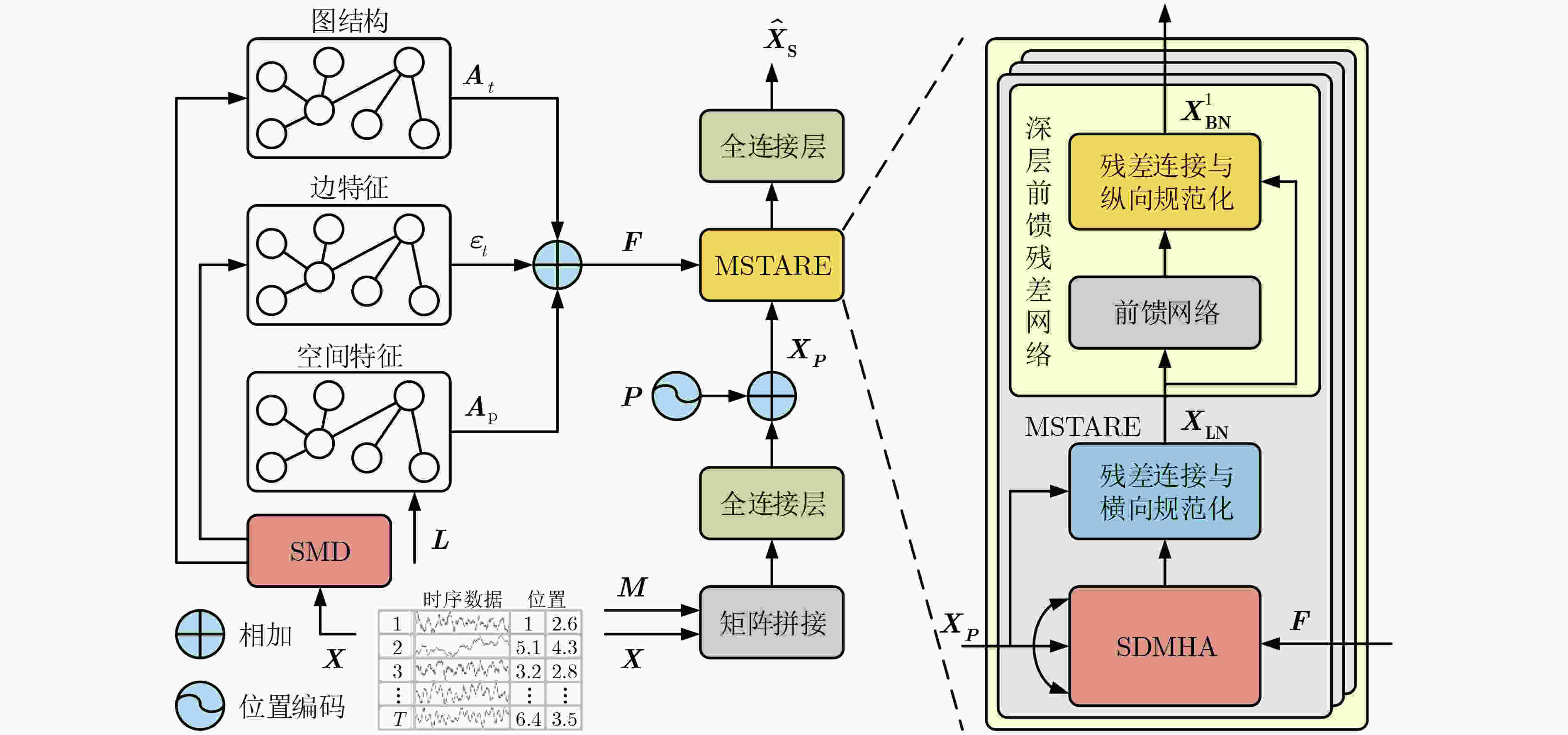

图 2 空间自注意力感知模块

下载: 全尺寸图片幻灯片

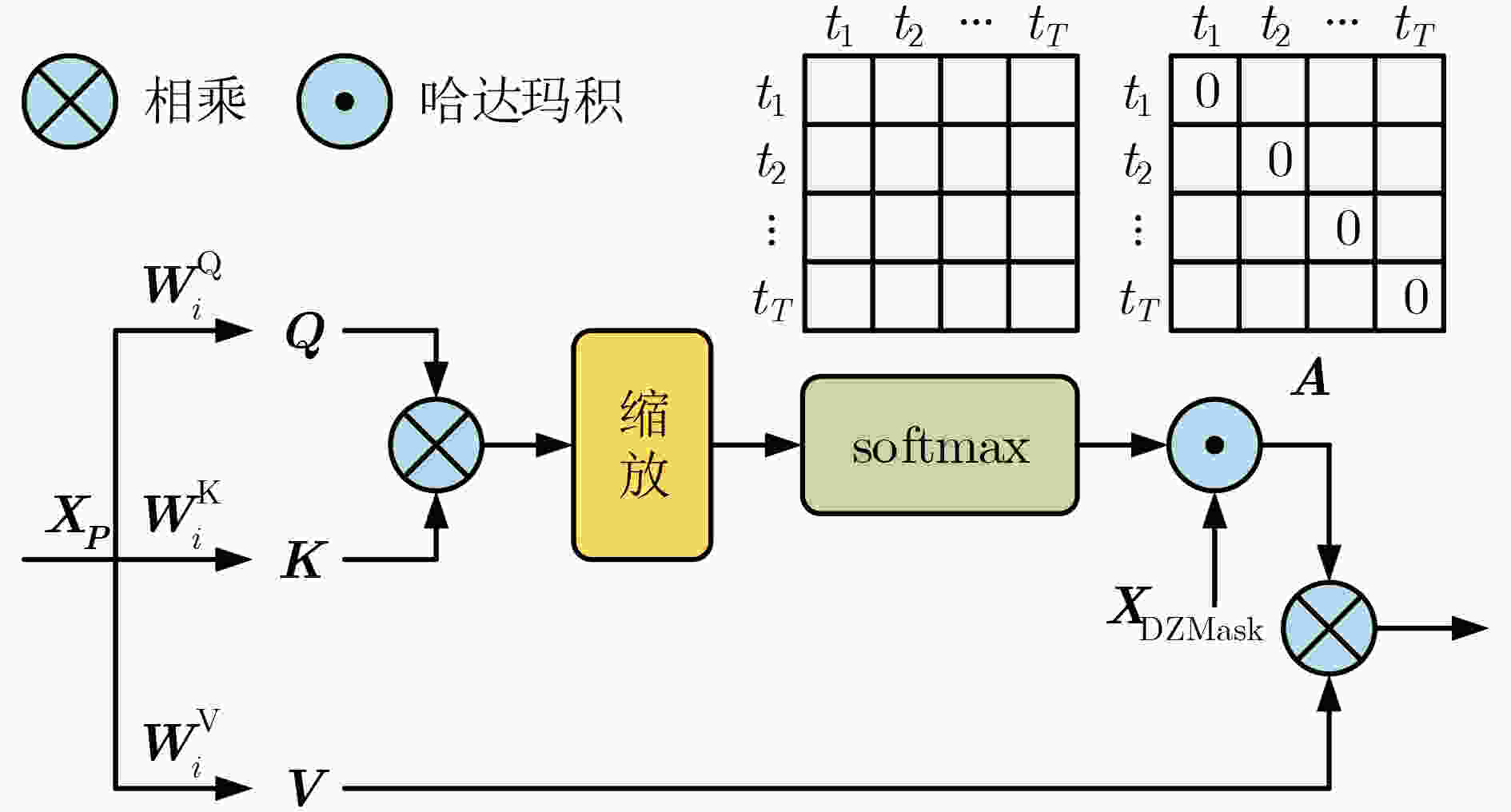

图 3 特征矩阵对角置零的空间动态自注意力机制

下载: 全尺寸图片幻灯片

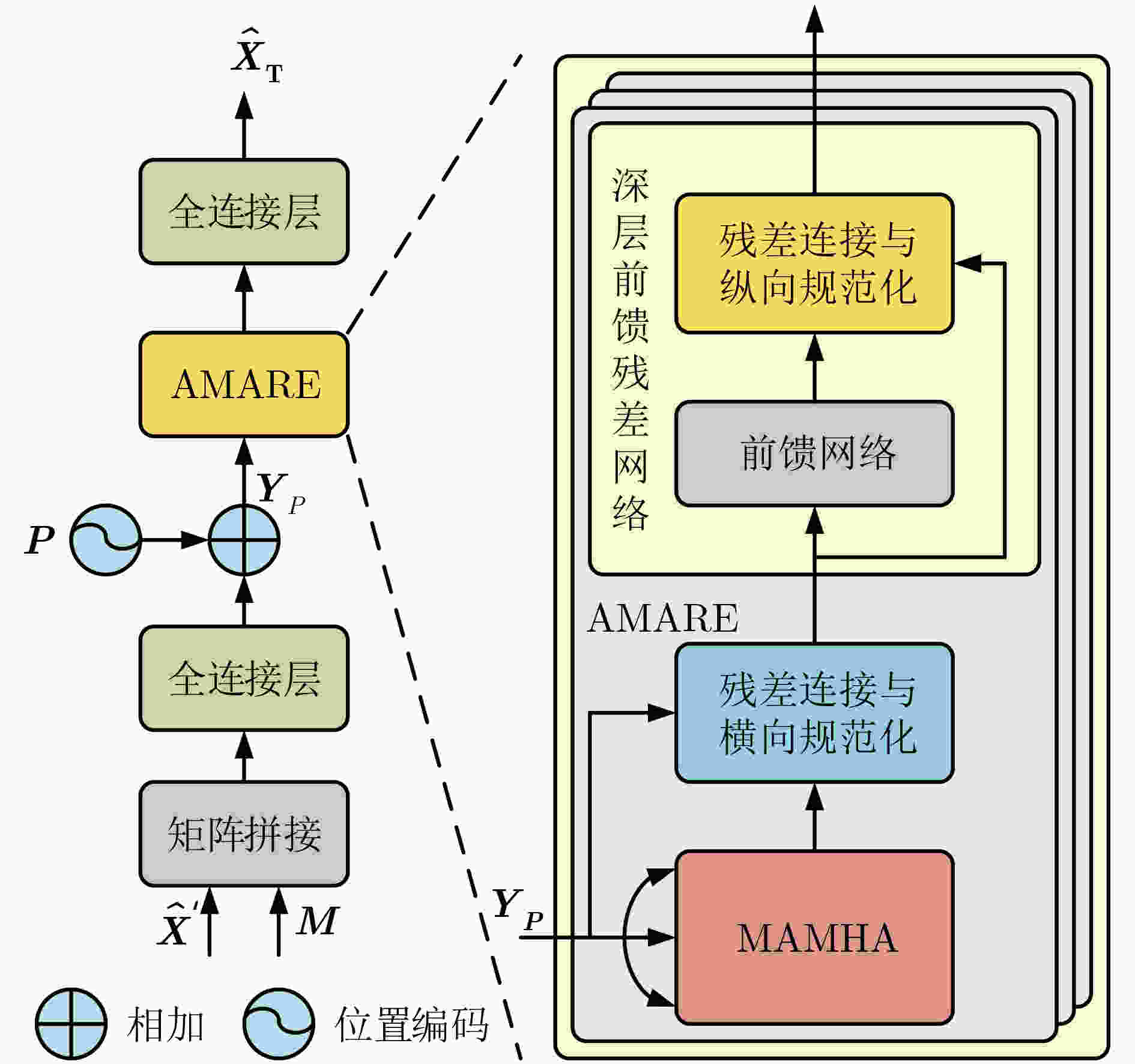

图 4 时域自注意力编码模块

下载: 全尺寸图片幻灯片

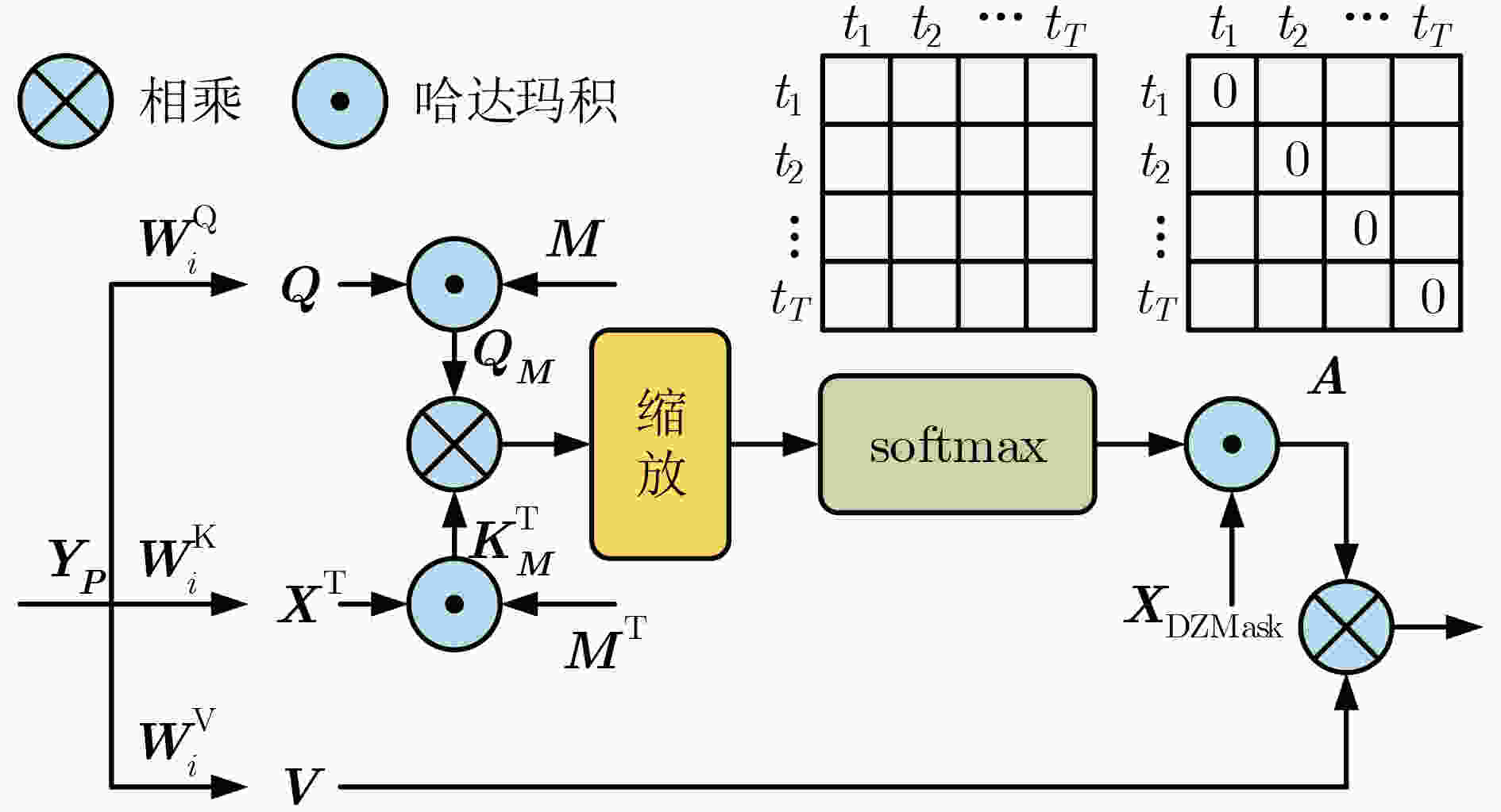

图 5 掩码自适应自注意力机制

下载: 全尺寸图片幻灯片

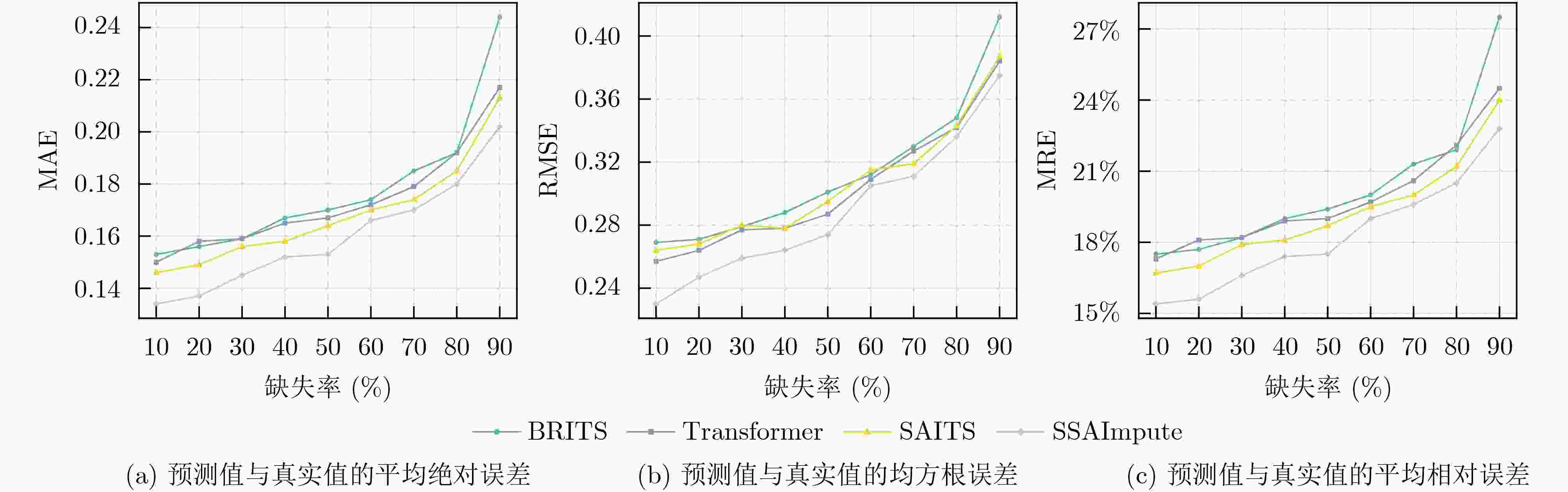

图 6 模型在PeMS数据集不同缺失率上的插补性能

下载: 全尺寸图片幻灯片

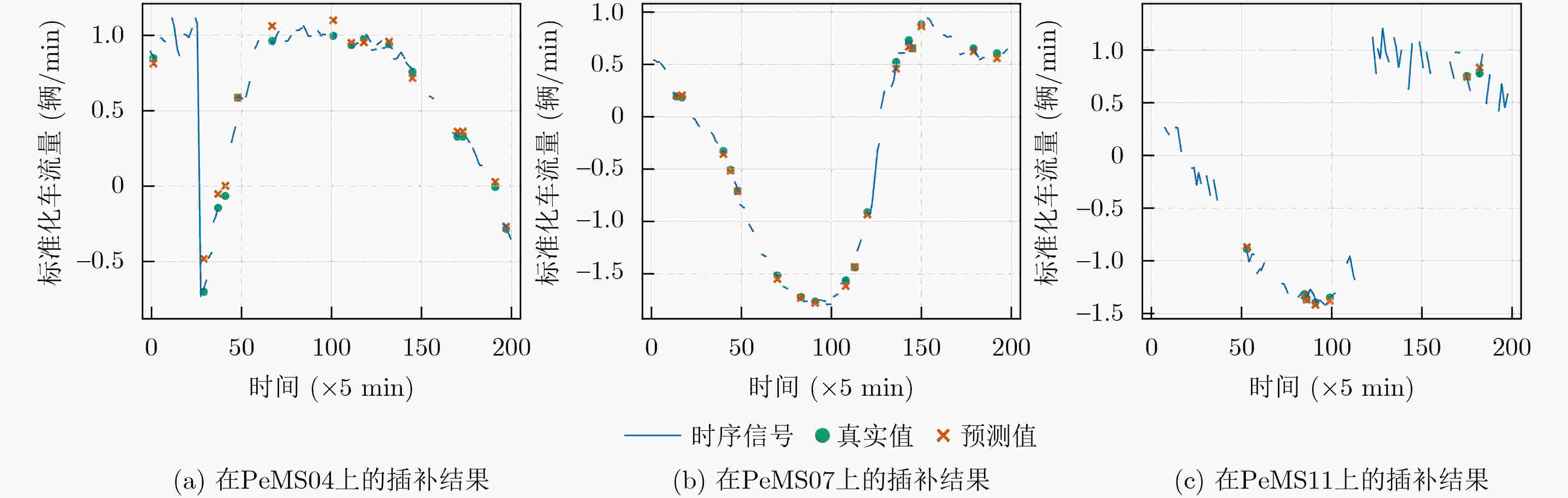

图 7 3个数据集的时间序列插补可视化

下载: 全尺寸图片幻灯片

表 1 SSAImpute模型参数设置

参数	PEMS04	PEMS07	PEMS11	Inter-Sensor
输入序列长度	240	240	240	240
自注意力头数	4	4	4	4
堆叠层数	1	1	1	1
隐藏层维度	512	512	256	128
前馈网络隐藏单元数	128	32	32	512

下载: 导出CSV

表 2 SSAImpute在PeMS数据集上的消融实验结果

方法	PeMS04			PeMS07			PeMS11
方法	MAE	RMSE	MRE(%)	MAE	RMSE	MRE(%)	MAE	RMSE	MRE(%)
SSAImpute-SMD	0.206	0.334	22.7	0.161	0.275	18.4	0.181	0.285	19.7
SSAImpute-S	0.208	0.333	22.9	0.159	0.282	18.1	0.180	0.284	19.7
SSAImpute-TSAE	0.209	0.330	23.1	0.157	0.276	17.9	0.180	0.290	19.6
SSAImpute-Pos	0.209	0.336	23.0	0.160	0.284	18.2	0.182	0.286	19.8
SSAImpute-Fixed	0.207	0.332	22.8	0.159	0.283	18.2	0.181	0.288	19.8
SSAImpute	0.203	0.328	22.4	0.153	0.274	17.5	0.177	0.282	19.3
注：SSAImpute-SMD：去除SMD模块；SSAImpute-S：其中S代表Single,为单分支结构；SSAImpute-TSAE：去除时域自注意力编码模块；SSAImpute-Pos：去除位置信息; SSAImpute-Fixed：使用固定权重进行双分支融合。

下载: 导出CSV

表 3 模型在Inter-Sensor数据集上的插补性能

方法	Temperature			Humidity			Light			Voltage
方法	MAE	RMSE	MRE(%)	MAE	RMSE	MRE(%)	MAE	RMSE	MRE(%)	MAE	RMSE	MRE(%)
SSAImpute-SMD	0.118	0.517	24.2	0.113	0.480	23.6	0.141	0.269	18.6	0.130	0.829	36.8
SSAImpute-S	0.120	0.515	24.6	0.116	0.486	24.1	0.143	0.271	18.9	0.129	0.830	36.6
SSAImpute-TSAE	0.119	0.520	24.5	0.118	0.483	24.6	0.150	0.285	19.8	0.137	0.829	39.0
SSAImpute-Pos	0.121	0.514	24.8	0.115	0.481	24.1	0.145	0.279	19.3	0.129	0.833	36.7
SSAImpute-Fixed	0.117	0.515	23.9	0.117	0.480	24.4	0.142	0.274	18.8	0.132	0.826	37.7
SSAImpute	0.111	0.513	22.6	0.110	0.477	22.9	0.138	0.265	15.3	0.124	0.827	35.2

下载: 导出CSV

表 4 模型在PeMS数据集上的插补性能

方法	PeMS04			PeMS07			PeMS11
方法	MAE	RMSE	MRE(%)	MAE	RMSE	MRE(%)	MAE	RMSE	MRE(%)
Mean^[14]	0.893	1.014	98.5	0.861	0.992	98.1	0.906	1.040	98.7
Median^[14]	0.907	1.029	99.9	0.876	1.001	99.9	0.918	1.055	99.9
KNN^[36]	0.646	0.754	71.3	0.618	0.73	70.6	0.653	0.767	71.2
M-RNN^[25]	0.270	0.407	29.8	0.241	0.375	27.5	0.233	0.352	25.3
BRITS^[26]	0.212	0.347	23.4	0.170	0.301	19.4	0.192	0.303	20.9
Transformer^[37]	0.208	0.342	22.9	0.167	0.287	19.0	0.188	0.296	20.5
SAITS^[30]	0.209	0.348	23.0	0.164	0.296	18.7	0.186	0.299	20.2
SSAImpute	0.203	0.328	22.4	0.153	0.274	17.5	0.180	0.284	19.6

下载: 导出CSV

表 5 模型在Inter-Sensor数据集上的插补性能

方法	Temperature			Humidity			Light			Voltage
方法	MAE	RMSE	MRE (%)	MAE	RMSE	MRE (%)	MAE	RMSE	MRE (%)		MAE	RMSE	MRE (%)
Mean^[14]	0.475	0.739	97.0	0.463	0.698	96.7	0.761	0.928	100		0.245	0.829	69.7
Median^[14]	0.489	0.772	100.0	0.478	0.733	99.9	0.755	0.939	99.9		0.201	0.829	69.7
KNN^[36]	0.302	0.624	61.6	0.291	0.581	60.7	0.375	0.572	49.6		0.222	0.823	63.2
M-RNN^[25]	0.300	0.582	61.2	0.290	0.539	60.6	0.305	0.460	40.4		0.317	0.836	89.9
BRITS^[26]	0.194	0.538	39.8	0.187	0.499	39.0	0.184	0.329	24.4		0.136	0.824	38.7
Transformer^[37]	0.191	0.524	39.0	0.186	0.494	39.0	0.163	0.304	21.6		0.143	0.824	40.7
SAITS^[30]	0.132	0.514	27.1	0.126	0.482	26.4	0.153	0.295	20.2		0.136	0.830	38.7
SSAImpute	0.111	0.513	22.6	0.112	0.479	23.3	0.138	0.265	15.3		0.124	0.827	35.2

下载: 导出CSV

参考文献(37)
