基于改进子载波预留算法的正交频分复用信号峰均比抑制方法研究

刘子威 杨彪 赵珊珊 杜鸿飞

刘子威, 杨彪, 赵珊珊, 杜鸿飞. 基于改进子载波预留算法的正交频分复用信号峰均比抑制方法研究[J]. 电子与信息学报, 2024, 46(4): 1196-1202. doi: 10.11999/JEIT230475
引用本文: 刘子威, 杨彪, 赵珊珊, 杜鸿飞. 基于改进子载波预留算法的正交频分复用信号峰均比抑制方法研究[J]. 电子与信息学报, 2024, 46(4): 1196-1202. doi: 10.11999/JEIT230475
LIU Ziwei, YANG Biao, ZHAO Shanshan, DU Hongfei. Research on Peak to Average Power Ratio Suppression Method of Orthogonal Frequency Division Multiplexing Signal Based on Improved Tone Reservation Algorithm[J]. Journal of Electronics & Information Technology, 2024, 46(4): 1196-1202. doi: 10.11999/JEIT230475
Citation: LIU Ziwei, YANG Biao, ZHAO Shanshan, DU Hongfei. Research on Peak to Average Power Ratio Suppression Method of Orthogonal Frequency Division Multiplexing Signal Based on Improved Tone Reservation Algorithm[J]. Journal of Electronics & Information Technology, 2024, 46(4): 1196-1202. doi: 10.11999/JEIT230475

基于改进子载波预留算法的正交频分复用信号峰均比抑制方法研究

doi: 10.11999/JEIT230475
基金项目: 国家自然科学基金(61801233),国防科技重点实验室基金(JKW202209)
详细信息
    作者简介:

    刘子威:男,副教授,研究方向为雷达信号处理、雷达自适应抗干扰技术和阵列信号处理

    杨彪:男,硕士生,研究方向为雷达信号处理

    赵珊珊:女,副教授,研究方向为雷达信号处理、雷达自适应抗干扰技术和阵列信号处理

    杜鸿飞:男,硕士生,研究方向为雷达信号处理

    通讯作者:

    赵珊珊 zhaoshanshan025@163.com

  • 中图分类号: TN95

Research on Peak to Average Power Ratio Suppression Method of Orthogonal Frequency Division Multiplexing Signal Based on Improved Tone Reservation Algorithm

Funds: The National Natural Science Foundation of China (61801233), The Science and Technology Foundation of State Key Laboratory (JKW202209)
  • 摘要: 由于系统对线性元器件的要求非常严格,导致目前正交频分复用(OFDM)系统产生峰值平均功率比(PAPR)过高的问题,引起OFDM和基于OFDM的雷达一体化系统的信号失真,影响系统性能。针对该问题,该文提出了基于加权最小二乘法的子载波预留法(TR)。该算法首先将OFDM设计方案中的子载波分为数据子载波和预留的空白子载波,数据子载波调制数据子载波,空白子载波调制空白数据。然后利用原始数据通过加权最小二乘法得到最佳削峰系数和削峰数据,并将削峰数据调制在空白子载波上面。最后将削峰数据叠加到原始数据上,完成PAPR的抑制。仿真表明,基于加权最小二乘法的TR算法能够在1~3次迭代下实现良好的PAPR抑制效果,并且它的收敛速度相比于传统算法有了明显的提高。

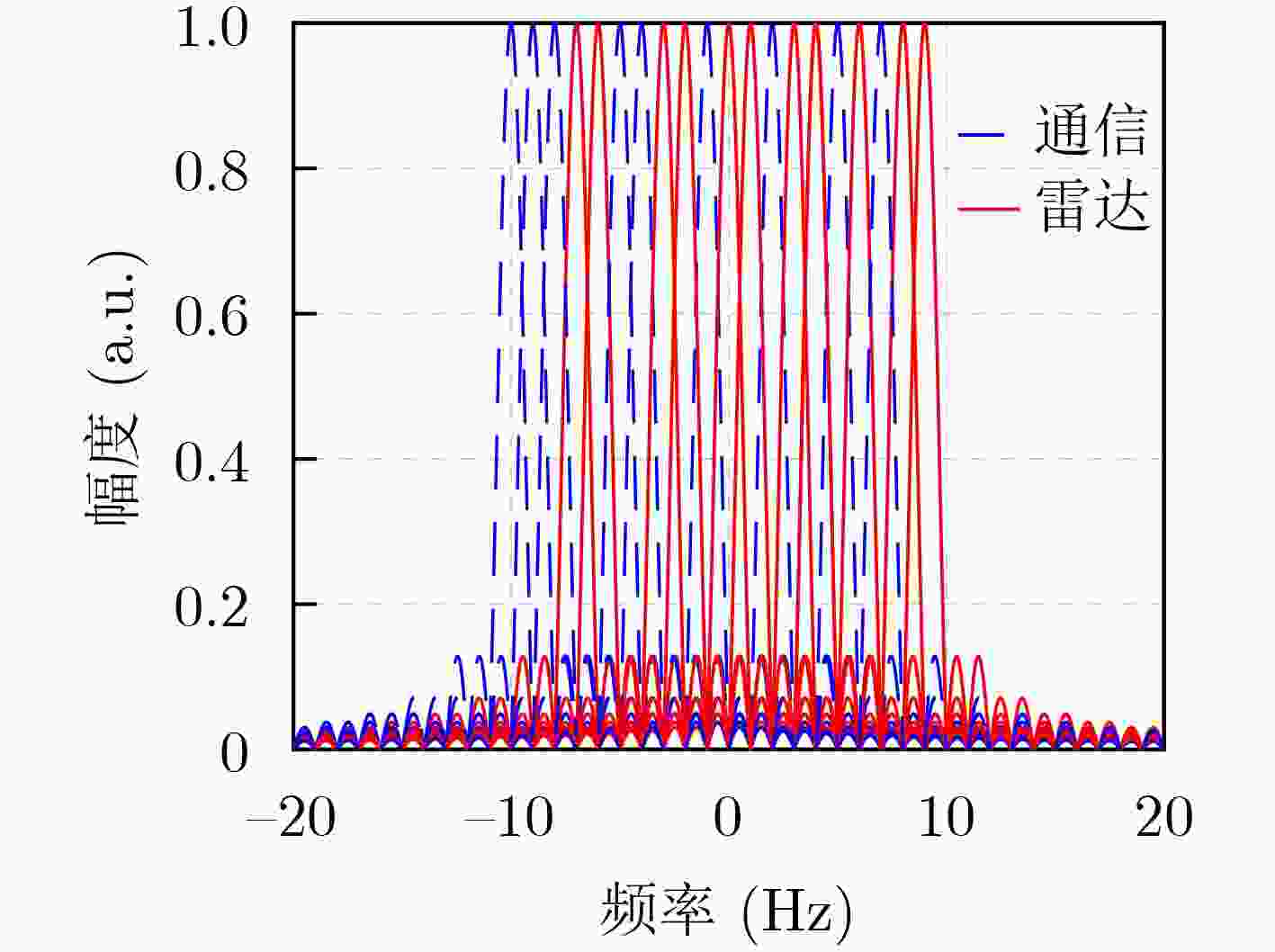

  • 图  1  一体化波形频域示意图

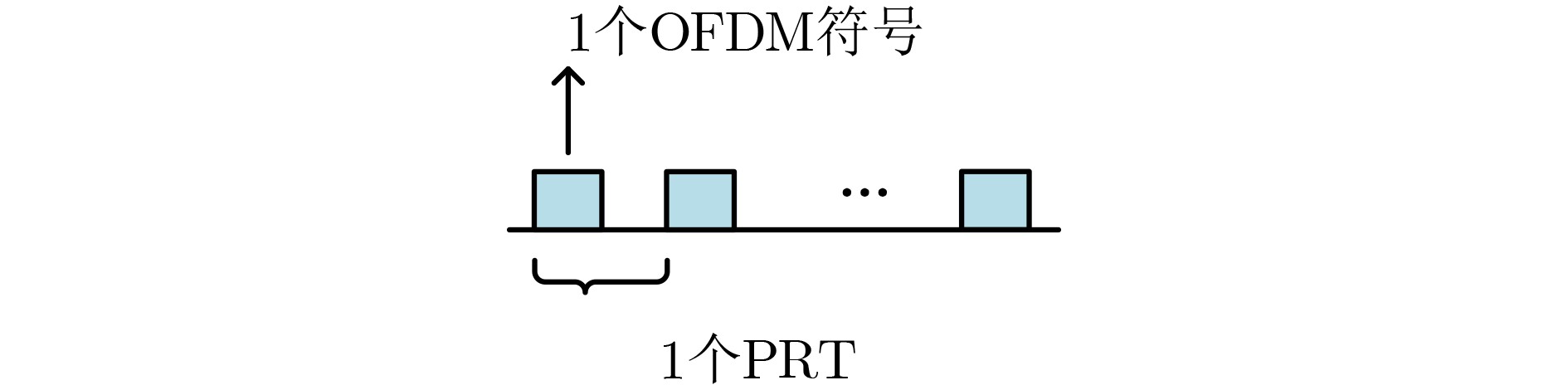

    图  2  基于OFDM子载波分配的雷达通信一体化的子载波分配示意图

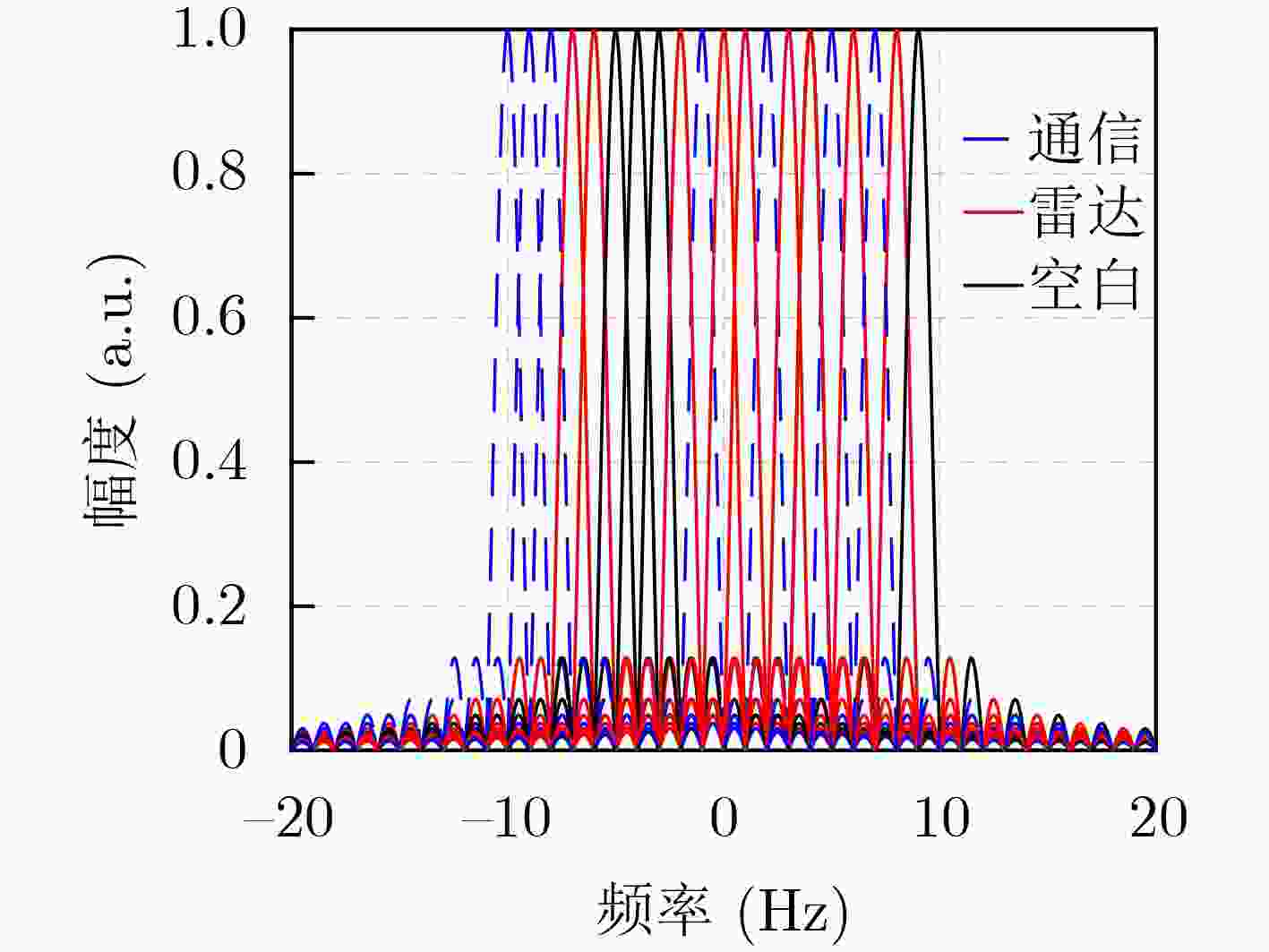

    图  3  基于加权最小二乘法的TR算法下的一体化子载波分配示意图

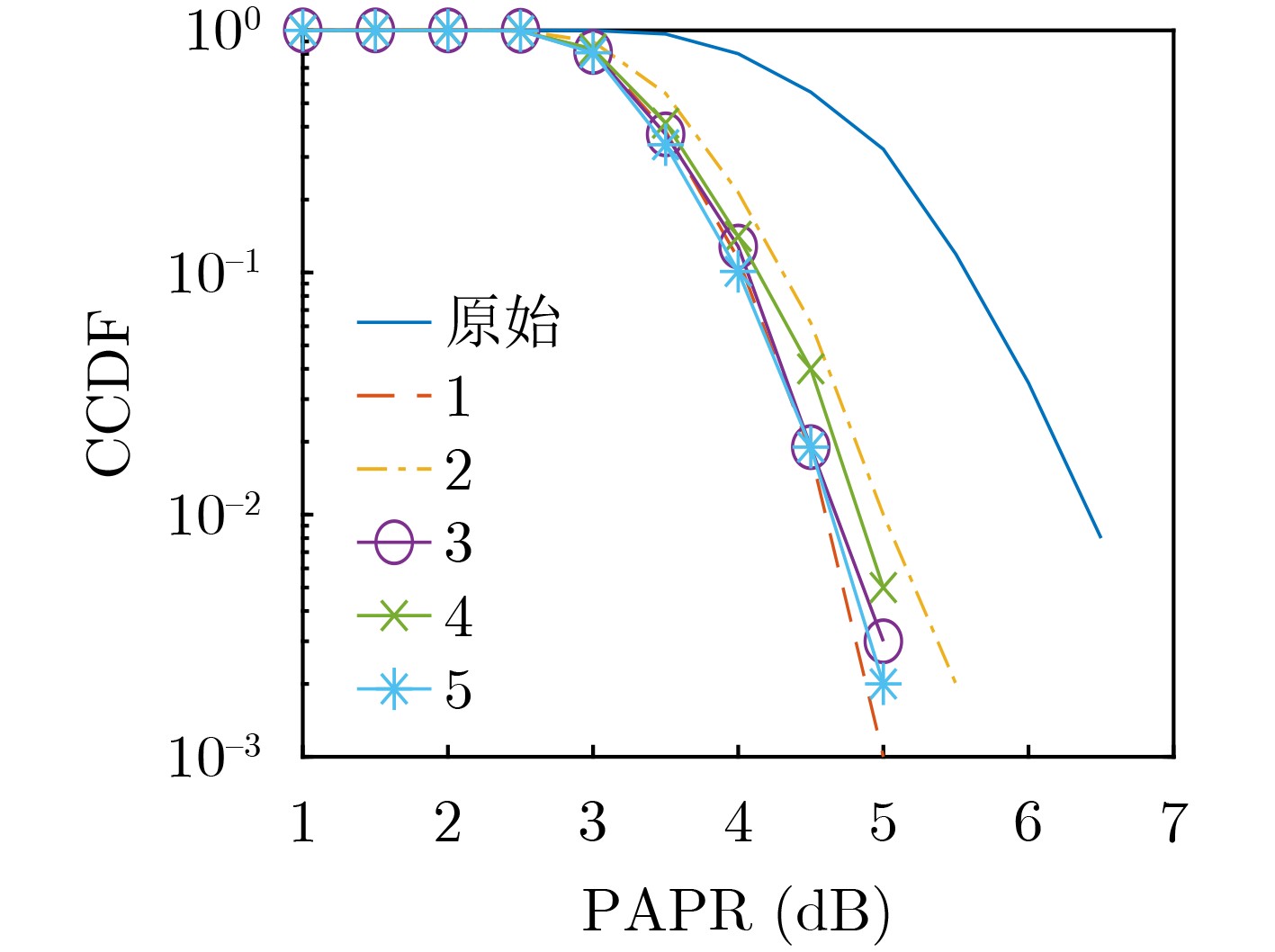

    图  4  基于加权最小二乘法的TR算法的PAPR抑制效果的CCDF曲线

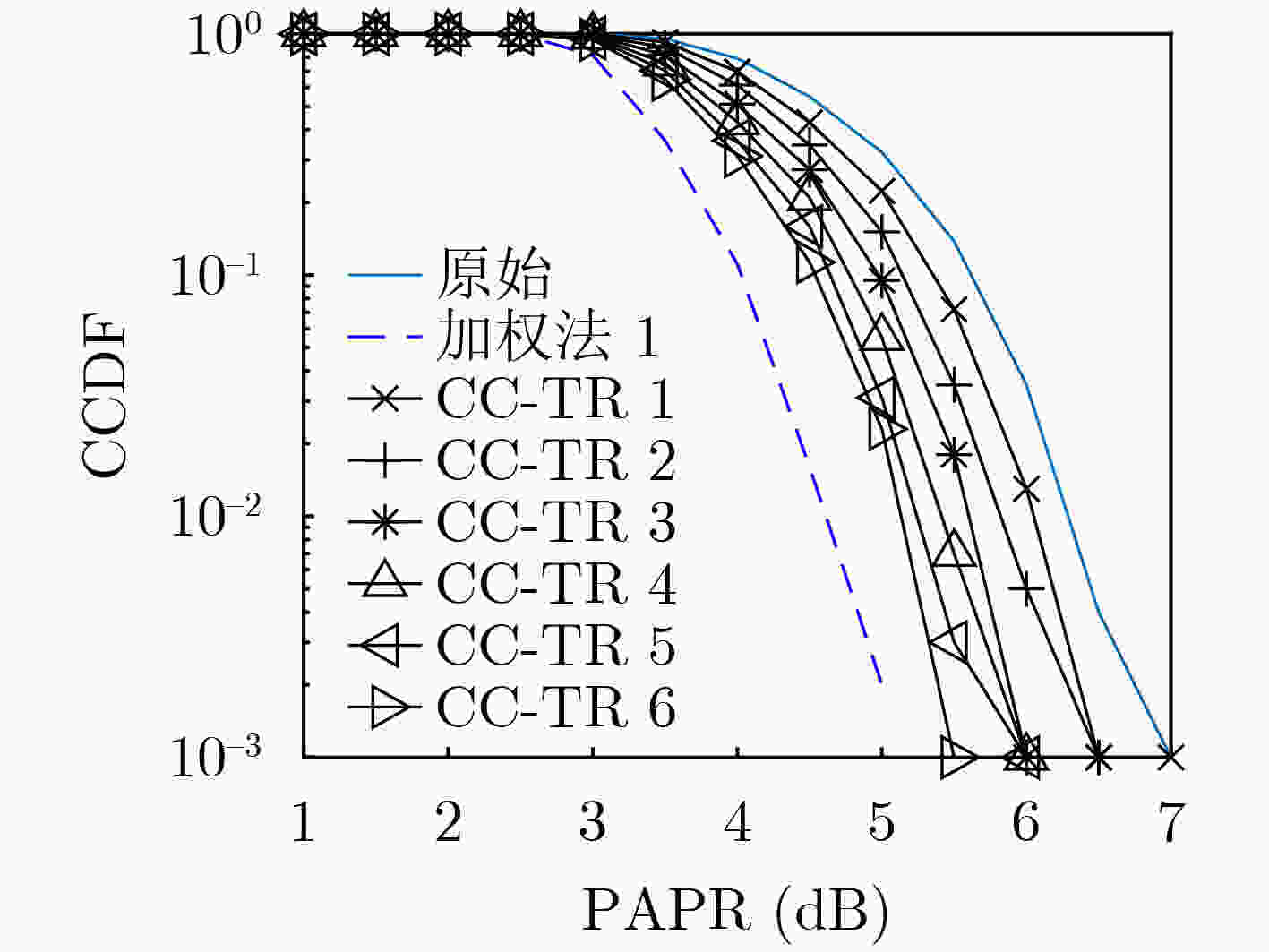

    图  5  基于加权最小二乘法的TR算法与CC-TR算法的PAPR抑制效果的PAPR的CCDF曲线

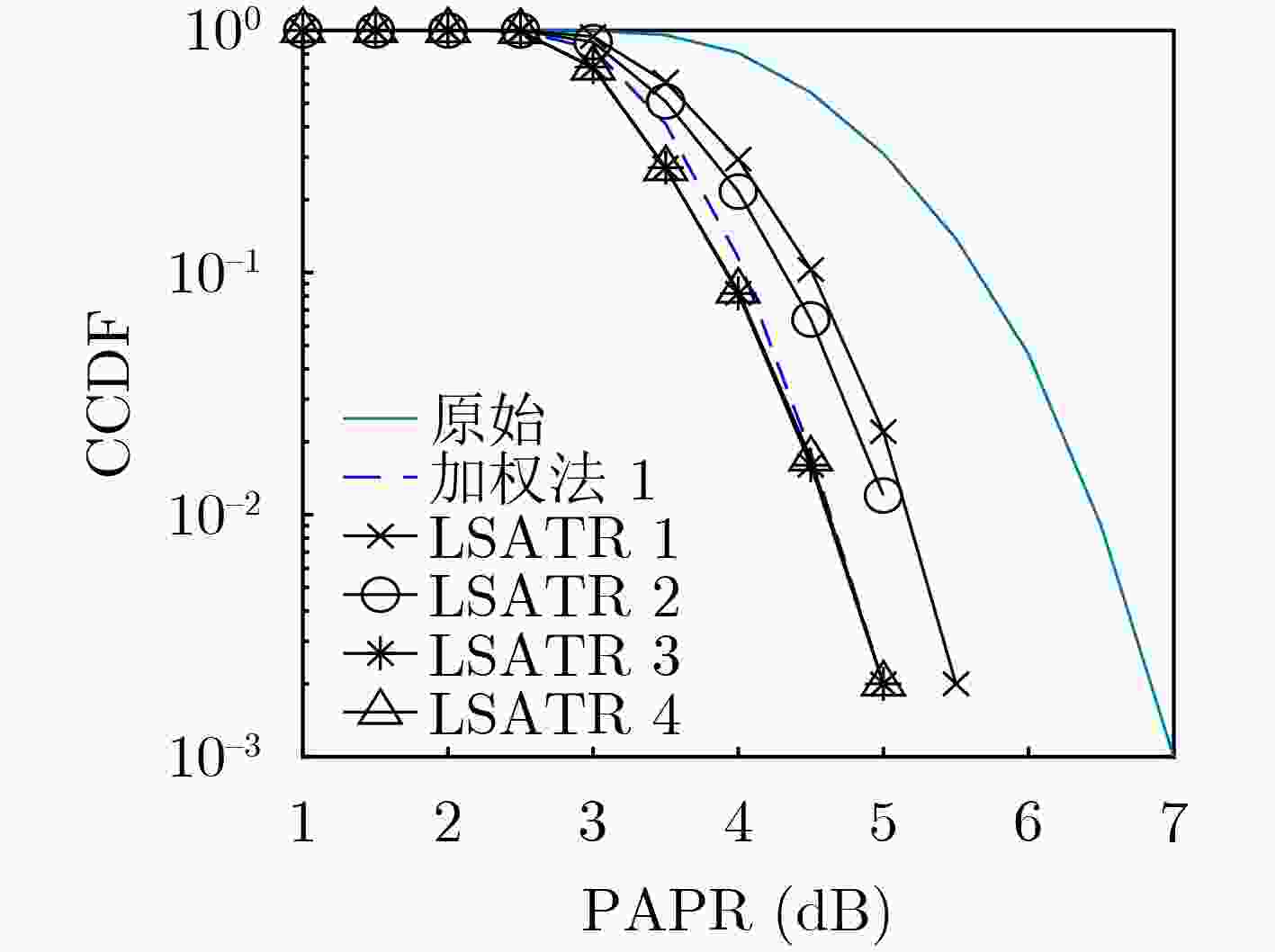

    图  6  基于加权最小二乘法的TR算法与LSA-TR算法的PAPR抑制效果的PAPR的CCDF曲线

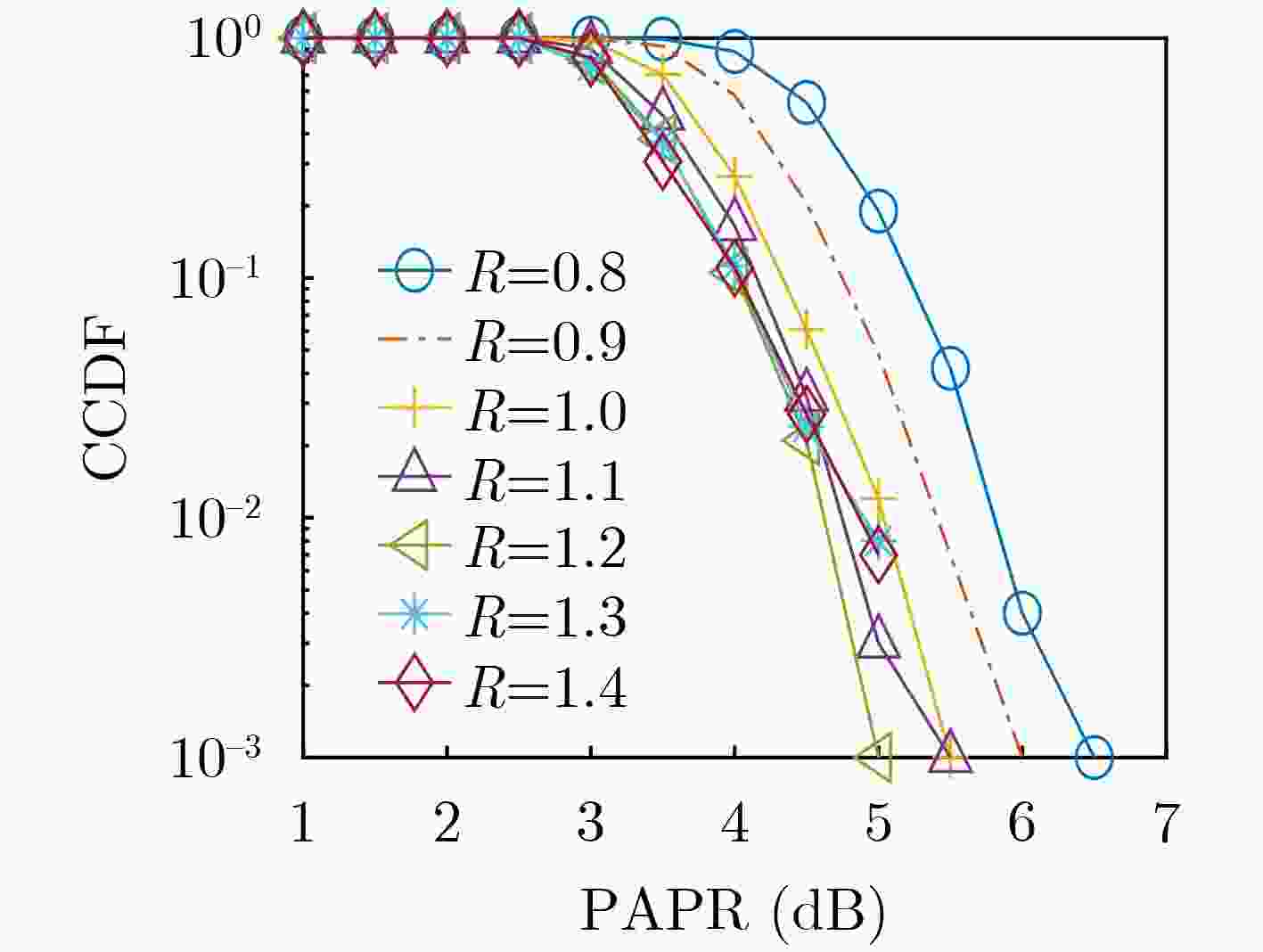

    图  7  基于加权最小二乘法的TR算法中不同幅度放大系数下的第1次迭代后的PAPR的CCDF曲线

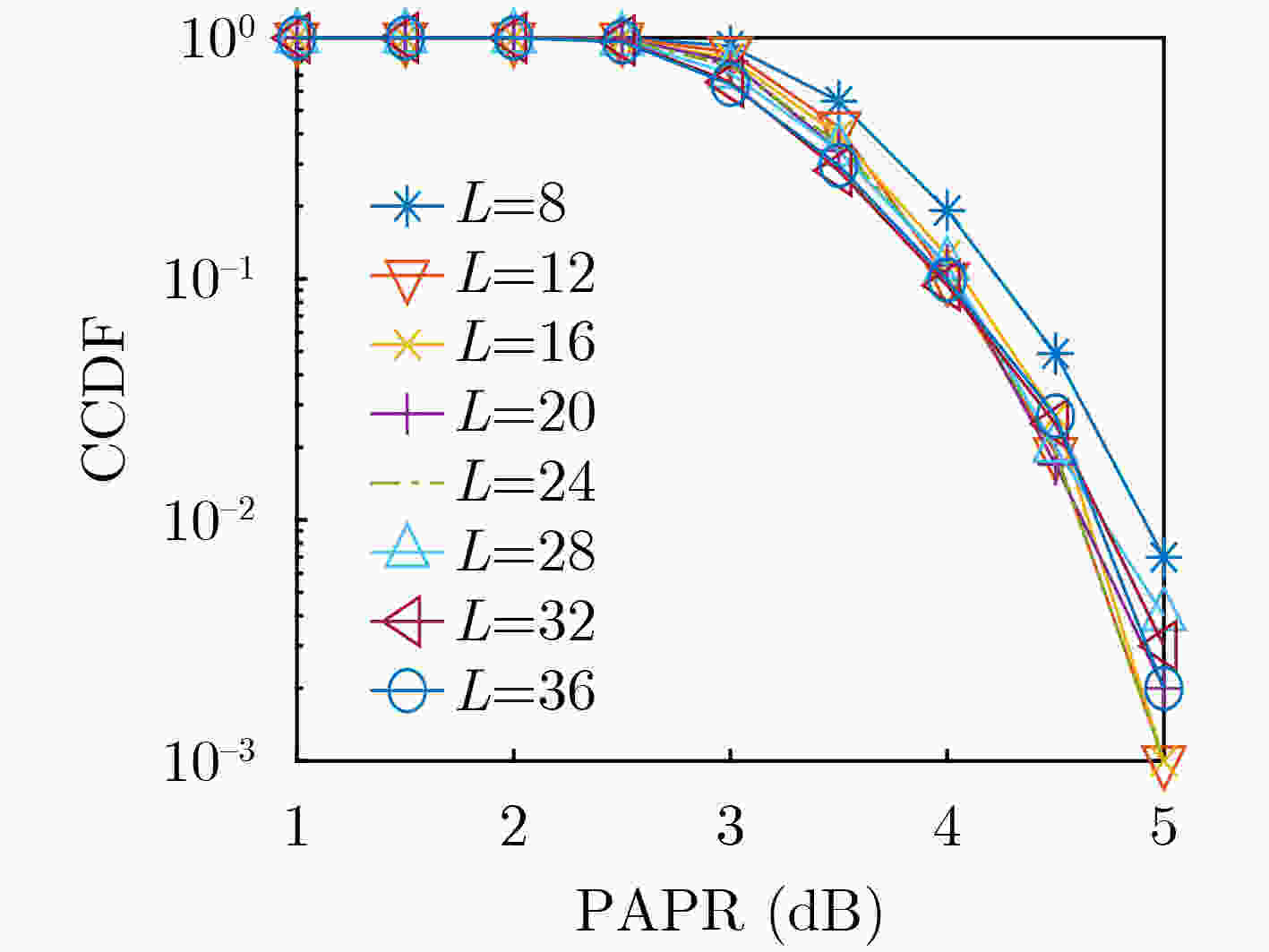

    图  8  基于加权最小二乘法的TR算法中不同空白子载波个数下的第1次迭代后PAPR的CCDF曲线

    表  1  PAPR仿真参数

    参数数值
    雷达载频1.5 GHz
    信号带宽1 MHz
    信号时宽64 μs
    采样频率2 MHz
    脉冲周期480 μs
    信噪比20 dB
    迭代次数5
    下载: 导出CSV
