对空间探测雷达网的多机协同航迹欺骗干扰方法

赵艳丽 李宏 杜嘉薇 徐阳

赵艳丽, 李宏, 杜嘉薇, 徐阳. 对空间探测雷达网的多机协同航迹欺骗干扰方法[J]. 电子与信息学报, 2023, 45(2): 585-591. doi: 10.11999/JEIT211575
引用本文: 赵艳丽, 李宏, 杜嘉薇, 徐阳. 对空间探测雷达网的多机协同航迹欺骗干扰方法[J]. 电子与信息学报, 2023, 45(2): 585-591. doi: 10.11999/JEIT211575
ZHAO Yanli, LI Hong, DU Jiawei, XU Yang. Multi-jammer Cooperation Track Deception Jamming Method Against Space Detection Radar Network[J]. Journal of Electronics & Information Technology, 2023, 45(2): 585-591. doi: 10.11999/JEIT211575
Citation: ZHAO Yanli, LI Hong, DU Jiawei, XU Yang. Multi-jammer Cooperation Track Deception Jamming Method Against Space Detection Radar Network[J]. Journal of Electronics & Information Technology, 2023, 45(2): 585-591. doi: 10.11999/JEIT211575

对空间探测雷达网的多机协同航迹欺骗干扰方法

doi: 10.11999/JEIT211575
详细信息
    作者简介:

    赵艳丽:女,高级工程师,主要研究方向为雷达对抗、多目标跟踪、多传感器信息融合、电子信息系统仿真与评估等

    李宏:男,研究员,主要研究方向为雷达对抗技术、电子信息装备试验与鉴定等

    杜嘉薇:女,工程师,主要研究方向为信息对抗、智能感知等

    徐阳:女,工程师,主要研究方向为雷达信号处理、雷达电子对抗等

    通讯作者:

    赵艳丽 lilyphd@163.com

  • 中图分类号: TN973

Multi-jammer Cooperation Track Deception Jamming Method Against Space Detection Radar Network

  • 摘要: 该文提出了针对空间探测雷达网的高逼真的多机协同航迹欺骗干扰方法。首先对问题进行了约束条件分析,提出多干扰机在大气层外飞行过程中保持构型不变的协同飞行思路;其次,推导计算了多干扰机的初始状态和多干扰机的干扰延迟时间;接着,给出了高逼真航迹欺骗干扰措施的设计流程和实施流程。最后,进行仿真实验并进行总结。仿真结果表明,所提方法能对空间探测雷达网形成有效的高逼真欺骗航迹。

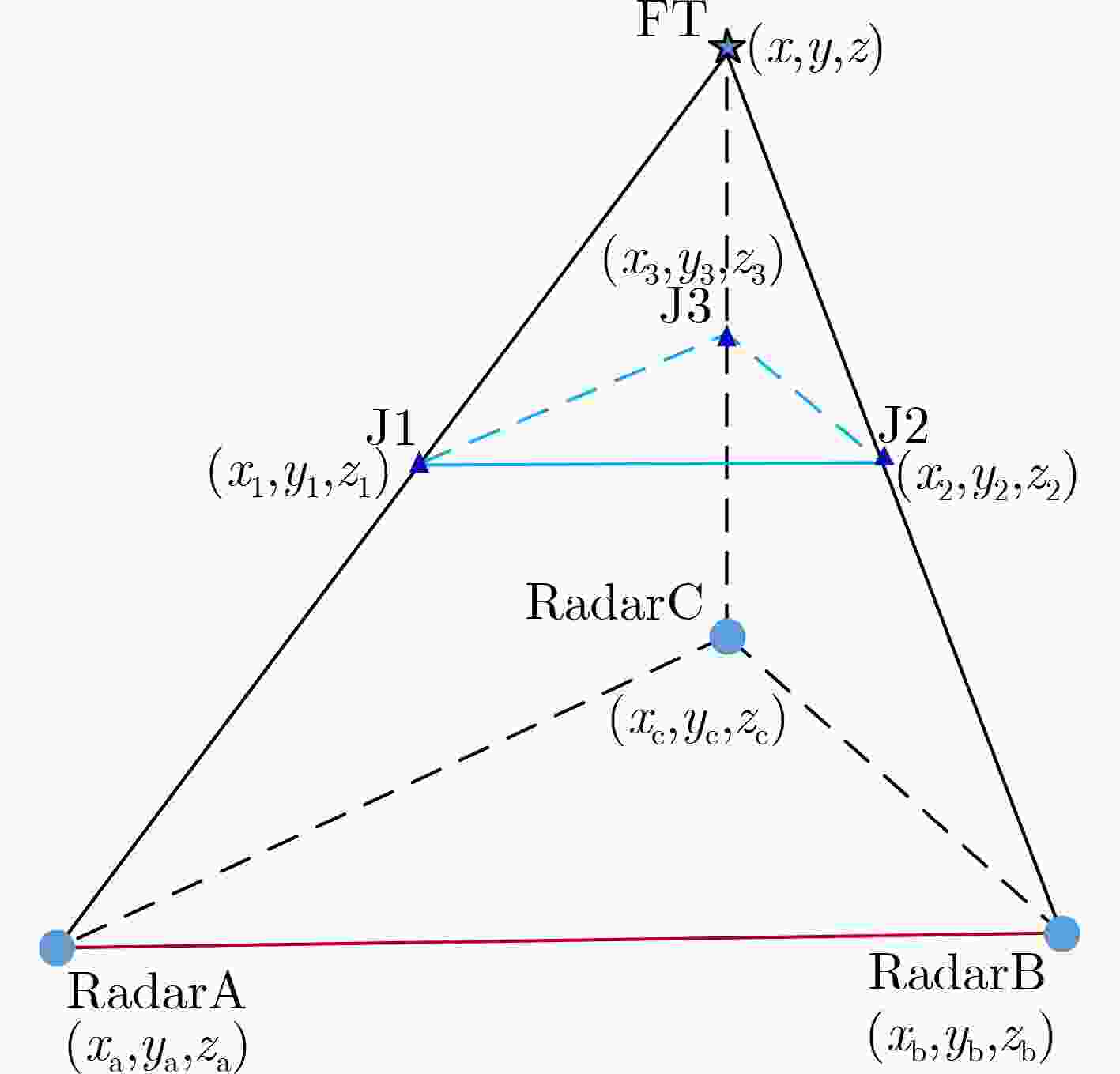

  • 图  1  基于平行相似原理的欺骗航迹生成示意图

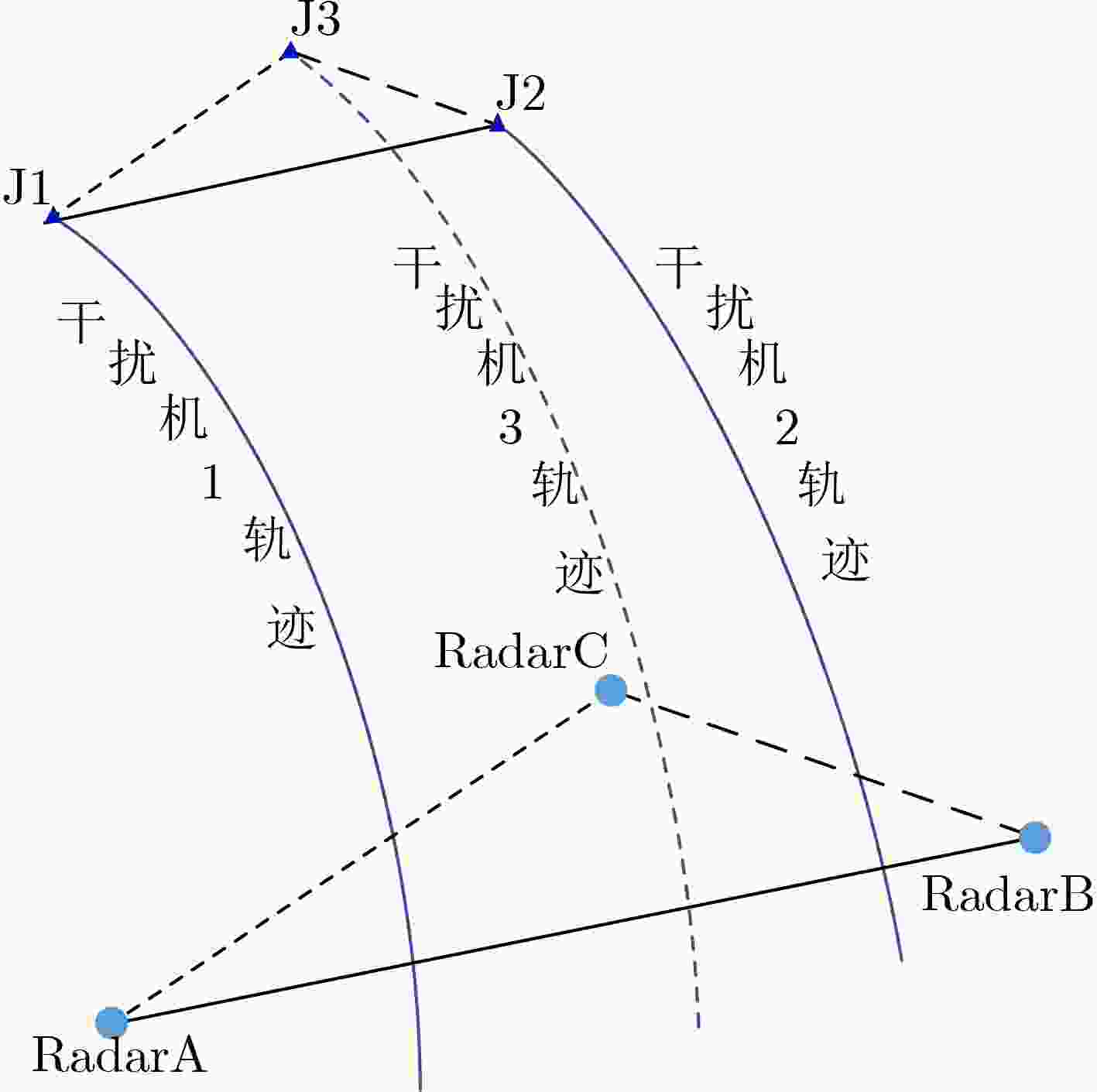

    图  2  平行伴飞式,多干扰机与雷达网空间态势示意图

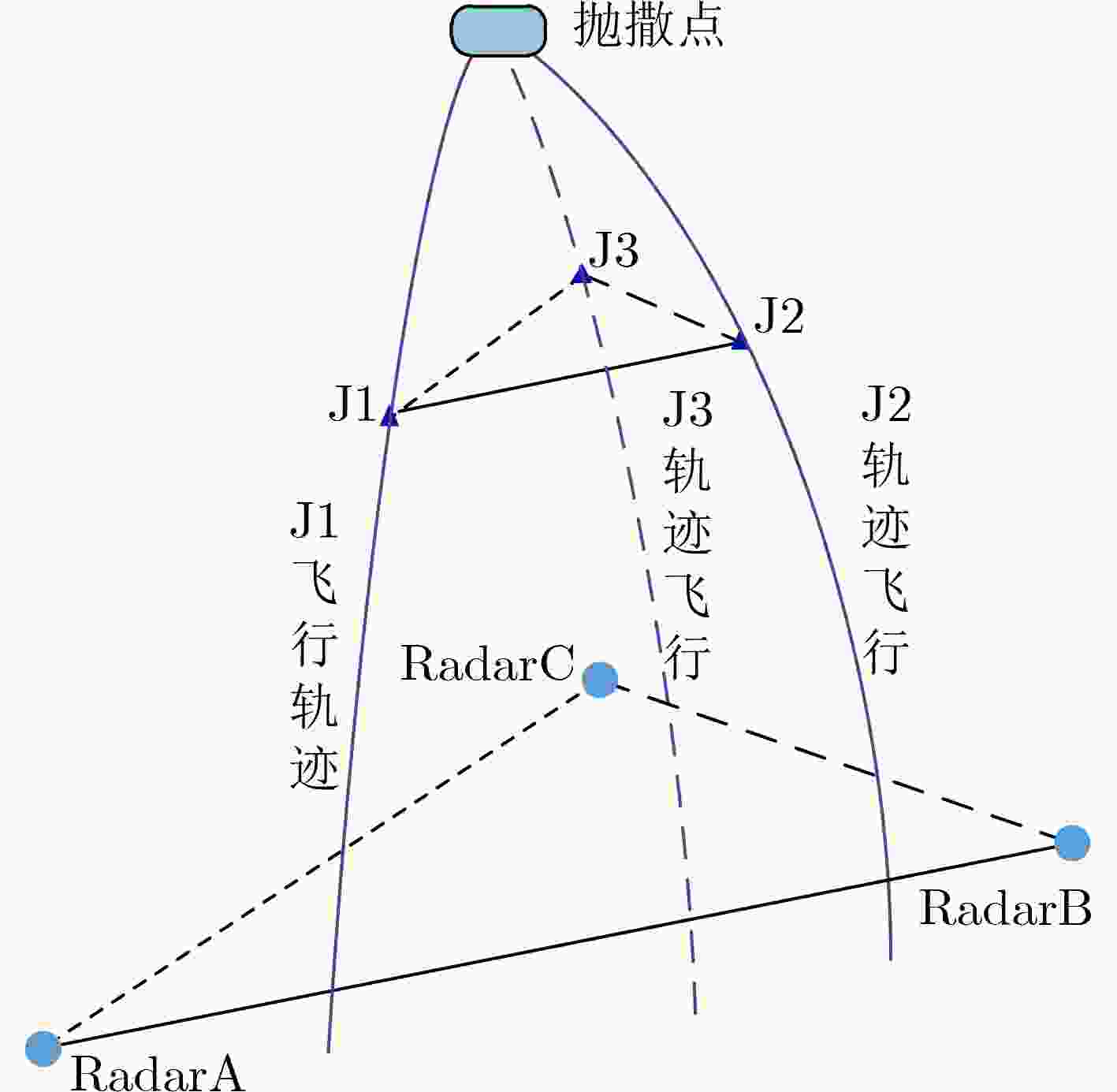

    图  3  分导式,多干扰机与雷达网空间态势示意图

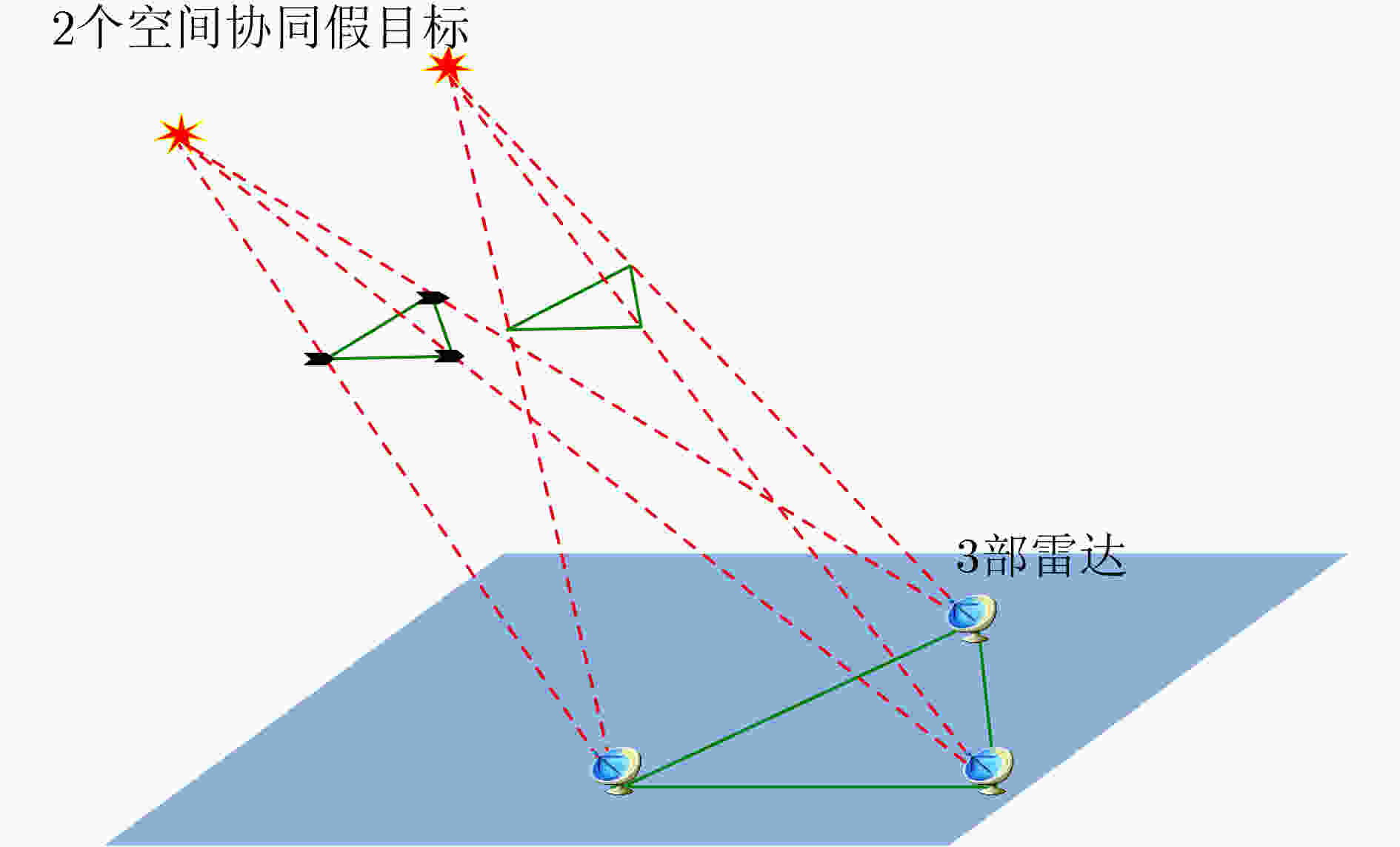

    图  4  3部雷达组网,协同假目标点迹示意图

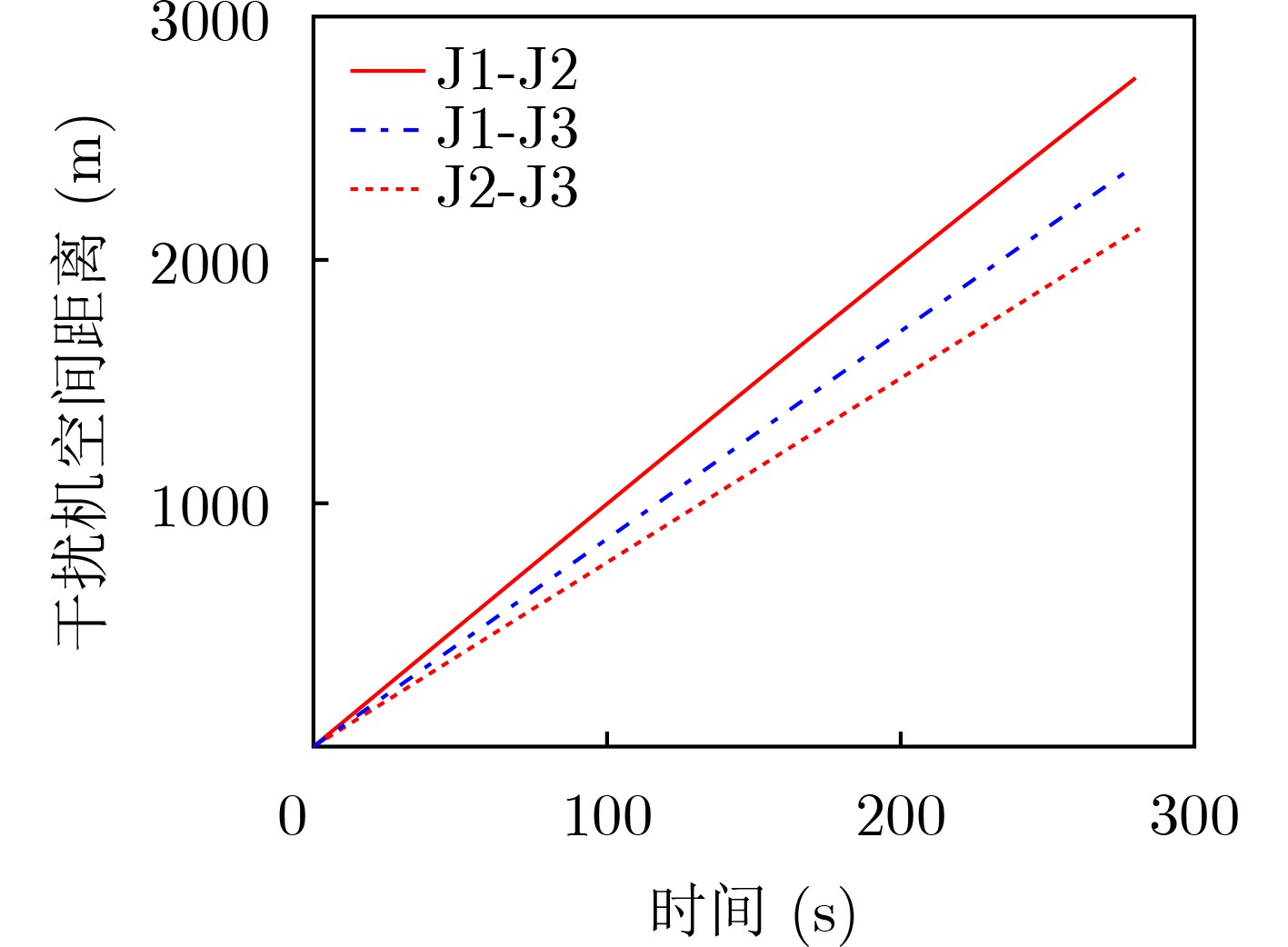

    图  5  干扰机空间距离

    图  6  3部干扰机的速度

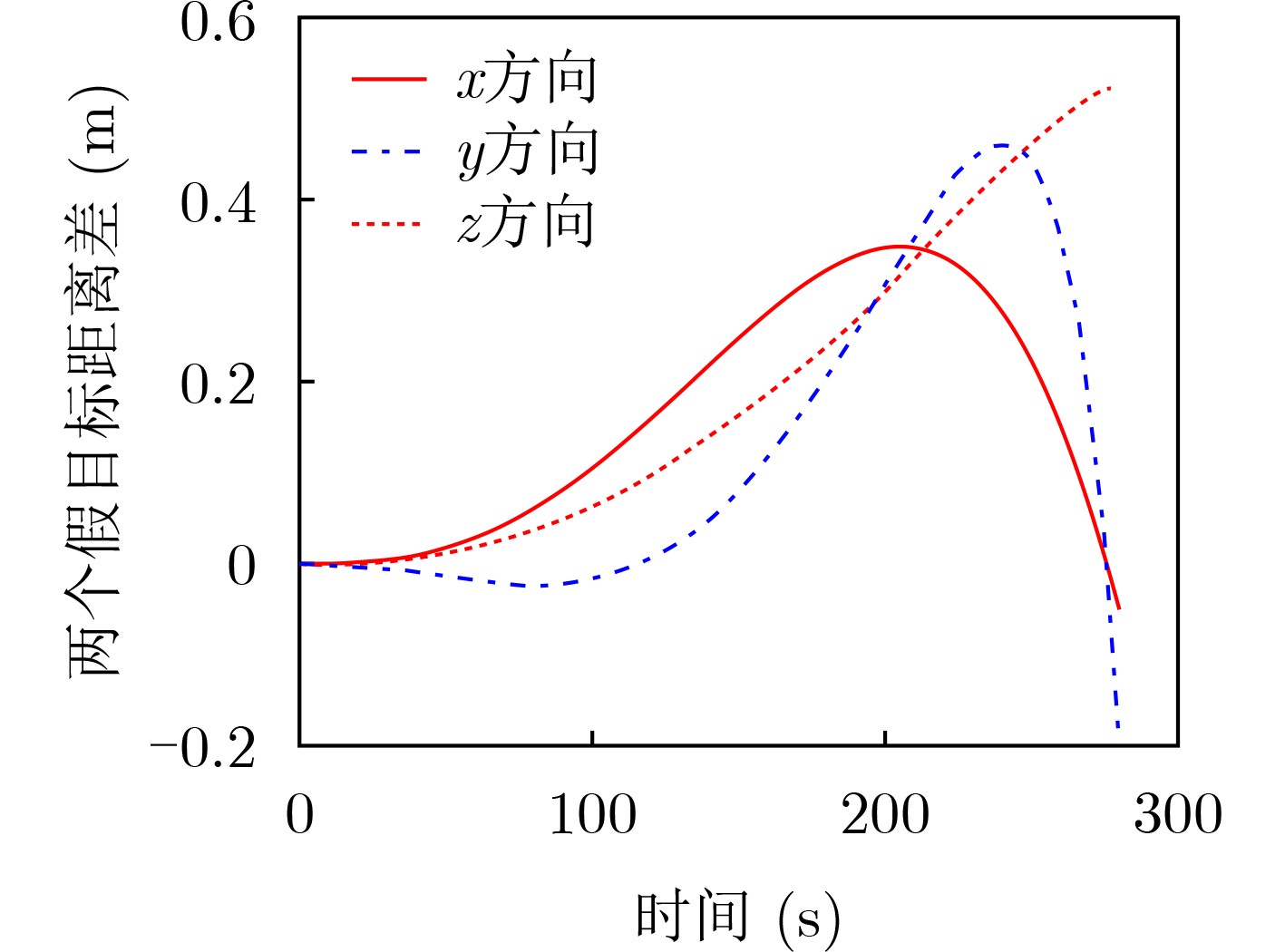

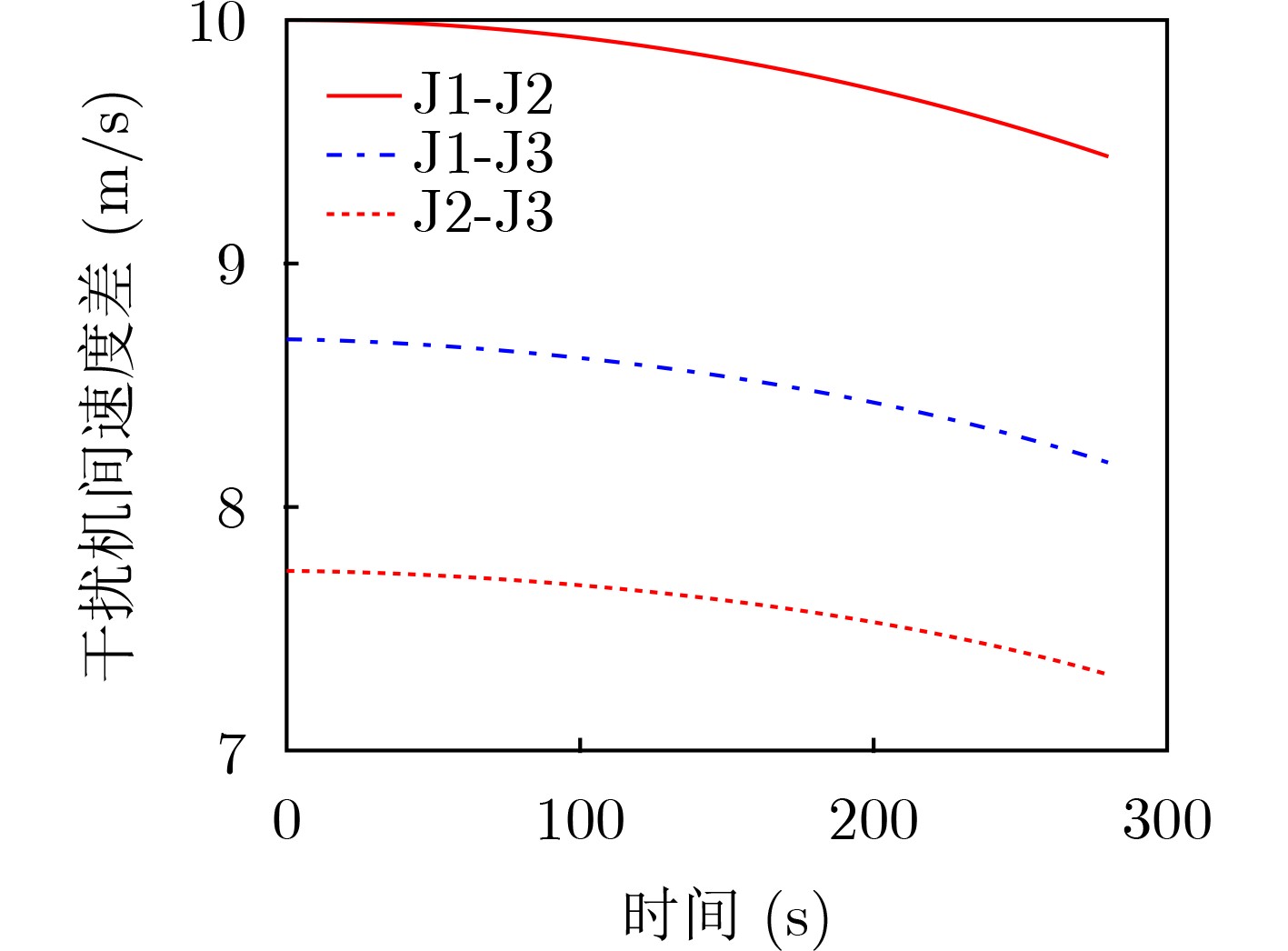

    图  7  协同假目标空间位置误差

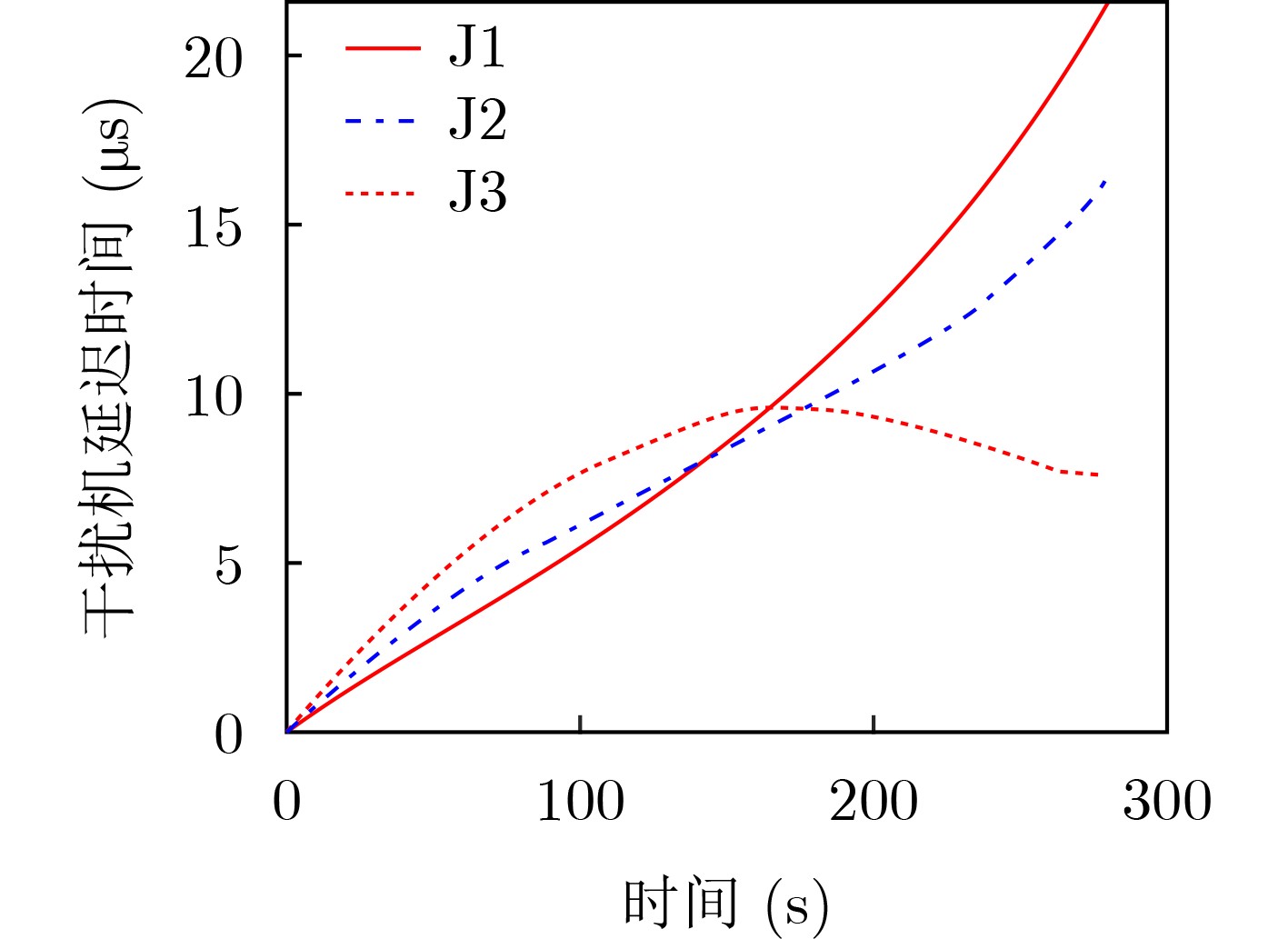

    图  8  干扰机延迟时间

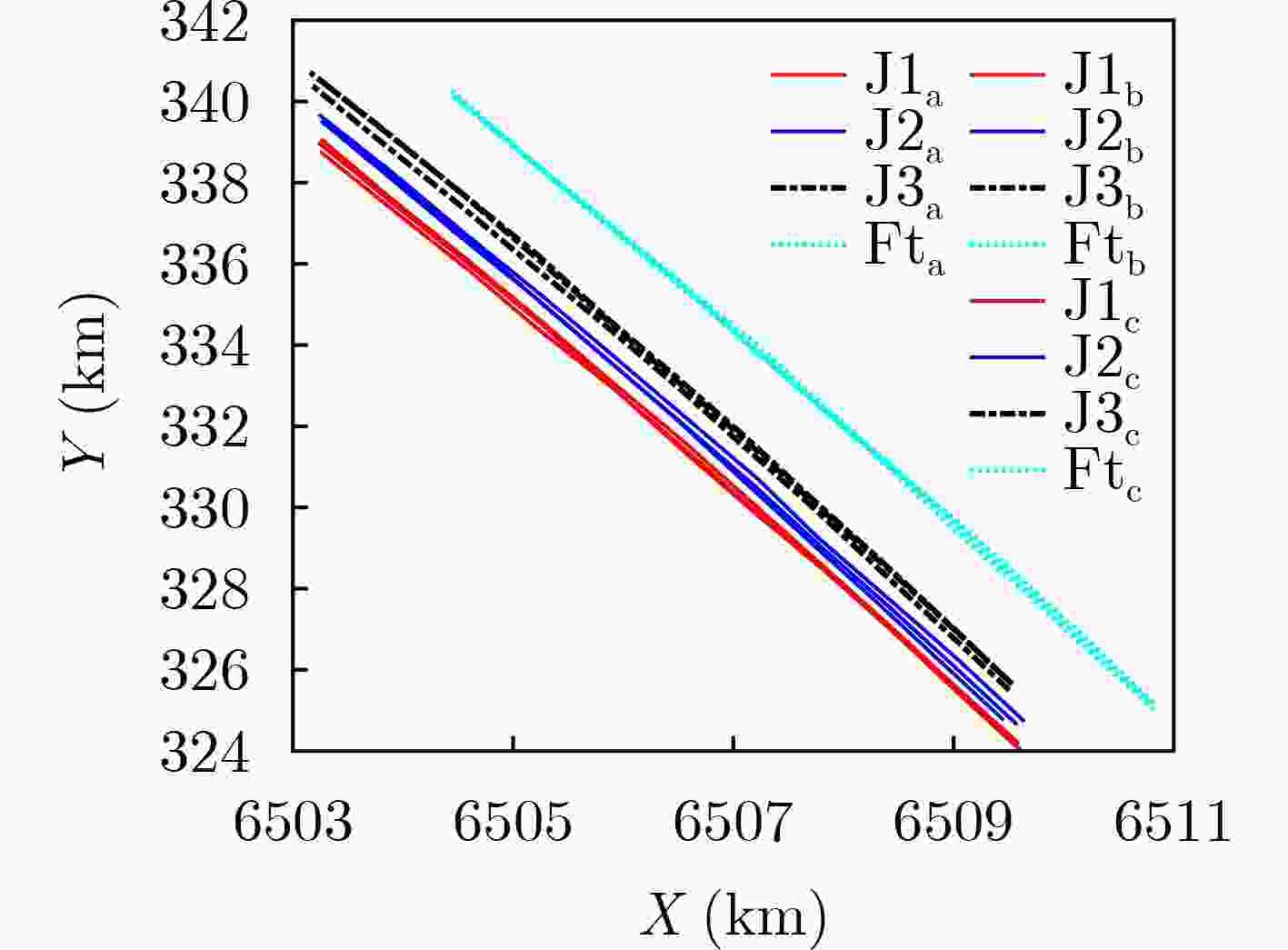

    图  9  统一坐标系下,3部雷达所观测到的12条航迹

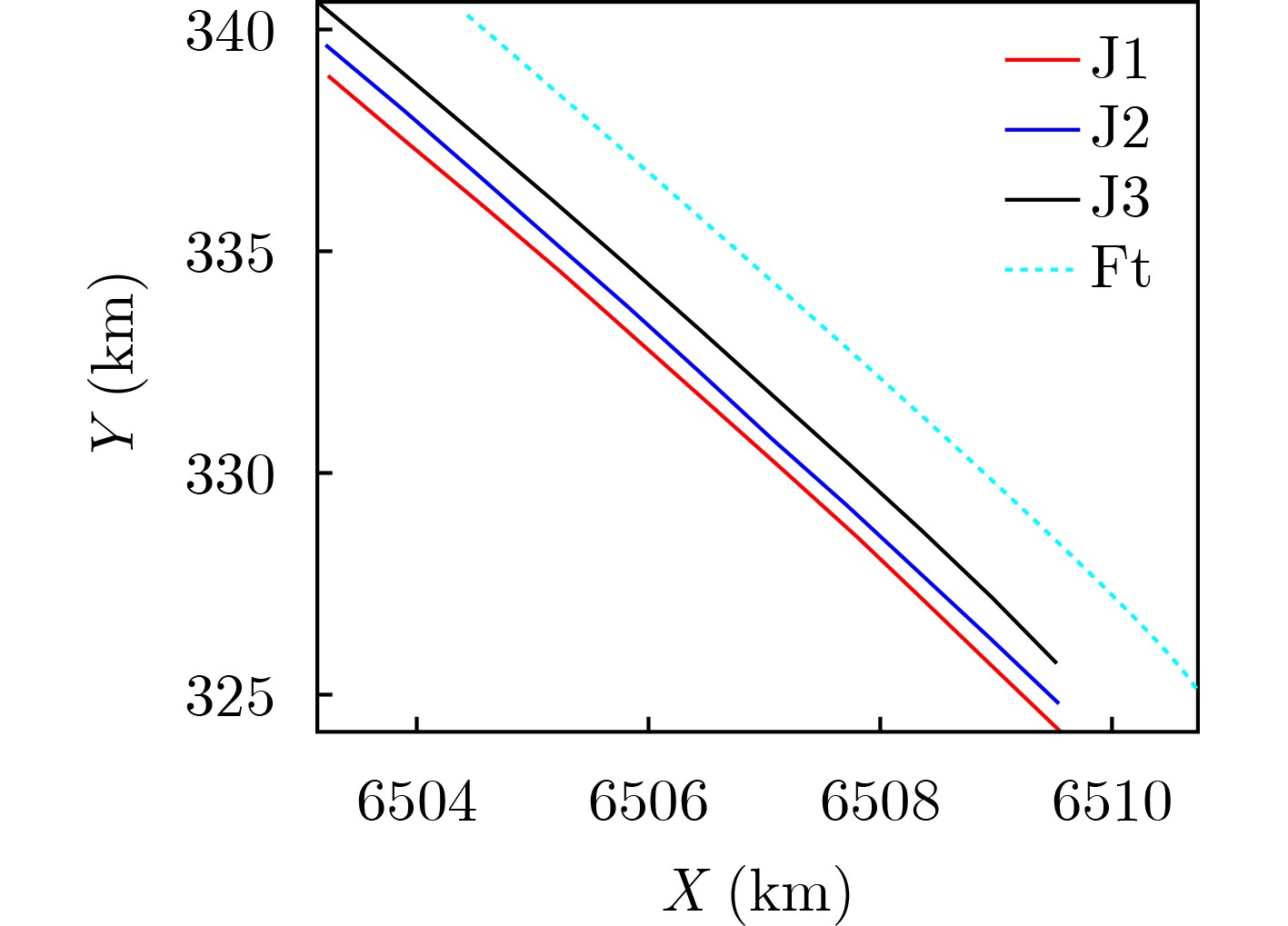

    图  10  融合处理后的航迹
