基于主从式水下自主航行器移动组网的合作目标定位方法

赵婧旭; 赵晨; 周锋

doi:10.11999/JEIT211359

基于主从式水下自主航行器移动组网的合作目标定位方法

doi: 10.11999/JEIT211359

赵婧旭^{1, 2, 3},
赵晨⁴,
周锋^{1, 2, 3, ,}

1.
哈尔滨工程大学水声技术重点实验室哈尔滨 150001
2.
海洋信息获取与安全工信部重点实验室(哈尔滨工程大学)工业和信息化部哈尔滨 150001
3.
哈尔滨工程大学水声工程学院哈尔滨 150001
4.
北京遥感设备研究所北京 100854

基金项目: 国家自然科学基金(U1806201, 11974090)

详细信息

作者简介:
赵婧旭：女，1999年生，博士生，研究方向为水下目标定位、水声网络定位

赵晨：男，1993年生，博士，研究方向为水下目标定位、水声网络定位、长基线定位

周锋：男，1980年生，博士，教授，博士生导师，研究方向为水声通信网络、水声网络导航定位

通讯作者:
周锋　zhoufeng@hrbeu.edu.cn

中图分类号: TN929.3
计量
- 文章访问数: 782
- HTML全文浏览量: 442
- PDF下载量: 144
- 被引次数: 0
出版历程
- 收稿日期: 2021-11-30
- 修回日期: 2022-04-07
- 网络出版日期: 2022-04-18
- 刊出日期: 2022-06-21

Cooperative Target Location Method Based on Master-slave Autonomous Underwater Vehicles Mobile Network

ZHAO Jingxu^{1, 2, 3},
ZHAO Chen⁴,
ZHOU Feng^{1, 2, 3
, ,}

1.
Acoustic Science and Technology Laboratory, Harbin Engineering University, Harbin 150001, China
2.
Key Laboratory of Marine Information Acquisition and Security (Harbin Engineering University), Ministry of Industry and Information Technology, Harbin 150001, China
3.
College of Underwater Acoustic Engineering, Harbin Engineering University, Harbin 150001, China
4.
Beijing Institute of Remote Sensing Equipment, Beijing 100854, China

Funds: The National Natural Science Foundation of China (U1806201, 11974090)

摘要

摘要: 利用水下自主航行器(AUVs)协同编队可以在未知水域中实现对目标的定位。针对AUV导航误差导致定位精度降低问题，该文提出一种基于扩展卡尔曼滤波器(EKF)的多AUV编队融合观测协同目标定位算法。AUV编队由一个装备有高精度惯性导航系统(INS)的领航AUV以及多个装配有低精度INS的跟随AUV组成。从跟随AUV中选取参考AUV和待测AUV，通过设置定位周期和观测间隔来分别对其进行不同的观测。参考AUV作为中转，接收来自高精度AUV位置参数后，向待测AUV传递自身位置参数，利用扩展卡尔曼滤波器完成对AUV集群的协同位置修正。仿真结果表明，该方法AUV集群自身定位精度高且误差随时间积累小，对领航AUV数量需求少，能够实现水下目标低功耗、远距离定位。
- 水下自主航行器导航定位 /
- 水下自主航行器编队 /
- 扩展卡尔曼滤波
Abstract: The cooperative formation of Autonomous Underwater Vehicles (AUVs) can be used to locate targets in unknown waters. In order to reduce the positioning error caused by AUV navigation errors, a multi-AUV formation fusion observation cooperative target positioning algorithm based on Extended Kalman Filter (EKF) is proposed in this paper. The AUV formation consists of a pilot AUV equipped with a high precision Inertial Navigation System (INS) and several following AUVs equipped with low precision INS. The reference AUV and the AUV to be measured are selected from the following AUV, and different observations are made respectively by setting the positioning period and observation interval. After receiving position parameters from high-precision AUV with reference to AUV as relay, its own position parameters are transmitted to the AUV to be tested, and cooperative position correction of AUV cluster is completed with extended Kalman filter. Simulation results show that the AUV cluster has high positioning accuracy and small error accumulation over time, which requires less piloting AUV quantity and can achieve low power consumption and long-distance positioning of underwater targets.

HTML全文

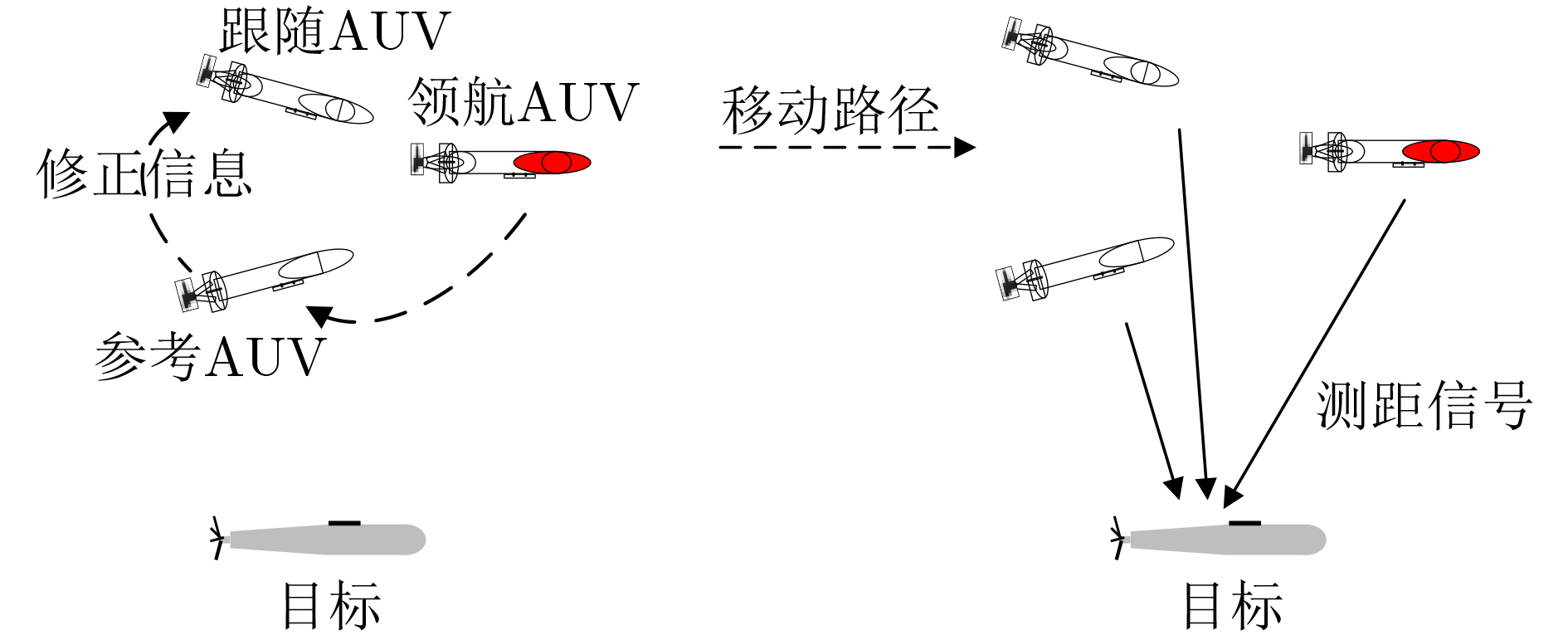

图 1 AUV水下定位系统示意图

下载: 全尺寸图片幻灯片

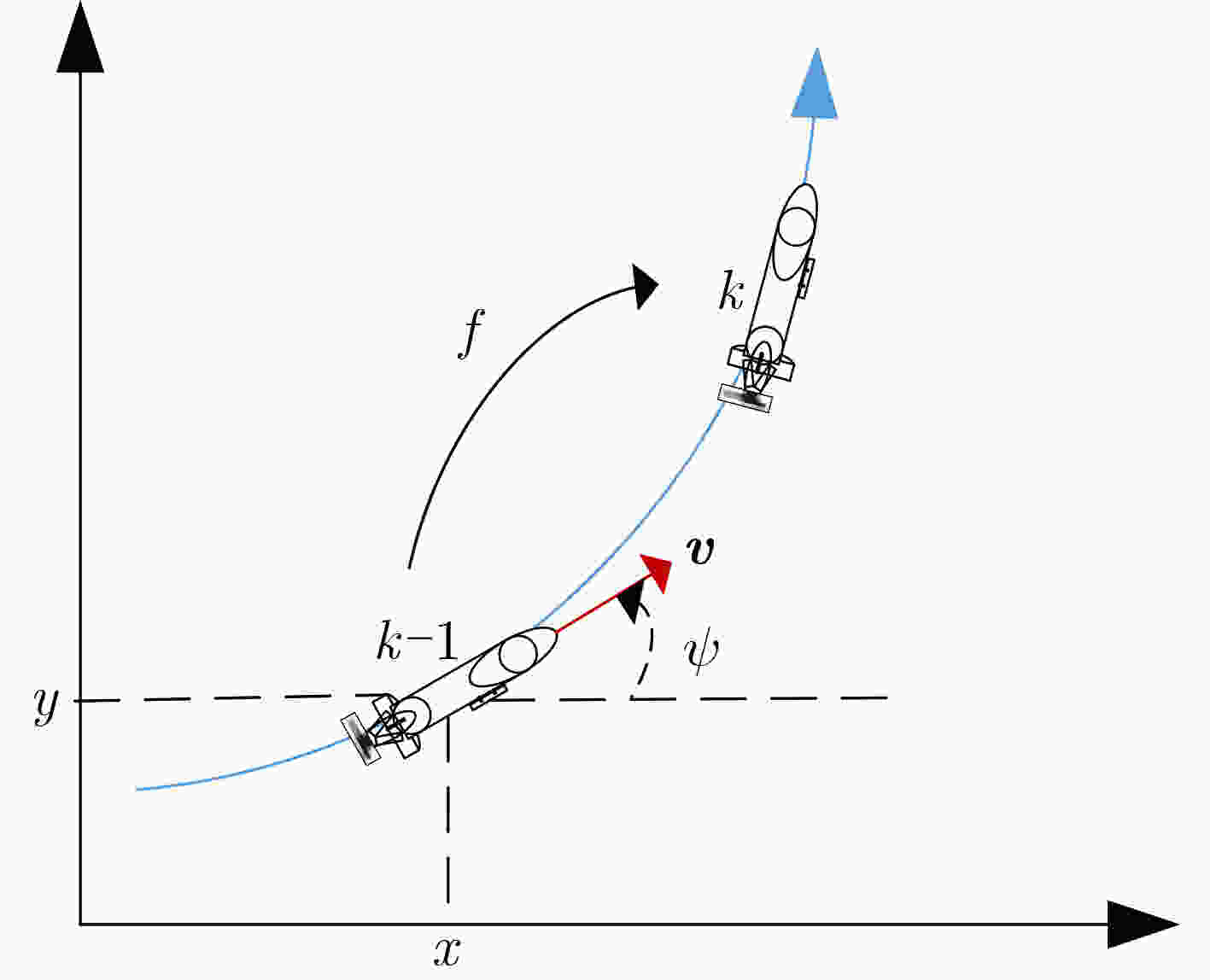

图 2 AUV移动示意图

下载: 全尺寸图片幻灯片

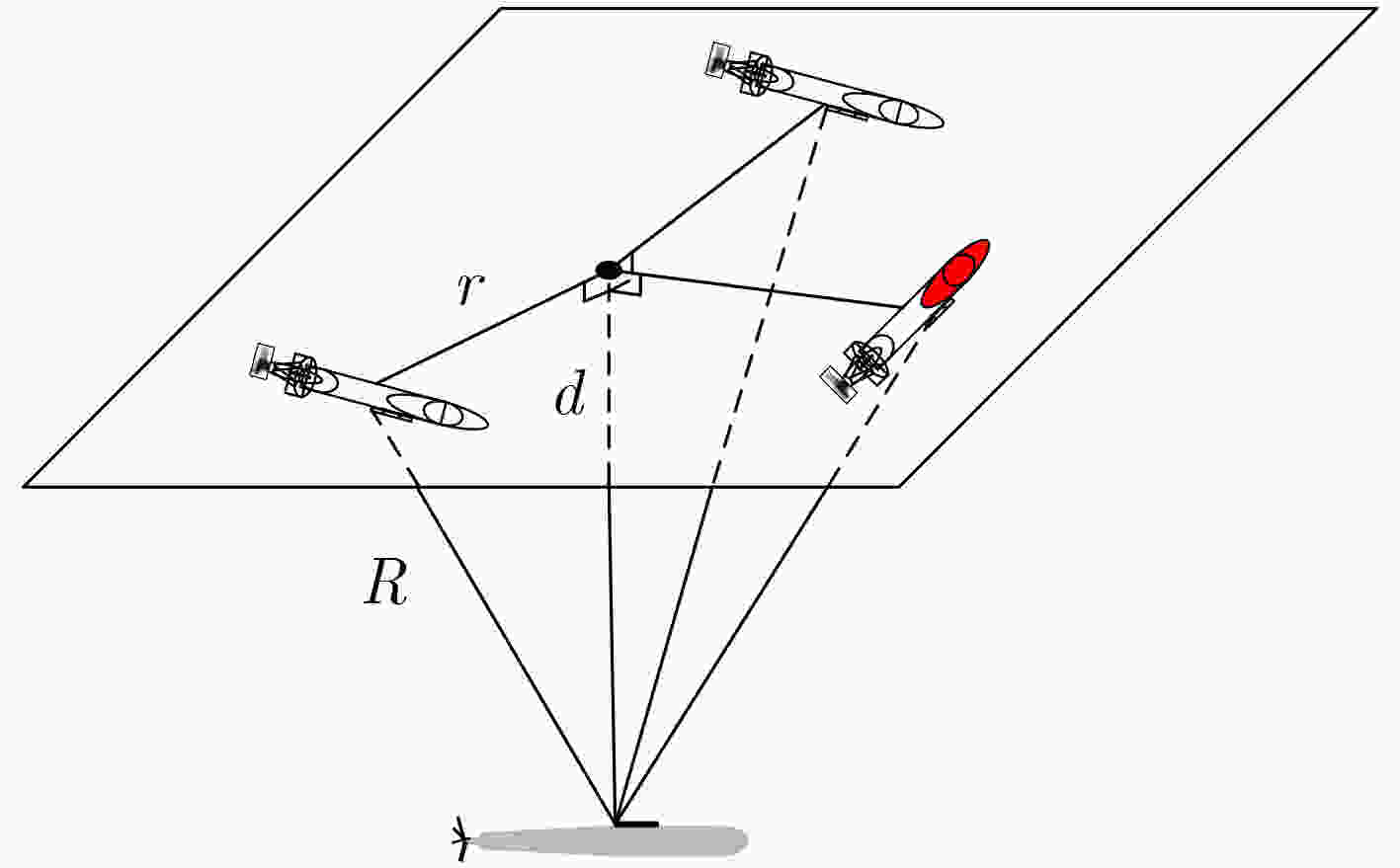

图 3 目标向AUV所在平面投影图

下载: 全尺寸图片幻灯片

图 4 基于EKF的融合观测协同定位法流程图

下载: 全尺寸图片幻灯片

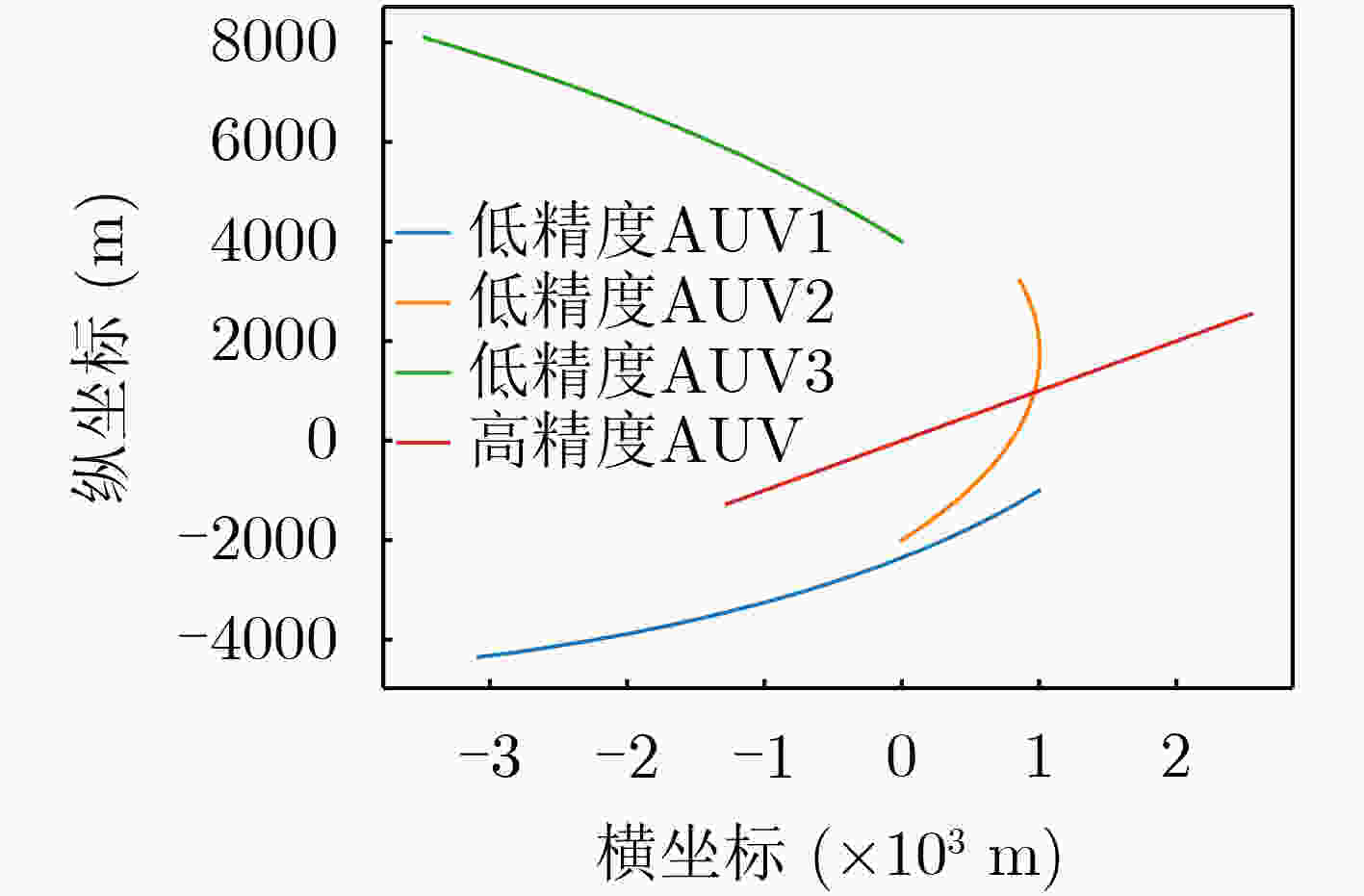

图 5 AUV编队理论路径

下载: 全尺寸图片幻灯片

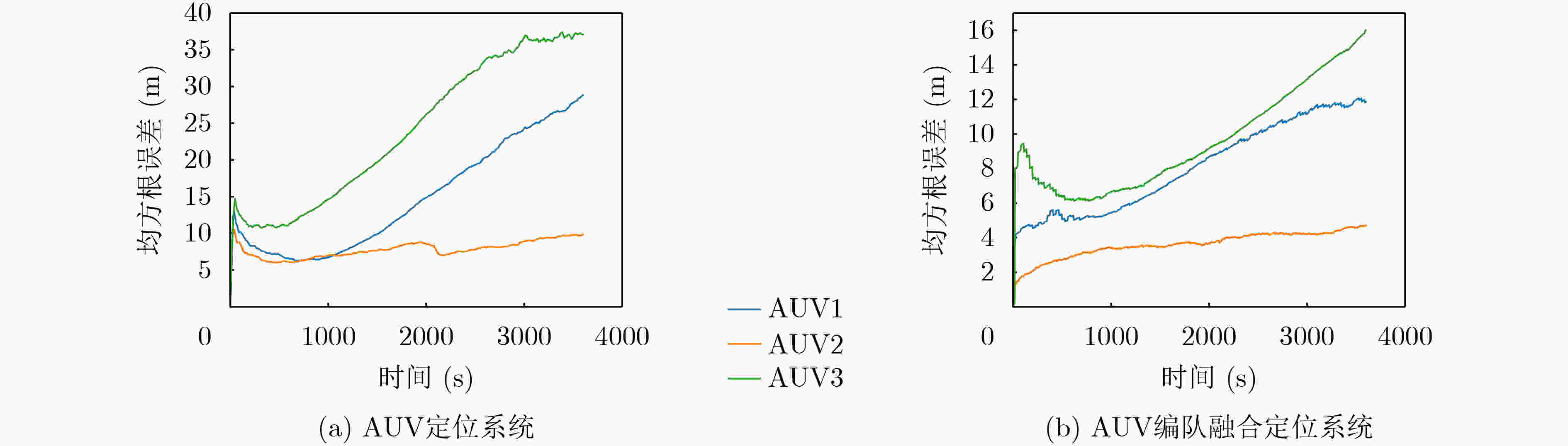

图 6 两种定位系统协同定位误差

下载: 全尺寸图片幻灯片

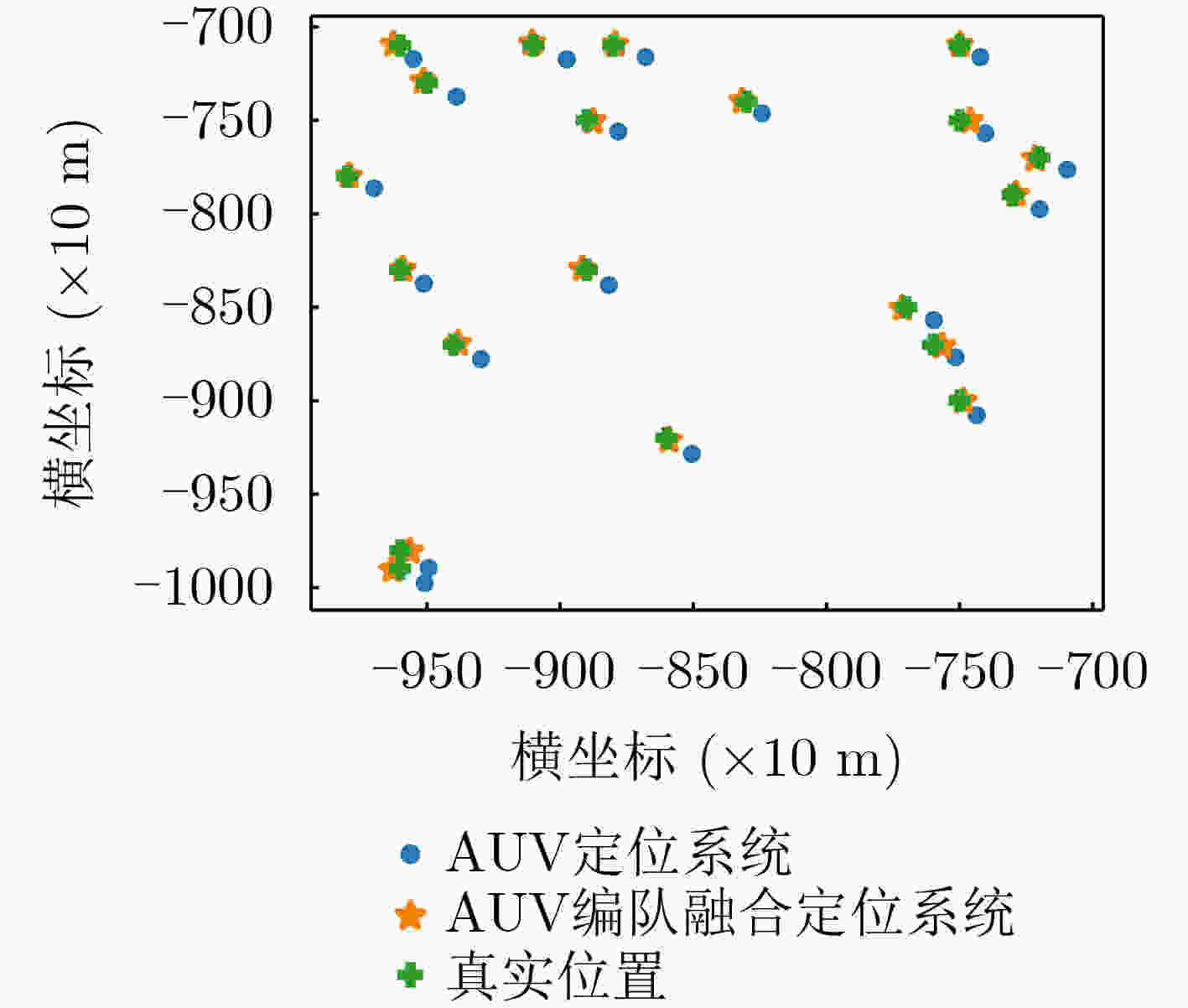

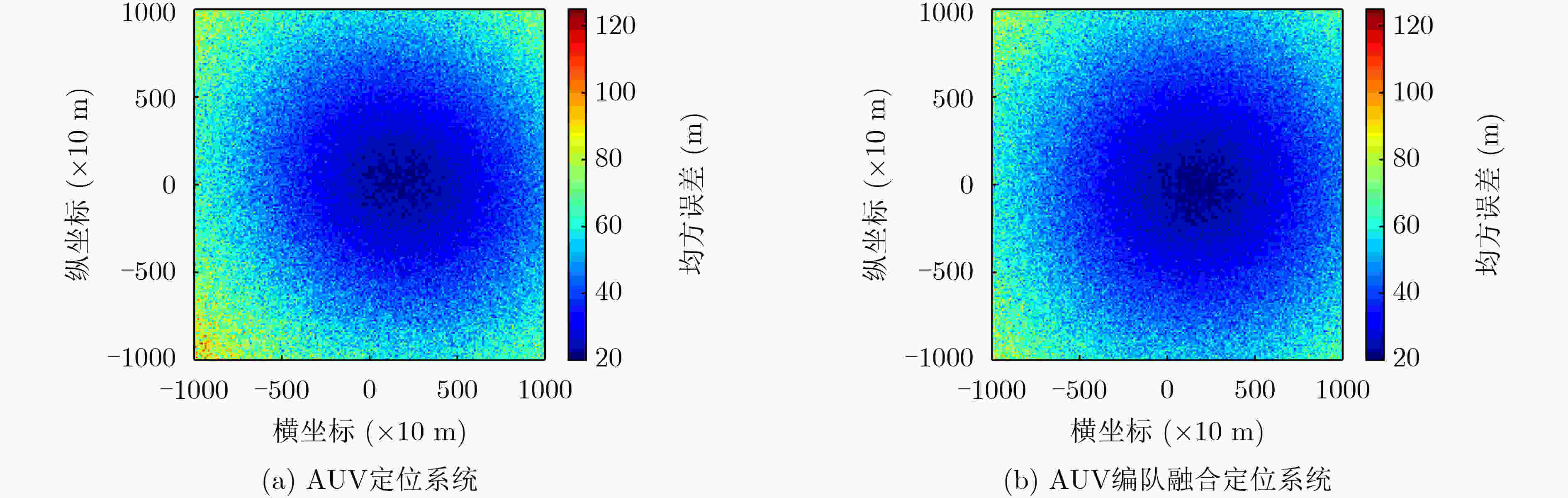

图 7 两种定位方法定位误差分布图

下载: 全尺寸图片幻灯片

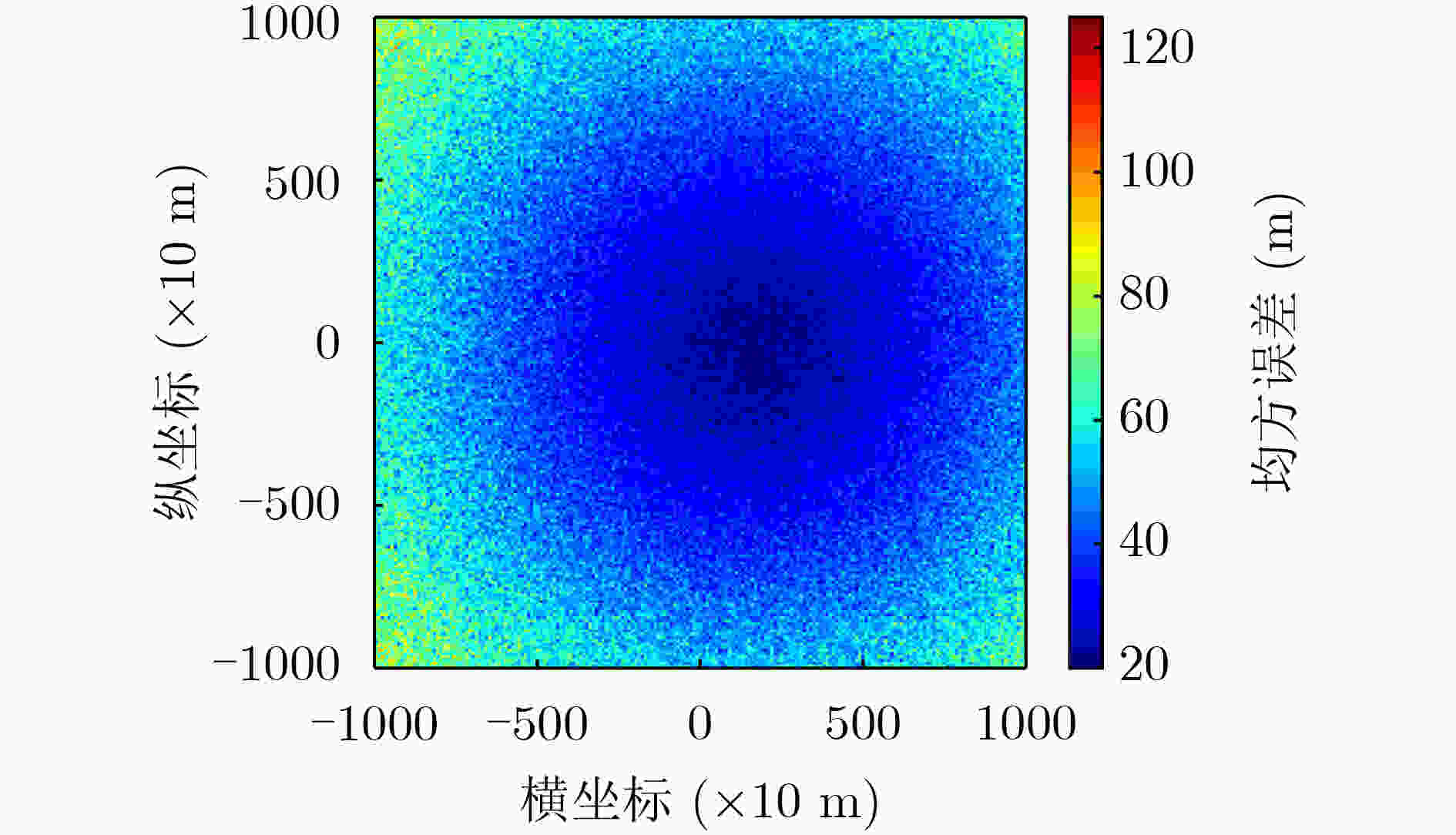

图 8 双领航主从式多AUV编队目标定位系统定位误差分布图

下载: 全尺寸图片幻灯片

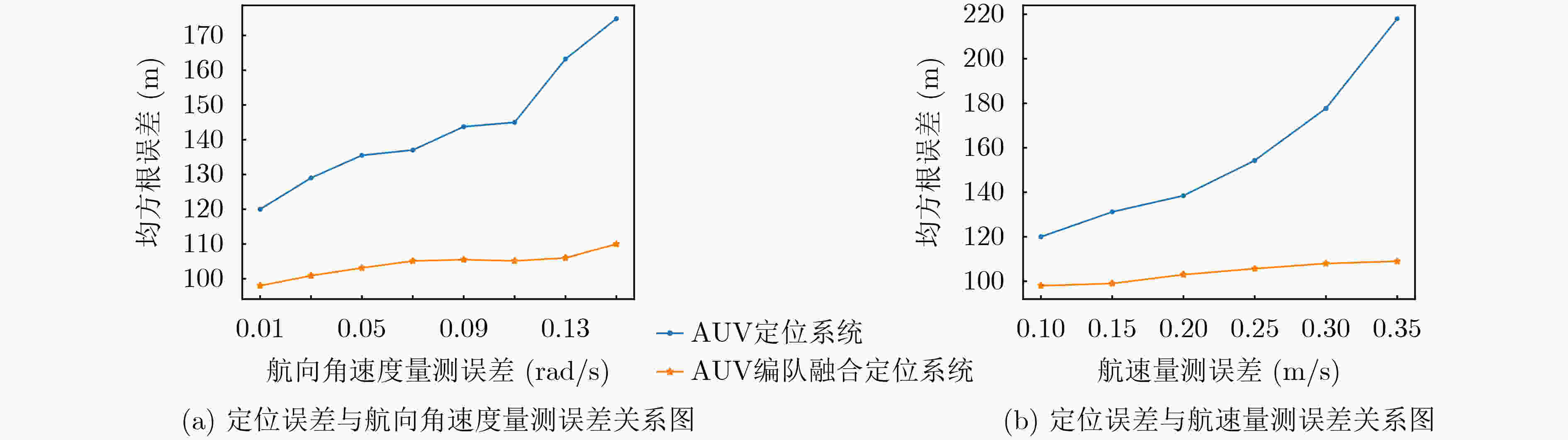

图 9 定位误差与量测误差关系图
