超宽带雷达人体行为感知研究进展

金添 何元 李新羽 宋永坤 杨阳

金添, 何元, 李新羽, 宋永坤, 杨阳. 超宽带雷达人体行为感知研究进展[J]. 电子与信息学报, 2022, 44(4): 1147-1155. doi: 10.11999/JEIT211044
引用本文: 金添, 何元, 李新羽, 宋永坤, 杨阳. 超宽带雷达人体行为感知研究进展[J]. 电子与信息学报, 2022, 44(4): 1147-1155. doi: 10.11999/JEIT211044
JIN Tian, HE Yuan, LI Xinyu, SONG Yongkun, YANG Yang. Advances in Human Activity Sensing Using Ultra-Wide Band Radar[J]. Journal of Electronics & Information Technology, 2022, 44(4): 1147-1155. doi: 10.11999/JEIT211044
Citation: JIN Tian, HE Yuan, LI Xinyu, SONG Yongkun, YANG Yang. Advances in Human Activity Sensing Using Ultra-Wide Band Radar[J]. Journal of Electronics & Information Technology, 2022, 44(4): 1147-1155. doi: 10.11999/JEIT211044

超宽带雷达人体行为感知研究进展

doi: 10.11999/JEIT211044
基金项目: 国家自然科学基金(61971430,61901049)
详细信息
    作者简介:

    金添:男,1980年生,教授,博士生导师,研究方向为超宽带雷达成像、智能感知与处理等

    何元:男,1984年生,研究员,硕士生导师,研究方向为雷达与电子侦察对抗

    李新羽:女,1995年生,博士生,研究方向为雷达目标感知和人体行为识别

    宋永坤:男,1993年生,博士生,研究方向为MIMO雷达人体姿态重构与行为识别

    杨阳:男,1991年生,讲师,研究方向为深度学习、雷达目标识别、图像处理、计算机视觉等

    通讯作者:

    金添 tianjin@nudt.edu.cn

  • 中图分类号: TN957

Advances in Human Activity Sensing Using Ultra-Wide Band Radar

Funds: The National Natural Science Foundation of China (61971430, 61901049)
  • 摘要: 超宽带 (UWB) 雷达人体行为感知主要研究如何利用人体目标电磁散射回波对位置、行为、意图等进行判别,是光学感知手段的有益补充,应对无光照、地物遮挡、非视距等情况下的应用场合。该文将超宽带雷达人体行为感知研究方法分成基于空间位置和基于微动特征两类技术。在介绍这类技术基本原理的基础上,对比分析了国内外代表性工作的能力现状。最后对超宽带雷达人体行为感知领域的后续重点研究方向进行了展望。

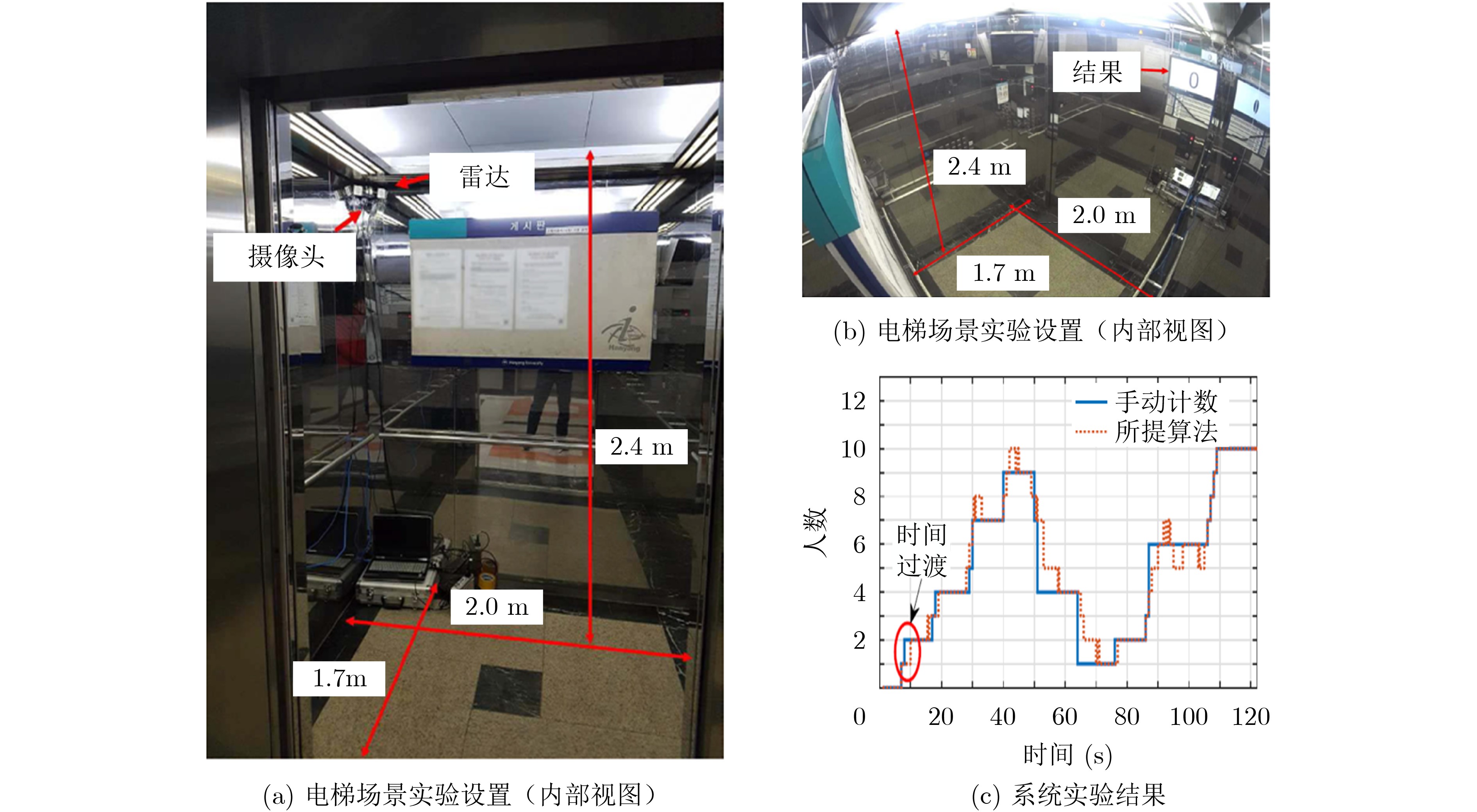

  • 图  1  单通道雷达人群数量检测系统[2]

    图  2  基于1发双收系统的人体目标探测[5]

    图  3  基于3维雷达图像的人体姿态重构[16]

    图  4  参数化人体椭球模型

    图  5  基于人体运动特性设计的6种微多普勒谱特征[23]

    图  6  基于深度神经网络的微动识别方法
