Investigation on Thermionic Emission Characteristics of Pressed Sc2O3 Doped Y-Gd-Hf-O Directly-heated Cathode
-
摘要: 为了提高Y-Gd-Hf-O阴极耐电子轰击能力，该文通过高能球磨、压制和高温氢气烧结，制备了一种Sc2O3掺杂Y-Gd-Hf-O压制式直热式阴极。该阴极在1550 °C工作温度下，经过10 W电子连续轰击480 h后，发射电流密度下降至初始值的87.5%，表现出良好的耐电子轰击能力。阴极表面的微观形貌、成分组成分析表明，经压制后氢气气氛烧结，阴极表面呈陶瓷状结构形态，有利于提高阴极的耐电子轰击能力；经高温烧结、激活后表面形成了n型半导体Y2O3-x层，对改善阴极表面导电性、降低逸出功和提高热发射有促进作用。Abstract: To improve the Y-Gd-Hf-O cathodes anti-electron bombardment ability, a scandia doped cathode is prepared by a pressing technique combined with sintering in hydrogen atmosphere. The tested result shows that the emitting current from the cathode operating at 1550 °C can remain to 87.5% of the initial one after continuous electron bombardment of 10 W for 480 h, reflecting a better anti-electron bombardment capability. The surface microstructure analysis result indicates that a cermet structure has been formed. A n-type semiconductor Y2O3-x layer has generated on the cathode surface after being sintered and activated at high temperature, which is favorable for enhancing the thermionic emission, improving the surface conductivity, and lowering the work function.
-
Key words:
- Cathode thermionic emission /
- Magnetron /
- Work function /
- Anti-bombing
-

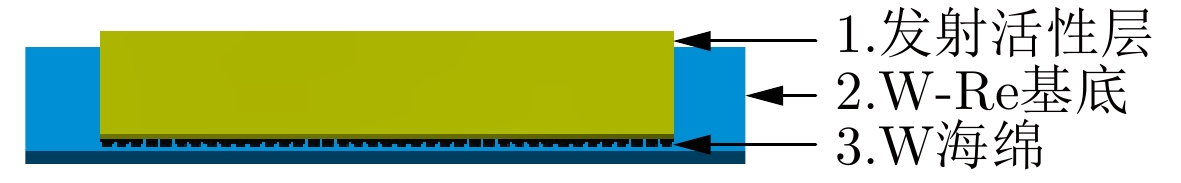

表 1 阴极氢炉烧结前后EDS原子含量(%)
元素 烧结前 烧结后 区域A 区域B 区域A 区域B Y 24.08 24.39 23.23 23.99 Gd 3.22 2.94 2.96 2.95 Hf 14.51 14.46 14.80 15.38 Sc 5.08 5.07 5.44 5.36 O 53.11 53.13 53.57 52.32
下载: 导出CSV
-
[1] ZHANG Xiaoke, HUA Yazhou, WANG Jinshu, et al. Studies of the influence of ZrH2 addition to the impregnant on the performance of yttrium oxide–tungsten matrix Ba dispenser cathodes[J]. IEEE Transactions on Electron Devices, 2021, 68(2): 829–834. doi: 10.1109/TED.2020.3045385 [2] WANG Xiaoxia, WANG Xingqi, ZHAO Qinglan, et al. Research progress in new types of thermionic cathodes[C]. 13th IVESC, Bad Honnef, Germany, 2020: 18. [3] ROQUAIS J M and WIERSCHKE D J. Oxide cathode for electron gun with a differentially doped metallic substrate[P]. USA Patent, 522115, 2006. [4] GALLAGHER H E and KNAUER W. Thermionic emission cathode having reduced frontal area and enlarged emission area for ion bombardment environment[P]. USA Patent, 3439210DA, 1969. [5] KIRKWOOD D M, GROSS S J, BALK T J, et al. Frontiers in thermionic cathode research[J]. IEEE Transactions on Electron Devices, 2018, 65(6): 2061–2071. doi: 10.1109/TED.2018.2804484 [6] 毕建明. W-Y2O3金属陶瓷阴极的二次发射[J]. 电子与信息学报, 1982, 4(2): 132–136.BI Jianming. Some secondary emission properties of W-Y2O3 cermet cathode[J]. Journal of Electronics &Information Technology, 1982, 4(2): 132–136. [7] 朱程, 杨金生, 李会成, 等. 30 kW连续波磁控管的研制[J]. 真空电子技术, 2013(5): 110–111. doi: 10.3969/j.issn.1002-8935.2013.05.030ZHU Cheng, YANG Jinsheng, LI Huicheng, et al. Development of 30 kW continuous wave magnetron[J]. Vacuum Electronics, 2013(5): 110–111. doi: 10.3969/j.issn.1002-8935.2013.05.030 [8] 孙陵斌. 2 kW连续波磁控管阴极寿命的研究[J]. 真空电子技术, 2020(2): 51–53. doi: 10.16540/j.cnki.cn11-2485/tn.2020.02.12SUN Lingbin. Study on cathode lifetime of a 2 kW continuous wave magnetron[J]. Vacuum Electronics, 2020(2): 51–53. doi: 10.16540/j.cnki.cn11-2485/tn.2020.02.12 [9] WANG Jinshu, ZHOU Meiling, MA Shuyun, et al. A study on the anti-electron-bombing life of La2O3–Y2O3–Mo cermet cathode materials[J]. Journal of Alloys and Compounds, 2006, 419(1/2): 172–175. doi: 10.1016/j.jallcom.2005.06.086 [10] 漆世锴, 王小霞, 罗积润, 等. Y2O3-Gd2O3-HfO2掺杂W基直热式阴极的热发射及耐电子轰击特性[J]. 稀有金属材料与工程, 2018, 47(12): 3784–3788.QI Shikai, WANG Xiaoxia, LUO Jirun, et al. Thermionic emission and anti-electron-bombing characteristics of the Y2O3-Gd2O3-HfO2 doped W base direct-heated cathode[J]. Rare Metal Materials and Engineering, 2018, 47(12): 3784–3788. [11] 蒋鹏宇, 王小霞, 罗积润, 等. Y2O3-Gd2O3-HfO2浸渍W基直热式阴极次级电子发射的测试[J]. 微波学报, 2017, 33(S1): 250–253.JIANG Pengyu, WANG Xiaoxia, LUO Jirun, et al. Secondary electron emission of Y2O3-Gd2O3-HfO2 impregnated W base directly-heated cathode[J]. Journal of Microwaves, 2017, 33(S1): 250–253. [12] 陈晓倩, 王小霞, 张兆传, 等. Sc2O3掺杂对Y2O3-Gd2O3-HfO2难熔稀土氧化物直热式阴极热发射性能的影响[J]. 真空科学与技术学报, 2019, 39(2): 131–135. doi: 10.13922/j.cnki.cjovst.2019.02.07CHEN Xiaoqian, WANG Xiaoxia, ZHANG Zhaochuan, et al. Effect of Sc2O3-doping on thermal emission properties of Y2O3-Gd2O3-HfO2 thermal cathode[J]. Chinese Journal of Vacuum Science and Technology, 2019, 39(2): 131–135. doi: 10.13922/j.cnki.cjovst.2019.02.07 [13] 郭艳群, 聂祚仁, 席晓丽, 等. 钨热电子发射材料的研究进展[J]. 稀有金属, 2005, 29(2): 200–205. doi: 10.3969/j.issn.0258-7076.2005.02.016GUO Yanqun, NIE Zuoren, XI Xiaoli, et al. Advances in research on tungsten cathode materials[J]. Chinese Journal of Rare Metals, 2005, 29(2): 200–205. doi: 10.3969/j.issn.0258-7076.2005.02.016 [14] 漆世锴, 王小霞, 王兴起, 等. 大功率磁控管用新型Y2Hf2O7陶瓷阴极研究[J]. 物理学报, 2020, 69(3): 037901. doi: 10.7498/aps.69.20191496QI Shikai, WANG Xiaoxia, WANG Xingqi, et al. A novel Y2Hf2O7 ceramic cathode applied to high power magnetron tube[J]. Acta Physica Sinica, 2020, 69(3): 037901. doi: 10.7498/aps.69.20191496 [15] CUI Yuntao, WANG Jinshu, LIU Wei, et al. Effect of Scandia on tungsten oxide powder reduction process[J]. Journal of Rare Earths, 2010, 28(S1): 202–205. doi: 10.1016/S1002-0721(10)60274-8 [16] 赖陈, 王金淑, 周帆, 等. 新型钨铼混合基阴极的热电子发射性能[J]. 稀有金属材料与工程, 2016, 45(7): 1871–1875.LAI Chen, WANG Jinshu, ZHOU Fan, et al. Thermal electron emission properties of novel W-Re mixed matrix cathodes[J]. Rare Metal Materials and Engineering, 2016, 45(7): 1871–1875. -
