时分波分无源光网络与云无线接入网联合架构中负载平衡的用户关联与资源分配策略

张鸿; 韩霄; 王汝言; 李职杜; 周敏

doi:10.11999/JEIT200849

时分波分无源光网络与云无线接入网联合架构中负载平衡的用户关联与资源分配策略

doi: 10.11999/JEIT200849

1.
重庆邮电大学通信与信息工程学院重庆 400065
2.
重庆高校市级光通信与网络重点实验室重庆 400065
3.
泛在感知与互联重庆市重点实验室重庆 400065

基金项目: 国家自然科学基金(61771082, 61871062)，重庆市高校创新研究群体(CXQT20017)，重庆市教委科学技术研究项目(KJQN201900609, KJQN202000626)，重庆市自然科学基金重点项目(cstc2020jcyj-zdxmX0024)

详细信息

作者简介:
张鸿：男，1987年生，博士，研究方向为物联网、光无线融合网络等

韩霄：男，1996年生，硕士生，研究方向为光无线融合网络

王汝言：男，1969年生，教授，博士，研究方向为泛在网络、多媒体信息处理等

李职杜：男，1990年生，博士，研究方向为边缘计算、网络演算等

周敏：女，1996年生，硕士生，研究方向为光无线融合网络

通讯作者:
王汝言　wangry@cqupt.edu.cn

中图分类号: TN915; TP393.04
计量
- 文章访问数: 680
- HTML全文浏览量: 297
- PDF下载量: 48
- 被引次数: 0
出版历程
- 收稿日期: 2020-09-30
- 修回日期: 2021-01-29
- 网络出版日期: 2021-03-02
- 刊出日期: 2021-09-16

Load Balancing User Association and Resource Allocation Strategy in Time and Wavelength Division Multiplexed Passive Optical Network and Cloud Radio Access Network Joint Architecture

1.
School of Telecommunication and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
2.
Chongqing Key Laboratory of Optical Communication and Network, Chongqing 400065, China
3.
Chongqing Key Laboratory of Ubiquitous Sensing and Networking, Chongqing 400065, China

Funds: The National Natural Science Foundation of China (61771082, 61871062), The University Innovation Research Group of Chongqing (CXQT20017), The Science and Technology Research Program of Chongqing Municipal Education Commission (KJQN201900609, KJQN202000626), The Natural Science Foundation of Chongqing (cstc2020jcyj-zdxmX0024)

摘要

摘要: 在时分波分无源光网络(TWDM-PON)与云无线接入网(C-RAN)的联合架构中，由于无线域的负载不均衡问题，限制了网络整体的传输效率。为了充分利用TWDM-PON与C-RAN联合架构的网络资源，并保证用户的服务质量(QoS)，该文提出一种负载平衡的用户关联与资源分配算法(LBUARA)。首先根据不同用户的服务质量需求以及分布式无线射频头端(RRH)的负载对用户的影响，构建用户收益函数。进而，在保证用户服务质量的前提下，根据网络状态建立随机博弈模型，并基于多智能体Q学习提出负载均衡的用户关联和资源分配算法，从而获得最优的用户关联与资源分配方案。仿真结果表明，所提的用户关联和资源分配策略能够实现网络的负载均衡，保证用户的服务质量，并提高网络吞吐量。
- 云无线接入网 /
- 时分波分无源光网络 /
- 负载均衡 /
- 用户关联 /
- 服务质量
Abstract: The load imbalance in the wireless domain limits the overall transmission efficiency of the network in the joint architecture of Time and Wavelength Division Multiplexed Passive Optical Network (TWDM-PON) and Cloud Radio Access Network (C-RAN). A Load Balancing User Association and Resource Allocation (LBUARA) algorithm is proposed to ensure the Quality of Service(QoS) of users, and make full use of network resources TWDM-PON jointly with C-RAN architecture. Firstly, the user revenue function is constructed according to the service quality requirements of different users and the impact of Remote Radio Head (RRH) load on users. Furthermore, a random game model is established according to the network state, under the premise of ensuring the quality of user service. A user association and resource allocation algorithm based on multi-agent Q-learning load balancing is proposed to obtain the optimal user association and resource allocation plan. The simulation results show that users association and resource allocation strategies mentioned can achieve load balancing network to ensure quality of service users, and improve network throughput.
- Cloud Radio Access Network (C-RAN) /
- Time and Wavelength Division Multiplexed Passive Optical Network (TWDM-PON) /
- Load balancing /
- User association /
- Quality of Service (QoS)

HTML全文

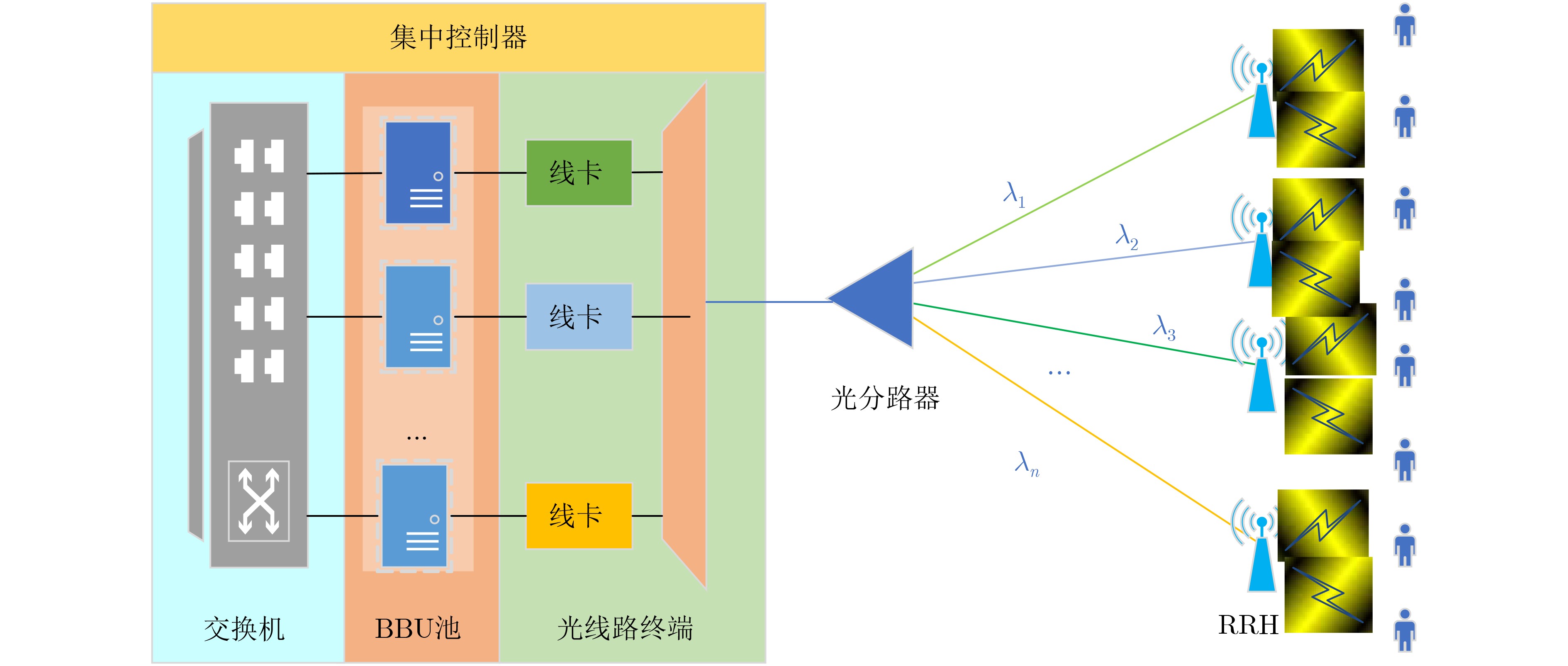

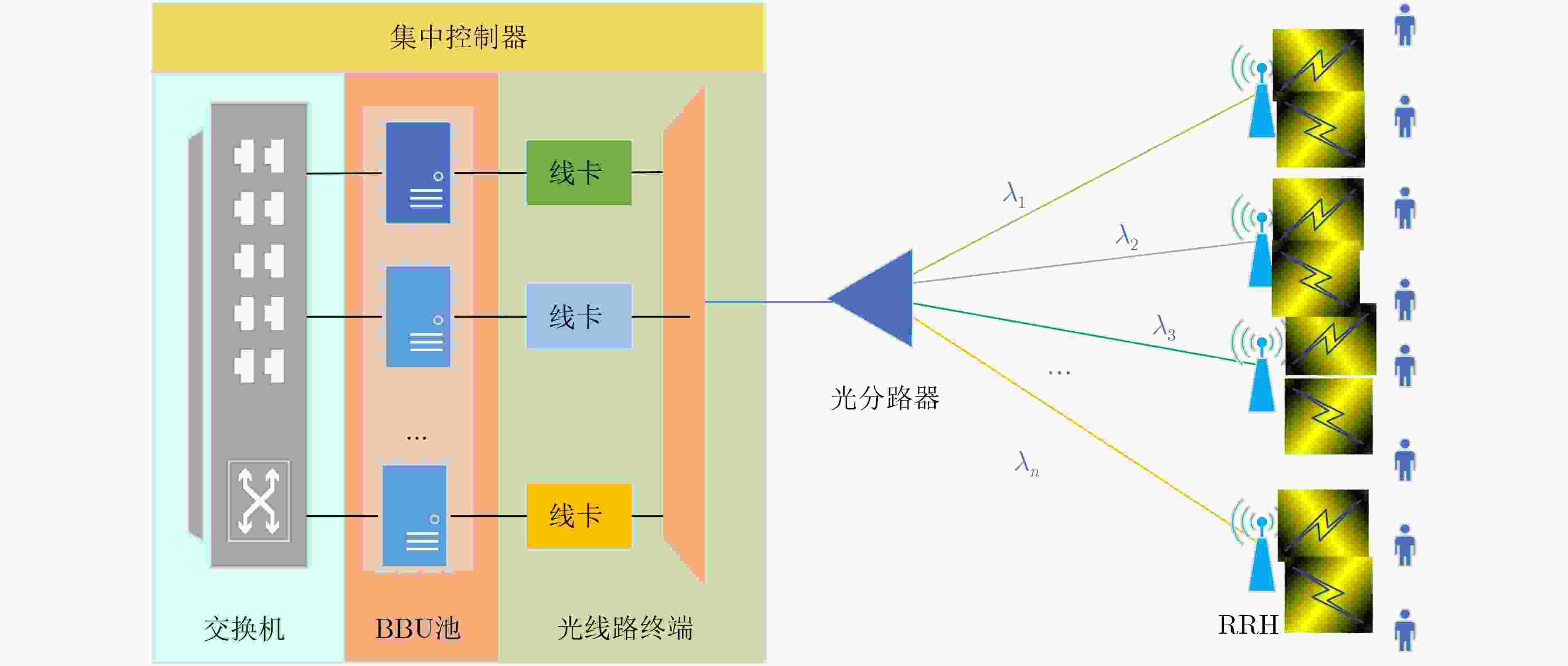

图 1 TWDM-PON与C-RAN联合架构

下载: 全尺寸图片幻灯片

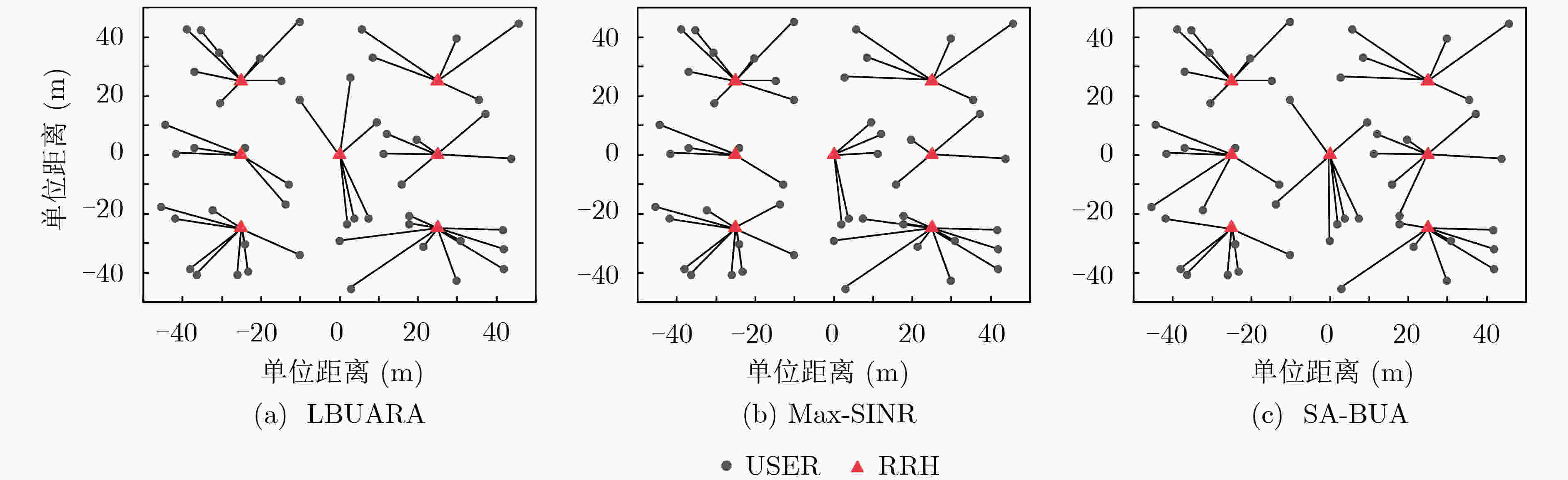

图 2 不同算法的用户关联状态

下载: 全尺寸图片幻灯片

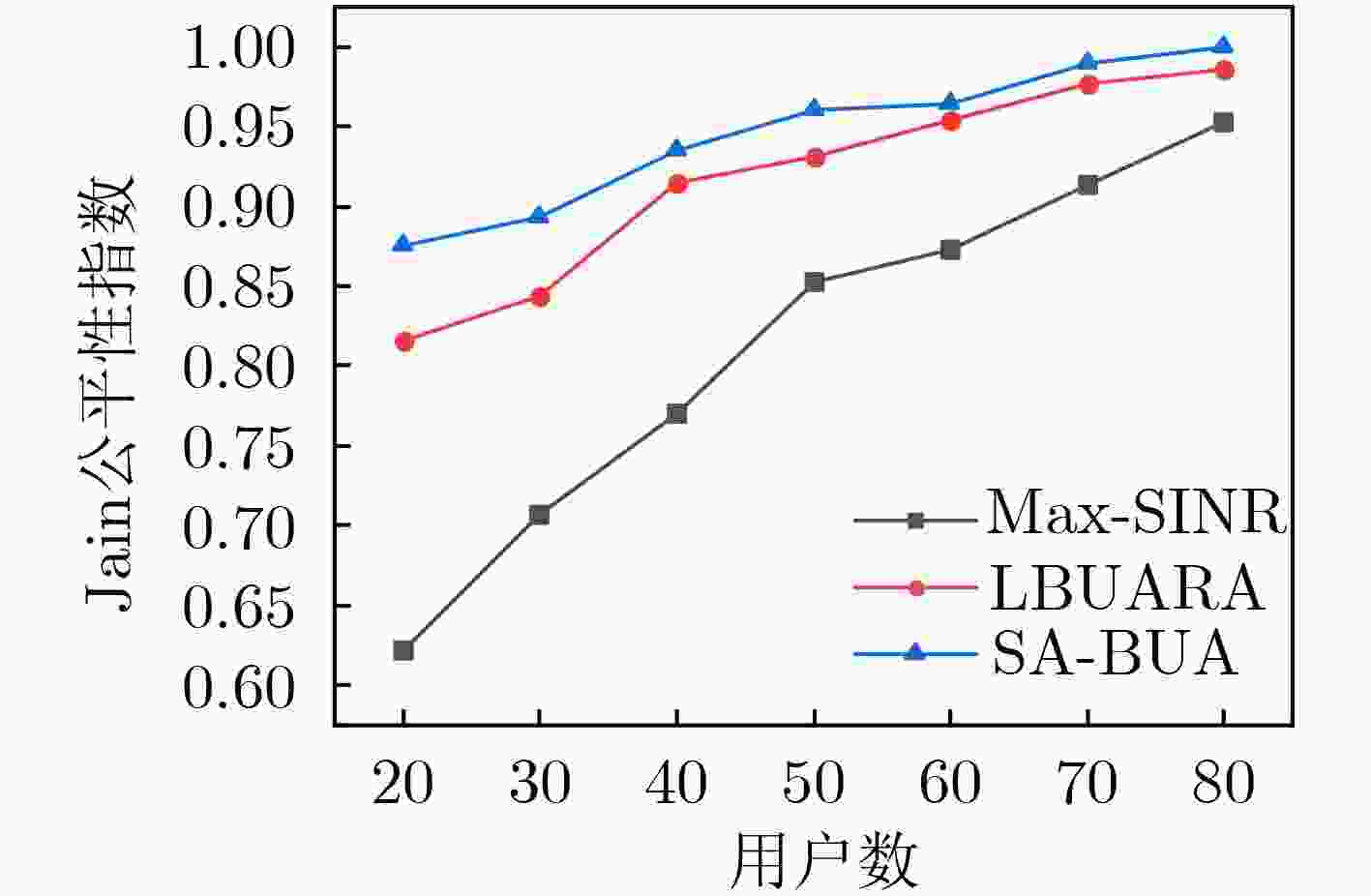

图 3 Jain公平性指数与用户数量的关系

下载: 全尺寸图片幻灯片

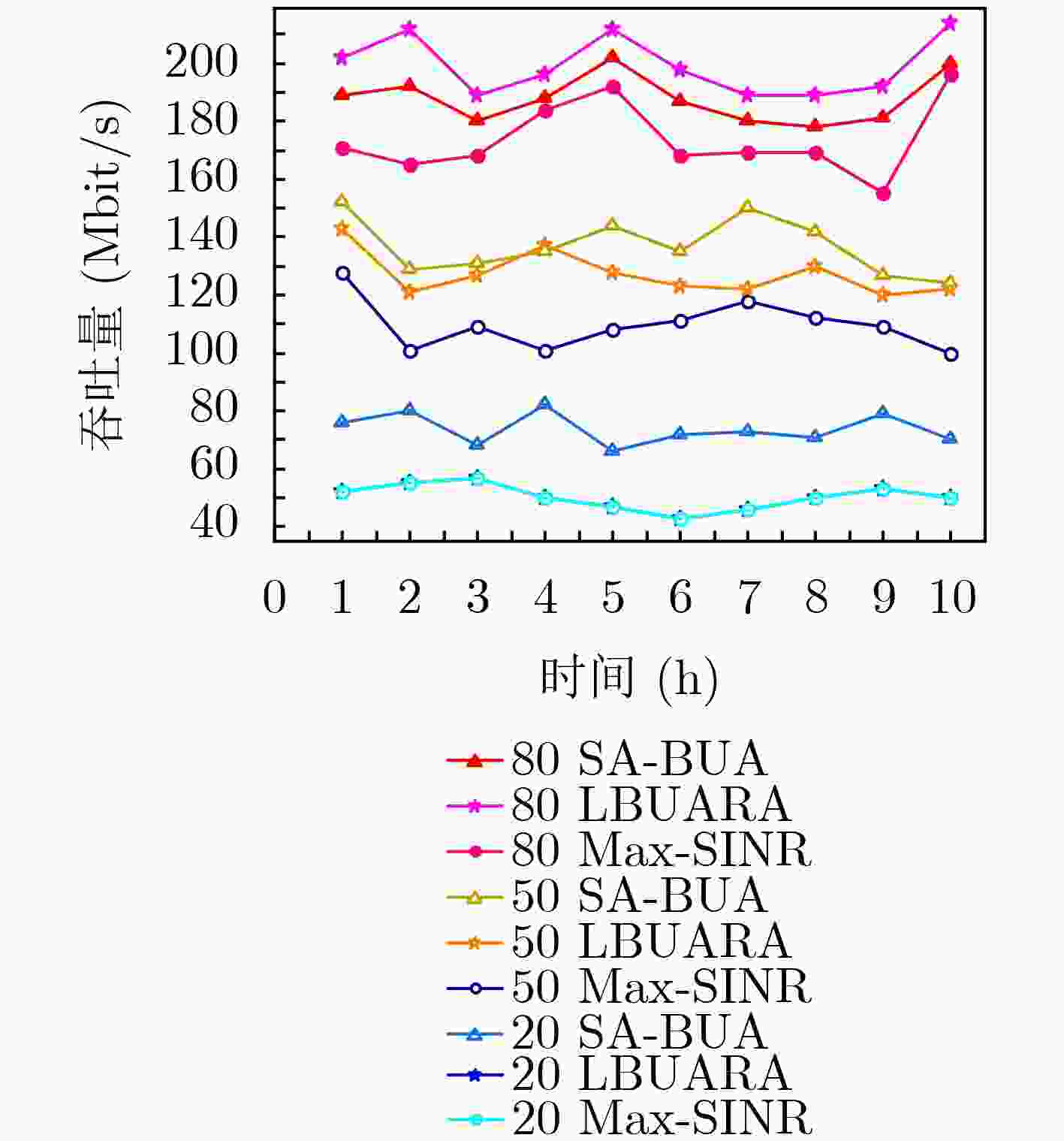

图 4 不同时刻的网络吞吐量

下载: 全尺寸图片幻灯片

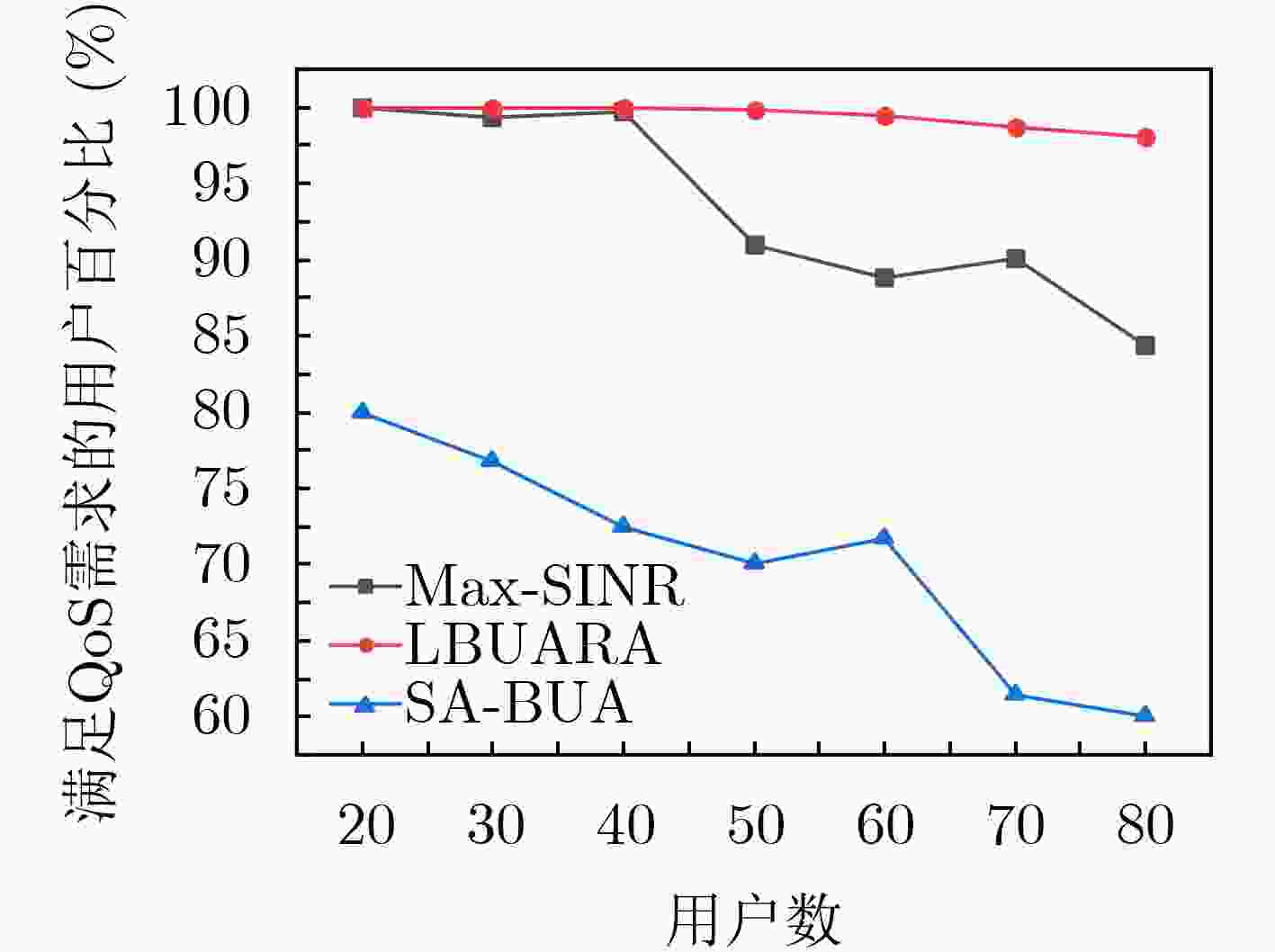

图 5 满足QoS需求的用户数量

下载: 全尺寸图片幻灯片

表 1 负载均衡的用户关联和资源分配算法

　(1) 初始化episode，每个用户的Q值${Q_i}(s,{a_i})$以及${\phi _i}({s_i},{a_i})$

　(2) for each step of an episode to t steps do

　(3) 　for each UE i do

　(4)　　在状态${s_i}$时通过式(21)选择动作${a_i}$

　(5)　　通过式(7)计算为每个用户分配的RB数量

　(6)　　通过式(13)计算V_i

　(7)　　每个用户获取关联状态$s'$，设置 $s' \to s$

　(8)　　通过式(20)更新${Q_i}(s,{a_i})$

　(9)　　更新${\phi _i}({s_i},{a_i})$

　(10)　end for

　(11) if 当前状态集合$S = \{ 1,1,···,1\} $

　(12)　 break

　(13) end if

　(14) 最终所有的用户得到关联策略$({s_i},{a_i})$

下载: 导出CSV
