软件定义无线接入网络的组件化研究

徐海东; 王江; 易辉跃

doi:10.11999/JEIT191049

软件定义无线接入网络的组件化研究

doi: 10.11999/JEIT191049

徐海东^{1, 2, ,},
王江²,
易辉跃^{1, 2}

1.
上海无线通信研究中心上海 201899
2.
中国科学院上海微系统与信息技术研究所上海 200050

基金项目: 上海市自然科学基金(17ZR1428900)，中国科学院创新基金(CXJJ-20S037)

详细信息

作者简介:
徐海东：男，1972年生，高级工程师，研究方向为软件定义网络、物联网与蜂窝通信

王江：男，1975年生，正高级工程师，研究方向为软件定义网络、物联网与蜂窝通信

易辉跃：男，1970年生，副研究员，研究方向为5G软件定义终端、MIMO算法

通讯作者:
徐海东　haidong.xu@wico.sh

中图分类号: TN92
计量
- 文章访问数: 1141
- HTML全文浏览量: 474
- PDF下载量: 62
- 被引次数: 0
出版历程
- 收稿日期: 2019-12-30
- 修回日期: 2021-01-05
- 网络出版日期: 2021-01-11
- 刊出日期: 2021-04-20

Research on Componentization of Software Defined Wireless Access Network

Haidong XU^{1, 2
, ,},
Jiang WANG²,
Huiyue YI^{1, 2}

1.
Shanghai Research Center for Wireless Communications, Shanghai 201899, China
2.
Shanghai Institute of Microsystem and Information Technology, Chinese Academy of Sciences, Shanghai 200050, China

Funds: The Natural Science Foundation of Shanghai (17ZR1428900), The Innovation Foundation of Chinese Academy of Sciences (CXJJ-20S037)

摘要

摘要: 针对5G通信技术高传输速率、多业务场景的挑战，该文提出一种组件化的软件定义无线接入网络新架构。该架构在5G接入网集中单元(CU)，分布单元(DU)，有源天线单元(AAU)架构的基础上，进一步朝组件化方向演进，形成一种由集中控制单元(CCU), CU, DU，射频单元(RU)，AAU等组件化通信单元组成的新架构。这种新架构既有利于切片化、虚拟化实现无线接入网，又有利于应用分布式计算技术和硬件加速技术突破通用处理器的计算能力瓶颈，还能降低DU与AAU之间的前传压力。该文还研制了基于此架构的组件化软基站试验原型并进行了测试，结果表明该组件化方案在提供高度灵活性的同时，还能够提升通用处理器软基站的吞吐能力，并有效降低远端站址传输流量。
- 软件定义网络 /
- 无线接入网 /
- 组件化
Abstract: In view of the challenges of 5G communication technology with high speed and multiple service scenarios, this paper proposes a new component-based Software Defined wireless access Network (SDN) architecture. Based on the architecture of Centralized Unit (CU), Distributed Unit (DU) and Active Antenna Unit(AAU) in 5G access network, further component-based evolution is carried out to form a new architecture composed the communication units of Centralized Control Unit (CCU), CU, DU, Radio Unit(RU), and AAU. This new architecture is not only conducive to the realization of wireless access network with slicing and virtualization, but also conducive to the adoption of distributed computing technology and hardware accelerating technology to break through the processing bottleneck of general-purpose processor, and reduce the forward transmission pressure between DU and AAU. In this paper, a prototype of component-based soft base station is developed and tested. The results show that the component-based scheme can not only provide high flexibility, but also improve the processing capacity of the general processor soft base station and reduce effectively the traffic of remote stations.
- Software Defined Network(SDN) /
- Wireless access network /
- Componentization

HTML全文

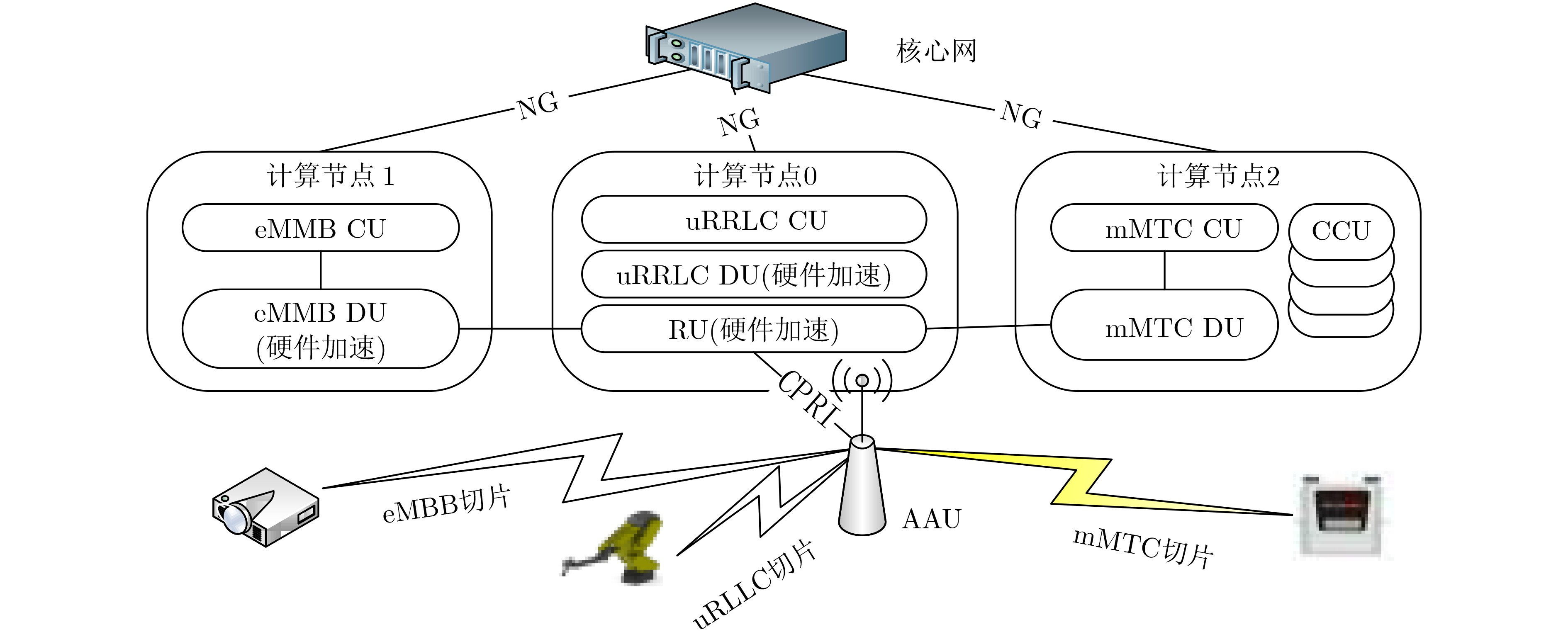

图 1 组件化、可切片的分布式软基站架构

下载: 全尺寸图片幻灯片

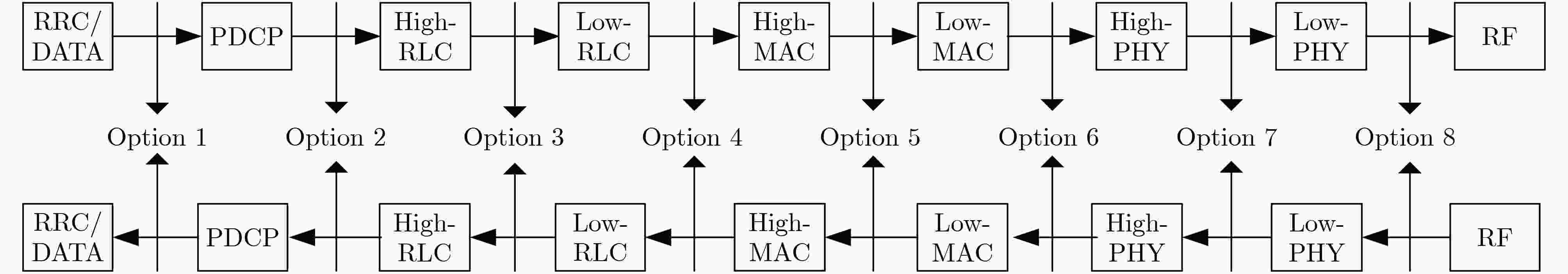

图 2 CU和DU拆分选项

下载: 全尺寸图片幻灯片

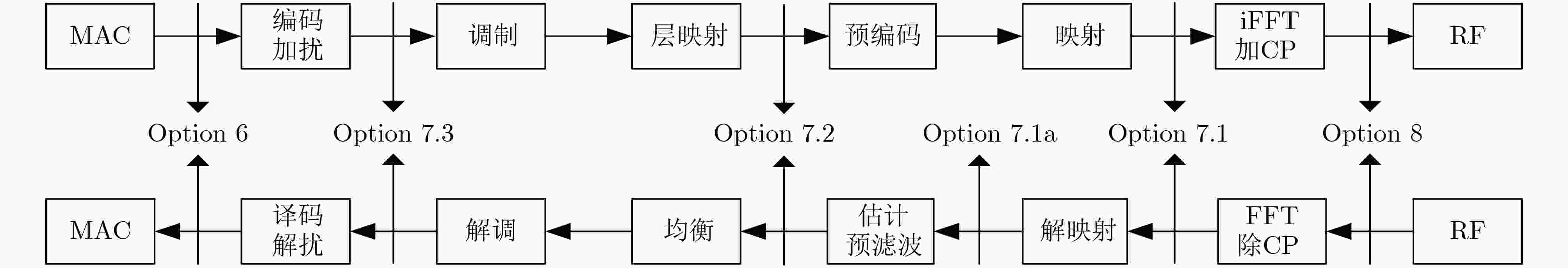

图 3 DU和RU拆分选项

下载: 全尺寸图片幻灯片

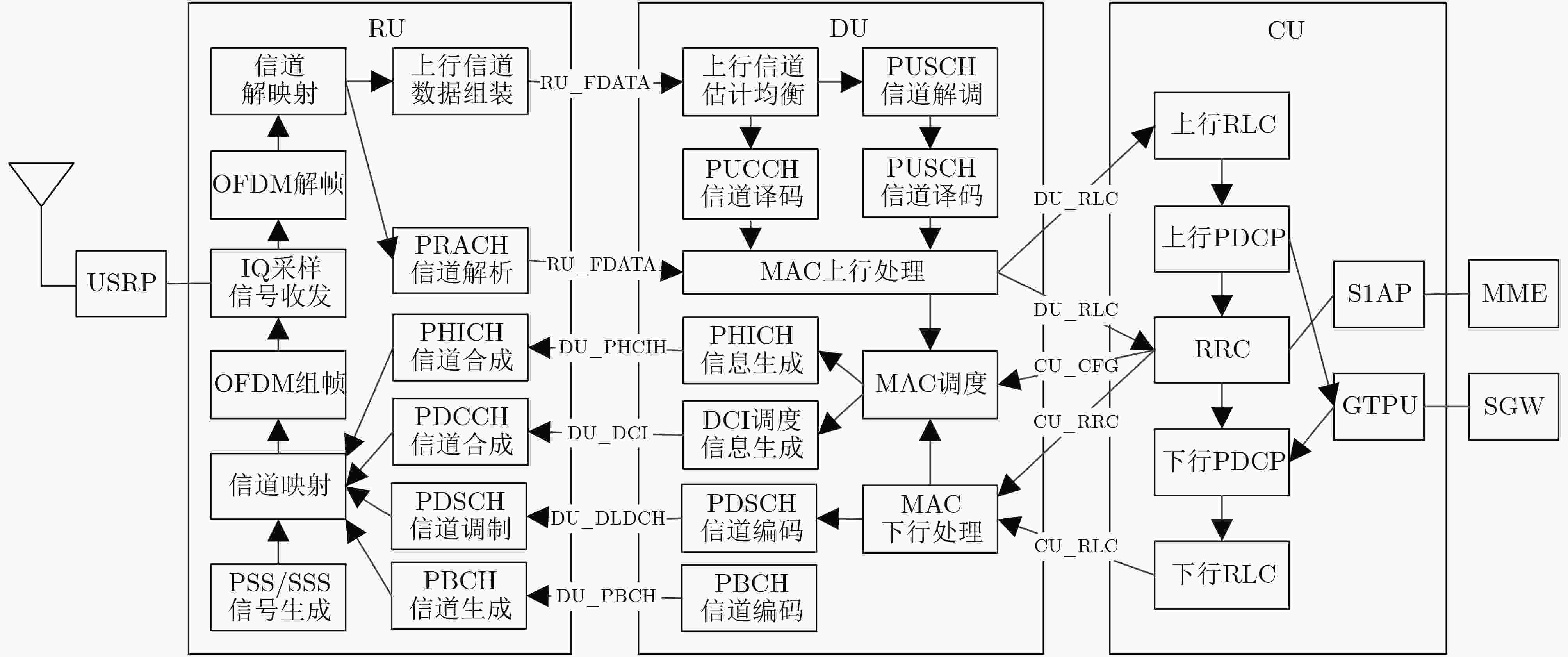

图 4 组件化的原型基站模块图

下载: 全尺寸图片幻灯片

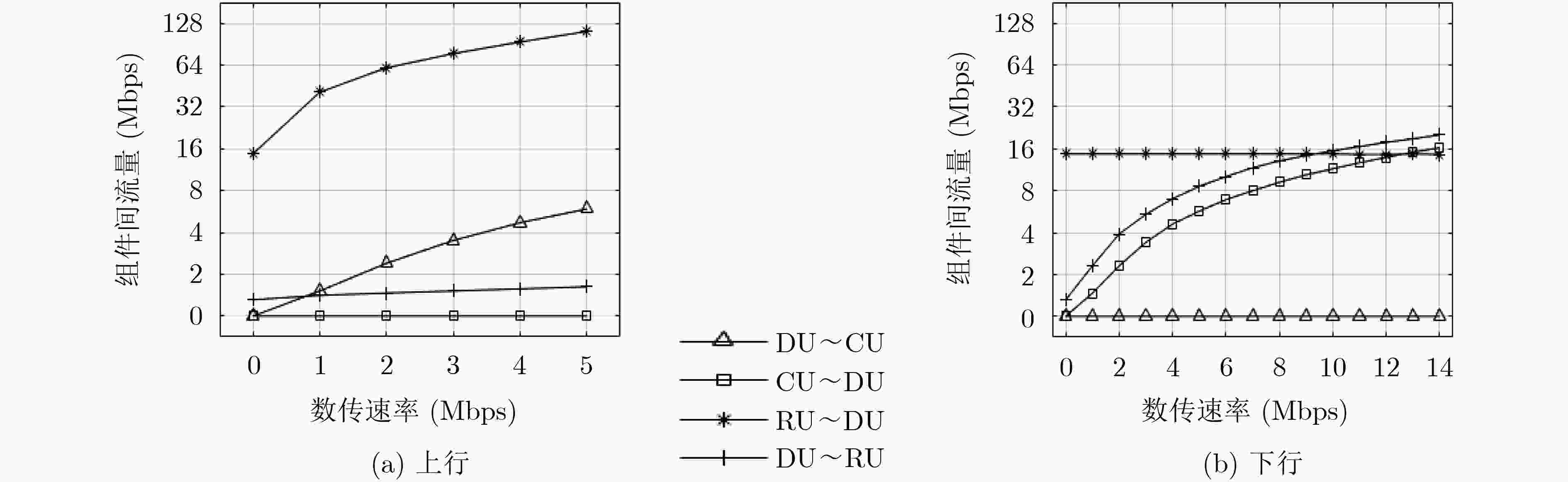

图 5 CU, DU和RU组件间流量测试结果

下载: 全尺寸图片幻灯片

表 1 拆分方案流量分析，以LTE单天线、正常循环前缀为例

选项	方向	5 MB	10 MB	20 MB
Option8	上行、下行	245.76 Mbps	491.52 Mbps	983.04 Mbps
Option7.1	上行、下行	134.40 Mbps	268.80 Mbps	537.60 Mbps
Option7.1a	上行	各信道解映射后的流量之和，与业务量有关，最大值与Option7.1相等
Option7.2	上行	各信道估计之后、均衡之前的流量之和，包含信道估计信息，流量约为Option7.1a两倍
Option7.2	下行	与应用层数据量有关，满负荷时比Option7.1略小，不包括参考信号、下行同步信号
Option7.3	上行	各信道解调后、译码前的流量之和，流量比Option7.1a略小
Option7.3	下行	各信道调制前的流量之和，与应用层数据流量相当

下载: 导出CSV

表 2 组件化与非组件化对比测试结果

测试项目		组件化(CU+DU+RU)	非组件化
上行传输(5 Mbps)	时延抖动	0.09 ms	0.06 ms
	内存消耗	22.7%(CU 4.2% DU14.3% RU 4.2%)	14.4%
	CPU占用率	50.9%(CU 3.0% DU28.6% RU19.3%)	38.3%
下行传输(10 Mbps)	时延抖动	0.38 ms	0.40 ms
	内存消耗	22.8%(CU 4.3% DU14.3% RU 4.2%)	14.5%
	CPU占用率	40.0%(CU 3.7% DU15.0% RU21.3%)	26.6%

下载: 导出CSV

表 3 组件化C-RAN方案与CU-DU C-RAN方案比较(以10 Mbps下行传输为例)

传输情况	比较项目	组件化C-RAN方案	传统CU-DU C-RAN方案	优势倍数
理想传输条件	组网方案	CU, DU和RU都部署在中心机房
	云资源池计算集中度	100%		1.00
	站址传输流量	245.76 Mbps		1.00
非理想传输条件	组网方案	中心机房部署CU和DU远端站址部署RU	中心机房部署CU远端站址部署DU
	云资源池计算集中度	49.48%	1.39%	35.60
	站址传输流量	15.5 Mbps	11.5 Mbps	1.35

下载: 导出CSV
