Recognition of Deception Jamming Based on Statistical Correlation Difference in a Multistatic Radar System
-

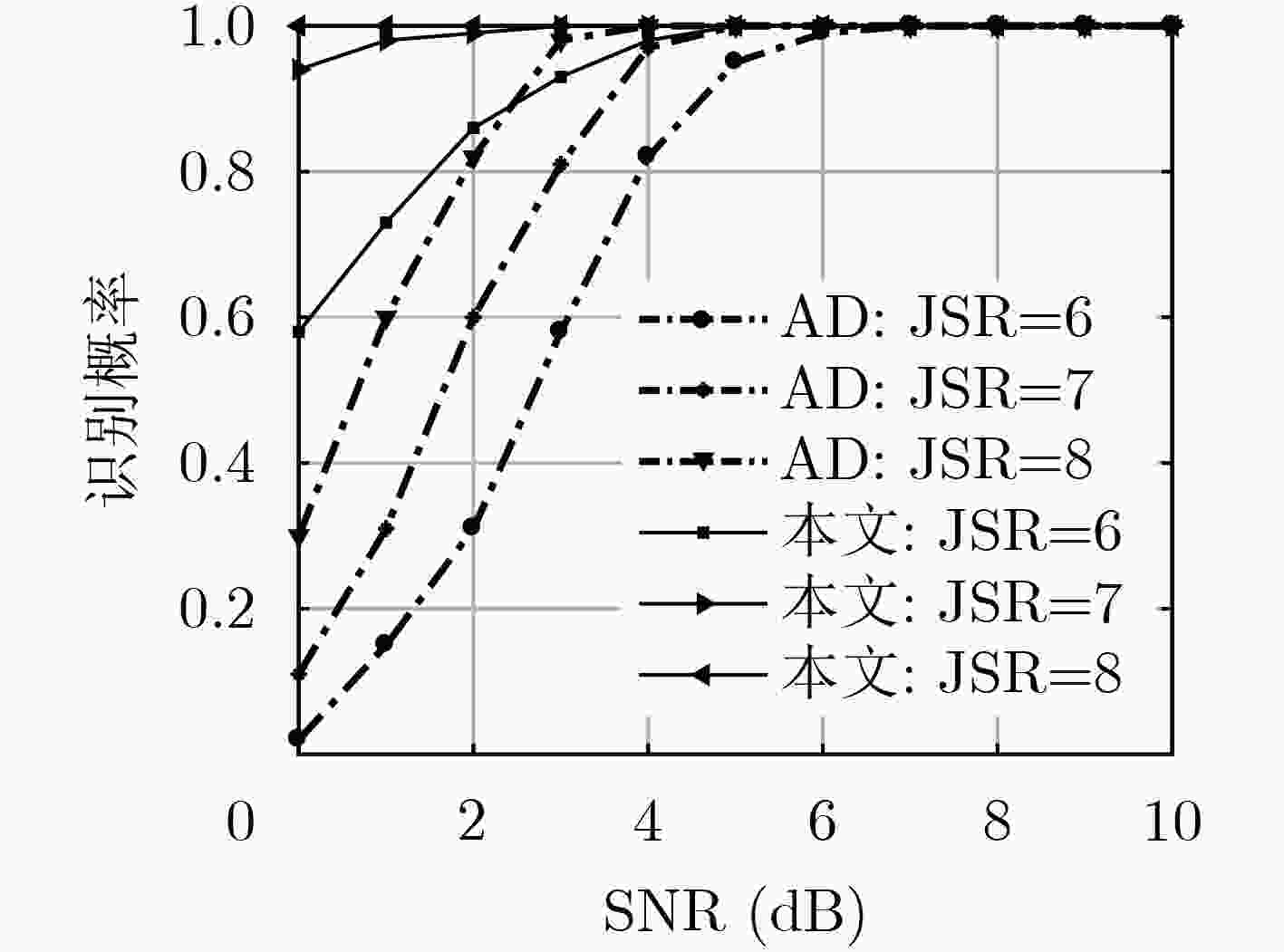

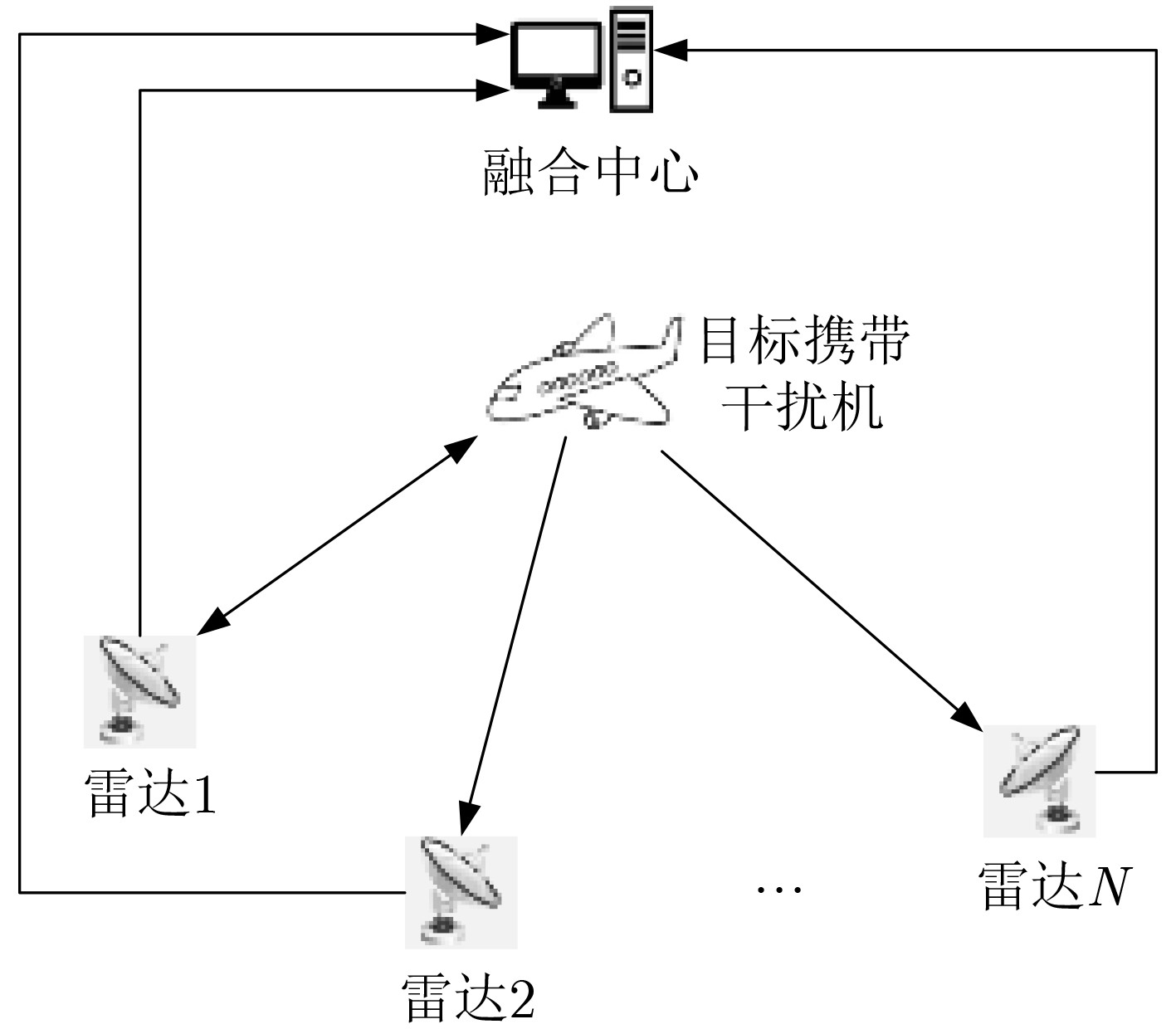

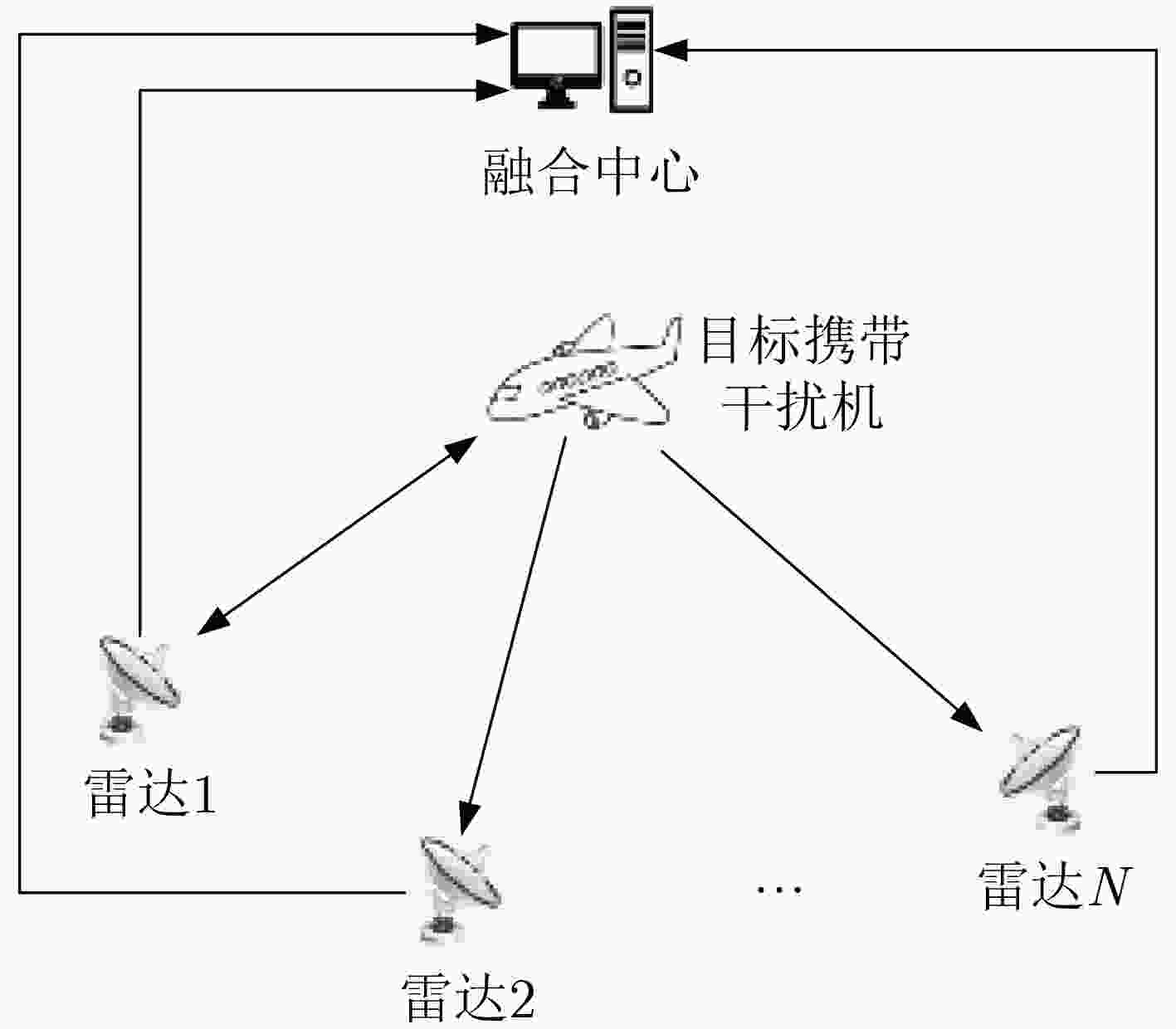

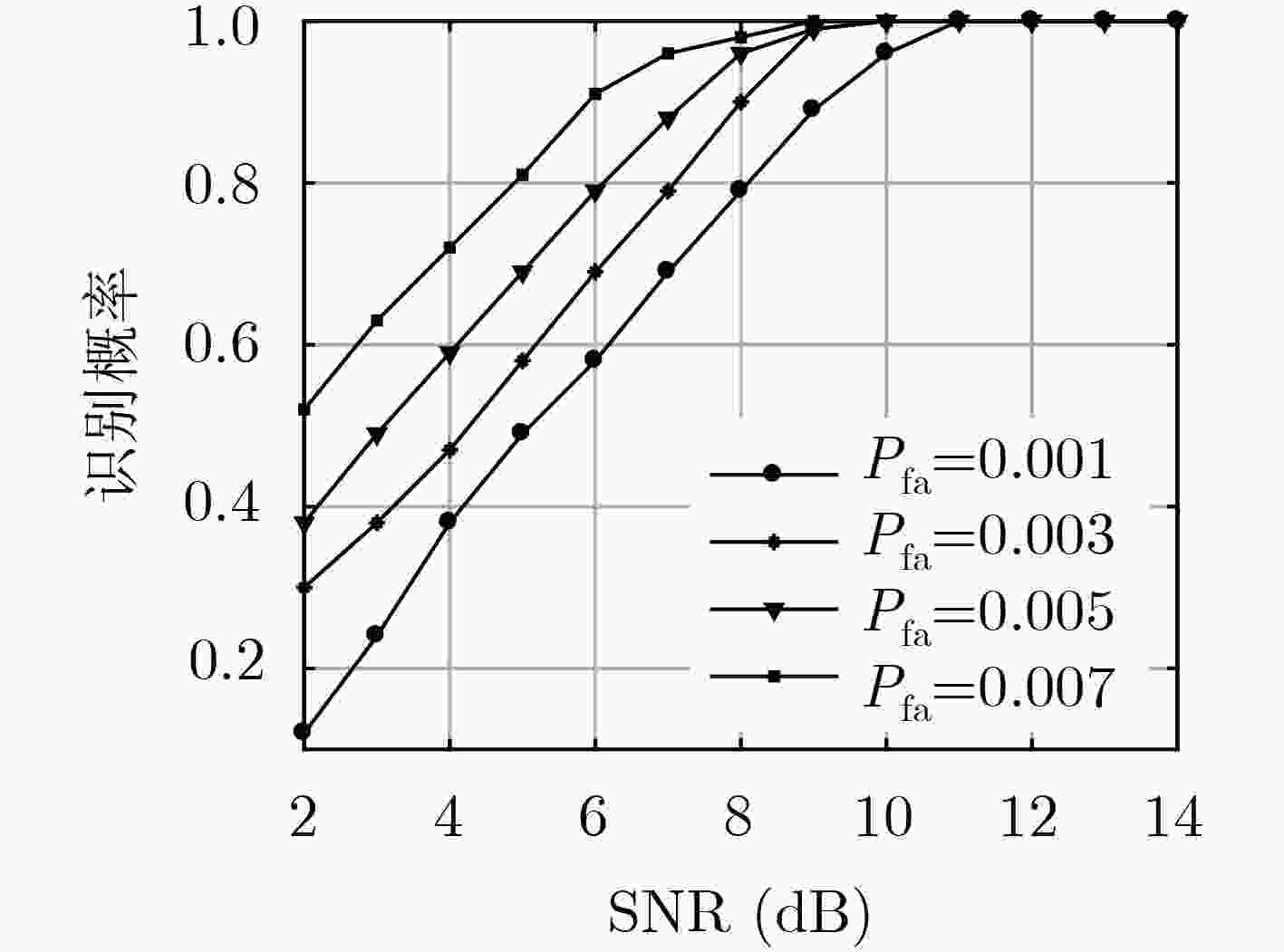

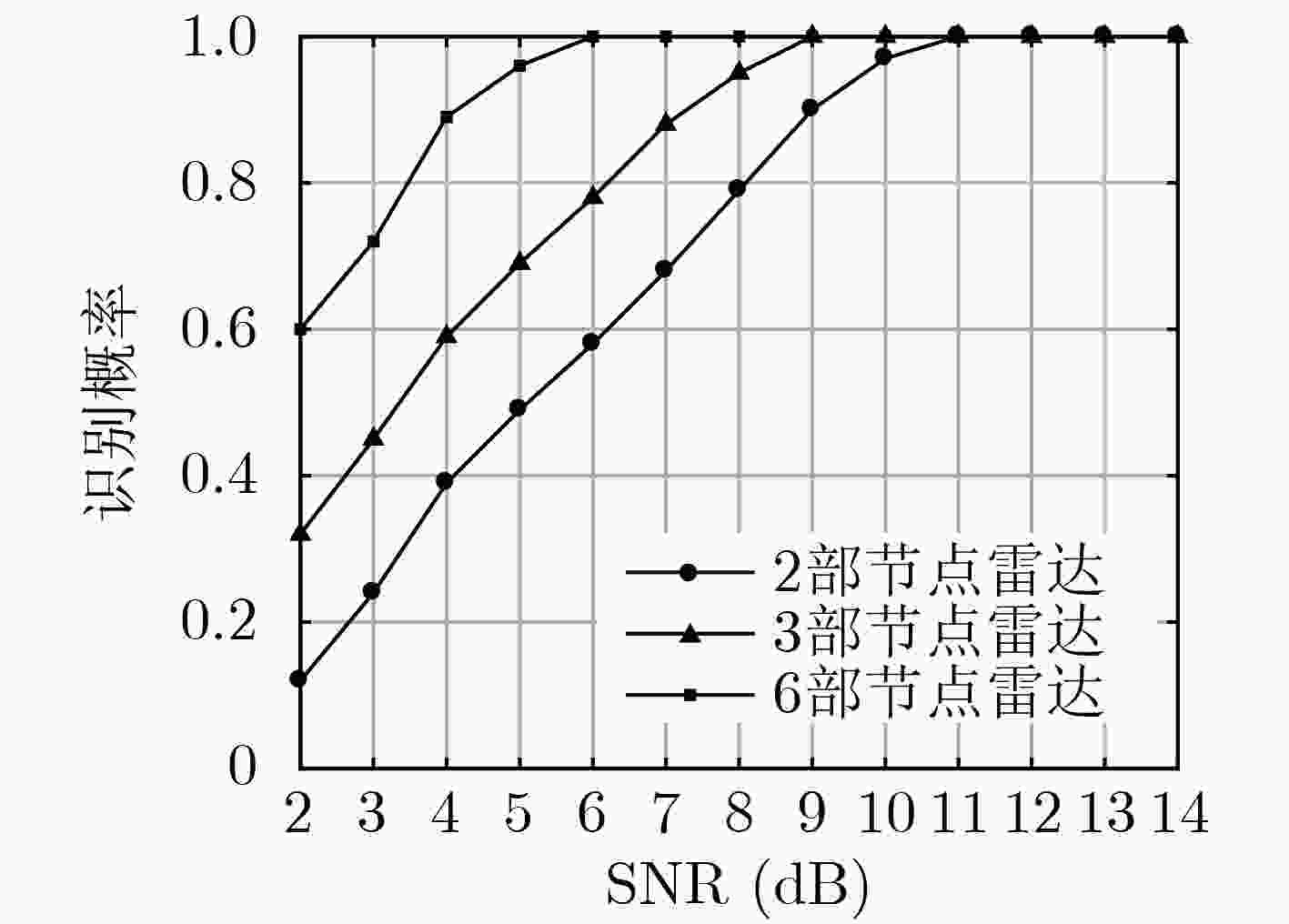

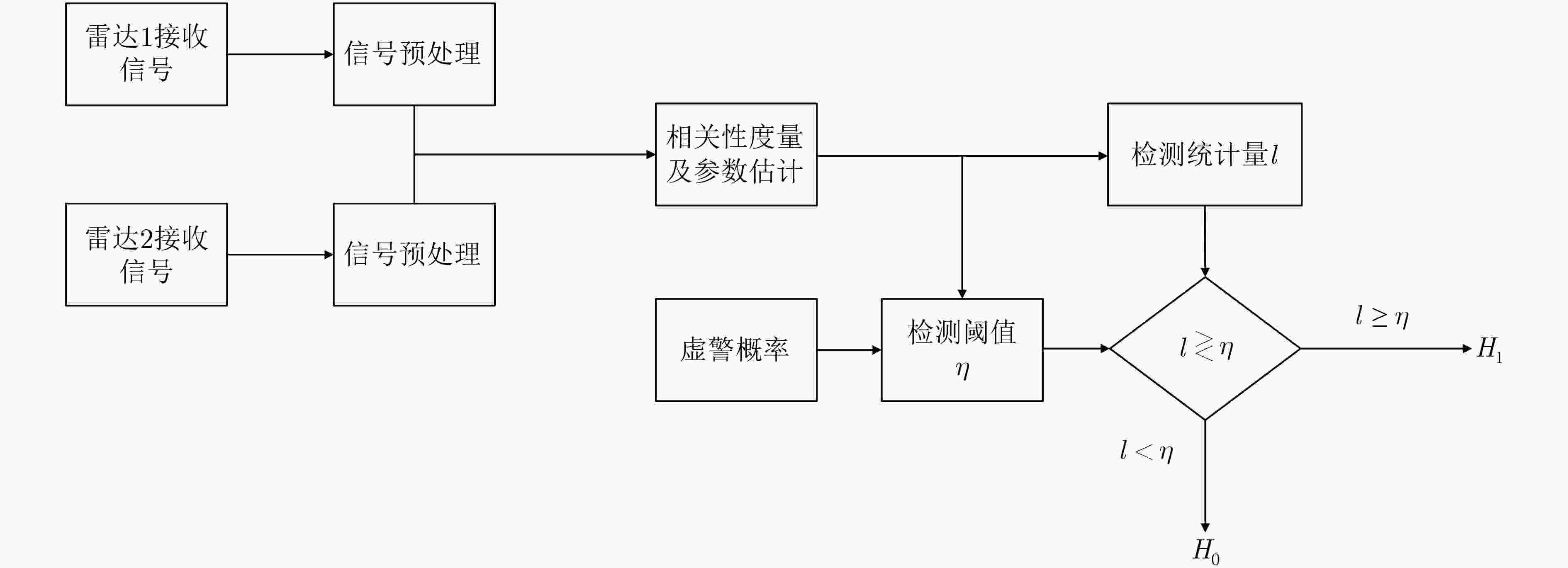

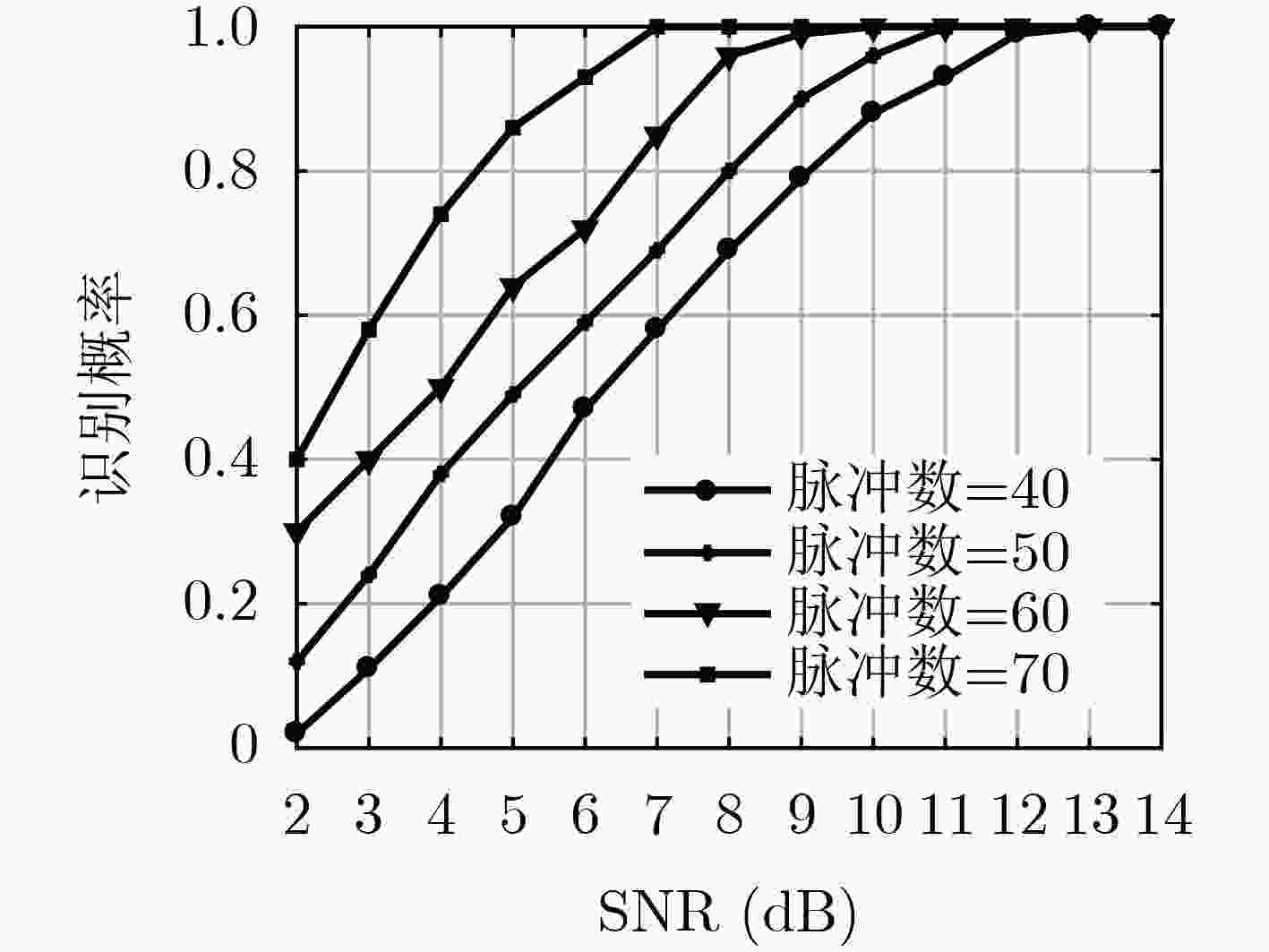

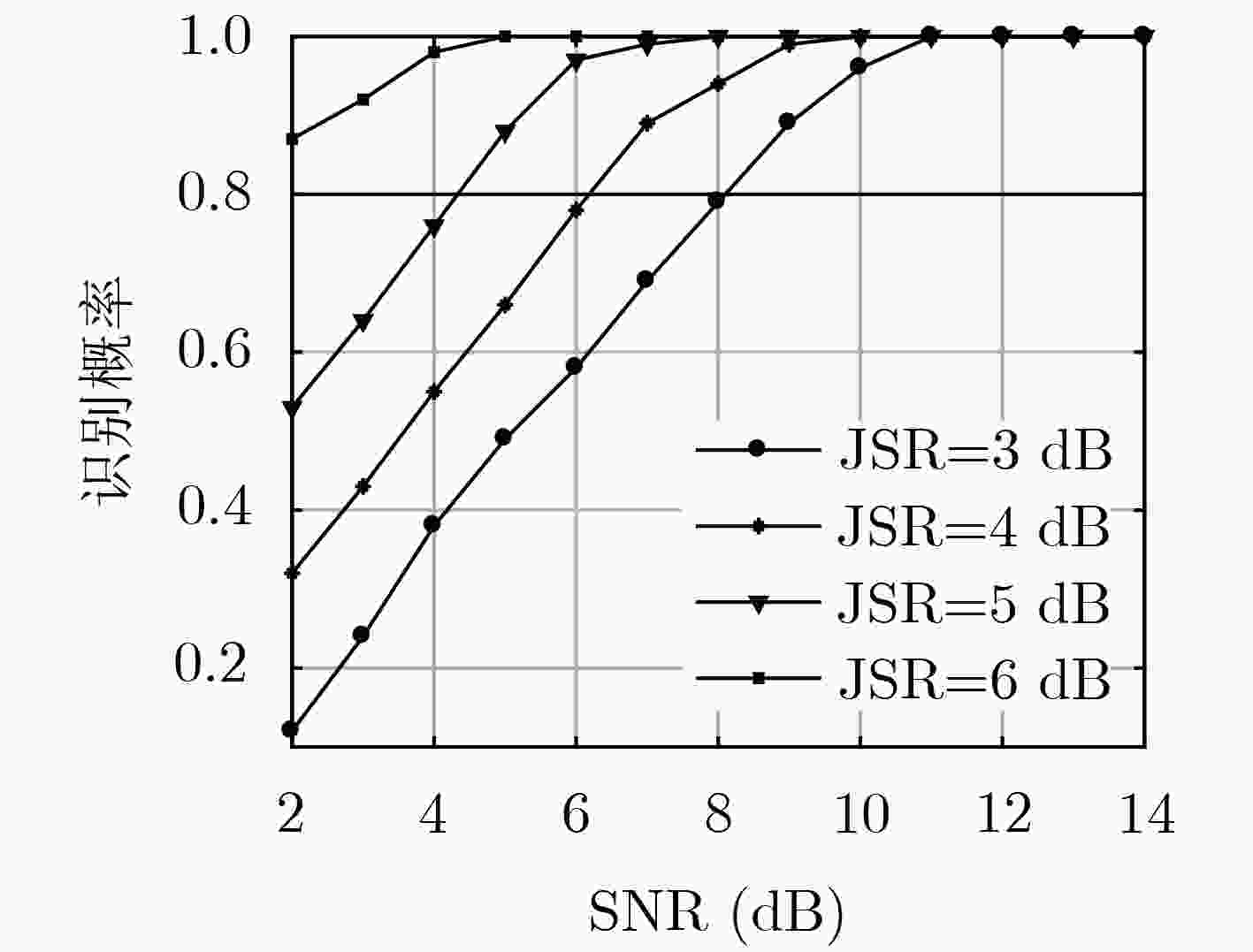

摘要: 针对长基线多基地雷达系统在目标跟踪阶段的拖引欺骗干扰识别问题，考虑到真实目标回波在不同节点雷达中的幅度相互独立，而拖引欺骗干扰假设来自同一干扰机，其在不同节点雷达中的幅度完全相关，从而跟踪波门内只有目标回波与同时存在目标回波与拖引欺骗干扰这两种不同情形下的信号幅度存在统计相关差异。该文提出利用这一差异实现多基地雷达系统的拖引欺骗干扰识别。通过在分析统计相关差异的基础上，对不同节点雷达接收到的回波信号幅度序列进行相关性度量及参数估计，构建检验统计量，在给定的虚警概率下实现了对欺骗干扰的识别。仿真实验结果表明，该方法对欺骗干扰具有较好的识别效果，相较于基于拟合优度的AD检测算法，识别概率平均提高18.63%。Abstract: In multistatic radar system, the real target echoes are independent of each other in different node radars under long-term baseline conditions, but the amplitudes of the deception jamming signals in different node radars are completely correlated because of the jamming signals generated from the same jammer. This paper uses the difference to realize the recognition of deception jamming in multistatic radar system on the stage of tracking. Correlation measurement and parameter estimation are carried out on the amplitude sequence of the received signals by different nodes, and the test statistic is constructed to realize the recognition of deception jamming under the given false alarm probability. The simulation results show that the proposed method has a good performance on the recognition of deception jamming. Compared to the Anderson-Darling (AD) test based on goodness-of-fit, the recognition probability increases by an average of 18.63%.
-
Key words:
- Deception jamming /
- Detection and recognition /
- Multistatic radar system /
- Correlation
-
ZHOU Chao, LIU Quanhua, and CHEN Xinliang. Parameter estimation and suppression for DRFM-based interrupted sampling repeater jammer[J]. IET Radar, Sonar & Navigation, 2018, 12(1): 56–63. doi: 10.1049/iet-rsn.2017.0114 LIU Zhen, SUI Jinping, WEI Zhenhua, et al. A sparse-driven anti-velocity deception jamming strategy based on pulse-Doppler radar with random pulse initial phases[J]. Sensors, 2018, 18(4): 1249. doi: 10.3390/s18041249 LIU Jieyi, ZHANG Linrang, ZHAO Shanshan, et al. Correlation characteristic analysis in diversity multiple-input multiple-output radar[J]. Electronics Letters, 2017, 53(5): 349–351. doi: 10.1049/el.2016.3535 HUANG Can, CHEN Zhuming, and DUAN Rui. Novel Discrimination Algorithm for Deceptive Jamming in Polarimetric Radar[M]. Berlin, Germany, 2013: 359–365. doi: 10.1007/978-3-642-34528-9_38. ZHANG Zhaojian, XIE Junwei, SHENG Chuan, et al. Deceptive jamming discrimination based on range-angle localization of a frequency diverse array[J]. Frontiers of Information Technology & Electronic Engineering, 2017, 18(9): 1437–1446. 王珊珊, 刘峥, 谢荣, 等. 有源欺骗干扰环境下的DOA估计[J]. 电子与信息学报, 2019, 41(5): 1040–1046. doi: 10.11999/JEIT180488WANG Shanshan, LIU Zheng, XIE Rong, et al. DOA estimation under active deception jamming environment[J]. Journal of Electronics &Information Technology, 2019, 41(5): 1040–1046. doi: 10.11999/JEIT180488 RAO Bin, XIAO Shunping, and WANG Xuesong. Joint tracking and discrimination of exoatmospheric active decoys using nine-dimensional parameter-augmented EKF[J]. Signal Processing, 2011, 91(10): 2247–2258. doi: 10.1016/j.sigpro.2011.04.005 GRIFFITHS H. Multistatic, MIMO and networked radar: The future of radar sensors?[C]. The 7th European Radar Conference, Paris, France, 2010: 81–84. BUTT F A, NAQVI I H, and NAJAM A I. Radar ECCM against deception jamming: A novel approach using bi-static and mono-static radars[C]. The 15th International Multitopic Conference (INMIC), Islamabad, Pakistan, 2012: 137–141. doi: 10.1109/INMIC.2012.6511482. ZHAO Shanshan and LIU Ziwei. Deception parameter estimation and discrimination in distributed multiple-radar architectures[J]. IEEE Sensors Journal, 2017, 17(19): 6322–6330. doi: 10.1109/JSEN.2017.2737654 ABDALLA A, YUAN Zhao, and TANG Bin. ECCM schemes in netted radar system based on temporal pulse diversity[J]. Journal of Systems Engineering and Electronics, 2016, 27(5): 1001–1009. doi: 10.21629/JSEE.2016.05.08 ALAMOUTI S M. A simple transmit diversity technique for wireless communications[J]. IEEE Journal on Selected Areas in Communications, 1998, 16(8): 1451–1458. doi: 10.1109/49.730453 AKHTAR J. Orthogonal block coded ECCM schemes against repeat radar jammers[J]. IEEE Transactions on Aerospace and Electronic Systems, 2009, 45(3): 1218–1226. doi: 10.1109/TAES.2009.5259195 ZHAO Shanshan, LIU Nan, ZHANG Linrang, et al. Discrimination of deception targets in multistatic radar based on clustering analysis[J]. IEEE Sensors Journal, 2016, 16(8): 2500–2508. doi: 10.1109/JSEN.2016.2516000 ABDALLA A, SHOKRALLAH A M G, YUAN Z, et al. Deceptive jamming suppression in multistatic radar based on coherent clustering[J]. Journal of Systems Engineering and Electronics, 2018, 29(2): 269–277. doi: 10.21629/JSEE.2018.02.07 LAN Lan, LIAO Guisheng, XU Jingwei, et al. Suppression approach to main-beam deceptive jamming in FDA-MIMO radar using nonhomogeneous sample detection[J]. IEEE Access, 2018, 6: 34582–34597. doi: 10.1109/ACCESS.2018.2850816 HUANG Datong, CUI Guolong, GE Mengmeng, et al. A suppression method against range deception jamming based on homologous localisation test[J]. The Journal of Engineering, 2019, 2019(20): 6961–6965. doi: 10.1049/joe.2019.0474 卢云龙, 李明, 陈洪猛, 等. 基于奇异谱分析的抗数字射频存储距离波门拖引干扰[J]. 电子与信息学报, 2016, 38(3): 600–606. doi: 10.11999/JEIT150550LU Yunlong, LI Ming, CHEN Hongmeng, et al. Countering DRFM range gate pull-off jamming based on singular spectrum analysis[J]. Journal of Electronics &Information Technology, 2016, 38(3): 600–606. doi: 10.11999/JEIT150550 全英汇, 陈侠达, 阮锋, 等. 一种捷变频联合Hough变换的抗密集假目标干扰算法[J]. 电子与信息学报, 2019, 41(11): 2639–2645. doi: 10.11999/JEIT190010QUAN Yinghui, CHEN Xiada, RUAN Feng, et al. An anti-dense false target jamming algorithm based on agile frequency joint Hough transform[J]. Journal of Electronics &Information Technology, 2019, 41(11): 2639–2645. doi: 10.11999/JEIT190010 ZHAO Shanshan, ZHANG Linrang, ZHOU Yu, et al. Study of multistatic radar against false targets jamming using spatial scattering properties[C]. 2014 IEEE International Conference on Computer and Information Technology, Xi’an, China, 2014: 129–133. doi: 10.1109/CIT.2014.132. LI Qiang, ZHANG Linrang, ZHOU Yu, et al. Discrimination of active false targets based on Hermitian distance for distributed multiple-radar architectures[J]. IEEE Access, 2019, 7: 71872–71883. doi: 10.1109/ACCESS.2019.2920365 LI Qiang, ZHANG Linrang, ZHOU Yu, et al. Hermitian distance-based method to discriminate physical targets and active false targets in a distributed multiple-radar architecture[J]. IEEE Sensors Journal, 2019, 19(22): 10432–10442. doi: 10.1109/JSEN.2019.2926414 ZHOU Shenghua, LIU Hongwei, ZHAO Yongbo, et al. Target spatial and frequency scattering diversity property for diversity MIMO radar[J]. Signal Processing, 2011, 91(2): 269–276. doi: 10.1016/j.sigpro.2010.07.004 ZHANG Qiliang, GAO Feifei, SUN Qing, et al. Single source self-screen jamming elimination and target detection for distributed dual antennas radar system[J]. China Communications, 2017, 14(11): 112–125. doi: 10.1109/CC.2017.8233655 XIAO Tian. Radar deceptive jamming detection based on goodness-of-fit testing[J]. Journal of Information & Computational Science, 2012, 9(13): 3839–3847. -
