基于旁瓣对消器的自适应零陷优化设计

曹运合; 郭勇强; 刘帅; 刘玉涛

doi:10.11999/JEIT190296

基于旁瓣对消器的自适应零陷优化设计

doi: 10.11999/JEIT190296

曹运合^{1, 2, ,},
郭勇强¹,
刘帅¹,
刘玉涛²

1.
西安电子科技大学雷达信号处理国家重点实验室西安 710071
2.
通信网信息传输与分发技术重点实验室石家庄 050081

基金项目: 国家自然科学基金(61771367)，通信网信息传输与分发技术重点实验室开放基金(HHS19641X003)

详细信息

作者简介:
曹运合：男，1978年生，教授，博士生导师，研究方向为雷达信号处理、阵列信号处理、高速实时信号处理、DSP与FPGA开发

郭勇强：男，1993年生，硕士生，研究方向为阵列信号处理、智能化雷达有源干扰抑制

刘帅：男，1995年生，博士生，研究方向雷达信号处理、捷变频信号处理

刘玉涛：男，1981年生，博士，高级工程师，研究方向为移动自组织网、认知无线电等

通讯作者:
曹运合　caoyunhe@mail.xidian.edu.cn

中图分类号: TN911.7
计量
- 文章访问数: 2726
- HTML全文浏览量: 921
- PDF下载量: 107
- 被引次数: 0
出版历程
- 收稿日期: 2019-04-29
- 修回日期: 2019-11-01
- 网络出版日期: 2019-11-12
- 刊出日期: 2020-03-19

Adaptive Null Broadening Algorithm Based on Sidelobes Cancellation

1.
National Laboratory of Radar Signal Processing, Xidian University, Xi’an 710071, China
2.
Science and Technology on Communication Networks Laboratory, Shijiazhuang 050081, China

Funds: The National Natural Science Foundation of China (61771367), The Open Foundation of Science and Technology on Communication Networks Laboratory (HHS19641X003)

摘要

摘要:
现有的零陷展宽算法忽略了锥化矩阵的相位信息，在对抗强方向性、大偏差角干扰时，零陷深度变浅，干扰抑制性能严重下降。该文以虚拟空域密集干扰为切入点，推导并提出一种可用于旁瓣对消器的自适应零陷优化设计算法。该算法通过对辅助阵列数据的自协方差矩阵和主辅阵列数据的互协方差矩阵同时进行重构实现零陷区域的自适应控制，锥削矩阵只与阵元位置和展宽宽度有关，无需干扰信息，可以离线生成，不占用系统运算资源。仿真结果表明，该方法可以实现零陷区域的自适应展宽，提高非平稳干扰抑制的稳健性。
- 阵列信号处理 /
- 旁瓣对消器 /
- 稳健性 /
- 零陷展宽
Abstract:
In existing null broadening algorithm, the taper matrix does not contain phase information, and when it is used to against strong directional and large deviation angle interference, the null depth becomes shallow and the interference suppression performance drops seriously. An adaptive null broadening algorithm for sidelobe canceller is proposed based on dense disturbance in virtual airspace. The algorithm reconstructs the self-covariance matrix of the auxiliary array data and the co-covariance matrix of the main and auxiliary array data at the same time to realize the adaptive control of the null region. The taper matrix is only related to the position and width of the array elements, and it can be generated offline without disturbing information and occupying no computing resources of the system. The simulation results show that this method can achieve adaptive broadening of the null region and improve the robustness of non-stationary interference suppression.
- Array signal processing /
- Sidelobe canceller /
- Robustness /
- Null broadening

HTML全文

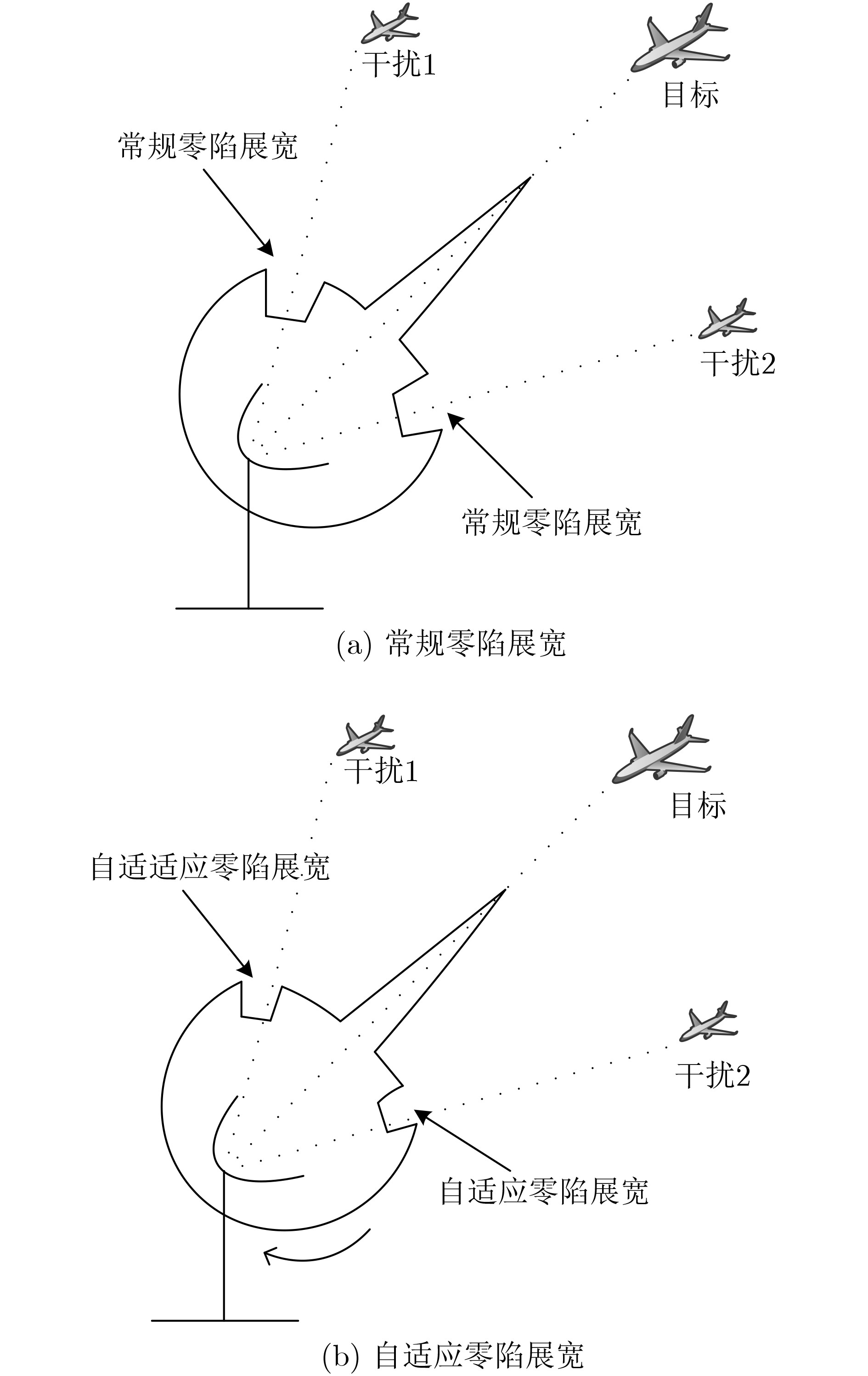

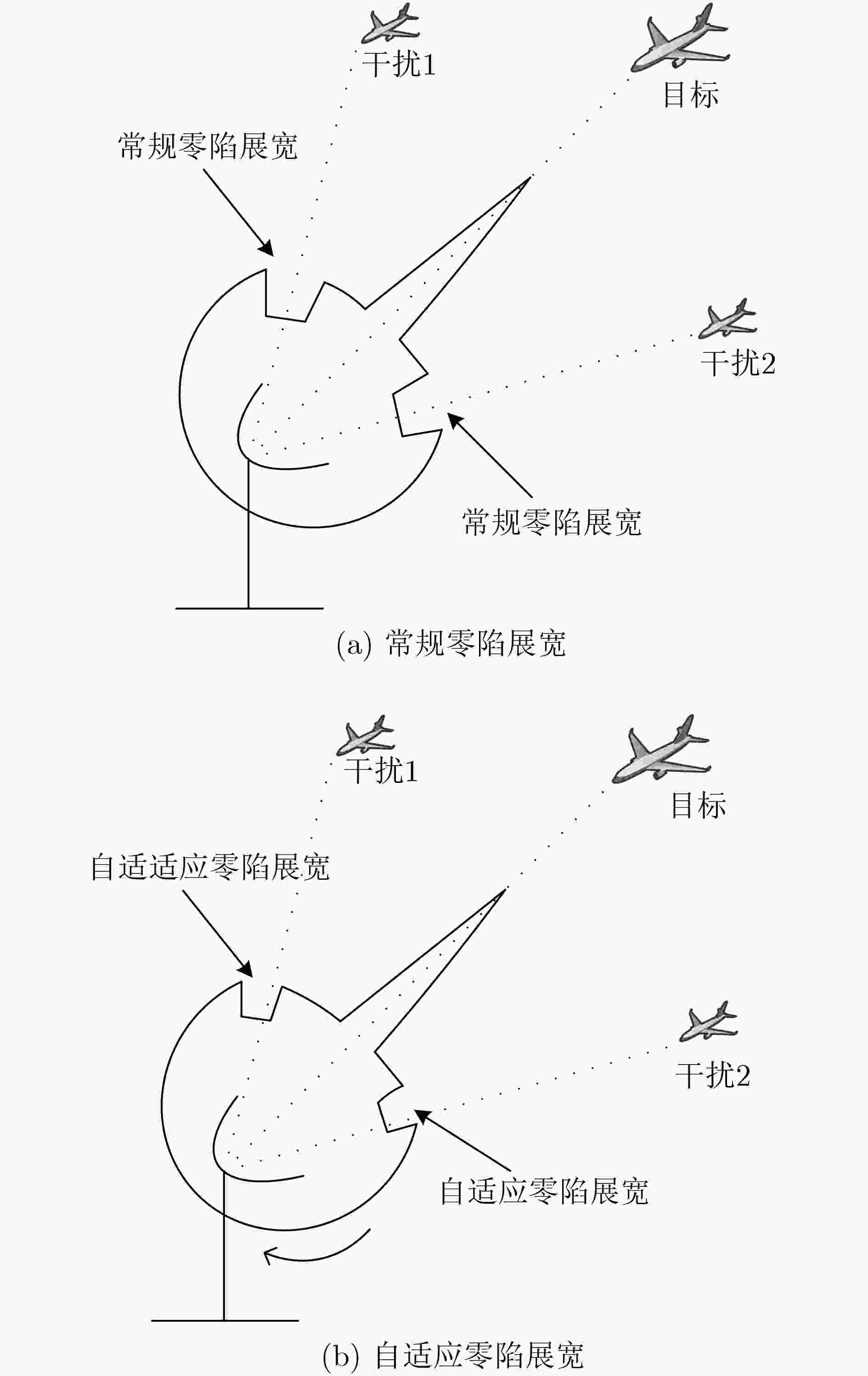

图 1 不同零陷展宽区域效果图

下载: 全尺寸图片幻灯片

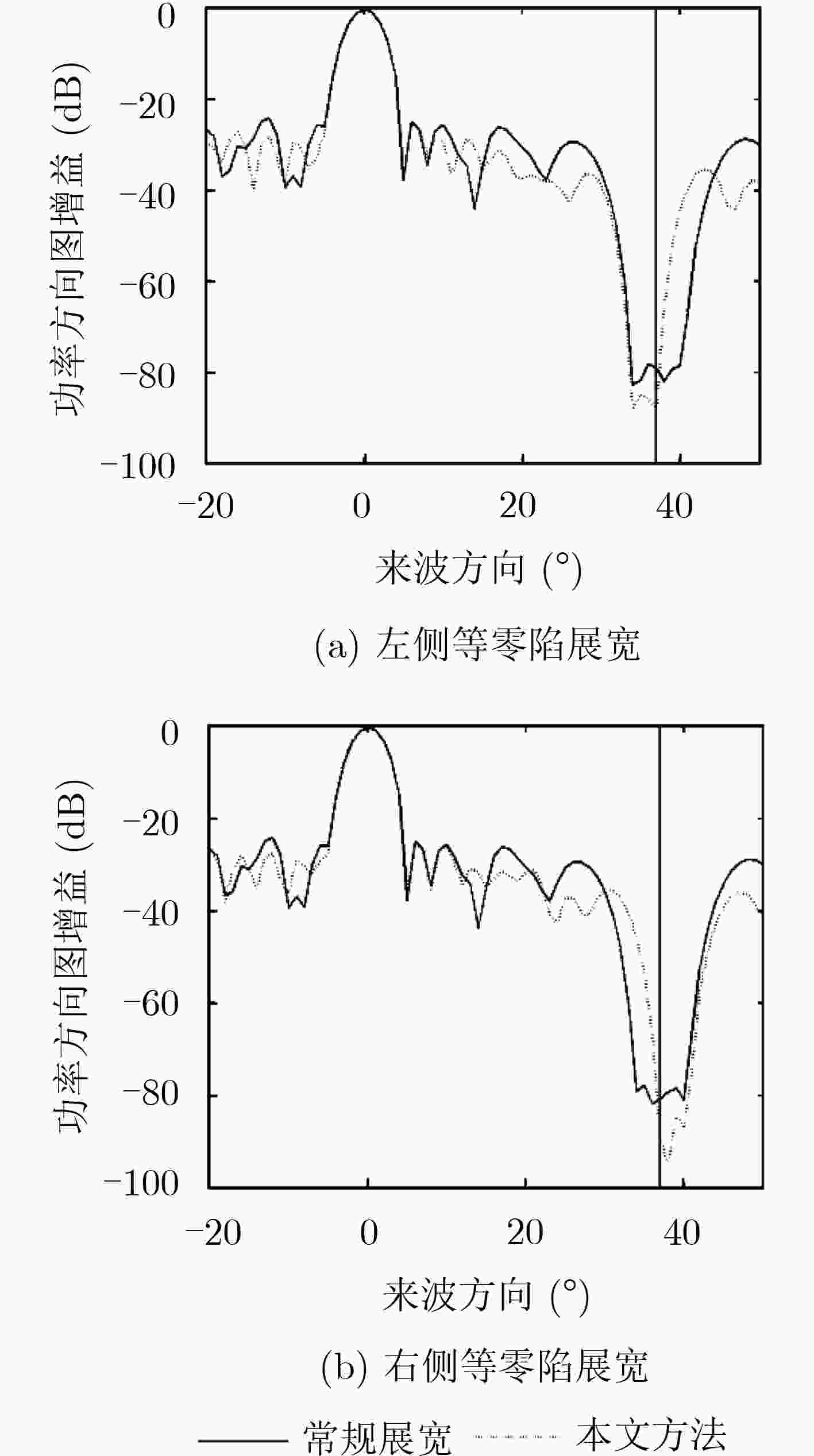

图 2 同侧等零陷展宽合成方向图

下载: 全尺寸图片幻灯片

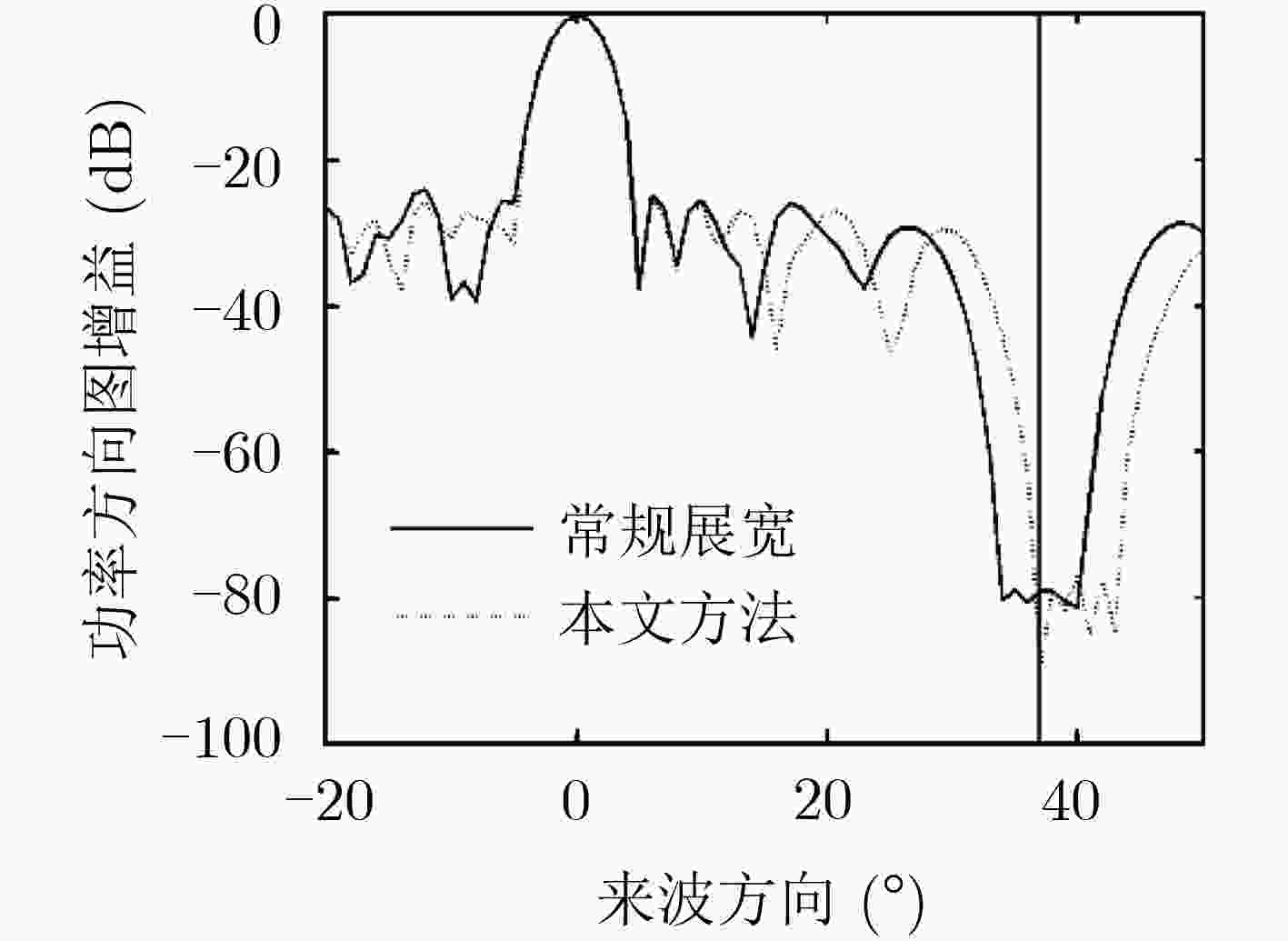

图 3 自适应零陷展宽前后合成方向图

下载: 全尺寸图片幻灯片

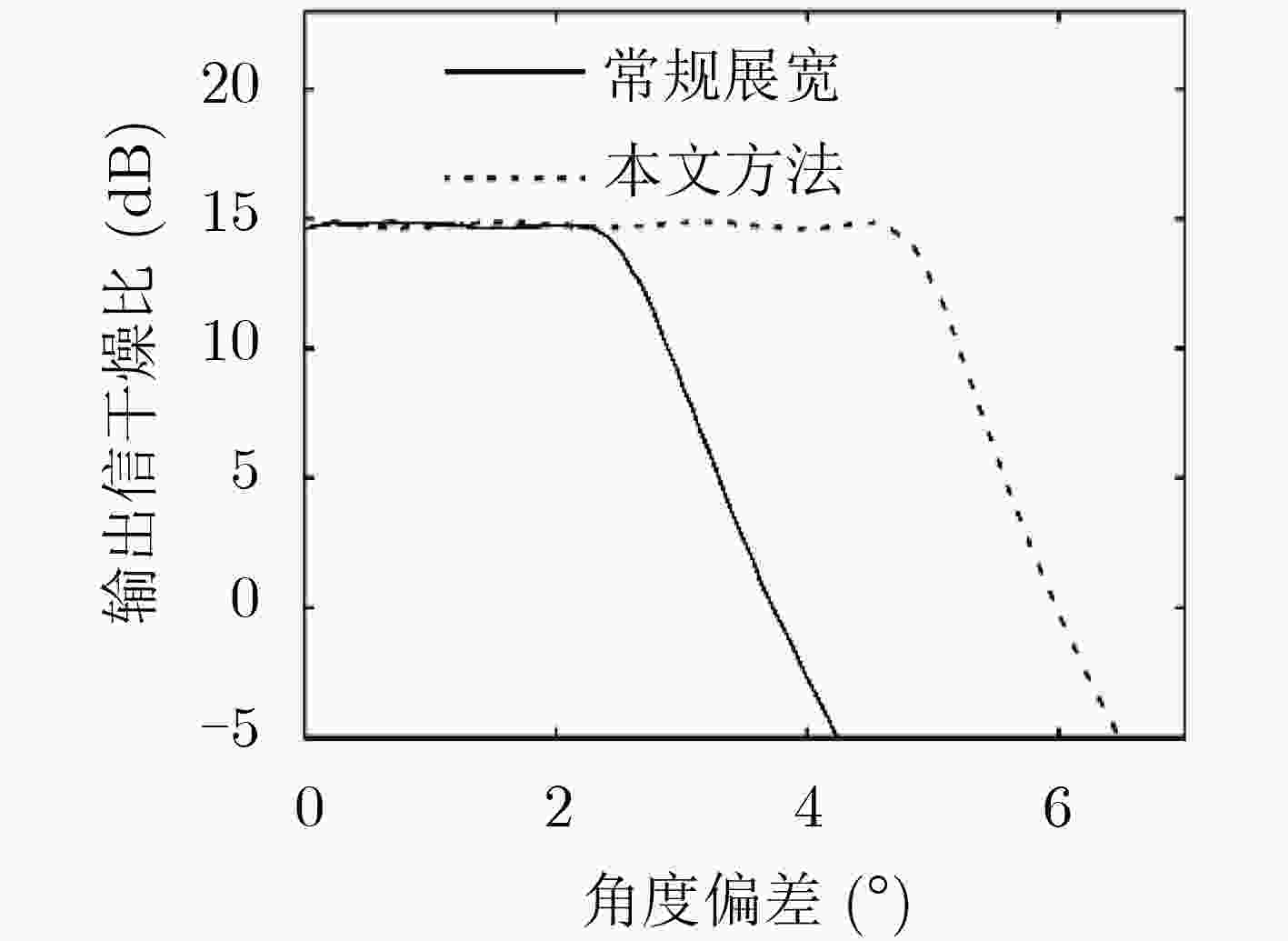

图 4 输出信干噪比随角度偏差变化图

下载: 全尺寸图片幻灯片

表 1 不同展宽算法运算时间比较(ms)

零陷展宽算法运算时间

文献[15] 0.157076
本文算法 0.175632

下载: 导出CSV

参考文献(15)

王永良, 丁前军, 李荣锋. 自适应阵列处理[M]. 北京: 清华大学出版社, 2009: 203–208.

ZHENG Zhi, ZHENG Yan, WANG Wenqin, et al. Covariance matrix reconstruction with interference steering vector and power estimation for robust adaptive beamforming[J]. IEEE Transactions on Vehicular Technology, 2018, 67(9): 8495–8503. doi: 10.1109/TVT.2018.2849646

DUAN Keqing, YUAN Huadong, XU Hong, et al. Sparsity-based non-stationary clutter suppression technique for airborne radar[J]. IEEE Access, 2018, 6: 56162–56169. doi: 10.1109/ACCESS.2018.2873021

HUANG Yongwei and VOROBYOV S A. An inner SOCP approximate algorithm for robust adaptive beamforming for General-Rank signal model[J]. IEEE Signal Processing Letters, 2018, 25(11): 1735–1739. doi: 10.1109/LSP.2018.2871612

LIU Jun, ORLANDO D, ADDABBO P, et al. SINR distribution for the persymmetric SMI beamformer with steering vector mismatches[J]. IEEE Transactions on Signal Processing, 2019, 67(5): 1382–1392. doi: 10.1109/TSP.2019.2892027

FENG Yang, LIAO Guisheng, XU Jingwei, et al. Robust beamforming using multiple constraints relaxation[C]. The 10th IEEE Sensor Array and Multichannel Signal Processing Workshop, Sheffield, UK, 2018: 514–518. doi: 10.1109/SAM.2018.8448458.

李文兴, 毛晓军, 孙亚秀. 一种新的波束形成零陷展宽算法[J]. 电子与信息学报, 2014, 36(12): 2882–2888. doi: 10.3724/SP.J.1146.2013.02018

LI Wenxing, MAO Xiaojun, and SUN Yaxiu. A new algorithm for null broadening beamforming[J]. Journal of Electronics &Information Technology, 2014, 36(12): 2882–2888. doi: 10.3724/SP.J.1146.2013.02018

范展, 梁国龙, 王逸林. 一种零陷展宽鲁棒自适应波束形成算法[J]. 电子与信息学报, 2013, 35(11): 2764–2770. doi: 10.3724/SP.J.1146.2013.00087

FAN Zhan, LIANG Guolong, and WANG Yilin. Robust adaptive beamforming with null widening[J]. Journal of Electronics &Information Technology, 2013, 35(11): 2764–2770. doi: 10.3724/SP.J.1146.2013.00087

MAILLOUX R J. Covariance matrix augmentation to produce adaptive array pattern troughs[J]. Electronics Letters, 1995, 31(10): 771–772. doi: 10.1049/el:19950537

ZATMAN M. Production of adaptive array troughs by dispersion synthesis[J]. Electronics Letters, 1995, 31(25): 2141–2142. doi: 10.1049/el:19951486

GUERCI J R. Theory and application of covariance matrix tapers for robust adaptive beamforming[J]. IEEE Transactions on Signal Processing, 1999, 47(4): 977–985. doi: 10.1109/78.752596

GERSHMAN A B and ERMOLAEV V T. Synthesis of the weight distribution of an adaptive antenna array with wide dips in the directional pattern[J]. Radiophysics and Quantum Electronics, 1991, 34(6): 600–603. doi: 10.1007/BF01039589

李荣锋, 王永良, 万山虎. 自适应天线方向图干扰零陷加宽方法研究[J]. 现代雷达, 2003, 25(2): 42–45. doi: 10.3969/j.issn.1004-7859.2003.02.012

LI Rongfeng, WANG Yongliang, and WAN Shanhu. Research on adapted pattern null widening techniques[J]. Modern Radar, 2003, 25(2): 42–45. doi: 10.3969/j.issn.1004-7859.2003.02.012

SU Hongtao, LIU Hongwei, SHUI Penglang, et al. Adaptive beamforming for nonstationary HF interference cancellation in skywave over-the-Horizon radar[J]. IEEE Transactions on Aerospace and Electronic Systems, 2013, 49(1): 312–324. doi: 10.1109/taes.2013.6404105

刘子威, 苏洪涛, 胡勤振. 一种零陷展宽稳健旁瓣相消算法[J]. 电子与信息学报, 2016, 38(3): 565–570. doi: 10.11999/JEIT150686

LIU Ziwei, SU Hongtao, and HU Qinzhen. Robust sidelobes cancellation algorithm with null broadening[J]. Journal of Electronics &Information Technology, 2016, 38(3): 565–570. doi: 10.11999/JEIT150686
