基于双层多参数加权类分数阶傅里叶变换的双极化卫星安全传输方案

达新宇; 王浩波; 罗章凯; 胡航; 倪磊; 潘钰

doi:10.11999/JEIT181135

基于双层多参数加权类分数阶傅里叶变换的双极化卫星安全传输方案

doi: 10.11999/JEIT181135

达新宇¹,
王浩波^2, ,,
罗章凯³,
胡航¹,
倪磊²,
潘钰²

1.
空军工程大学信息与导航学院西安 710077
2.
空军工程大学研究生院西安 710077
3.
航天工程大学复杂电子系统仿真实验室北京 101400

基金项目: 国家自然科学基金(61571460)，博士后创新人才计划项目(BX201700108)，陕西省自然科学基金(2018JQ6042)

详细信息

作者简介:
达新宇：男，1961年生，教授，博士生导师，研究方向为卫星通信和通信信号处理

王浩波：男，1994年生，硕士生，研究方向为卫星隐蔽通信

罗章凯：男，1989年生，助理研究员，研究方向为信息感知与智能信号处理

胡航：男，1989年生，讲师，研究方向为认知无线电

倪磊：男，1992年生，博士生，研究方向为现代通信理论与技术

潘钰：女，1995年生，博士生，研究方向为认知无线电

通讯作者:
王浩波　whbwhnkgd@163.com

中图分类号: TN911.7
计量
- 文章访问数: 2827
- HTML全文浏览量: 1030
- PDF下载量: 44
- 被引次数: 0
出版历程
- 收稿日期: 2018-12-10
- 修回日期: 2019-06-12
- 网络出版日期: 2019-06-24
- 刊出日期: 2019-08-01

Dual-polarized Satellite Security Transmission Scheme Based on Double Layer Multi-parameter Weighted-type Fractional Fourier Transform

Xinyu DA¹,
Haobo WANG^{2
, ,},
Zhangkai LUO³,
Hang HU¹,
Lei NI²,
Yu PAN²

1.
Information and Navigation College, Air Force Engineering University, Xi’an 710077, China
2.
Graduate School, Air Force Engineering University, Xi’an 710077, China
3.
Science and Technology on Complex Electronic System Simulation Laboratory, Space Engineering University, Beijing 101400, China

Funds: The National Natural Science Foundation of China (61571460), The National Postdoctoral Program for Innovative Talents (BX201700108), The Natural Science Foundation of Shaanxi Province (2018JQ6042)

摘要

摘要: 为提高双极化卫星通信的安全传输性能，该文提出一种基于双层多参数加权类分数阶傅里叶变换(DL-MPWFRFT)的安全传输方法。该方法中对相互正交的两路极化状态-幅相联合调制信号进行DL-MPWFRFT变换处理，并通过数模转换和射频化处理上载到卫星信道中。仿真结果表明，该方法使传输信号的星座图发生旋转和扩散，抗扫描能力提高，在增加系统容量的同时增强了系统的抗截获性。
- 卫星通信 /
- 加权类分数阶傅里叶变换 /
- 极化调制 /
- 星座图
Abstract: In order to improve the secure transmission performance of dual-polarized satellite communication, a secure transmission method based on Double Layer Multi-Parameter Weighted-type FRactional Fourier Transform (DL-MPWFRFT) is proposed. Two orthogonally polarization amplitude-phase modulation branch signals are processed by DL-MPWFRFT, and then uploaded to the satellite channel by digital-to-analog conversion and radio frequency processing. The simulation results show that the method rotates and spreads the constellation of the transmitted signal, improves the anti-scanning capability, and increases the anti-interception performance of the system meanwhile increasing the system capacity.
- Satellite communication /
- Weighted-type FRactional Fourier Transform (WFRFT) /
- Polarization modulation /
- Constellation

HTML全文

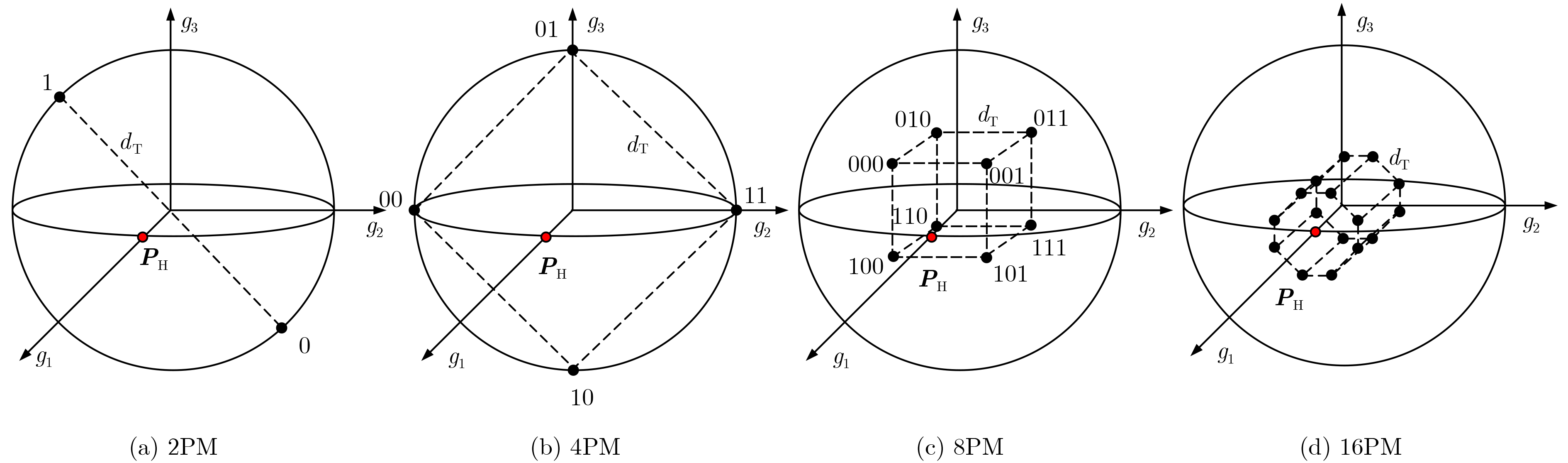

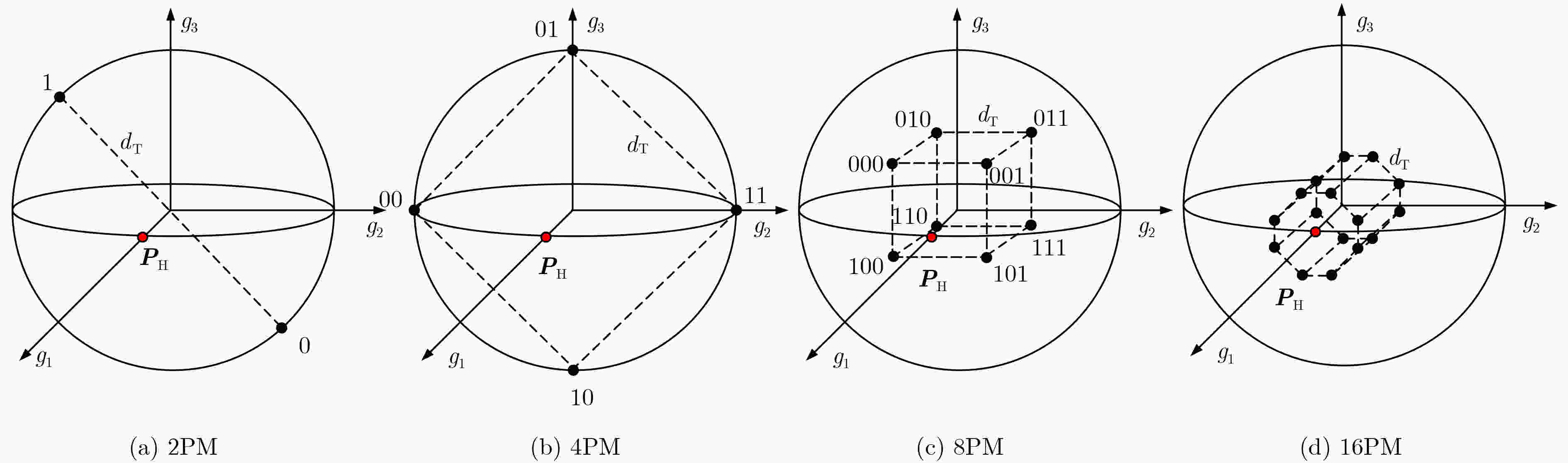

图 1 ${M_p}$阶极化星座图

下载: 全尺寸图片幻灯片

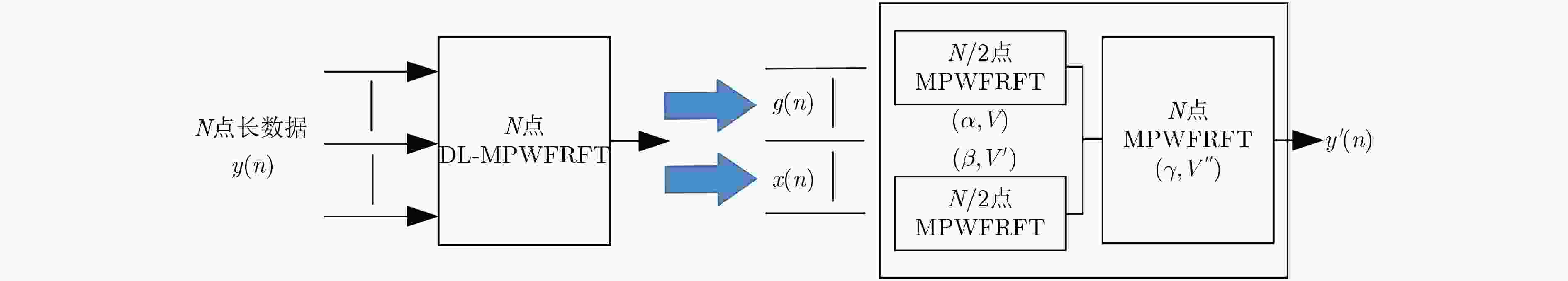

图 2 DL-MPWFRFT变换示意图

下载: 全尺寸图片幻灯片

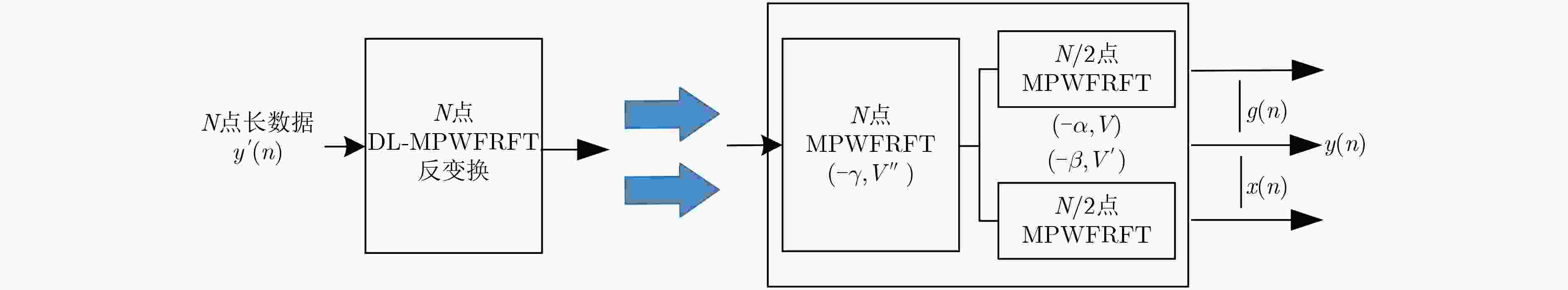

图 3 DL-MPWFRFT反变换示意图

下载: 全尺寸图片幻灯片

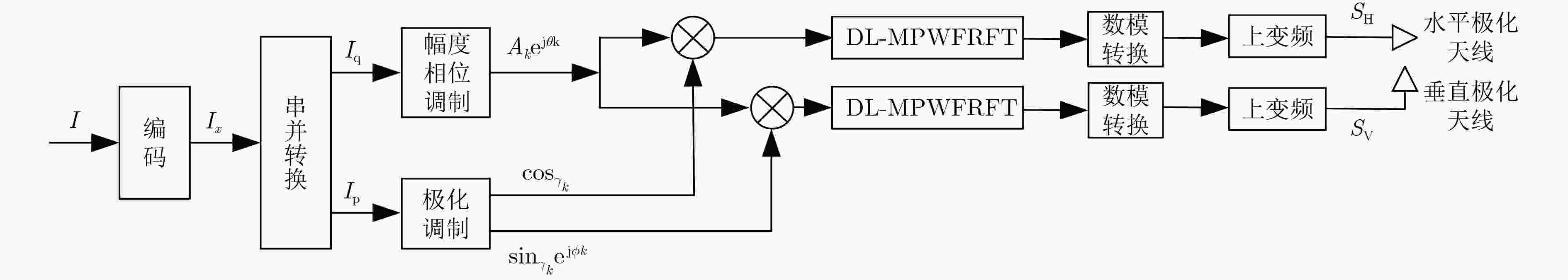

图 4 发射机示意图

下载: 全尺寸图片幻灯片

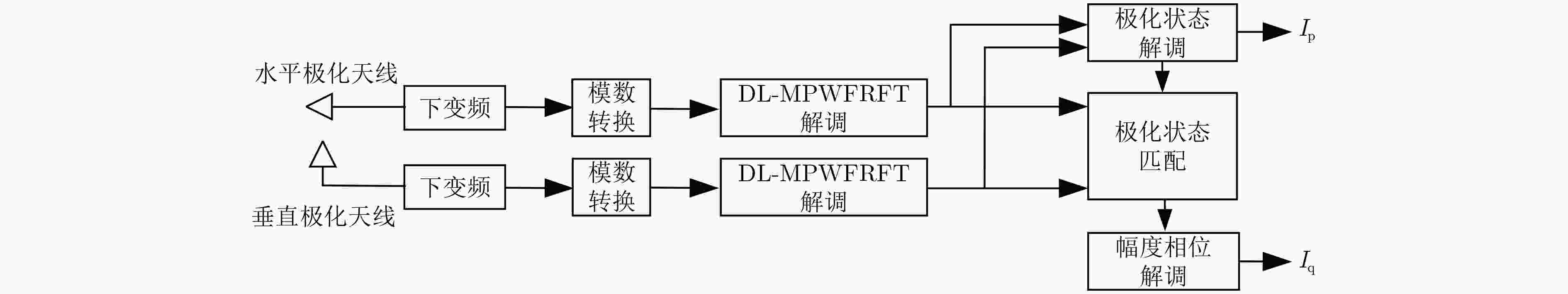

图 5 接收机示意图

下载: 全尺寸图片幻灯片

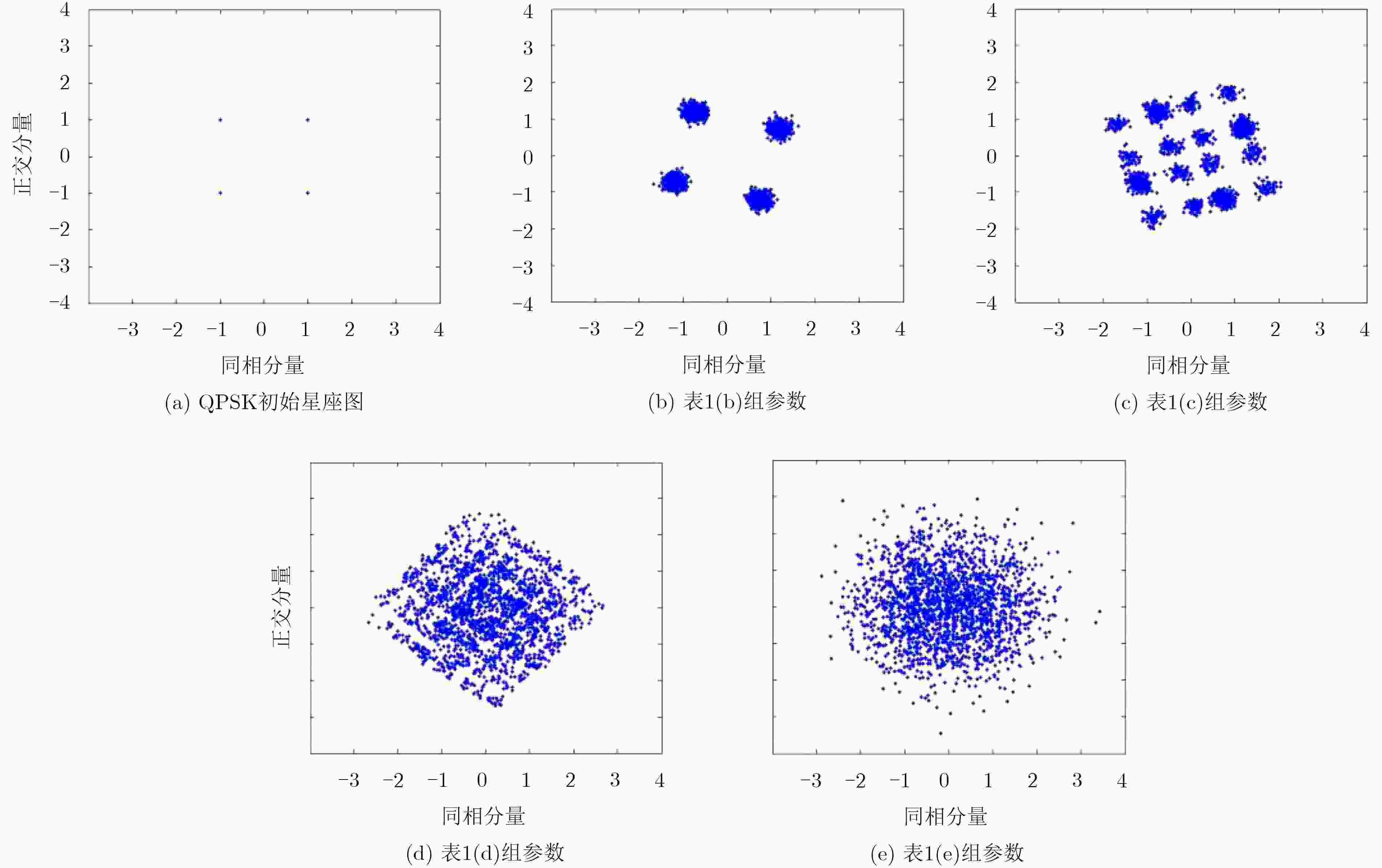

图 6 QPSK星座图特性

下载: 全尺寸图片幻灯片

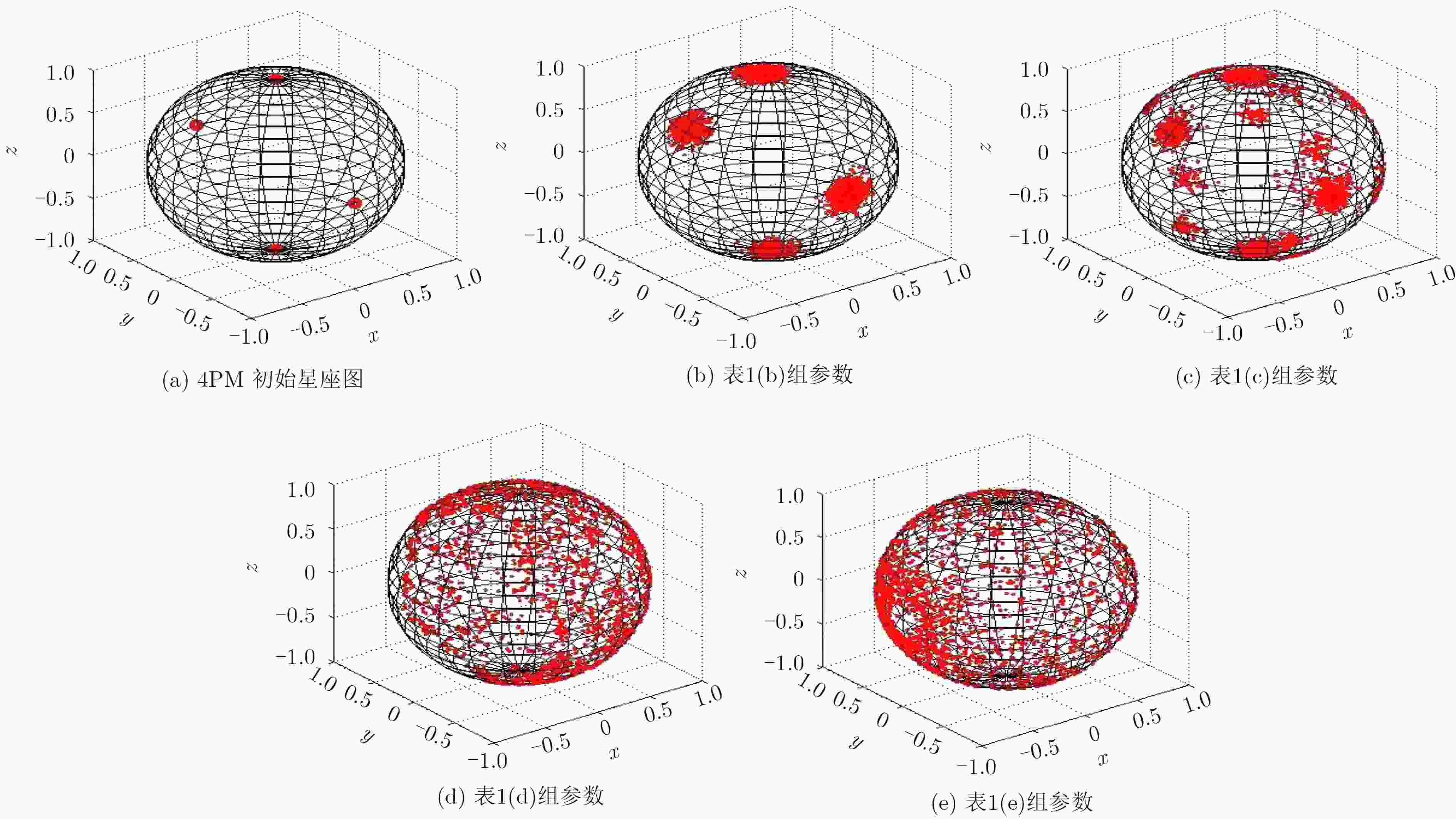

图 7 4PM星座图特性

下载: 全尺寸图片幻灯片

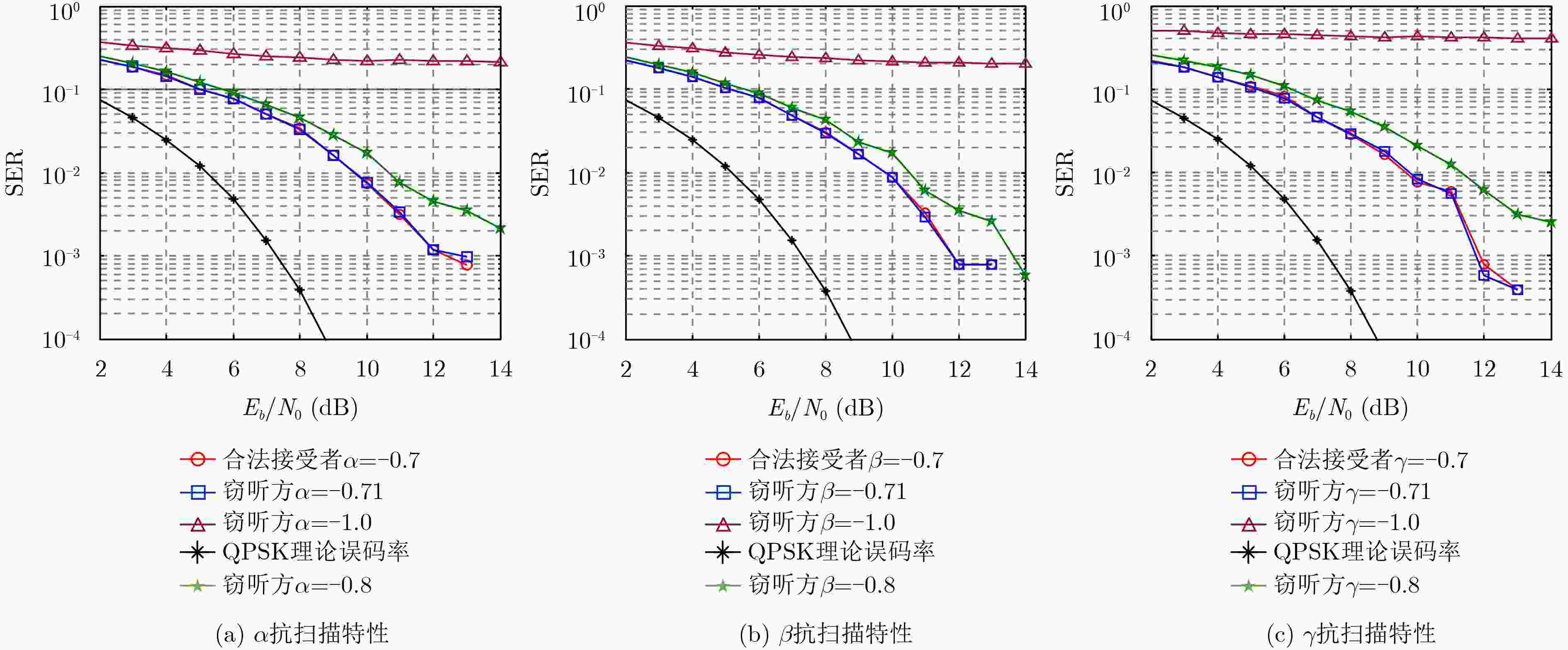

图 8 QPSK变换阶数抗扫描特性

下载: 全尺寸图片幻灯片

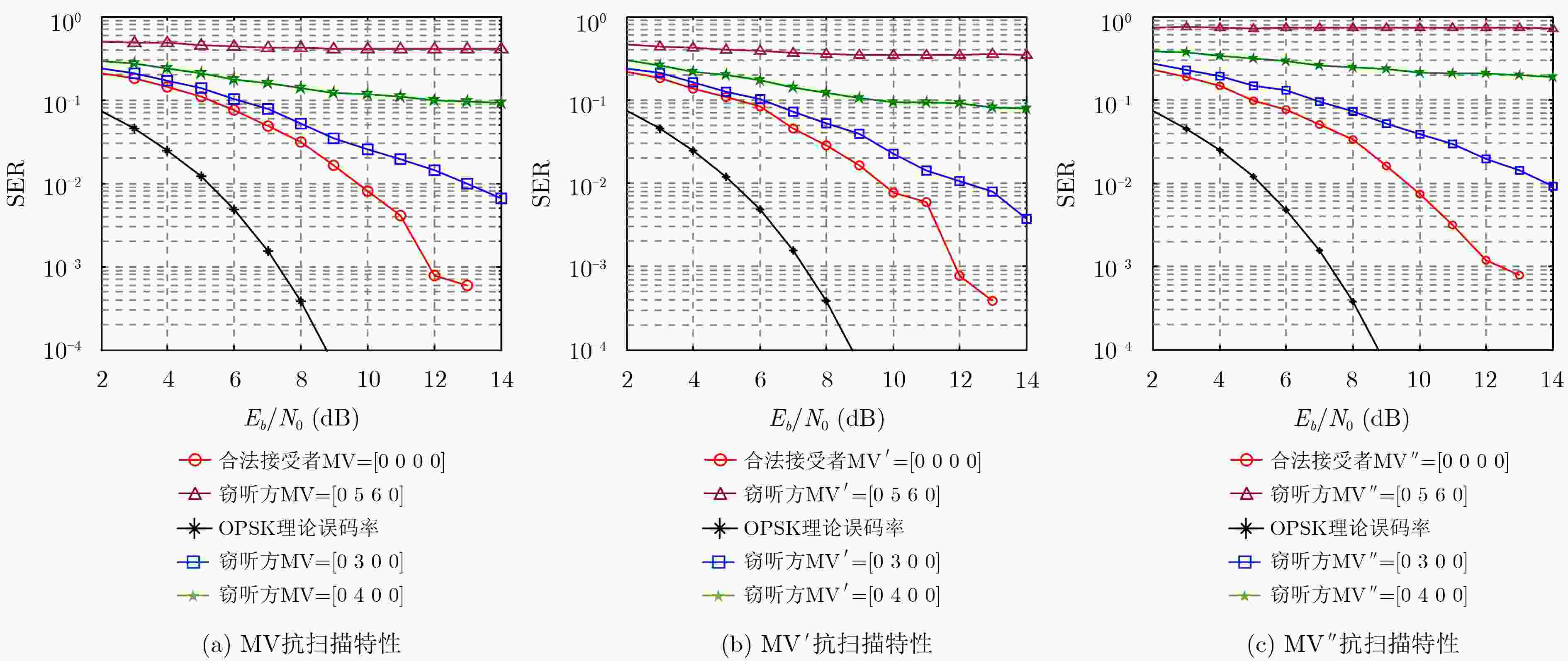

图 9 QPSK尺度向量抗扫描特性

下载: 全尺寸图片幻灯片

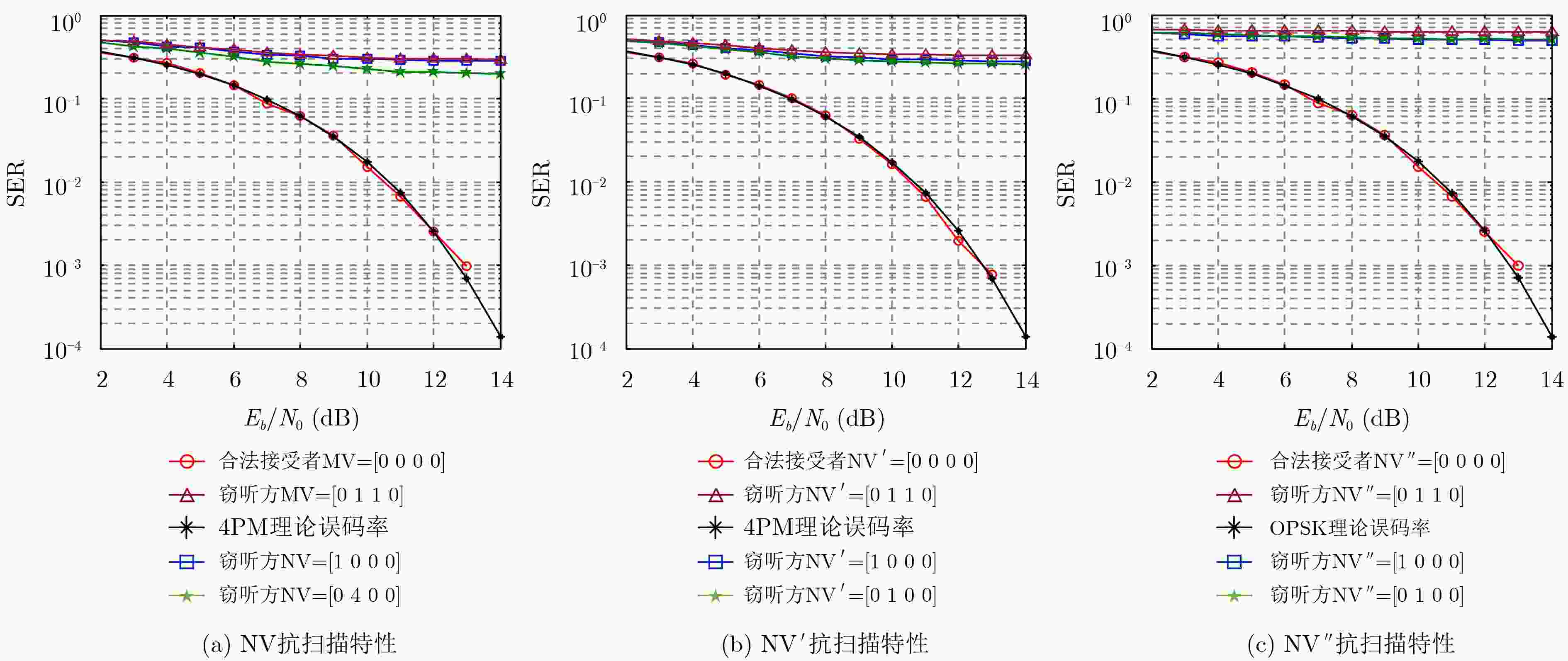

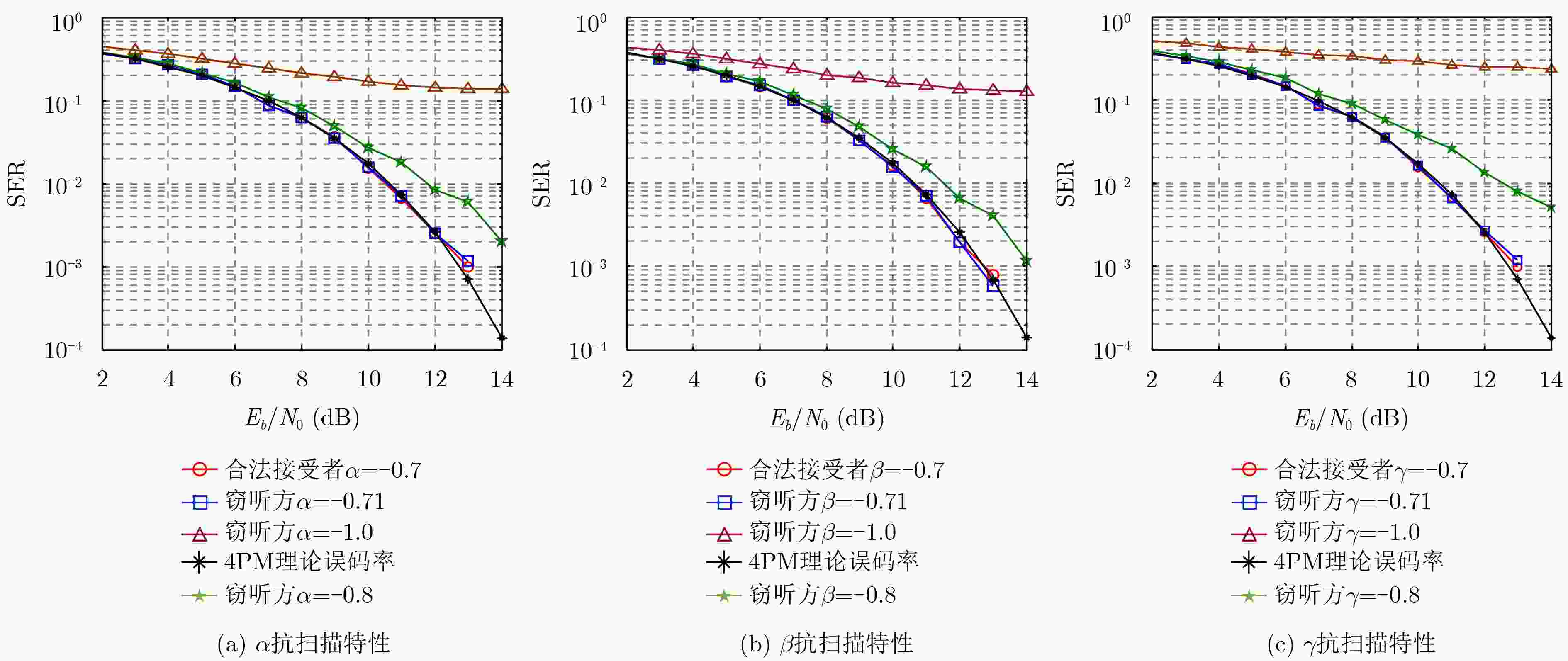

图 10 4PM变换阶数抗扫描特性
