A Novel Broadband Circularly Polarized Monopole Antenna
-
摘要: 该文设计了一种新颖的宽带圆极化单极子天线，该天线采用微带馈电模式。天线由C型贴片和改进的地板组成，整个天线尺寸仅为25×25×1 mm3。通过在C型贴片上切角和在地板上增加三角形微扰结构，可以有效增加天线的阻抗带宽和轴比带宽。该文给出了天线的设计流程，从表面电流分布分析了圆极化天线的工作机理。加工了天线实物，并对其进行了测量。仿真和实测结果表明天线具有超宽的阻抗带宽和轴比带宽。天线的工作频带为4.35～12 GHz(相对带宽为93.6%)，3 dB轴比带宽为4.15～11.8 GHz(相对带宽为95.9%)。测量了天线的辐射性能和增益特性，实测结果与仿真结果吻合较好，证明了该天线的有效性。该天线可以应用于超宽带无线通信系统和卫星通信系统中。Abstract: A novel broadband circularly polarized monopole antenna is proposed by microstrip feed line. The antenna is composed of C-shaped patch and an improved ground plane with the overall size of 25×25×1 mm3. The impedance bandwidth and axial ratio bandwidth of the antenna can be effectively widened by cutting the corner on the C-shaped patch and adding triangular stubs on the ground plane. The design procedure of the antenna is given, and the working mechanism of the circularly polarized antenna is analyzed from the surface current distributions. Besides, the antenna is fabricated and measured. Simulated and measured results show that the antenna has ultra wide impedance bandwidth and axial ratio bandwidth. The operating bandwidth of the antenna is 4.35～12 GHz (relative bandwidth 93.6%), and the 3 dB axial ratio bandwidth is 4.15～11.8 GHz (relative bandwidth 95.9%). At the same time, the radiation performance and gain characteristics of the antenna are measured and the measured results are in good agreement with the simulated results, which proves the effectiveness of the antenna. The antenna can be applied to Ultra-WideBand (UWB) wireless communication systems and satellite communication systems.
-
Key words:
- Monopole antenna /
- Axial ratio /
- Ultra WideBand (UWB) /
- Circularly polarized
-

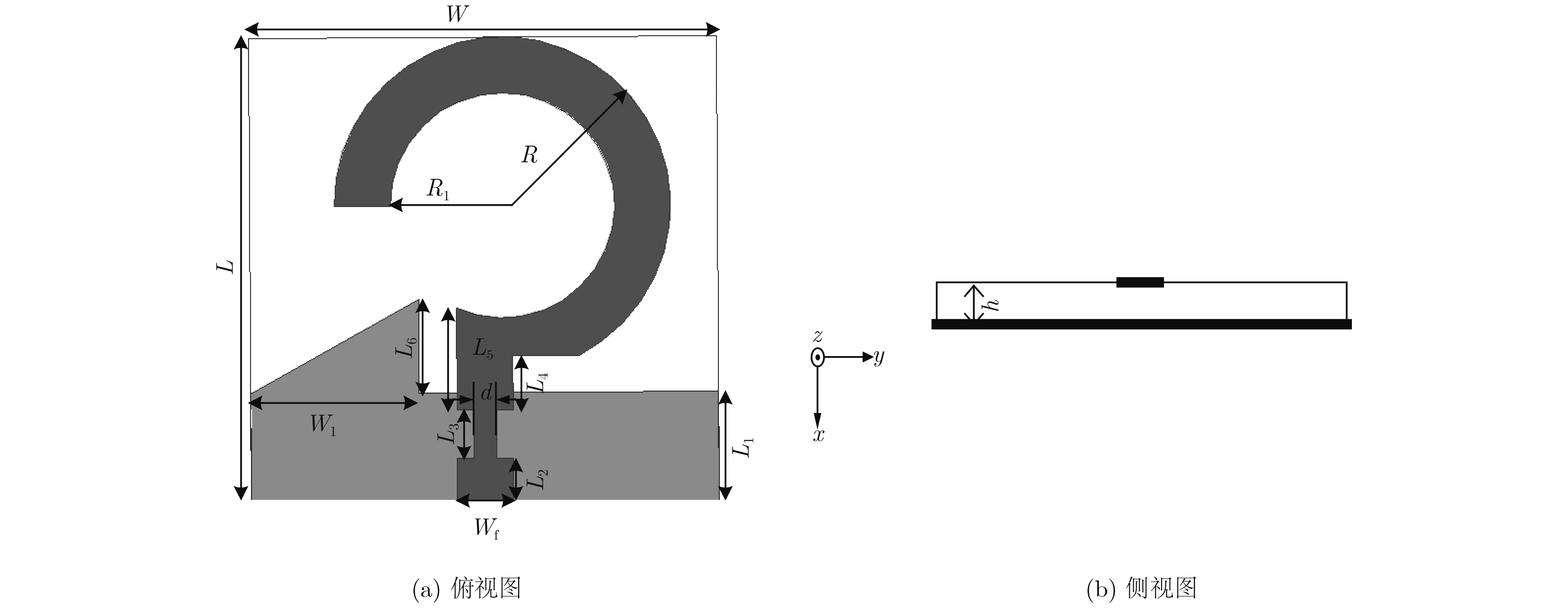

表 1 优化后的天线单元尺寸(mm)
L L1 L2 L3 L4 L5 L6 25.0 6.0 2.5 2.6 2.86 5.45 5.0 W W1 Wf R R1 d 25.0 9.0 3.0 9.0 6.0 1.2
下载: 导出CSV
-
CAO Wenquan, LIU Aijun, ZHANG Bangning, et al. Dual-band spiral patch-slot antenna with omnidirectional CP and unidirectional CP properties[J]. IEEE Transactions on Antennas and Propagation, 2013, 61(4): 2286–2289 doi: 10.1109/TAP.2012.2235400 MOHAMMAD S G, GHOLAMREZA M, and PEDRAM M. Wide-band circularly polarised slot antenna by using artificial transmission line[J]. IET Microwaves,Antennas and Propagation, 2017, 11(5): 672–679 doi: 10.1049/iet-map.2016.0784 MUBARAK S E, ZHAO Zhiqin, WU Jiangniu, et al. A novel simple and compact microstrip-fed circularly polarized wide slot antenna with wide axial ratio bandwidth for C-band applications[J]. IEEE Transactions on Antennas and Propagation, 2016, 64(4): 1552–1555 doi: 10.1109/TAP.2016.2526076 KARAMZADEH S, RAFFI V, KARTAL M, et al. Compact UWB CP square slot antenna with two corners connected by a strip line[J]. Electronics Letters, 2016, 52(1): 10–12 doi: 10.1049/el.2015.2817 赵小莹, 减洪明, 张功磊, 等. 一种新颖的树状分形超宽带天线[J]. 电子与信息学报, 2015, 37(4): 1008–1012 doi: 10.11999/JEIT140816ZHAO Xiaoying, ZANG Hongming, ZHANG Gonglei, et al. A novel ultra-wideband fractal tree-shape antenna[J]. Journal of Electronics&Information Technology, 2015, 37(4): 1008–1012 doi: 10.11999/JEIT140816 SRIVASTAVA G J, AKHILESH M H, and CHAKRABARTY A. Compact reconfigurable UWB slot antenna for cognitive radio applications[J]. IEEE Antennas and Wireless Propagation Letters, 2017, 16: 1139–1142 doi: 10.1109/LAWP.2016.2624736 HOMAYOON O and SHAHMIRZADI N V. Frequency and time-domain analysis of a novel UWB reconfigurable microstrip slot antenna with switchable notched bands[J]. IET Microwaves,Antennas and Propagation, 2017, 11(8): 1127–1132 doi: 10.1049/iet-map.2016.0009 胡章芳, 胡银平, 罗元, 等. 具有陷波特性的改进Sierpinski分形超宽带天线[J]. 电子与信息学报, 2017, 39(6): 1520–1524 doi: 10.11999/JEIT160738HU Zhangfang, HU Yinping, LUO Yuan, et al. Modified sierpinskiactal UWB antenna with band-notched characteristic[J]. Journal of Electronics&Information Technology, 2017, 39(6): 1520–1524 doi: 10.11999/JEIT160738 RUPAM D and HYOUNGSUK Y. A wideband circularly polarized conformal endoscopic antenna system for high-speed data transfer[J]. IEEE Transactions on Antennas and Propagation, 2017, 65(6): 2816–2826 doi: 10.1109/TAP.2017.2694700 HU Benyang, NASIMUDDIN, and SHEN Zhongxiang. Broadband circularly polarized moon-shaped monopole antenna[J]. Microwave and Optical Technology Letters, 2015, 57(5): 1135–1139 doi: 10.1002/mop.29035 DING Kang, GAO Cheng, YU Tongbin, et al. Broadband C-shaped circularly polarized monopole antenna[J]. IEEE Transactions on Antennas and Propagation, 2015, 63(2): 785–790 doi: 10.1109/TAP.2014.2380437 DING Kang, GAO Cheng, WU Yanjie, et al. A broadband circularly polarized printed monopole antenna with parasitic strips[J]. IEEE Antennas and Wireless Propagation Letters, 2017, 16: 2509–2512 doi: 10.1109/LAWP.2017.2728124 ROHIT K S, SANTANU D, and MRINAL K M. CPW-fed dual-band dual-sense circularly polarized monopole antenna[J]. IEEE Antennas and Wireless Propagation Letters, 2017, 16: 2497–2500 doi: 10.1109/LAWP.2017.2726545 TANG Hongyan, WANG Ke, and WU Runmiao. Compact broadband CP monopole antenna with tilted branch[J]. Electronics Letters, 2016, 52(21): 1739–1740 doi: 10.1049/el.2016.2733 DING Kang, GUO Yongxin, and GAO Cheng. CPW-fed wideband circularly polarized printed monopole antenna with open loop and asymmetric ground plane[J]. IEEE Antennas and Wireless Propagation Letters, 2017, 16: 833–836 doi: 10.1109/LAWP.2016.2606557 TANG Hongyan, WANG Ke, and WU Runmiao. A novel broadband circularly polarized monopole antenna based on C-shaped radiator[J]. IEEE Antennas and Wireless Propagation Letters, 2017, 16: 964–967 doi: 10.1109/LAWP.2016.2615159 CHANDU D S and KARTHIKEYAN S S. A novel broardband dual circularly polarized microstrip-fed monopole antenna[J]. IEEE Transactions on Antennas and Propagation, 2017, 65(3): 1410–1415 doi: 10.1109/TAP.2016.2647705 -
