Direction Finding Using Scanned Beams Based on Matched Reconstruction of Antenna Pattern
-

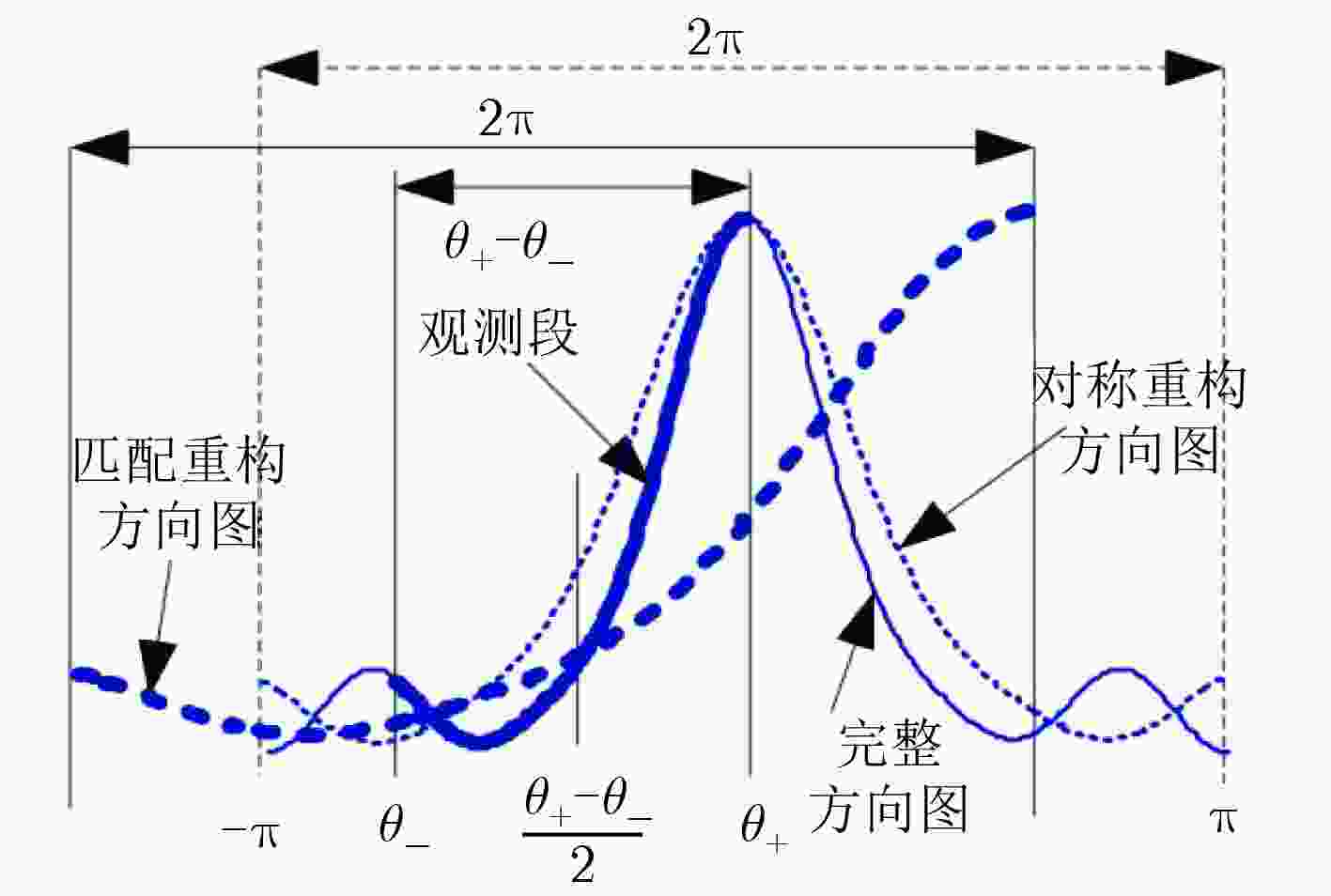

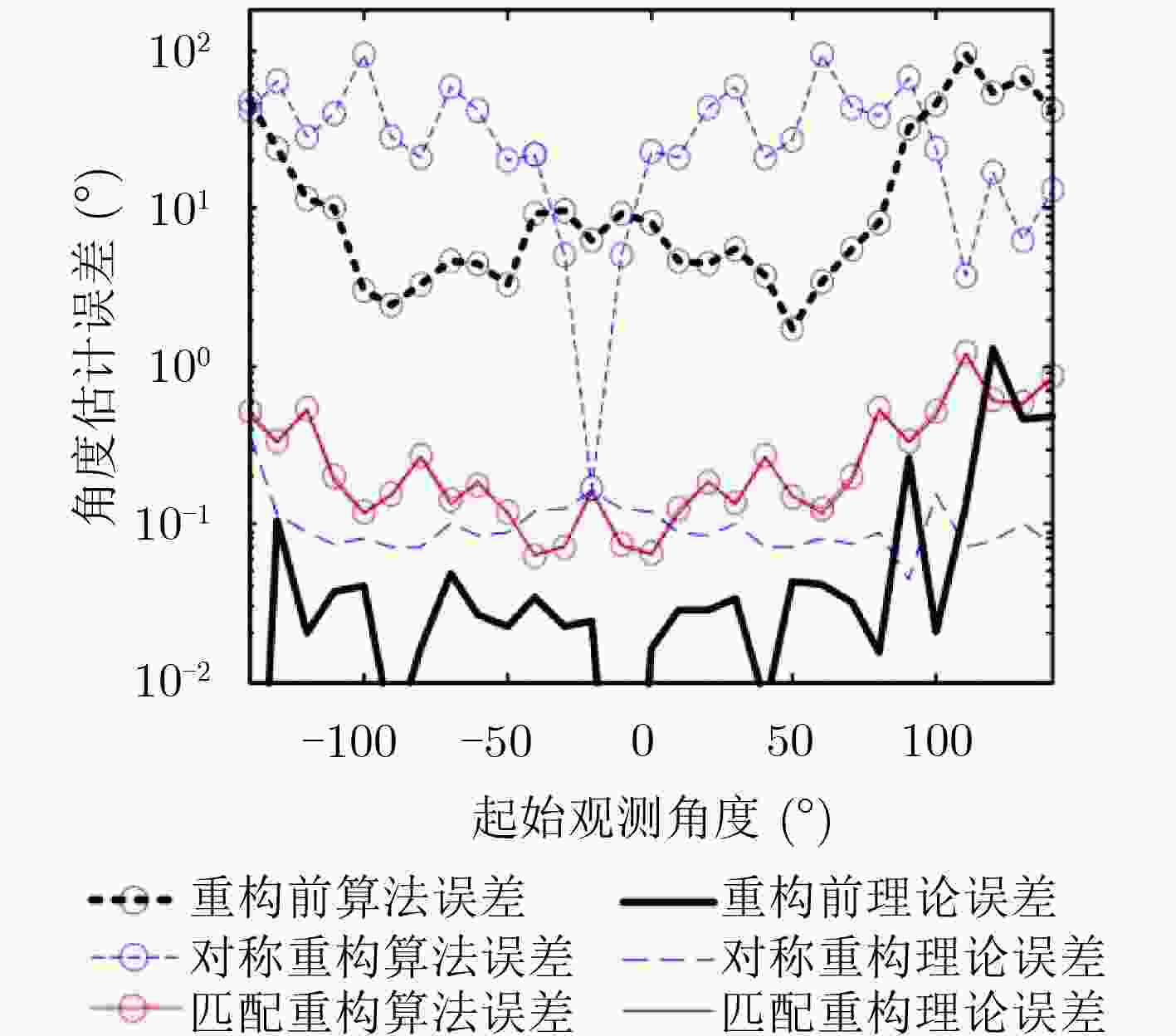

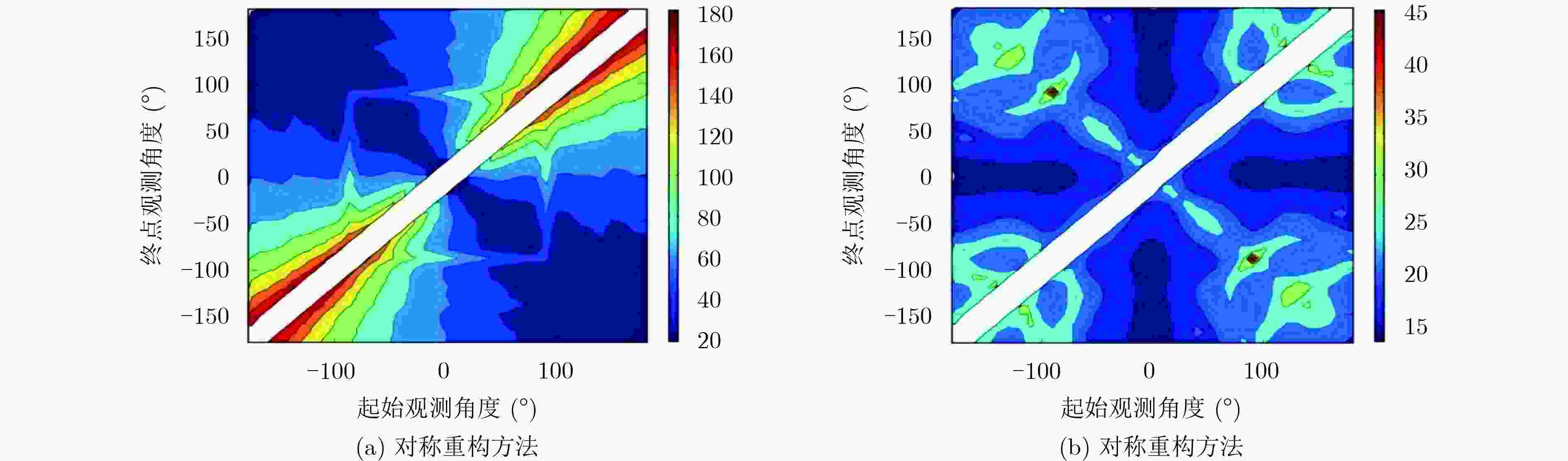

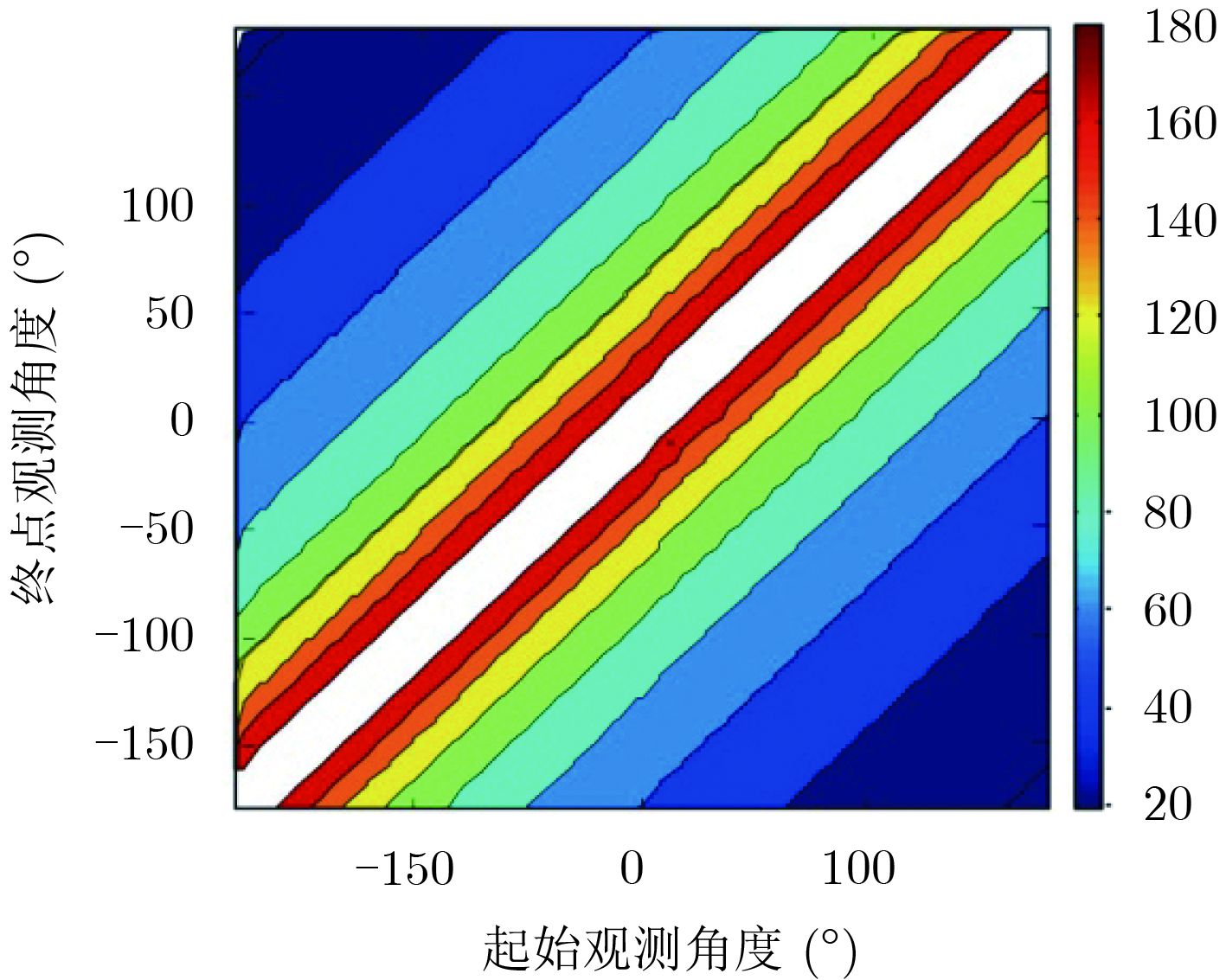

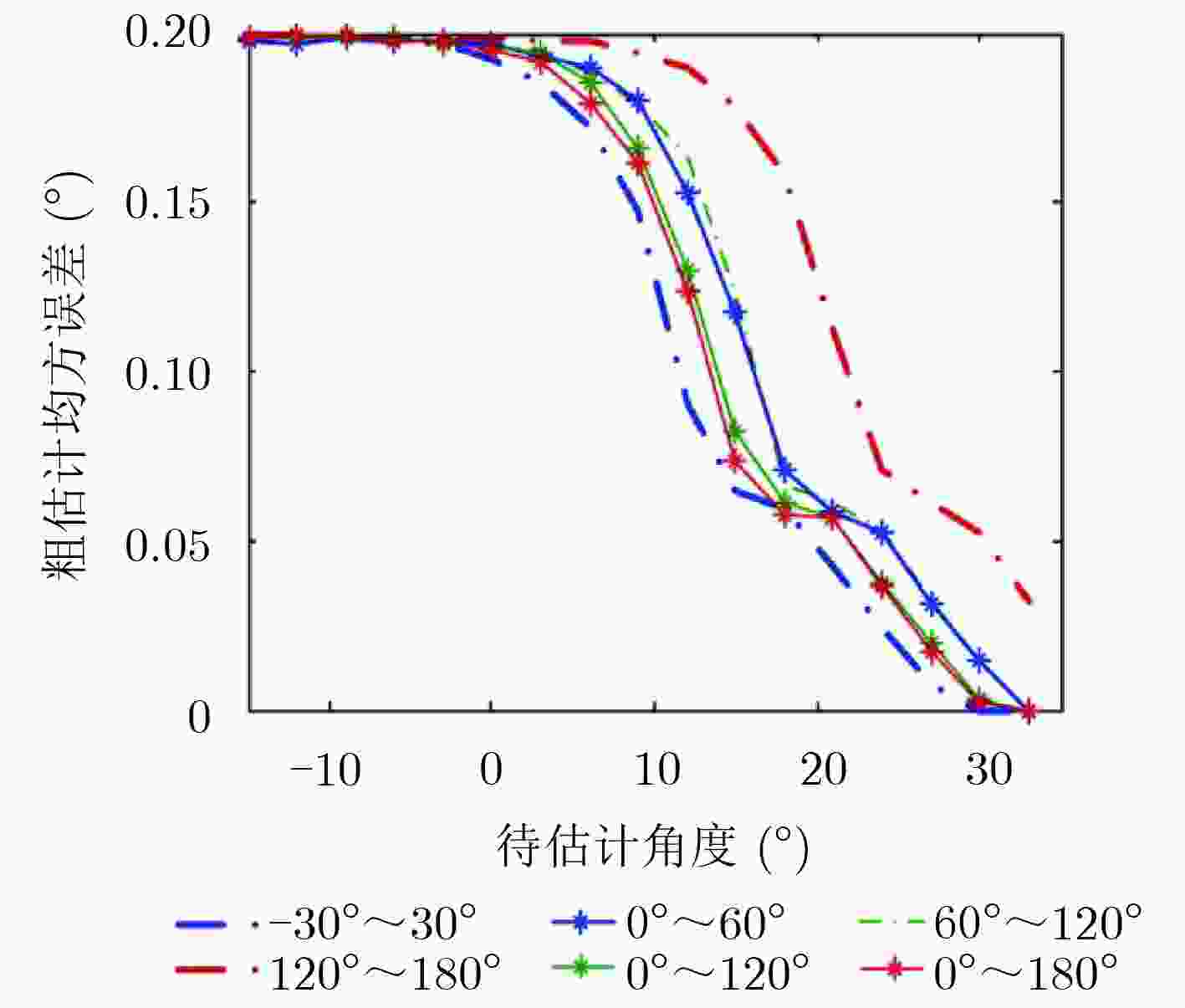

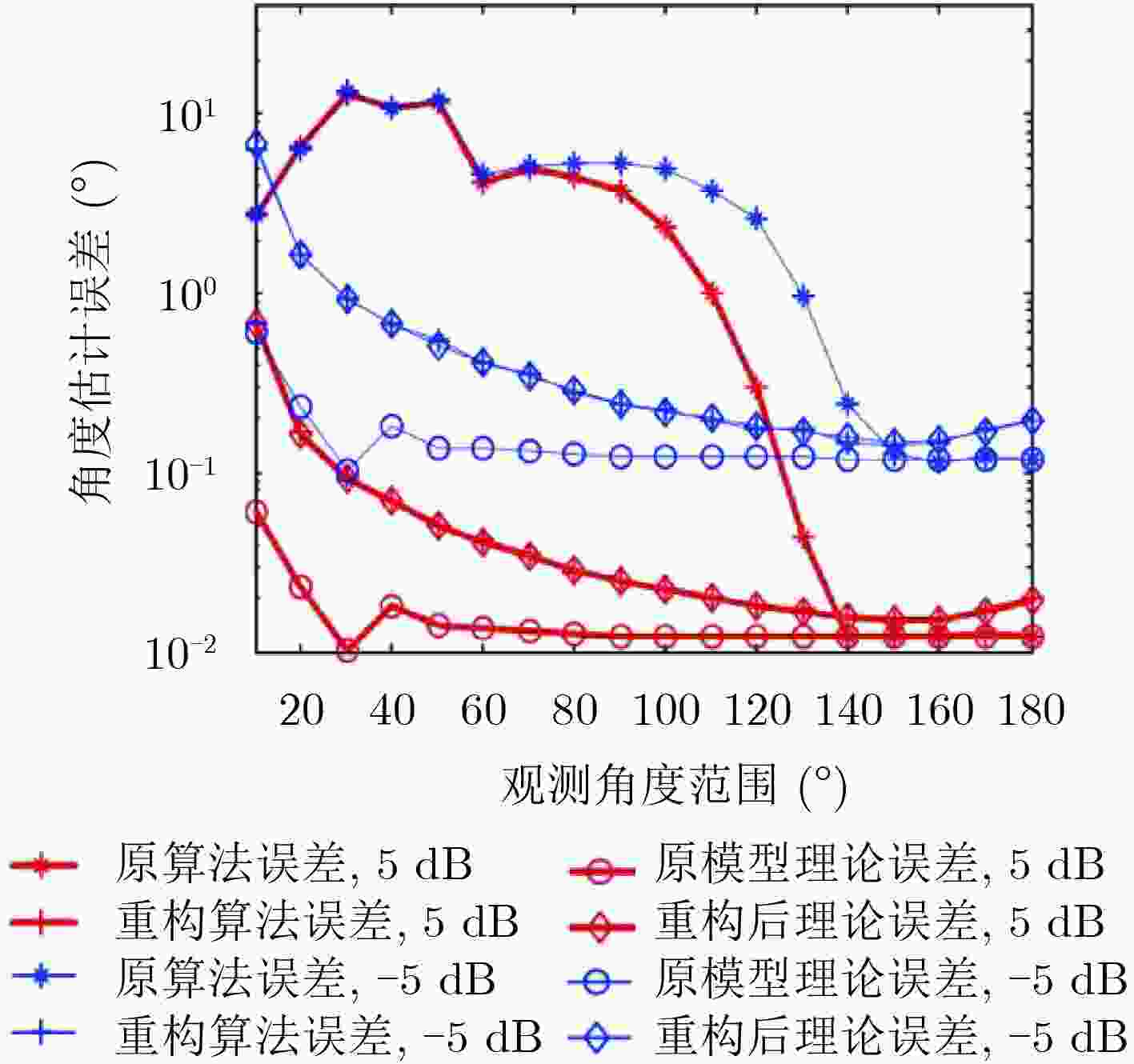

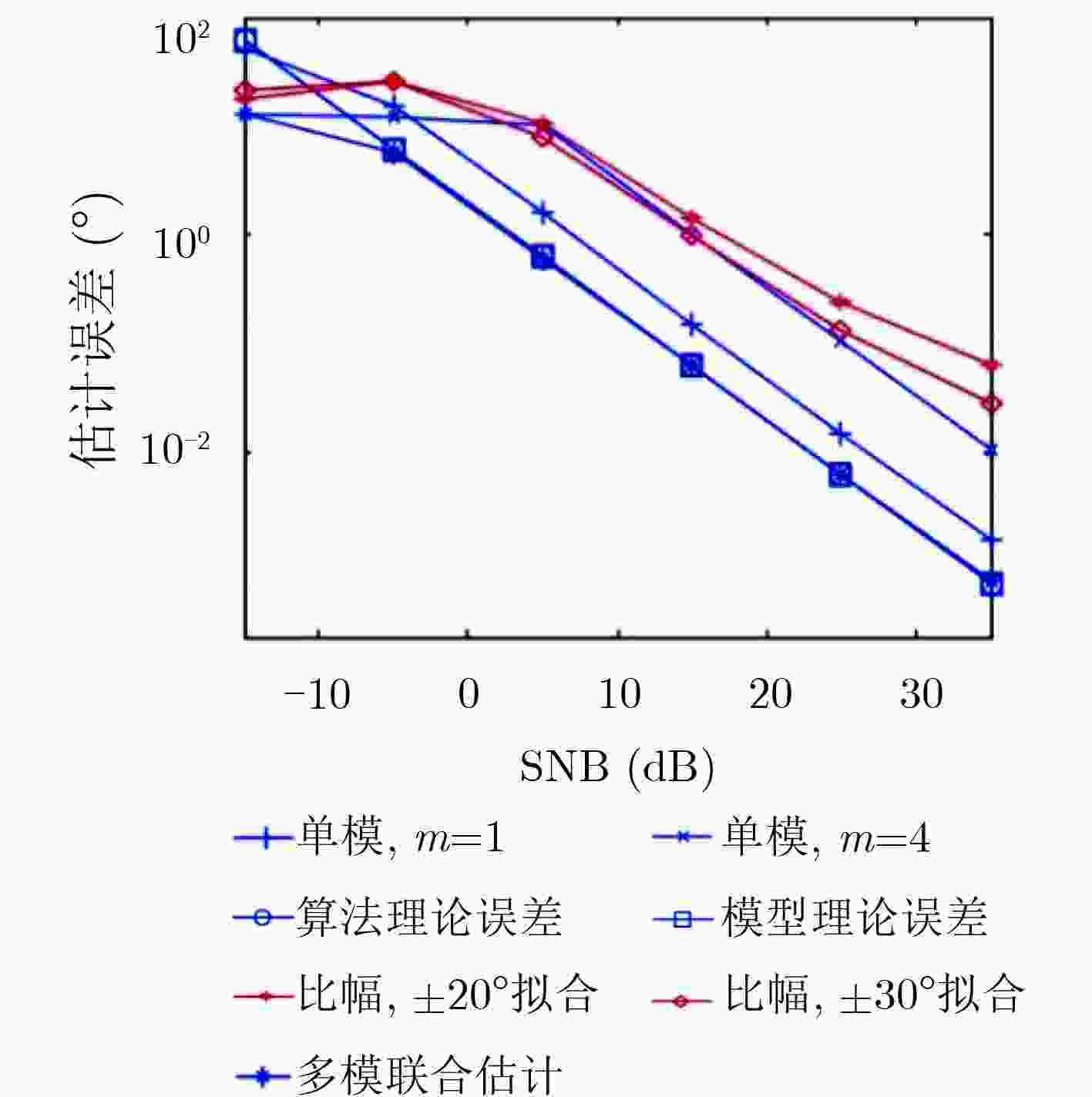

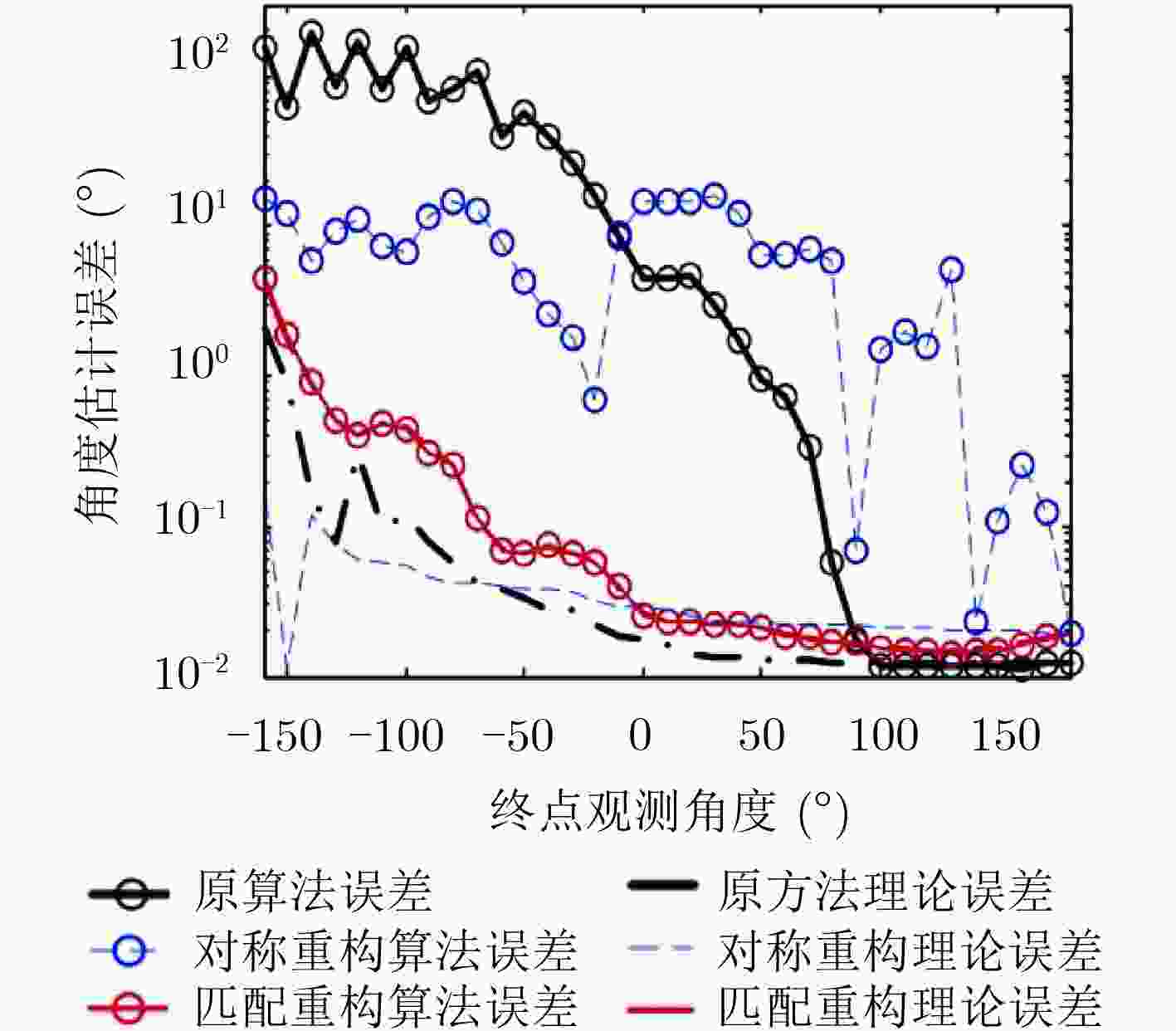

摘要: 利用单个旋转天线实现波束扫描高精度测角具有十分重要的意义。为了以低计算复杂度实现高精度角度估计，该文提出一种基于模式分量分离的闭式估计方法。首先将天线方向图表示为指数和形式，将角度估计问题转化为包含角度信息的模式分量估计问题，从而实现单模角度估计。结合模式分量的理论估计误差，推导得到多模联合估计式和理论估计精度。针对非理想观测条件下，模式分量求解出现的数值不稳定问题，提出对方向图进行匹配重构的方法，首先通过对观测序列和方向图抽样点进行互相关计算，估计得到粗略角度，确定方向图重构的角度范围，再通过匹配重构避免观测角度矩阵的病态问题。理论和仿真结果表明，所提的基于模式分量分离的多模测角方法具有估计精度高、计算简单的优点，提出的匹配重构方法提高了估计算法的适应性。Abstract: Estimation of Direction Of Arrival (DOA) with scanned beams of single rotational antenna is meaningful. To obtain precise estimation with low computation burden, a closed-form estimator is proposed based on estimating the mode component. Firstly, the problem can be transformed into the estimation of mode component when antenna pattern is expressed with a formula of exponential sums, thus DOA can be induced from each mode. Considering the estimation error, a multi-mode estimator with its theoretical error is derived. Non-ideal observing conditions result in an ill-determined problem for the estimation of mode component. A modified method is proposed by reconstructing the antenna pattern. By calculating cross-correlation of the observed amplitude trains with the antenna pattern samples, a coarse estimation of DOA is obtained to determine the angle range under the matched reconstruction. Then, ill-determined problem can be avoided if the converted mode component is calculated with the new pattern. Both theoretical and simulation results demonstrate that the proposed method can obtain high precise estimation with low computation cost, and the proposed matched reconstruction approach extends the adaptability of the method.
-
赵国庆. 雷达对抗原理[M]. 西安: 西安电子科技大学出版社, 1999: 44–58.ZHAO Guoqing. Principle of Radar Reconnaissance[M]. Xi’an: Xidian University Press, 1999: 44–58. TUNCAY K A, SEN E, and TANIK Y. Direction finding with a circularly rotated antenna[C]. IEEE International Conference on Acoustics, Speech, and Signal Processing, Istanbul, 2000: 3077–3080. MARKO M, DUŠAN G, and PETER P. Angle of arrival measurement using multiple static monopole antennas[J]. IEEE Sensors Journal, 2015, 15(6): 3328–3337 doi: 10.1109/JSEN.2014.2386537 SHI Jiangyi, LIU Hongwei, and MA Peijun. A monopulse scheme in radar angle-measurement based on beam-comparison[C]. International Congress on Image and Signal Processing, BioMedical Engineering and Informatics, Datong, 2016: 1263–1267. FUAD A and MICHAEL I. Biased estimators for spinning antenna DOA measurements[J]. IEEE Transactions on Aerospace and Electronic Systems, 2016, 52(3): 1499–1513 doi: 10.1109/TAES.2016.150637 NAUMAN A B, MOHAMMAD B M, MUHAMMAD Z, et al. Efficient target detection and joint estimation of target parameters with a two-element rotating antenna[J]. IEEE Access, 2016, 4: 4442–4451 doi: 10.1109/ACCESS.2016.2598965 TAN Ke, LI Wenchao, HUANG Yulin, et al. Angular resolution enhancement of real-beam scanning radar base on accelerated iterative shinkage/thresholding algorithm[C]. IEEE International Geoscience and Remote Sensing Symposium, Beijing, 2016: 929–932. SIAKA F, TEHRANI M A, LAURIN J J, et al. Radar system with enhanced angular resolution based on a novel frequency scanning reflector antenna[J]. IET Radar,Sonar and Navigation, 2017, 11(2): 350–358 doi: 10.1049/iet-rsn.2016.0320 LIE J, BLU T, and SEE C. Single antenna power measurements based direction finding[J]. IEEE Transactions on Signal Processing, 2010, 58(11): 5682–5692 doi: 10.1109/TSP.2010.2065227 LIE J, BLU T, and SEE C. Single antenna power measurements based direction finding with incomplete spatial coverage[C]. IEEE International Conference on Acoustics, Speech and Signal Processing, Kyoto, 2012: 2641–2644. ZHANG Shenglan, WAN Qun, and WANG Hui. DOA estimation in mechanical scanning radar systems using sparse signal reconstruction methods[C]. International Conference on Wireless Communications, Networking and Mobile Computing, Wuhan, 2011: 1–4. BELLONI F, RICHTER A, and KOIVUNEN V. DOA estimation via manifold separation for arbitrary array structures[J]. IEEE Transactions on Signal Processing, 2007, 55(10): 4800–4810 doi: 10.1109/TSP.2007.896115 -
