一种Alpha稳定分布噪声下目标螺旋桨特征提取方法

王彬; 侯越圣

doi:10.11999/JEIT190916

一种Alpha稳定分布噪声下目标螺旋桨特征提取方法

doi: 10.11999/JEIT190916

王彬^,,
侯越圣

战略支援部队信息工程大学郑州 450001

基金项目: 国家自然科学基金 (61572518)

详细信息

作者简介:
王彬：女，1971年生，副教授，研究方向为信号分析与处理

侯越圣：男，1995年生，硕士生，研究方向为信号分析与处理

通讯作者:
王彬　commutech@163.com

中图分类号: TN911.7
计量
- 文章访问数: 1520
- HTML全文浏览量: 553
- PDF下载量: 54
- 被引次数: 0
出版历程
- 收稿日期: 2019-11-14
- 修回日期: 2020-05-04
- 网络出版日期: 2020-05-16
- 刊出日期: 2020-10-13

Extraction of Target Propeller Features in Alpha Distribution Noise

Bin WANG^,,
Yuesheng HOU

PLA Strategic Support Force Information Engineering University, Zhengzhou 450001, China

Funds: The National Natural Science Foundation of China(61572518)

摘要

摘要: 为了解决Alpha稳定分布噪声下目标螺旋桨特征提取问题，该文提出一种基于分数低阶循环谱的特征提取方法。首先，从理论上推导出脉冲噪声条件下舰船辐射噪声分数低阶循环谱，指出分数低阶循环谱中出现峰值与螺旋桨特征的关系。然后根据该关系，提出基于分数低阶循环谱的螺旋桨特征估计方法。最后，通过仿真实验验证该方法的性能，并通过实测数据进一步验证了算法有效性。
- Alpha稳定分布噪声 /
- 螺旋桨特征提取 /
- 分数低阶循环谱
Abstract: In order to solve the problem of target propeller features extraction under Alpha stable distribution noise, a method based on fractional low-order cyclic spectrum is proposed. Firstly, the low-order cyclic spectrum of ship radiation noise in impulse noise is derived, and the relationship between the propeller features and the peak value in the fractional low-order cyclic spectrum is given. Based on this, a propeller feature estimation method based on fractional low-order cyclic spectrum is proposed. Finally, the performance of method is verified by simulation experiments, and the effectiveness of the algorithm is further verified by the actual data.
- Alpha stable distribution noise /
- Propeller feature extraction /
- Fractional low order cyclic spectrum

HTML全文

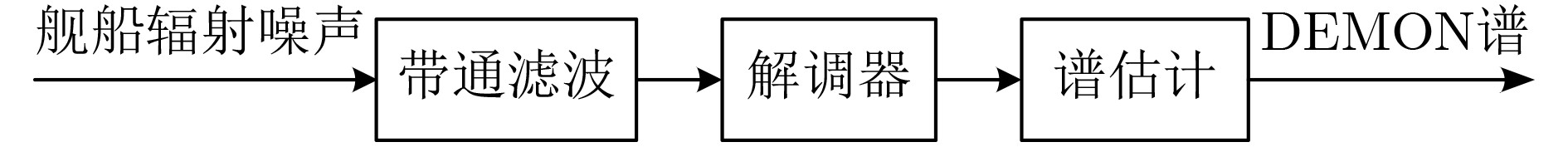

图 1 DEMON谱估计流程

下载: 全尺寸图片幻灯片

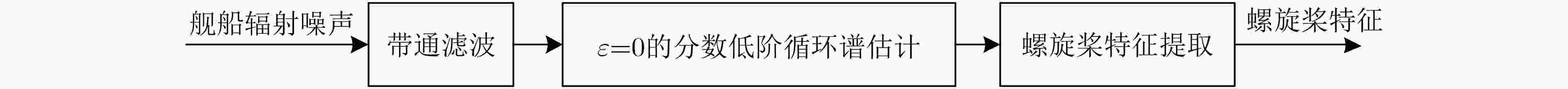

图 2 螺旋桨特征提取方法流程

下载: 全尺寸图片幻灯片

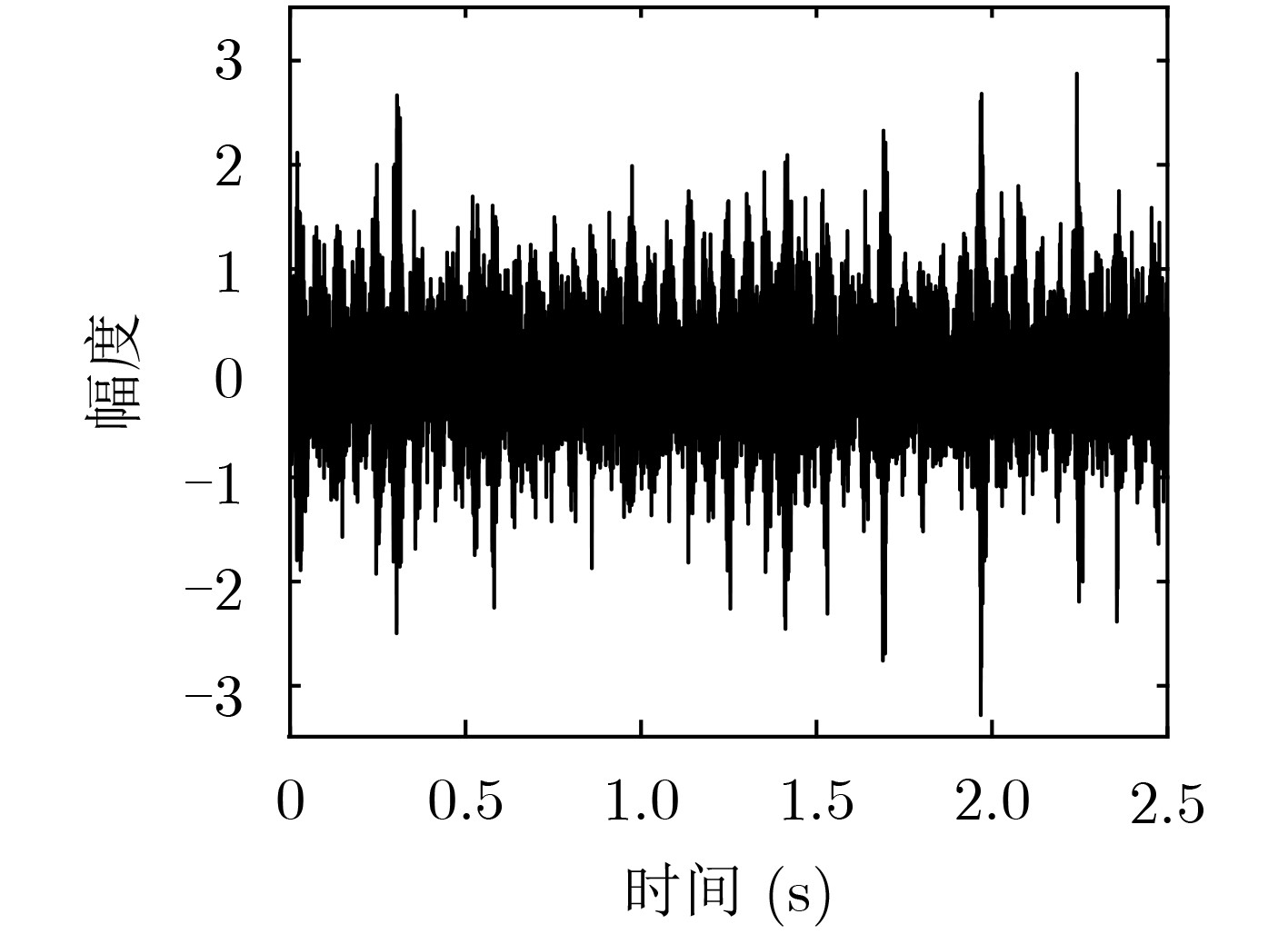

图 3 舰船辐射噪声波形

下载: 全尺寸图片幻灯片

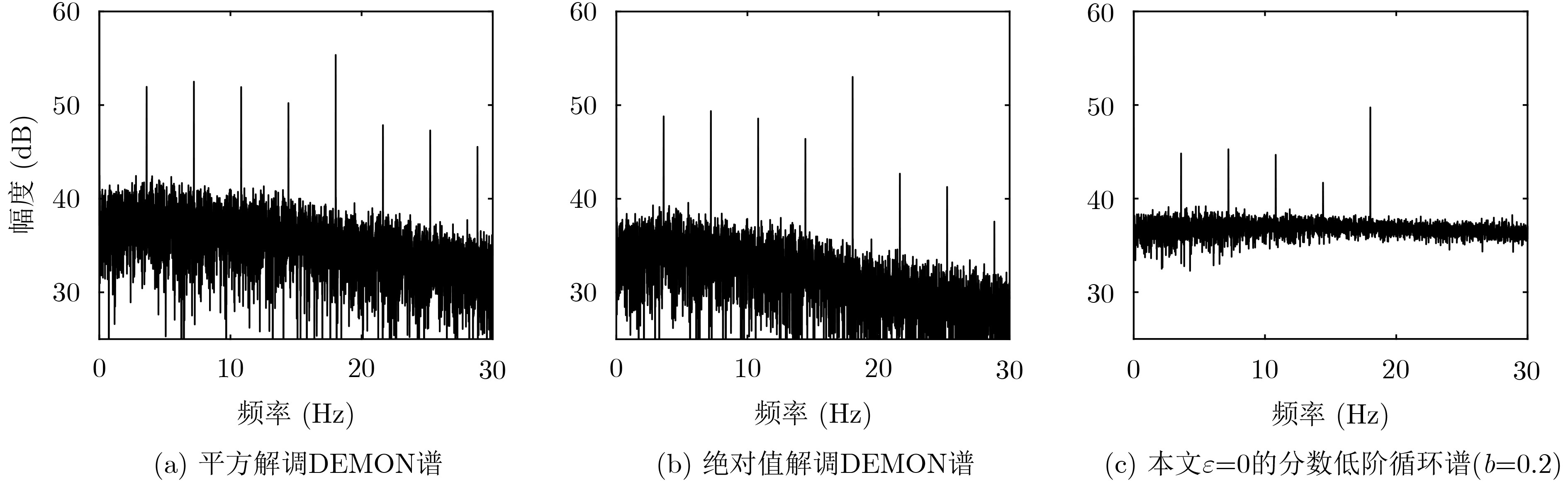

图 4 $\alpha = 2.0$时的谱分析结果

下载: 全尺寸图片幻灯片

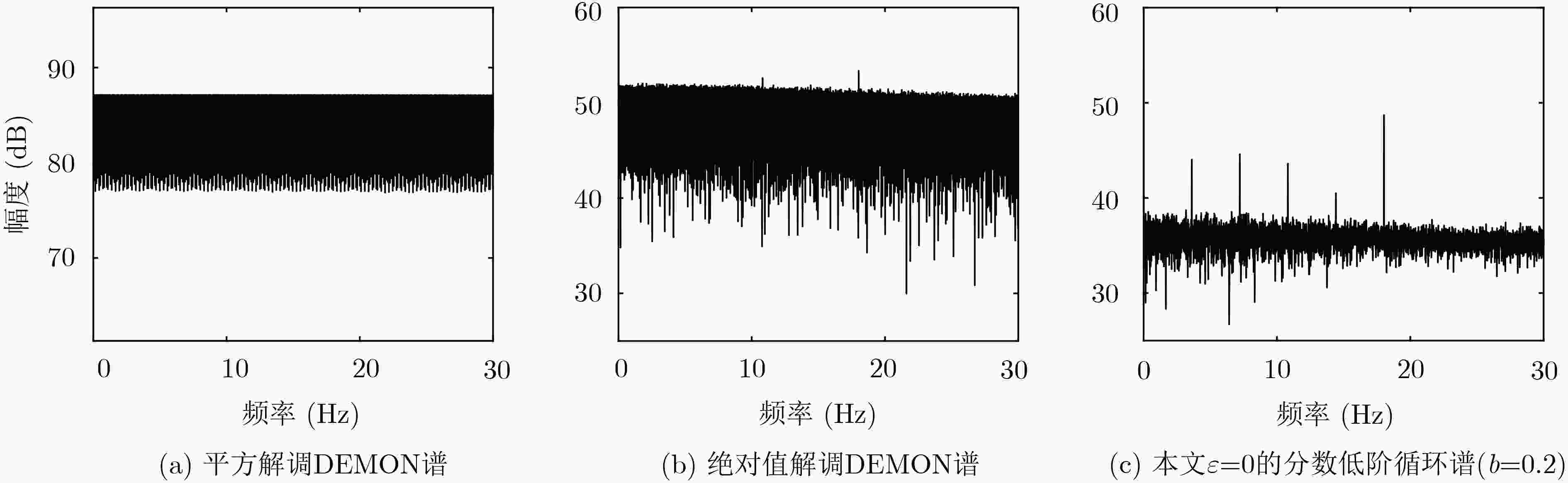

图 5 $\alpha = 1.5$时的谱分析结果

下载: 全尺寸图片幻灯片

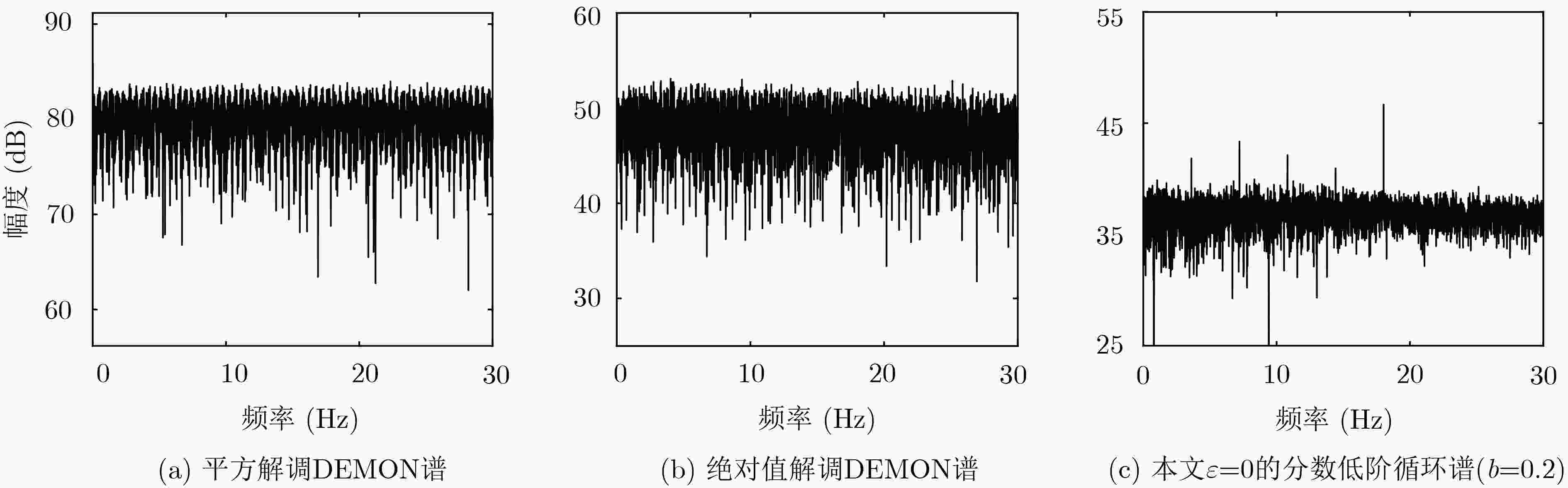

图 6 $\alpha = 1.2$时的谱分析结果

下载: 全尺寸图片幻灯片

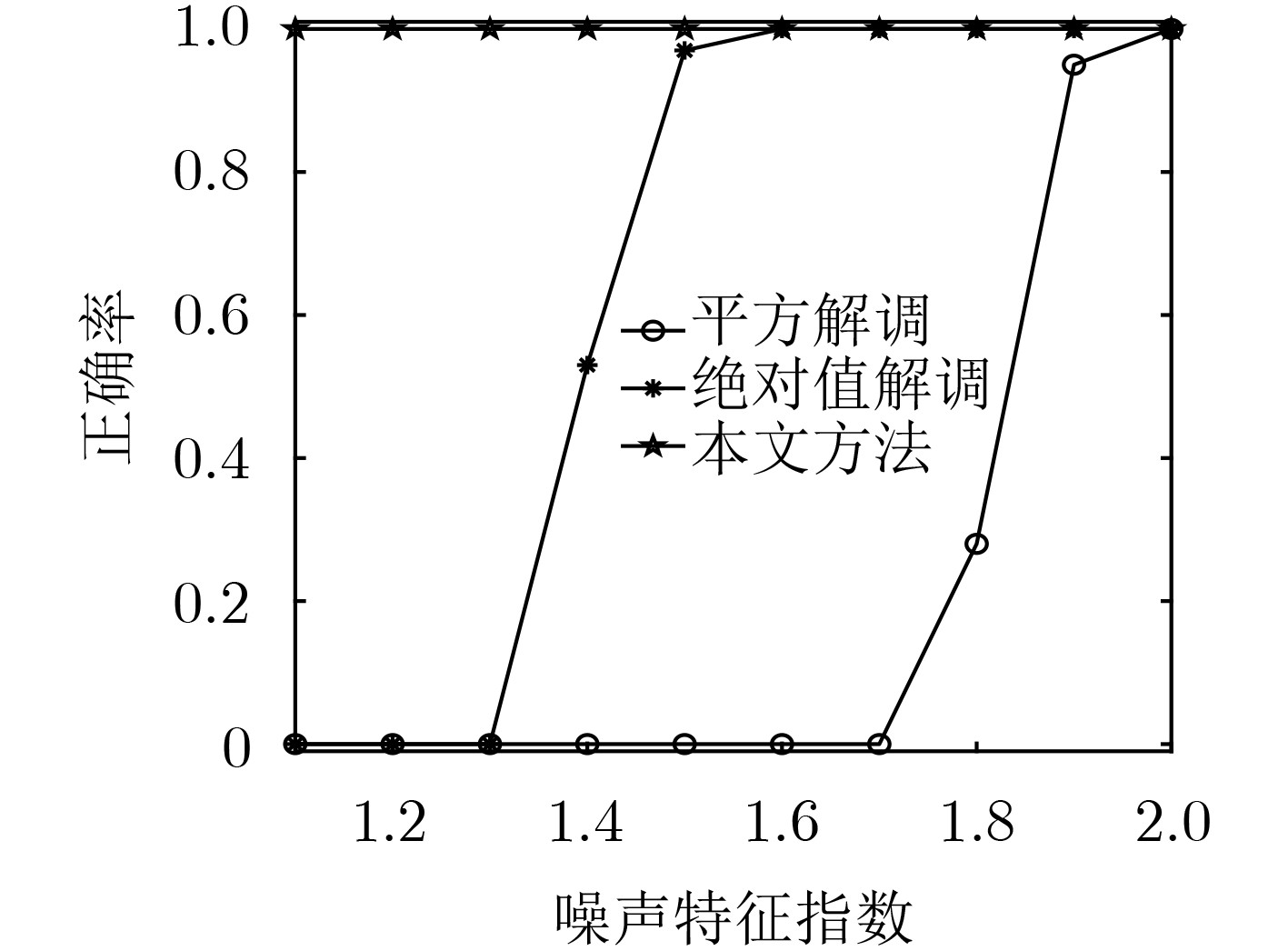

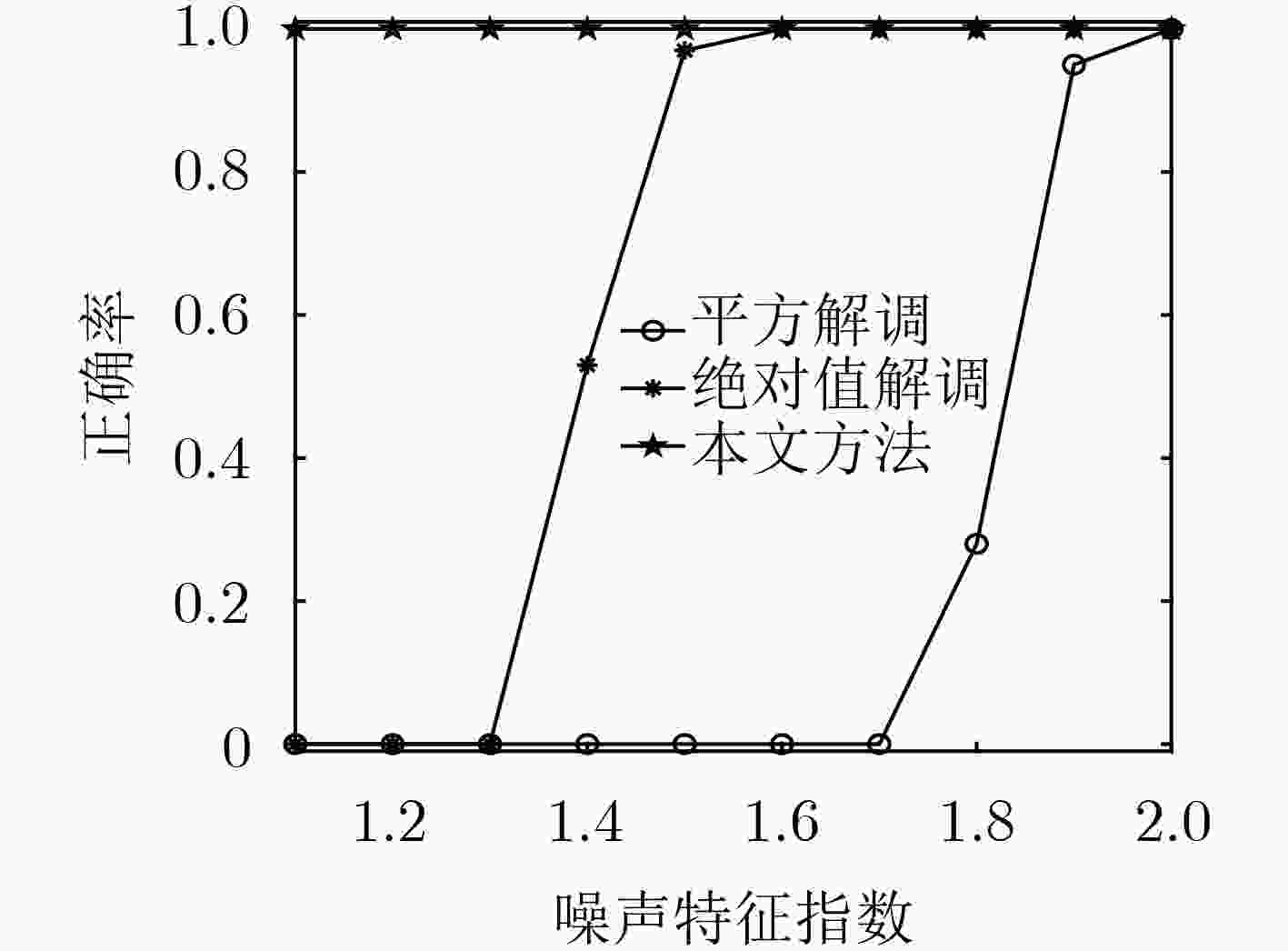

图 7 噪声特征指数对叶频估计性能影响

下载: 全尺寸图片幻灯片

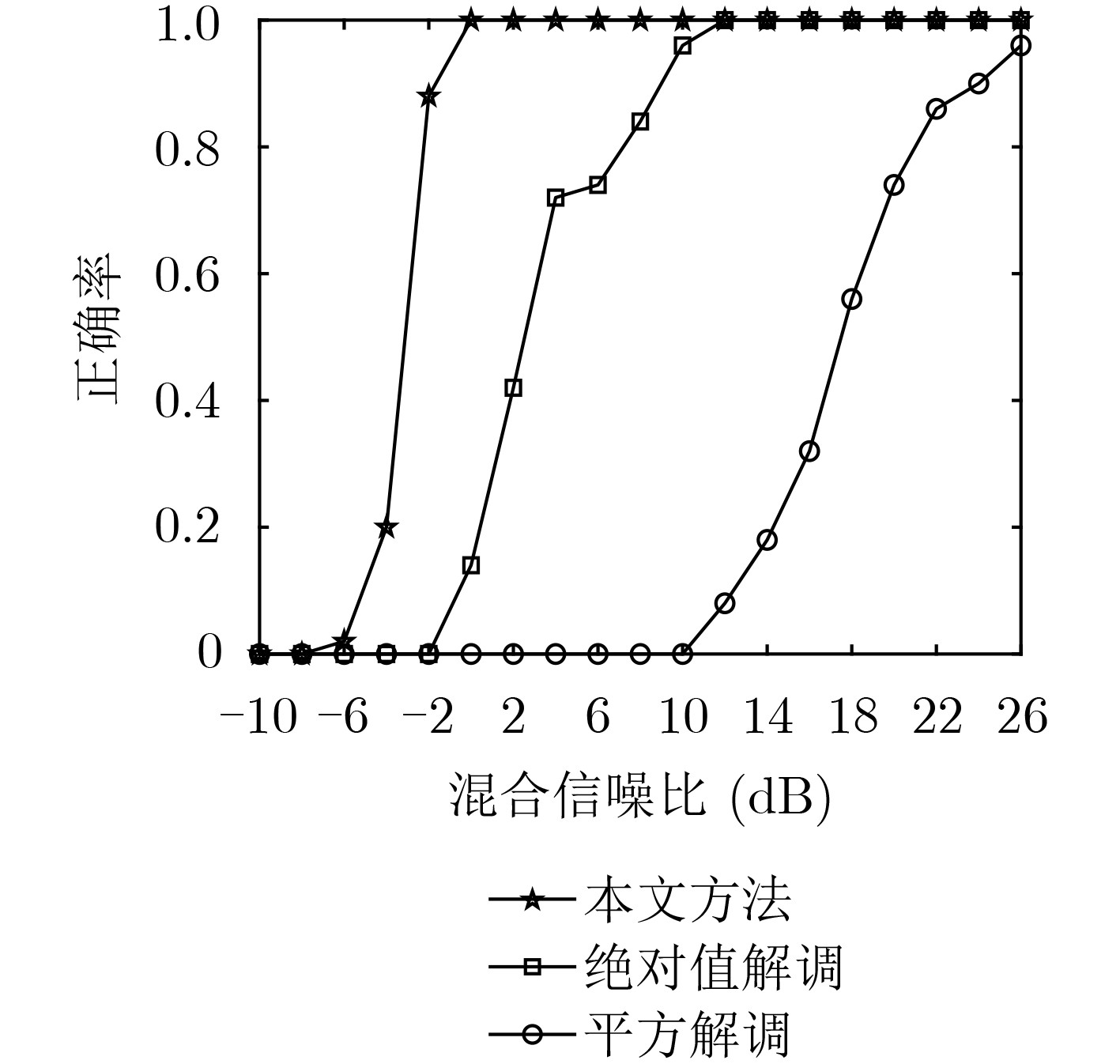

图 8 混合信噪比对叶频估计性能影响

下载: 全尺寸图片幻灯片

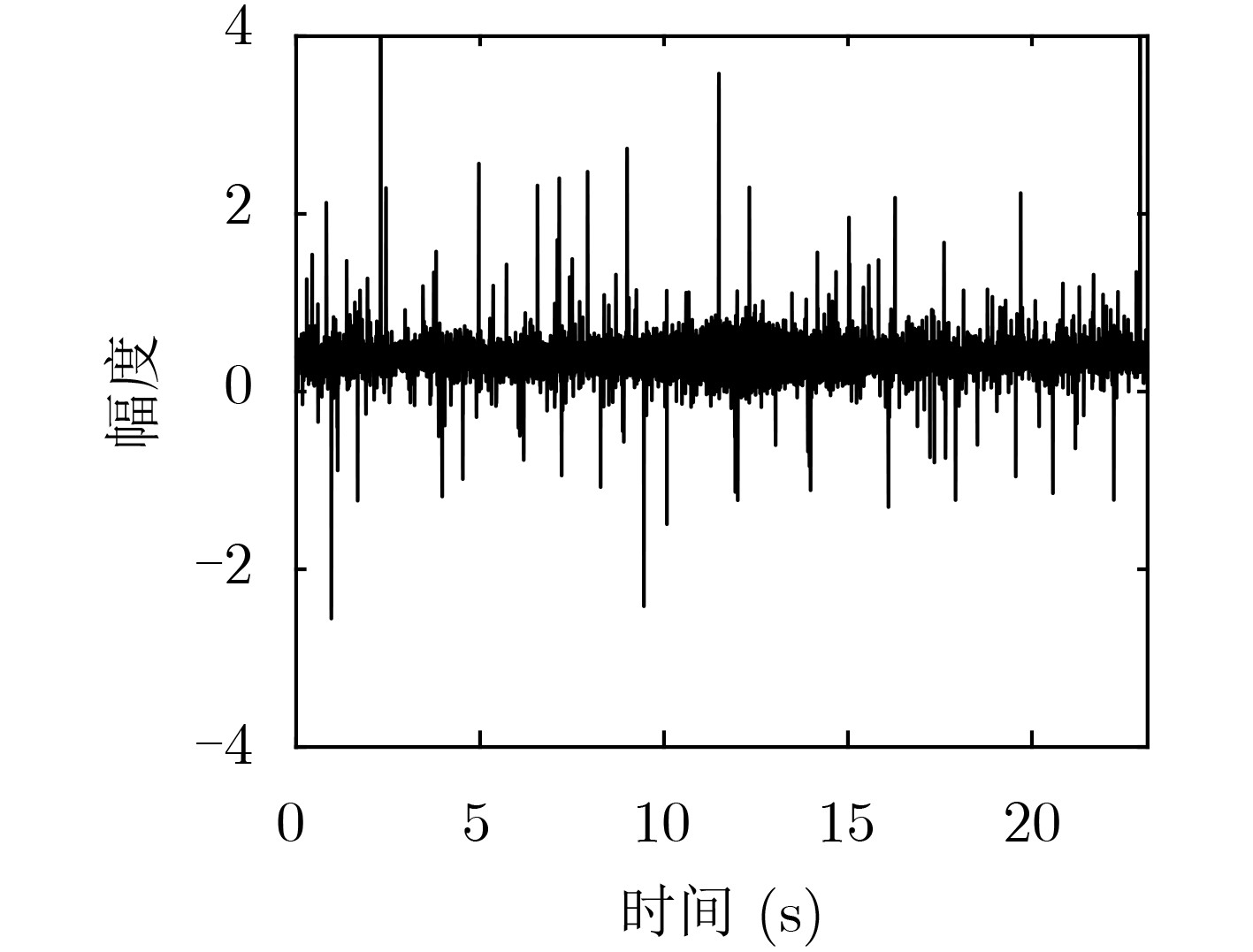

图 9 AUV辐射噪声时域波形

下载: 全尺寸图片幻灯片

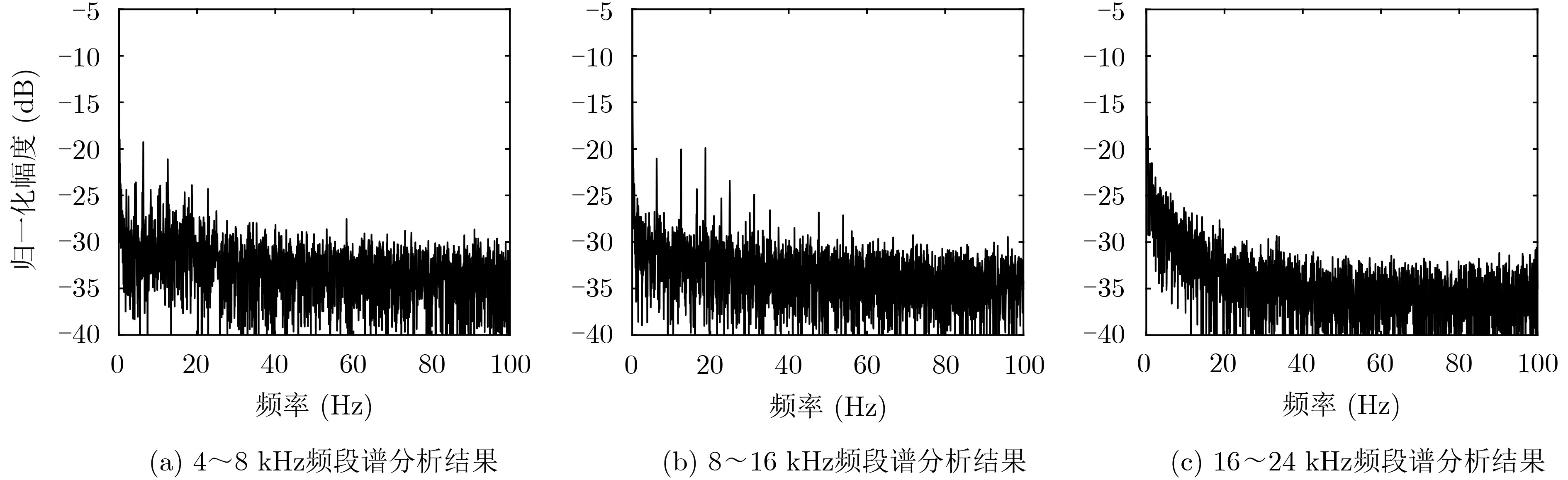

图 10 AUV辐射噪声不同频段循环谱分析结果

下载: 全尺寸图片幻灯片

表 1 AUV轴频估计结果

距离(m) 1 1 2 2 2.5

螺旋桨转速
设定值(r/min) 300 400 300 500 400
轴频估计值(Hz) 4.71 6.34 4.73 7.93 6.28
估计误差(Hz) 0.29 0.33 0.27 0.40 0.39

下载: 导出CSV

参考文献(16)

白敬贤, 高天德, 夏润鹏. 基于DEMON谱信息提取算法的目标识别方法研究[J]. 声学技术, 2017, 36(1): 88–92. doi: 10.16300/j.cnki.1000-3630.2017.01.016

BAI Jingxian, GAO Tiande, and XIA Runpeng. Target recognition based on the information extraction algorithm of DEMON spectrum[J]. Technical Acoustics, 2017, 36(1): 88–92. doi: 10.16300/j.cnki.1000-3630.2017.01.016

陶笃纯. 舰船噪声节奏的研究(I)——数学模型及功率谱密度[J]. 声学学报, 1983, 8(2): 65–76. doi: 10.15949/j.cnki.0371-0025.1983.02.001

TAO Dunchun. A study on ship radiated noise rhythms (I) — mathematical model and power spectrum density[J]. Acta Acustica, 1983, 8(2): 65–76. doi: 10.15949/j.cnki.0371-0025.1983.02.001

陶笃纯. 舰船噪声节奏的研究(Ⅱ)——自相关函数及节奏信息的提取[J]. 声学学报, 1983, 8(5): 280–289. doi: 10.15949/j.cnki.0371-0025.1983.05.004

TAO Duchun. A study on ship-radiated noise rhythms (Ⅱ) — atuocorrelation function and extraction of rhythm information[J]. Acta Acustica, 1983, 8(5): 280–289. doi: 10.15949/j.cnki.0371-0025.1983.05.004

LOURENS J G and DU PRCEZ J A. Passive sonar ML estimator for ship propeller speed[J]. IEEE Journal of Oceanic Engineering, 1998, 23(4): 448–453. doi: 10.1109/48.725238

童峰, 陆佶人, 方世良. 水声目标识别中一种轴频提取方法[J]. 声学学报, 2004, 29(5): 398–402. doi: 10.15949/j.cnki.0371-0025.2004.05.003

TONG Feng, LU Jiren, and FANG Shiliang. A method to estimate the propeller shaft rate in underwater acoustic vessel classification[J]. Acta Acustica, 2004, 29(5): 398–402. doi: 10.15949/j.cnki.0371-0025.2004.05.003

CLARK P, KIRSTEINS I, and ATLAS L. Multiband analysis for colored amplitude-modulated ship noise[C]. 2010 IEEE International Conference on Acoustics, Speech and Signal Processing, Dallas, USA, 2010: 3970–3973.

WISDOM S, ATLAS L, and PITTON J. Extending coherence time for analysis of modulated random processes[C]. 2014 IEEE International Conference on Acoustics, Speech and Signal Processing, Florence, Italy, 2014: 340–344.

LI Sichun and YANG Desen. DEMON feature extraction of acoustic vector signal based on 3/2-D spectrum[C]. The 2007 2nd IEEE Conference on Industrial Electronics and Applications, Harbin, China, 2007: 2239–2243.

温旋旋. 基于高阶统计量的舰船辐射噪声包络特征提取[D].[硕士论文], 哈尔滨工程大学, 2017.

WEN Xuanxuan. Envelope signature extraction of ship-radiated noise based on HOS[D].[Master dissertation], Harbin Engineering University, 2017.

许劲峰, 郑威. 基于EMD-1(1/2)维谱的舰船辐射噪声调制特征提取[J]. 舰船电子工程, 2018, 38(10): 197–203. doi: 10.3969/j.issn.1672-9730.2018.10.048

XU Jinfeng and ZHENG Wei. Modulation feature extraction of ship radiated nose based on EMD 1(1/2)-dimensional spectrum[J]. Ship Electronic Engineering, 2018, 38(10): 197–203. doi: 10.3969/j.issn.1672-9730.2018.10.048

杨日杰, 郑晓庆, 韩建辉, 等. 基于序列匹配的螺旋桨轴频自动提取方法[J]. 振动与冲击, 2018, 37(16): 57–61. doi: 10.13465/j.cnki.jvs.2018.16.009

YANG Rijie, ZHENG Xiaoqing, HAN Jianhui, et al. An automatic extraction method of propeller shaft frequency based on sequence matching[J]. Journal of Vibration and Shock, 2018, 37(16): 57–61. doi: 10.13465/j.cnki.jvs.2018.16.009

CHITRE M, POTTER J, and HENG O S. Underwater acoustic channel characterisation for medium-range shallow water communications[C]. OCEANS ‘04 MTS/IEEE TECHNO-OCEAN ’04, Kobe, Japan, 2004: 40–45.

张安清, 邱天爽, 章新华. α稳定分布的水声信号处理新方法[J]. 电子与信息学报, 2005, 27(8): 1201–1204.

ZHANG Anqing, QIU Tianshuang, and ZHANG Xinhua. A new underwater acoustic signals processing approach to α-stable distribution[J]. Journal of Electronics &Information Technology, 2005, 27(8): 1201–1204.

程玉胜, 王易川, 史广智, 等. 基于现代信号处理技术的舰船噪声信号DEMON分析[J]. 声学技术, 2006, 25(1): 71–74. doi: 10.3969/j.issn.1000-3630.2006.01.016

CHENG Yusheng, WANG Yichuan, SHI Guangzhi, et al. DEMON analysis of underwater target radiation noise based on modern signal processing[J]. Technical Acoustics, 2006, 25(1): 71–74. doi: 10.3969/j.issn.1000-3630.2006.01.016

张俊林, 刘明骞. 脉冲噪声衰落信道下MPSK信号的符号周期估计[J]. 西安电子科技大学学报: 自然科学版, 2018, 45(5): 38–42, 49. doi: 10.3969/j.issn.1001-2400.2018.05.007

ZHANG Junlin and LIU Mingqian. Estimation of the symbol period of MPSK signals over fading channels with impulsive noise[J]. Journal of Xidian University:Natural Science, 2018, 45(5): 38–42, 49. doi: 10.3969/j.issn.1001-2400.2018.05.007

张娟娟. α稳定分布噪声下数字调制信号的分数低阶循环谱分析[D]. [硕士论文], 西安理工大学, 2017.

ZHANG Juanjuan. Fractional Low-order cyclic spectrum analysis of digital modulation signals under alpha stable distribution noise[D]. [Master dissertation], Xi’an University of Technology, 2017.
