扩散生成式数据赋能ECG病理信号分类研究

葛贝宁; 陈诺; 金鹏; 苏新; 陆晓春

doi:10.11999/JEIT241003

扩散生成式数据赋能ECG病理信号分类研究

doi: 10.11999/JEIT241003 cstr: 32379.14.JEIT250404

葛贝宁^{1, 2},
陈诺^{1, 2},
金鹏^{1, 2},
苏新^{1, 2},
陆晓春^{1, 2, ,}

1.
河海大学信息科学与工程学院常州 213202
2.
河海大学人工智能与自动化学院常州 213200

基金项目: 国家自然科学基金(62371181)，常州市政策引导类计划(CZ20230029)

详细信息

作者简介:
葛贝宁：男，硕士生，研究方向为智慧医疗、边缘计算、物联网技术与应用等

陈诺：男，本科生，研究方向为智慧医疗、边缘计算、物联网技术与应用等

金鹏：男，硕士生，研究方向为智慧医疗、边缘计算、物联网技术与应用等

苏新：男，教授，研究方向为智慧医疗、边缘计算、物联网技术与应用等

陆晓春：男，讲师，研究方向为智慧医疗、边缘计算、物联网技术与应用等

通讯作者:
陆晓春　Lu213022@163.com

中图分类号: TN929.52
计量
- 文章访问数: 193
- HTML全文浏览量: 142
- PDF下载量: 34
- 被引次数: 0
出版历程
- 收稿日期: 2025-05-12
- 修回日期: 2025-08-28
- 网络出版日期: 2025-09-02

Research on ECG Pathological Signal Classification Empowered by Diffusion Generative Data

GE Beining^{1, 2},
CHEN Nuo^{1, 2},
JIN Peng^{1, 2},
SU Xin^{1, 2},
LU Xiaochun^{1, 2
, ,}

1.
College of Information Science and Engineering, Hohai University, Changzhou 213022, China
2.
College of Artificial Intelligence and Automation, Hohai University, Changzhou 213022, China

Funds: The National Natural Science Foundation of China (62371181), Changzhou Science and Technology International Cooperation Program (CZ20230029)

摘要

摘要: 心电图(ECG)是衡量一个人身体健康的重要指标，由于ECG图像组成复杂，特征较多，人眼识别往往会出现误差，因此该文提出一种基于数据生成的ECG病理信号分类算法。首先，扩散生成网络通过向真实的ECG信号添加噪声，逐步将其转换为接近纯噪声的分布，从而便于模型的处理。为了提高生成速度和减少内存占用，该文进一步提出了一种基于知识蒸馏的蒸馏-扩散生成 (KD-DGN)模型，该模型在内存和生成效率上优于传统的DGN。该文还讨论了KD-DGN的内存占用、生成效率及ECG数据的准确性，探讨了轻量化处理后生成的数据特征。最后，通过比较原始MIT-BIH数据集与扩展数据集(MIT-BIH-PLUS)在分类模型中的效果，实验结果表明，卷积网络能够从DGN生成的扩展数据集中获取更多的特征信息从而提升ECG病理信号的识别效果。
- ECG信号分类 /
- 扩散生成网络 /
- 卷积网络
Abstract: Objective Electrocardiogram (ECG) signals are key indicators of human health. However, their complex composition and diverse features make visual recognition prone to errors. This study proposes a classification algorithm for ECG pathological signals based on data generation. A Diffusion Generative Network (DGN), also known as a diffusion model, progressively adds noise to real ECG signals until they approach a noise distribution, thereby facilitating model processing. To improve generation speed and reduce memory usage, a Knowledge Distillation–Diffusion Generative Network (KD-DGN) is proposed, which demonstrates superior memory efficiency and generation performance compared with the traditional DGN. This work compares the memory usage, generation efficiency, and classification accuracy of DGN and KD-DGN, and analyzes the characteristics of the generated data after lightweight processing. In addition, the classification effects of the original MIT-BIH dataset and an extended dataset (MIT-BIH-PLUS) are evaluated. Experimental results show that convolutional networks extract richer feature information from the extended dataset generated by DGN, leading to improved recognition performance of ECG pathological signals. Methods The generative network-based ECG signal generation algorithm is designed to enhance the performance of convolutional networks in ECG signal classification. The process begins with a Gaussian noise-based image perturbation algorithm, which obscures the original ECG data by introducing controlled randomness. This step simulates real-world variability, enabling the model to learn more robust representations. A diffusion generative algorithm is then applied to reconstruct and reproduce the data, generating synthetic ECG signals that preserve the essential characteristics of the original categories despite the added noise. This reconstruction ensures that the underlying features of ECG signals are retained, allowing the convolutional network to extract more informative features during classification. To improve efficiency, the approach incorporates knowledge distillation. A teacher–student framework is adopted in which a lightweight student model is trained from the original, more complex teacher ECG data generation model. This strategy reduces computational requirements and accelerates the data generation process, improving suitability for practical applications. Finally, two comparative experiments are designed to validate the effectiveness and accuracy of the proposed method. These experiments evaluate classification performance against existing approaches and provide quantitative evidence of its advantages in ECG signal processing. Results and Discussions The data generation algorithm yields ECG signals with a Signal-to-Noise Ratio (SNR) comparable to that of the original data, while presenting more discernible signal features. The student model constructed through knowledge distillation produces ECG samples with the same SNR as those generated by the teacher model, but with substantially reduced complexity. Specifically, the student model achieves a 50% reduction in size, 37% lower memory usage, and a 57% shorter runtime compared with the teacher model (Fig. 6). When the convolutional network is trained with data generated by the KD-DGN, its classification performance improves across all metrics compared with a convolutional network trained without KD-DGN. Precision reaches 97.4%, and the misidentification rate is reduced to approximately 3% (Fig. 9). Conclusions The DGN provides an effective data generation strategy for addressing the scarcity of ECG datasets. By supplying additional synthetic data, it enables convolutional networks to extract more diverse class-specific features, thereby improving recognition performance and reducing misidentification rates. Optimizing DGN with knowledge distillation further enhances efficiency, while maintaining SNR equivalence with the original DGN. This optimization reduces computational cost, conserves machine resources, and supports simultaneous task execution. Moreover, it enables the generation of new data without LOSS, allowing convolutional networks to learn from larger datasets at lower cost. Overall, the proposed approach markedly improves the classification performance of convolutional networks on ECG signals. Future work will focus on further algorithmic optimization for real-world applications.
- ECG signal classification /
- Diffusion Generative Network (DGN) /
- Convolutional network

HTML全文

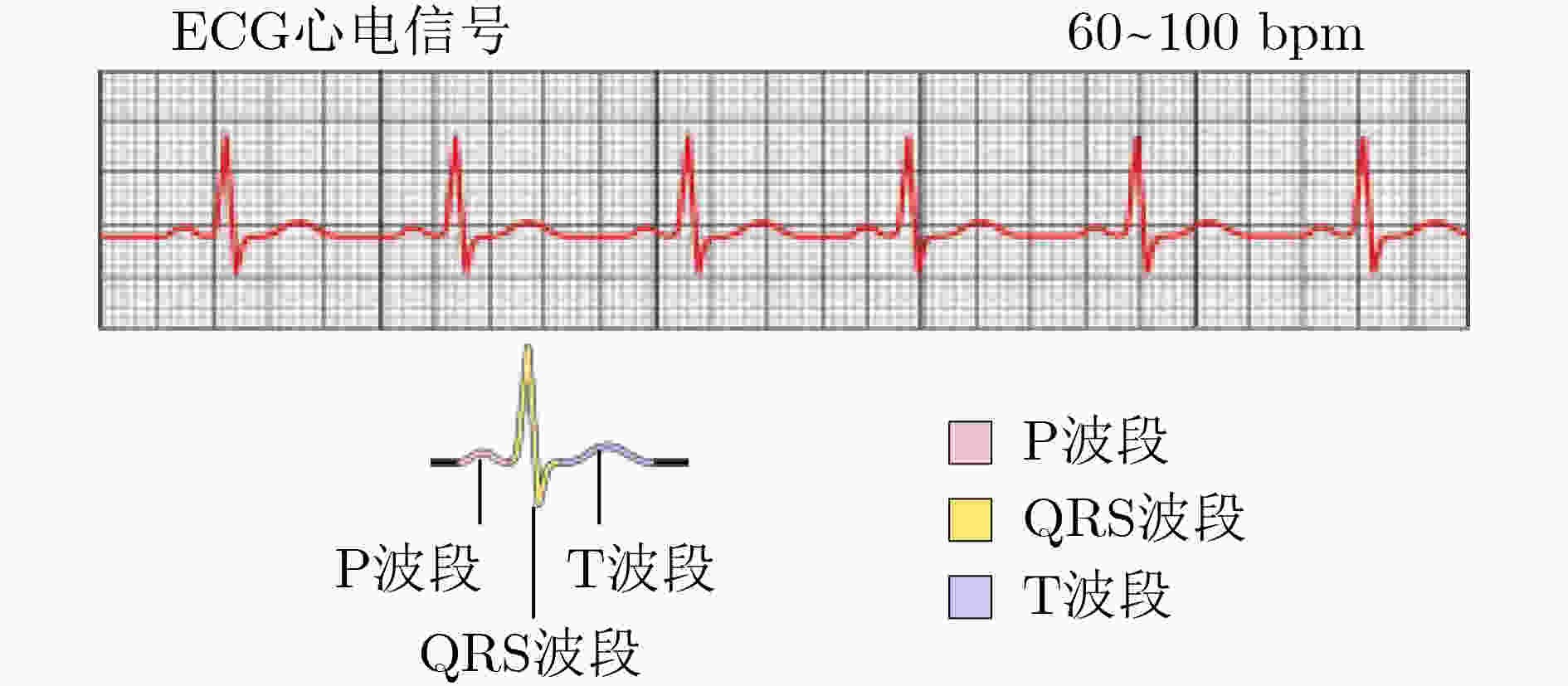

图 1 ECG 组成图

下载: 全尺寸图片幻灯片

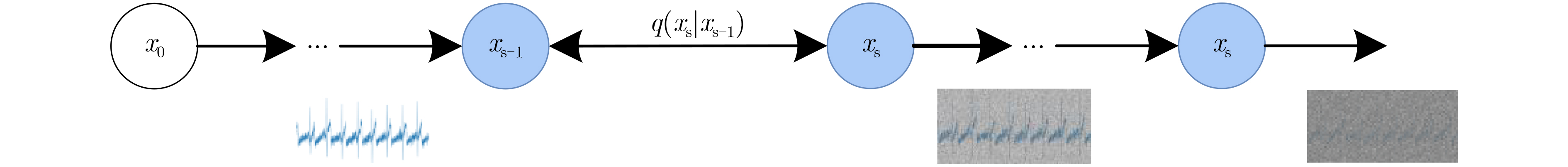

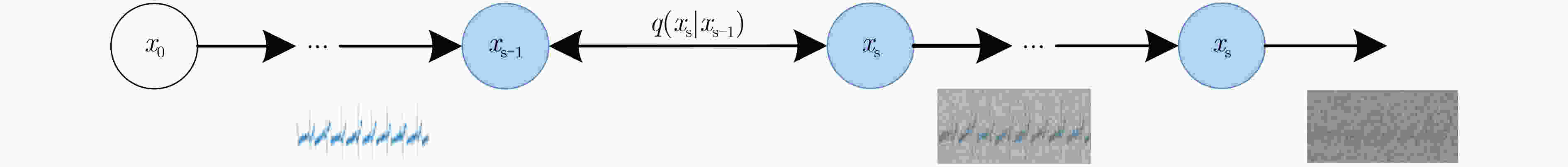

图 2 扩散生成模型前向加噪过程

下载: 全尺寸图片幻灯片

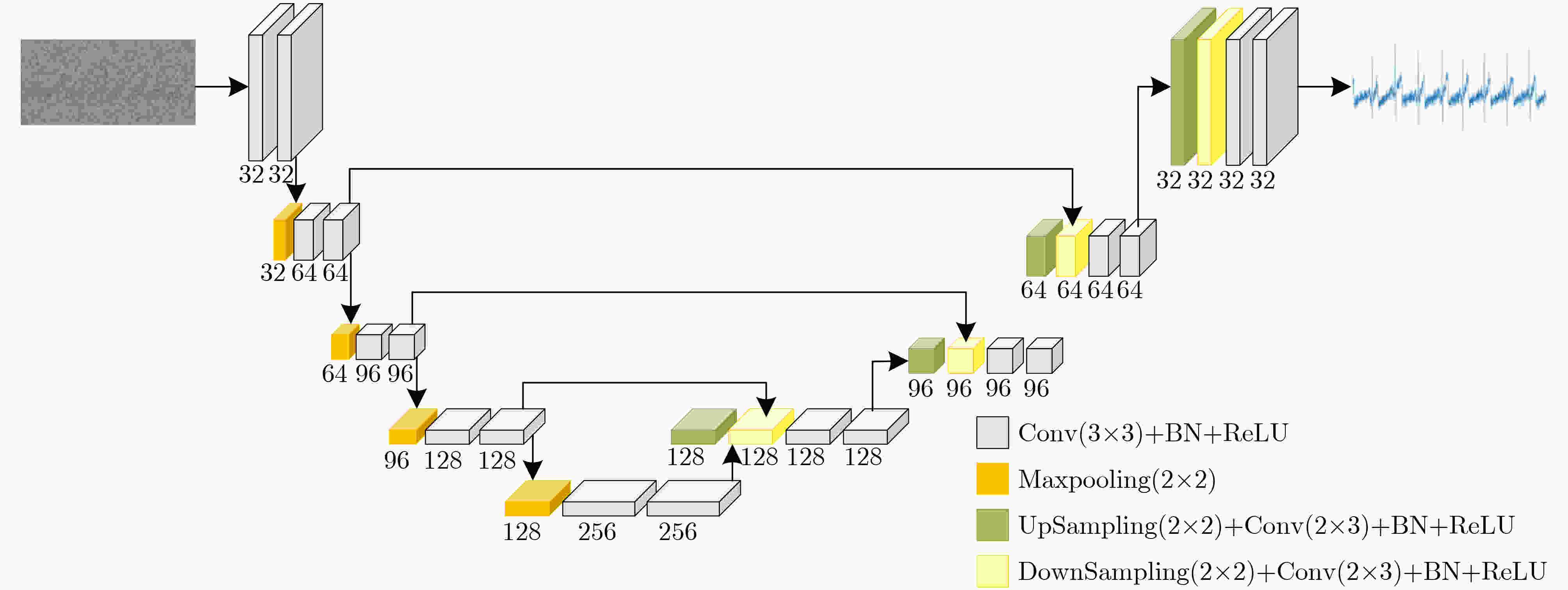

图 3 U-Net 架构反向传播解码过程

下载: 全尺寸图片幻灯片

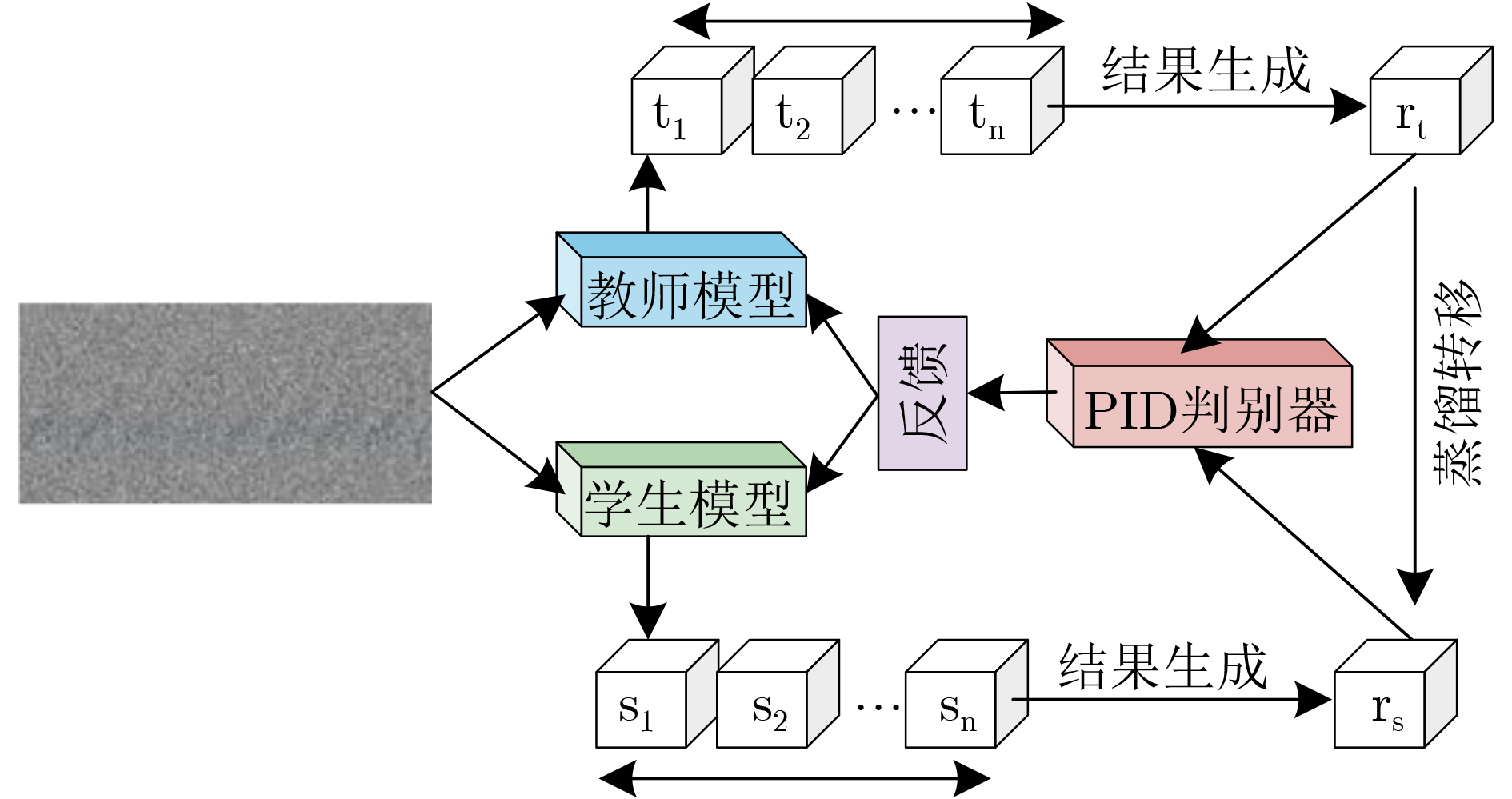

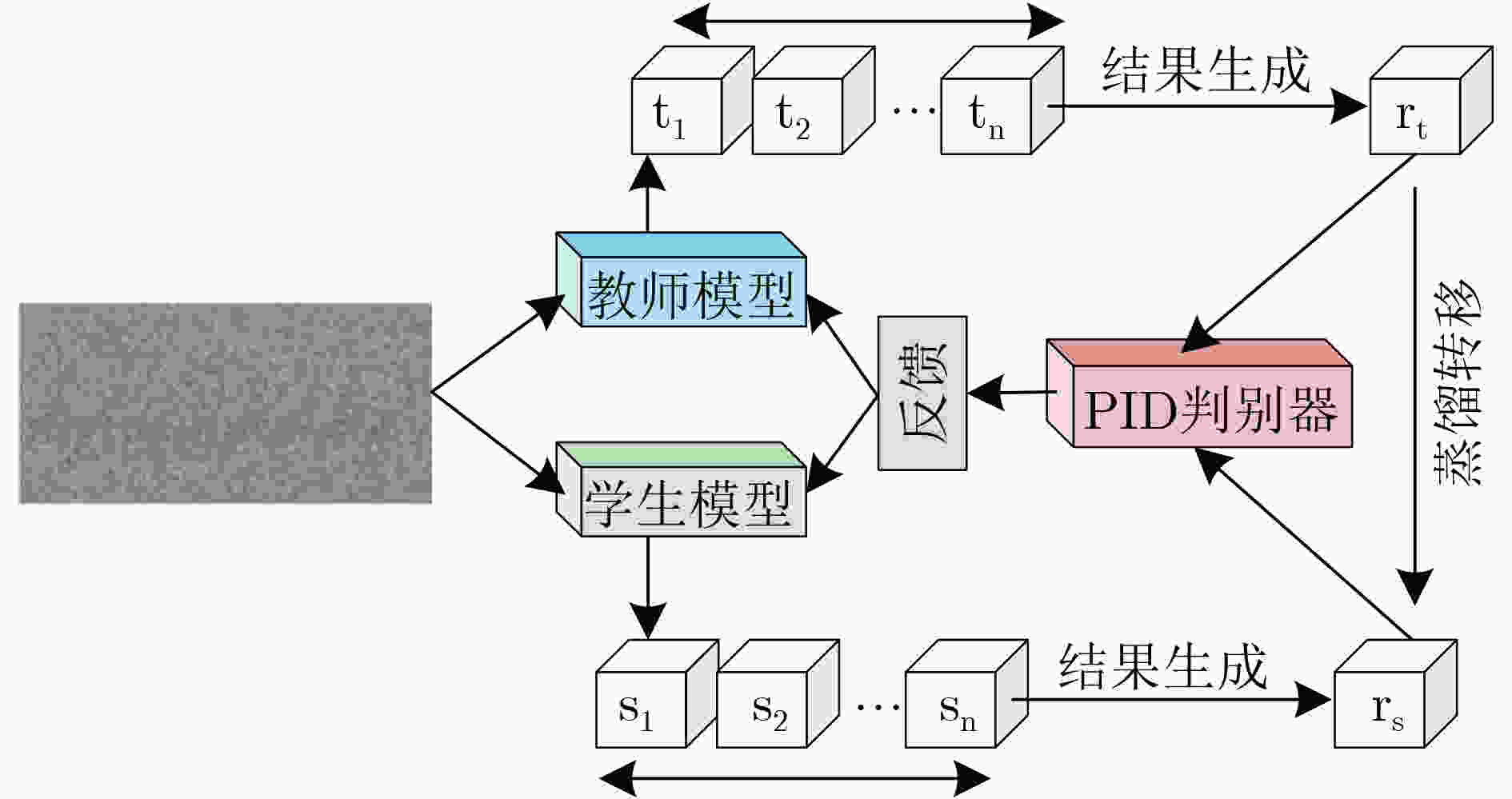

图 4 教师-学生模型对抗蒸馏算法示意图

下载: 全尺寸图片幻灯片

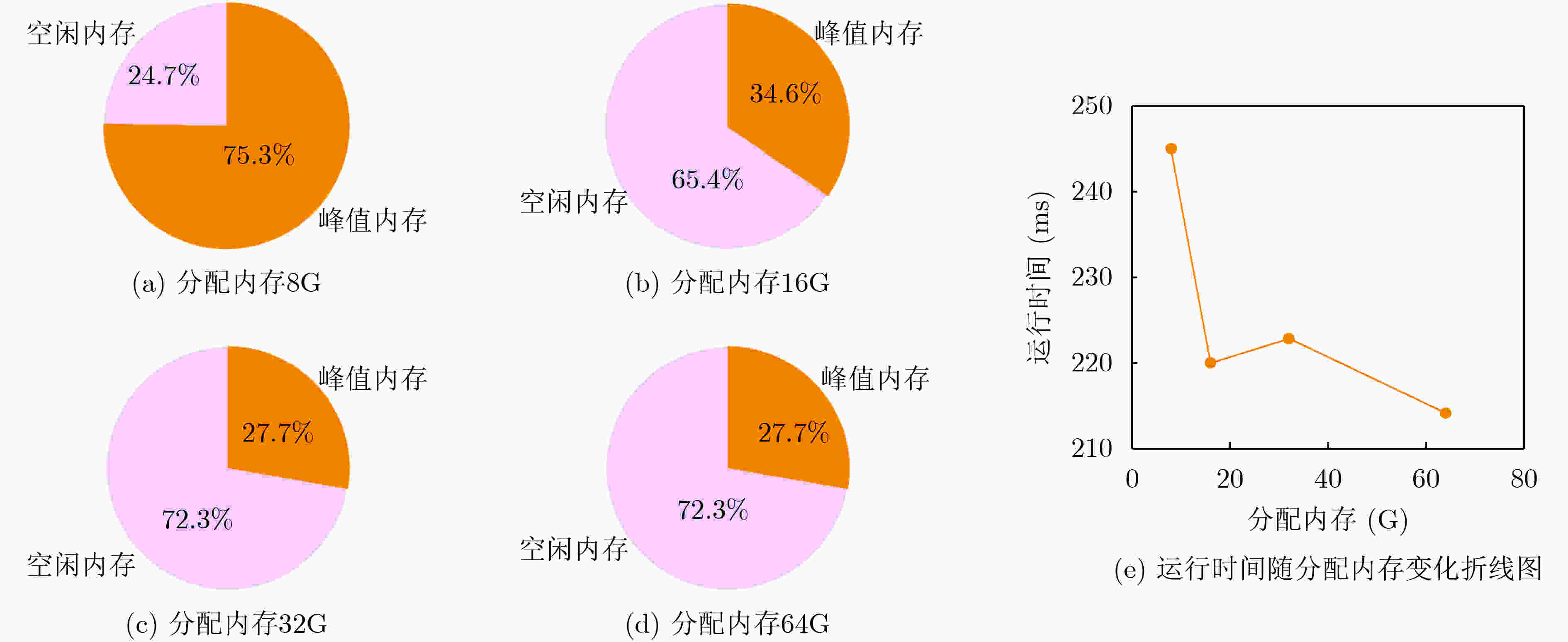

图 5 不同内存分配下峰值内存占比与运行耗时示意图

下载: 全尺寸图片幻灯片

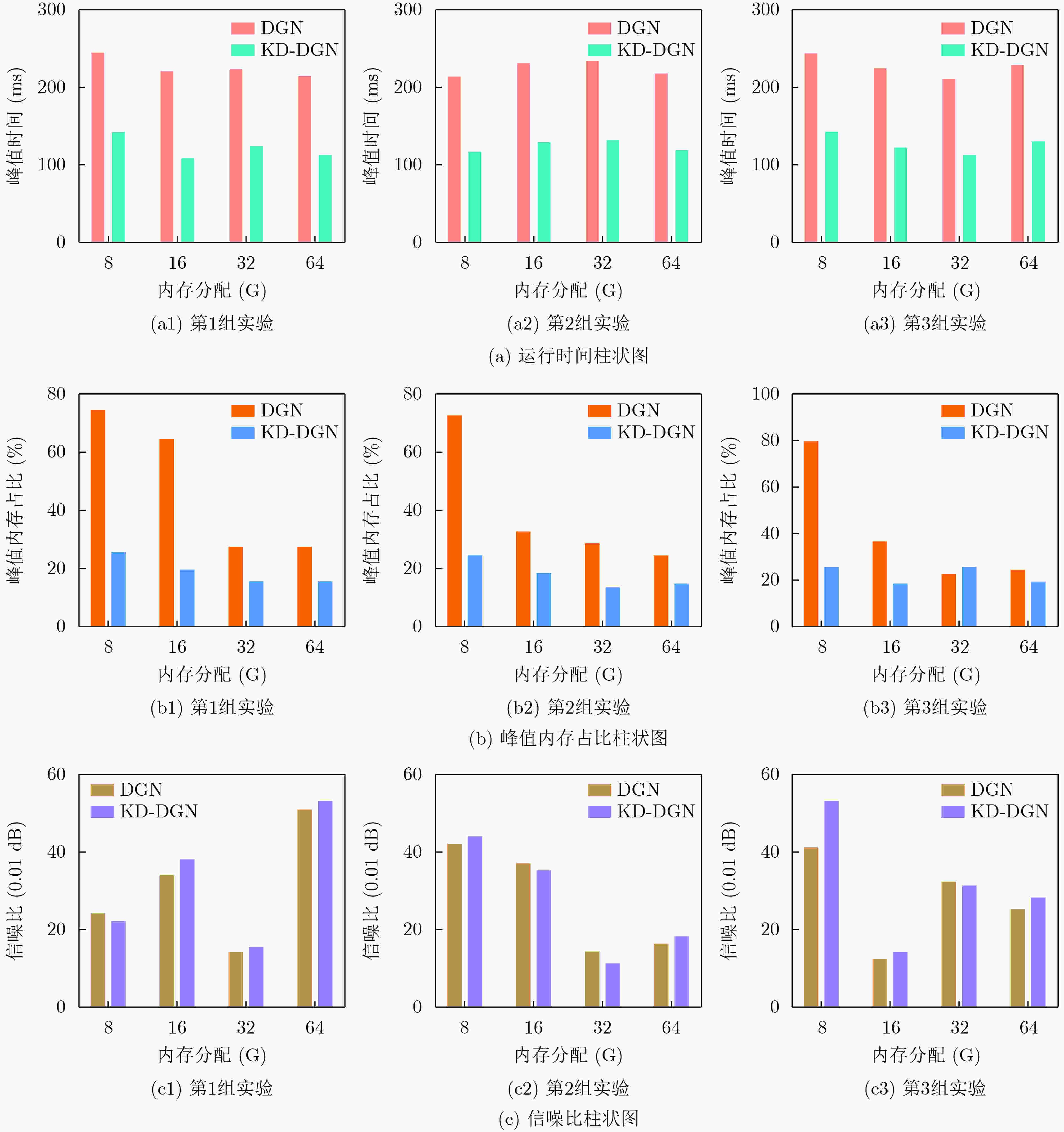

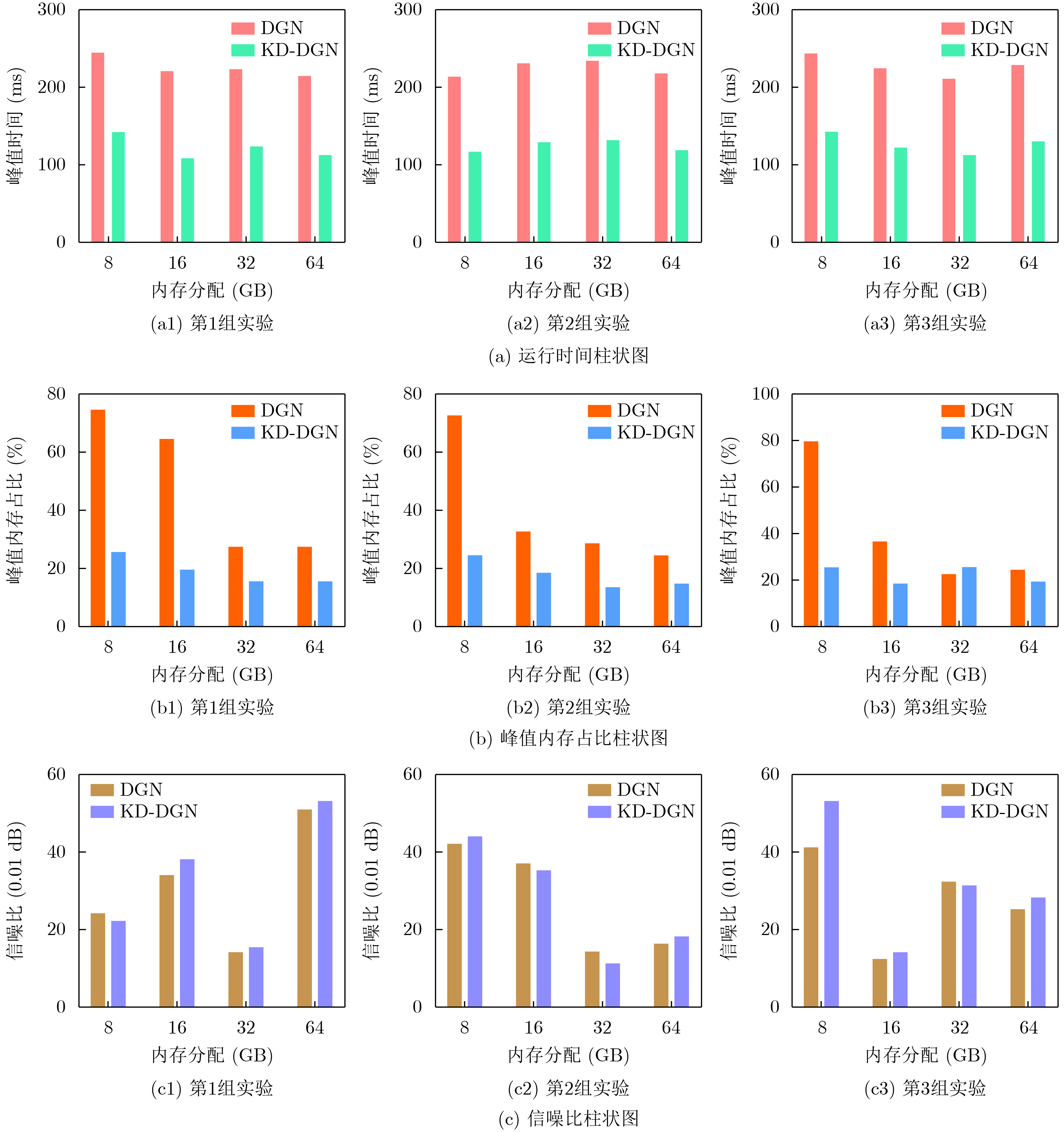

图 6 不同内存分配下峰值内存占比、运行耗时及信噪比柱状图

下载: 全尺寸图片幻灯片

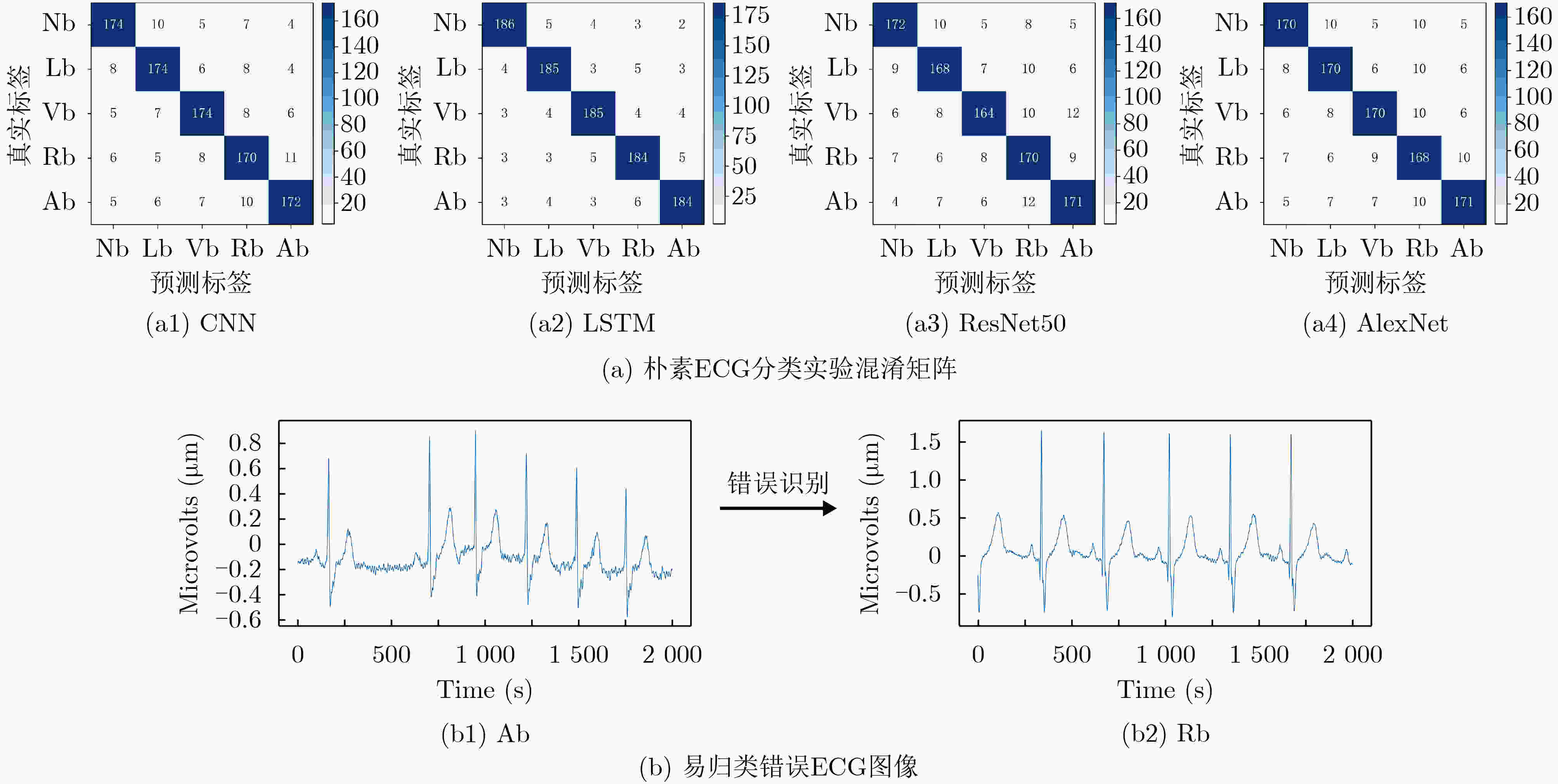

图 7 使用CNN, LSTM, ResNet50以及AlexNet进行ECG分类的混淆矩阵以及类别Ab和Rb

下载: 全尺寸图片幻灯片

图 8 CNN, LSTM, ResNet50以及AlexNet进行ECG分类任务的训练LOSS曲线

下载: 全尺寸图片幻灯片

图 9 使用 DGN,GAN 和 KD-DGN 进行数据生成后使用 CNN,LSTM,ResNet50 以及 AlexNet 分类得到的混淆矩阵

下载: 全尺寸图片幻灯片

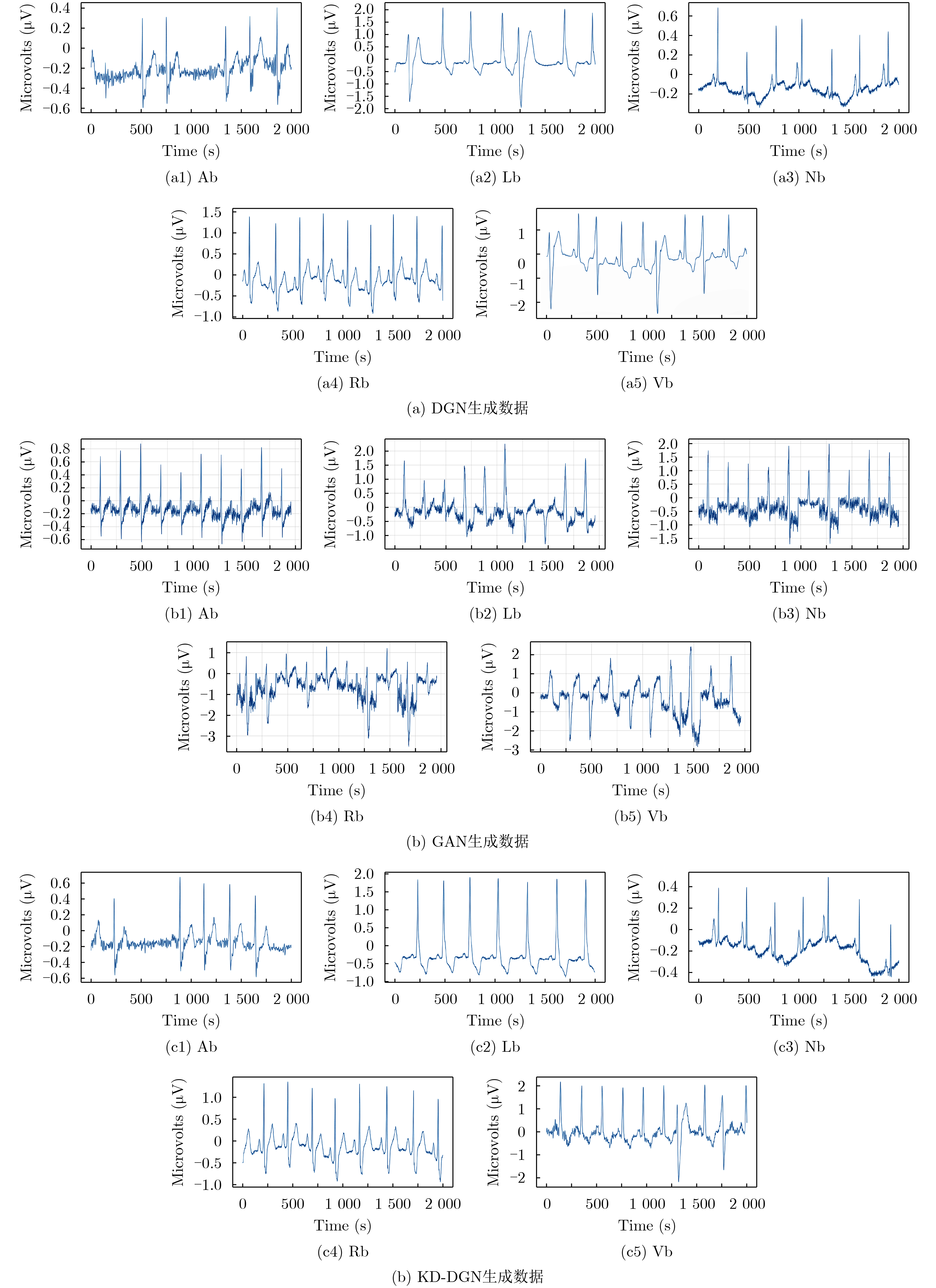

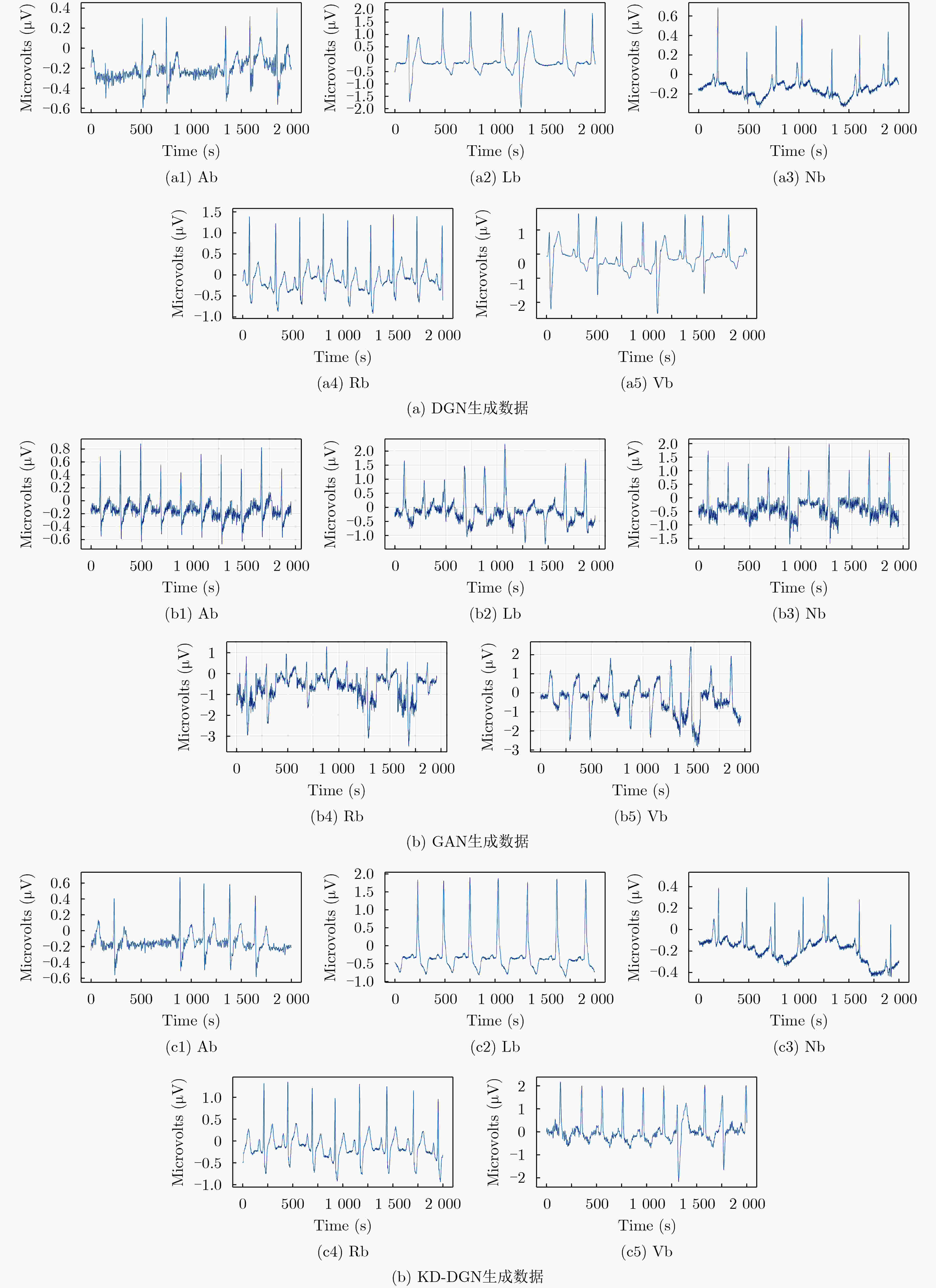

图 10 DGN, GAN和KD-DGN生成的Ab, Rb, Nb, Vb以及Lb各一张ECG图像

下载: 全尺寸图片幻灯片
