基于预训练固定参数和深度特征调制的红外与可见光图像融合网络

徐少平 周常飞 肖建 陶武勇 戴田宇

徐少平, 周常飞, 肖建, 陶武勇, 戴田宇. 基于预训练固定参数和深度特征调制的红外与可见光图像融合网络[J]. 电子与信息学报. doi: 10.11999/JEIT231283
引用本文: 徐少平, 周常飞, 肖建, 陶武勇, 戴田宇. 基于预训练固定参数和深度特征调制的红外与可见光图像融合网络[J]. 电子与信息学报. doi: 10.11999/JEIT231283
XU Shaoping, ZHOU Changfei, XIAO Jian, TAO Wuyong, DAI TianYu. A Fusion Network for Infrared and Visible Images Based on Pre-trained Fixed Parameters and Deep Feature Modulation[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT231283
Citation: XU Shaoping, ZHOU Changfei, XIAO Jian, TAO Wuyong, DAI TianYu. A Fusion Network for Infrared and Visible Images Based on Pre-trained Fixed Parameters and Deep Feature Modulation[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT231283

基于预训练固定参数和深度特征调制的红外与可见光图像融合网络

doi: 10.11999/JEIT231283
基金项目: 国家自然科学基金(62162043)
详细信息
    作者简介:

    徐少平:男,博士,教授,博士生导师,研究方向包括数字图像处理、机器视觉、虚拟手术模拟

    周常飞:男,硕士生,研究方向包括数字图像处理、机器视觉

    肖建:女,博士生,研究方向包括数字图像处理、机器视觉

    陶武勇:男,博士,讲师,研究方向包括数字图像处理、 点云配准和3D目标识别

    戴田宇:男,博士,讲师,研究方向包括数字图像处理、深度学习、地下空间探测与成像等

    通讯作者:

    徐少平 xushaoping@ncu.edu.cn; dr.xushaoping@qq.com

  • 中图分类号: TN911.73; TN219; TP391

A Fusion Network for Infrared and Visible Images Based on Pre-trained Fixed Parameters and Deep Feature Modulation

Funds: The National Natural Science Foundation of China(62162043)
  • 摘要: 为了更好地利用红外与可见光图像中互补的图像信息,得到符合人眼感知特性的融合图像,该文采用两阶段训练策略提出一种基于预训练固定参数和深度特征调制的红外与可见光图像融合网络(PDNet)。具体地,在自监督预训练阶段,以大量清晰的自然图像分别作为U型网络结构(UNet)的输入和输出,采用自编码器技术完成预训练。所获得编码器模块能有效提取输入图像的多尺度深度特征功能,而解码器模块则能将其重构为与输入图像差异极小的输出图像;在无监督融合训练阶段,将预训练编码器和解码器模块的网络参数保持固定不变,而在两者之间新增包含Transformer结构的融合模块。其中,Transformer结构中的多头自注意力机制能对编码器分别从红外和可见光图像提取到的深度特征权重进行合理分配,从而在多个尺度上将两者融合调制到自然图像深度特征的流型空间上来,进而保证融合特征经解码器重构后所获得融合图像的视觉感知效果。大量实验表明:与当前主流的融合模型(算法)相比,所提PDNet模型在多个客观评价指标方面具有显著优势,而在主观视觉评价上,也更符合人眼视觉感知特点。

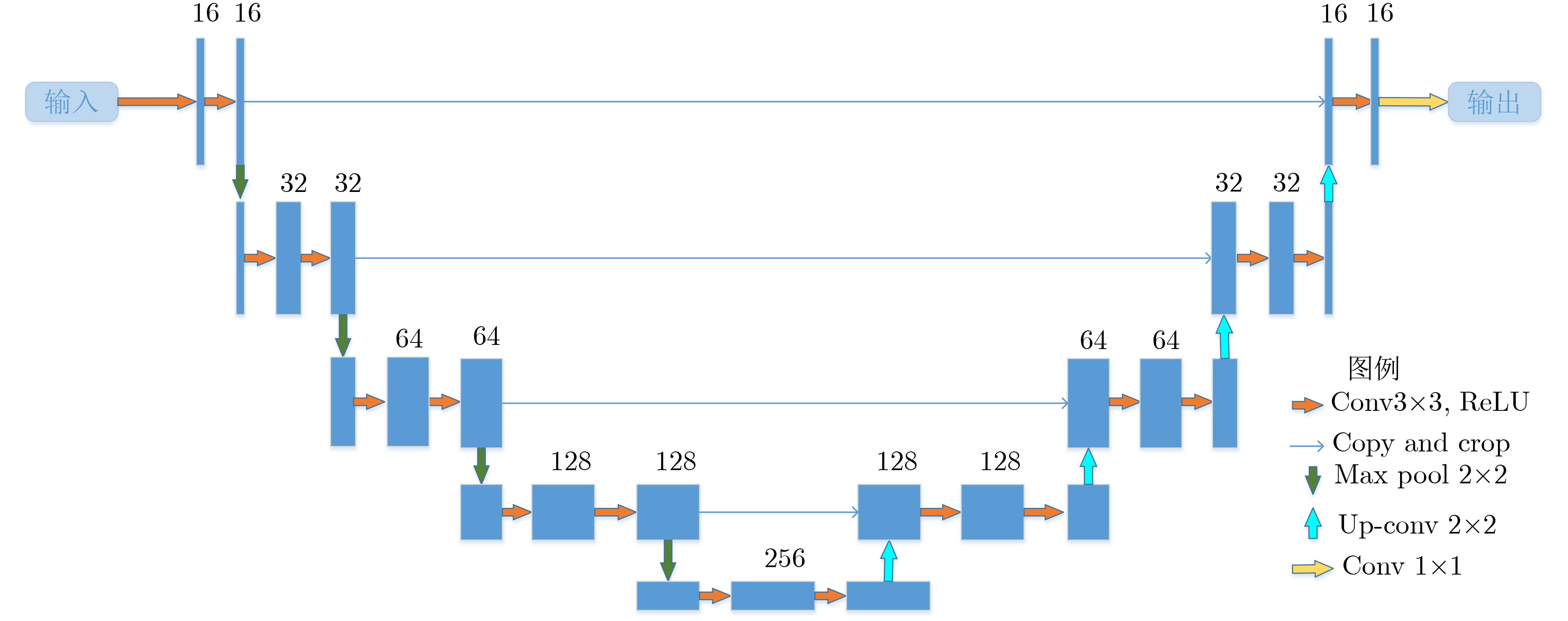

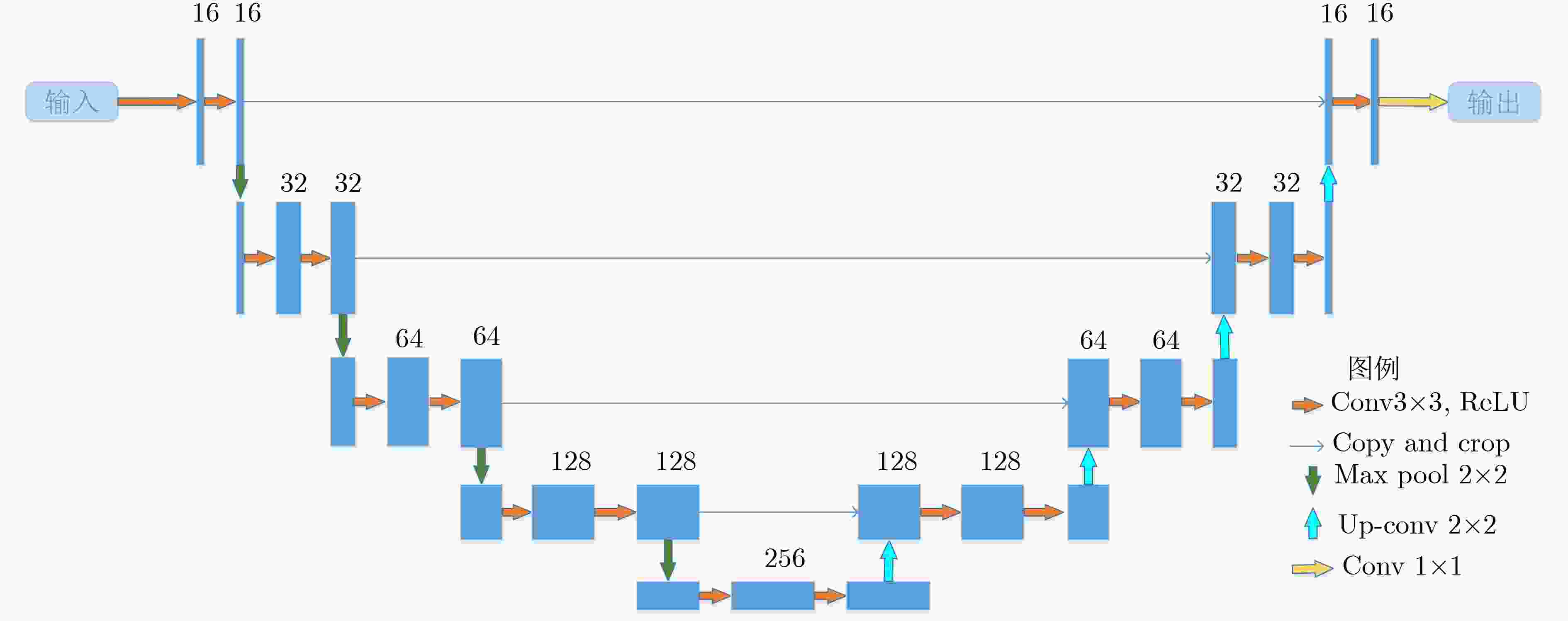

  • 图  1  UNet网络中典型的编码器和解码器架构图

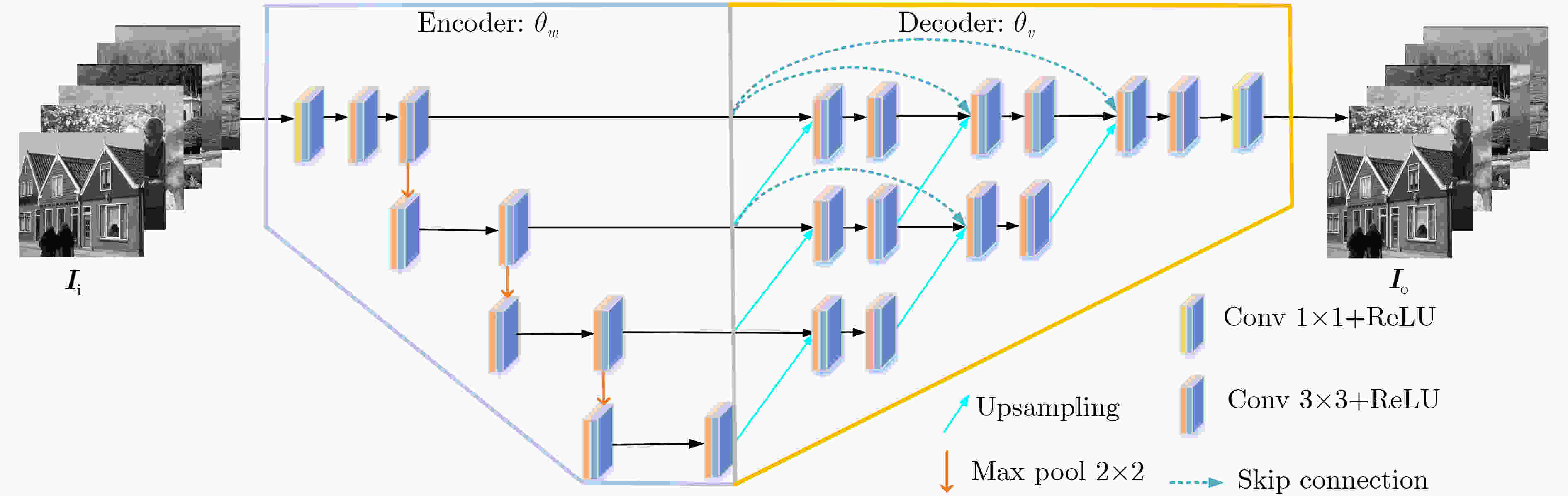

    图  2  自监督预训练阶段网络模型框架图

    图  3  无监督融合阶段网络模型框架图

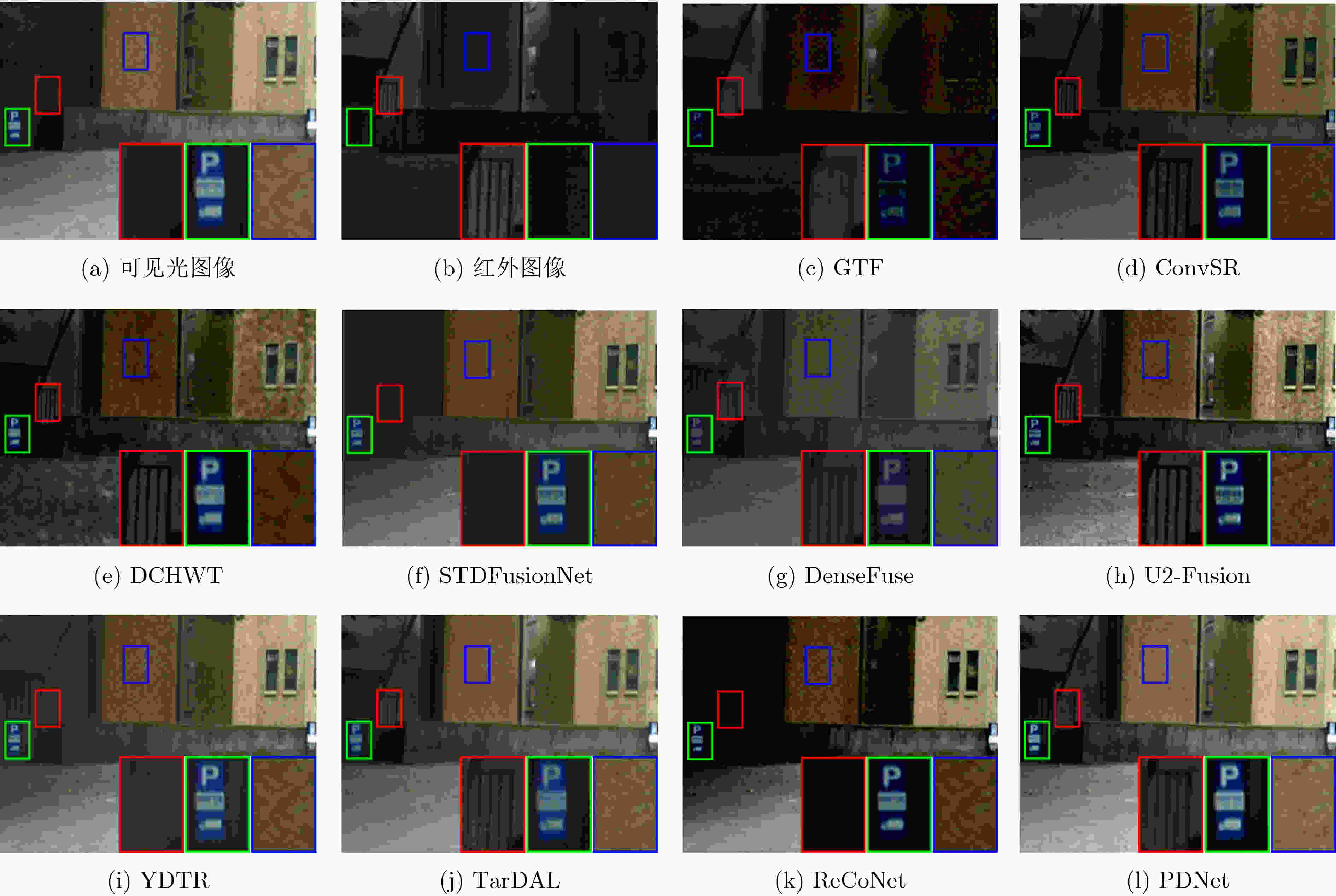

    图  4  各方法在MSRS数据集上融合效果对比

    表  1  损失函数${L_{{\text{un}}}}$中超参数$\lambda $取值对融合结果评价指标的影响

    评价指标$\lambda $
    0255075100125150175200
    En6.766 96.949 86.932 36.937 46.953 37.085 17.155 77.127 67.144 1
    SD77.730 881.681 180.013 280.885 281.097 899.554 798.155 599.972 598.011 0
    CC0.454 80.509 20.509 60.509 30.510 40.416 60.450 40.426 30.451 5
    VIF0.901 00.848 80.837 00.844 20.841 40.985 10.936 10.841 40.947 1
    SCD1.595 41.766 91.746 61.745 81.767 71.572 61.698 71.626 31.690 6
    PSNR61.293 962.337 462.234 962.190 962.392 361.482 861.798 761.544 561.834 7
    MS-SSIM0.794 70.920 80.898 80.892 10.923 60.858 30.893 60.878 50.895 0
    下载: 导出CSV

    表  2  特征融合部分中Transformer模块对融合效果的影响

    评价指标Transformer个数
    0123
    En7.120 97.080 66.953 37.115 2
    SD112.593 5100.349 881.097 8113.844 2
    CC0.360 00.402 20.510 40.353 6
    VIF1.131 60.986 30.841 41.162 6
    SCD1.131 11.393 11.767 71.016 1
    PSNR60.665 861.393 562.392 360.745 7
    MS-SSIM0.805 00.830 10.923 60.799 4
    下载: 导出CSV

    表  3  采用1阶段和两阶段训练策略在VOT2020-RGBT测试集上的融合效果对比

    训练策略 评价指标
    En SD CC VIF SCD PSNR MS-SSIM
    1阶段 7.182 8 109.516 7 0.379 1 1.039 5 1.252 5 60.989 0 0.832 6
    2阶段 6.953 3 81.097 8 0.510 4 0.841 4 1.767 7 62.392 3 0.923 6
    下载: 导出CSV

    表  4  各方法在MSRS数据集上的指标值对比

    评价指标对比算法
    GTFSTDFusionNetConvSRDCHWTDenseFuseU2FusionTarDALReCoNetYDTRDATFusePDNet
    En5.483 55.244 16.030 86.346 65.936 85.372 26.349 54.233 75.645 16.420 36.360 5
    SD42.970 865.835 155.818 272.187 051.226 455.479 977.116 090.668 655.146 171.763 971.110 0
    CC0.525 40.541 00.647 50.604 20.659 80.64820.626 20.555 30.631 10.590 20.629 0
    VIF0.558 00.521 20.709 50.713 00.704 10.564 10.677 30.594 00.559 30.800 80.817 3
    SCD0.749 50.952 61.291 71.340 71.251 11.24391.484 61.262 01.138 11.285 11.506 4
    PSNR64.723 464.815 067.117 766.147 067.237 366.358 060.899 664.507 964.107 662.598 766.271 7
    MS-SSIM0.848 40.867 30.942 00.902 20.902 90.919 40.928 90.884 20.887 20.946 60.946 5
    下载: 导出CSV
