卷积神经网络与视觉Transformer联合驱动的跨层多尺度融合网络高光谱图像分类方法

赵凤; 耿苗苗; 刘汉强; 张俊杰; 於俊

doi:10.11999/JEIT231209

卷积神经网络与视觉Transformer联合驱动的跨层多尺度融合网络高光谱图像分类方法

doi: 10.11999/JEIT231209

1.
西安邮电大学通信与信息工程学院西安 710121
2.
陕西师范大学计算机科学学院西安 710119
3.
中国科学技术大学信息科学技术学院合肥 223700

基金项目: 国家自然科学基金(62071379, 62071378, 62106196)，陕西高校青年创新团队

详细信息

作者简介:
赵凤：女，教授，研究方向为智能信息处理、模式识别与图像处理

耿苗苗：女，硕士生，研究方向为遥感图像处理

刘汉强：男，副教授，研究方向为模式识别与图像处理

张俊杰：男，博士生，研究方向为遥感图像处理与识别

於俊：男，副教授，研究方向为人工智能、多媒体计算、计算机视觉

通讯作者:
耿苗苗　MiaoGeng1016@163.com

中图分类号: TN911.73; TP751
计量
- 文章访问数: 51
- HTML全文浏览量: 16
- PDF下载量: 4
- 被引次数: 0
出版历程
- 收稿日期: 2023-11-01
- 修回日期: 2024-03-31
- 网络出版日期: 2024-04-18

Convolutional Neural Network and Vision Transformer-driven Cross-layer Multi-scale Fusion Network for Hyperspectral Image Classification

1.
School of Communications and Information Engineering, Xi’an University of Posts and Telecommunications, Xi’an 710121, China
2.
School of Computer Science, Shaanxi Normal University, Xi’an 710119, China
3.
University of Science and Technology of China, Hefei 223700, China

Funds: The National Natural Science Foundation of China (62071379, 62071378, 62106196), The Youth Innovation Team of Shaanxi Universities

摘要

摘要: 高光谱图像(HSI)分类是地球科学和遥感影像处理任务中最受关注的研究热点之一。近年来，卷积神经网络(CNN)和视觉Transformer相结合的方法，通过综合考虑局部-全局信息，在HSI分类任务中取得了成功。然而，HSI中地物具有丰富的纹理信息和复杂多样的结构，且不同地物之间存在尺度差异。现有的二者结合的方法通常对多尺度地物目标的纹理和结构信息的提取能力有限。为了克服上述局限性，该文提出CNN与视觉Transformer联合驱动的跨层多尺度融合网络HSI分类方法。首先，从结合CNN与视觉Transformer的角度出发，设计了跨层多尺度局部-全局特征提取模块分支，其主要由卷积嵌入的视觉Transformer和跨层特征融合模块构成。具体来说，卷积嵌入的视觉Transformer通过深度融合多尺度CNN与视觉Transformer实现了多尺度局部-全局特征信息的有效提取，从而增强网络对不同尺度地物的关注。进一步地，跨层特征融合模块深度聚合了不同层次的多尺度局部-全局特征信息，以综合考虑地物的浅层纹理信息和深层结构信息。其次，构建了分组多尺度卷积模块分支来挖掘HSI中密集光谱波段潜在的多尺度特征。最后，为了增强网络对HSI中局部波段细节和整体光谱信息的挖掘，设计了残差分组卷积模块对局部-全局光谱特征进行提取。Indian Pines, Houston 2013和Salinas Valley 3个HSI数据集上的实验结果证实了所提方法的有效性。
- 高光谱图像分类 /
- 卷积神经网络 /
- 视觉Transformer /
- 多尺度特征 /
- 融合网络
Abstract: HyperSpectral Image (HSI) classification is one of the most prominent research topics in geoscience and remote sensing image processing tasks. In recent years, the combination of Convolutional Neural Network (CNN) and vision transformer has achieved success in HSI classification tasks by comprehensively considering local-global information. Nevertheless, the ground objects of HSIs vary in scale, containing rich texture information and complex structures. The current methods based on the combination of CNN and vision transformer usually have limited capability to extract texture and structural information of multi-scale ground objects. To overcome the above limitations, a CNN and vision transformer-driven cross-layer multi-scale fusion network is proposed for HSI classification. Firstly, from the perspective of combining CNN and visual transformer, a cross-layer multi-scale local-global feature extraction module branch is constructed, which is composed of a convolution embedded vision transformer architecture and a cross-layer feature fusion module. Specifically, to enhance attention to multi-scale ground objects in HSIs, the convolution embedded vision transformer captures multi-scale local-global features effectively by organically combining multi-scale CNN and vision transformer. Furthermore, the cross-layer feature fusion module aggregates hierarchical multi-scale local-global features, thereby combining shallow texture information and deep structural information of ground objects. Secondly, a group multi-scale convolution module branch is designed to explore the potential multi-scale features from abundant spectral bands in HSIs. Finally, to mine local spectral details and global spectral information in HSIs, a residual group convolution module is designed to extract local-global spectral features. Experimental results on Indian Pines, Houston 2013, and Salinas Valley datasets confirm the effectiveness of the proposed method.
- HyperSpectral Image (HSI) classification /
- Convolutional Neural Network (CNN) /
- Vision transformer /
- Multi-scale features /
- Fusion network

HTML全文

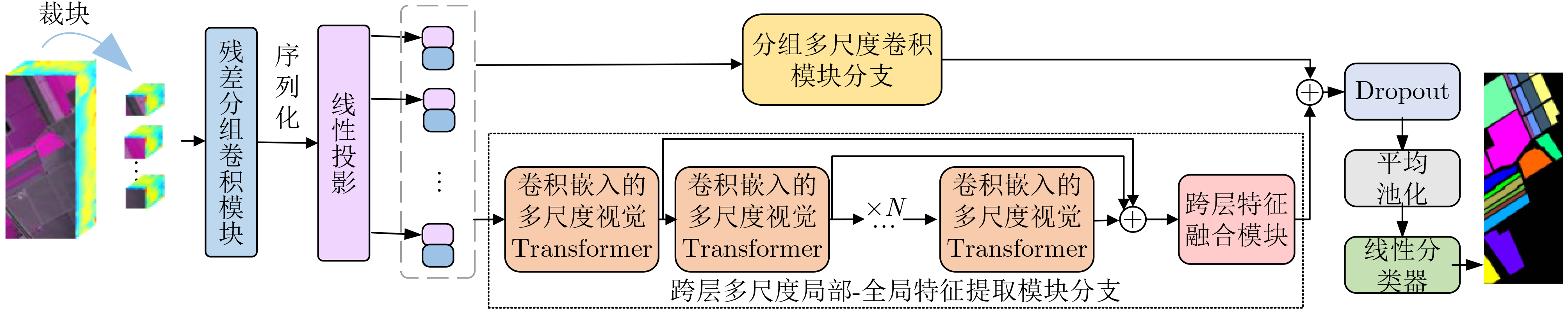

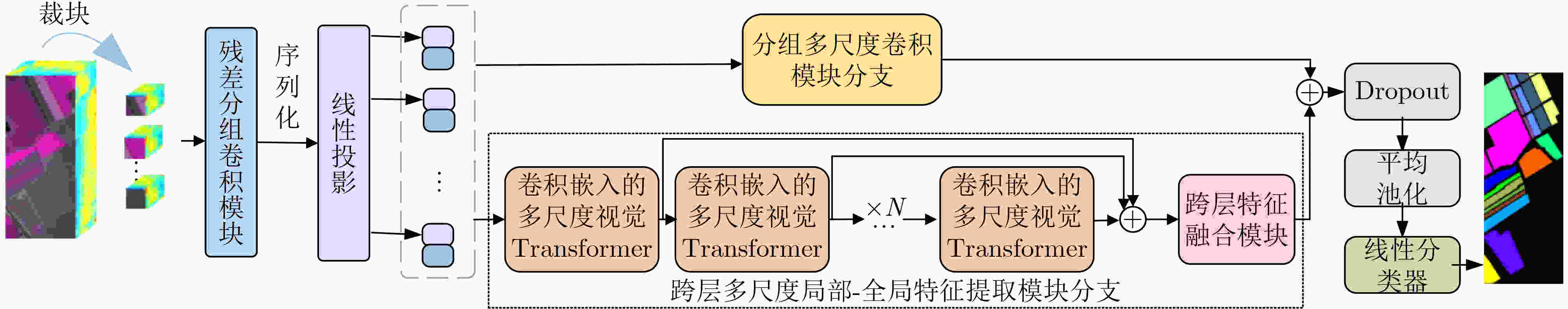

图 1 CNN与视觉Transformer联合驱动的跨层多尺度融合网络

下载: 全尺寸图片幻灯片

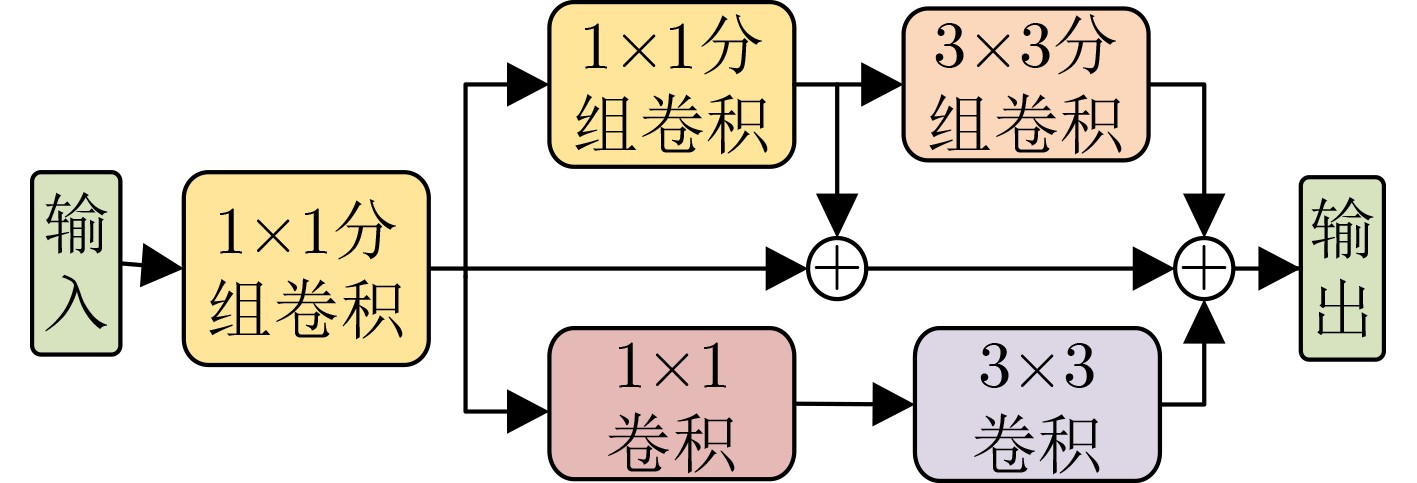

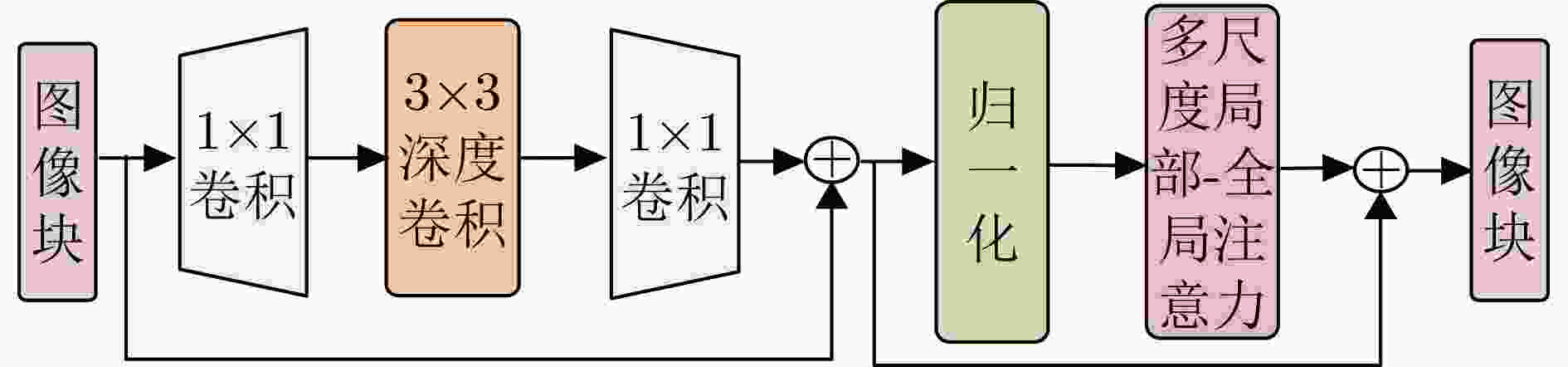

图 2 残差分组卷积模块

下载: 全尺寸图片幻灯片

图 3 卷积嵌入的多尺度视觉Transformer

下载: 全尺寸图片幻灯片

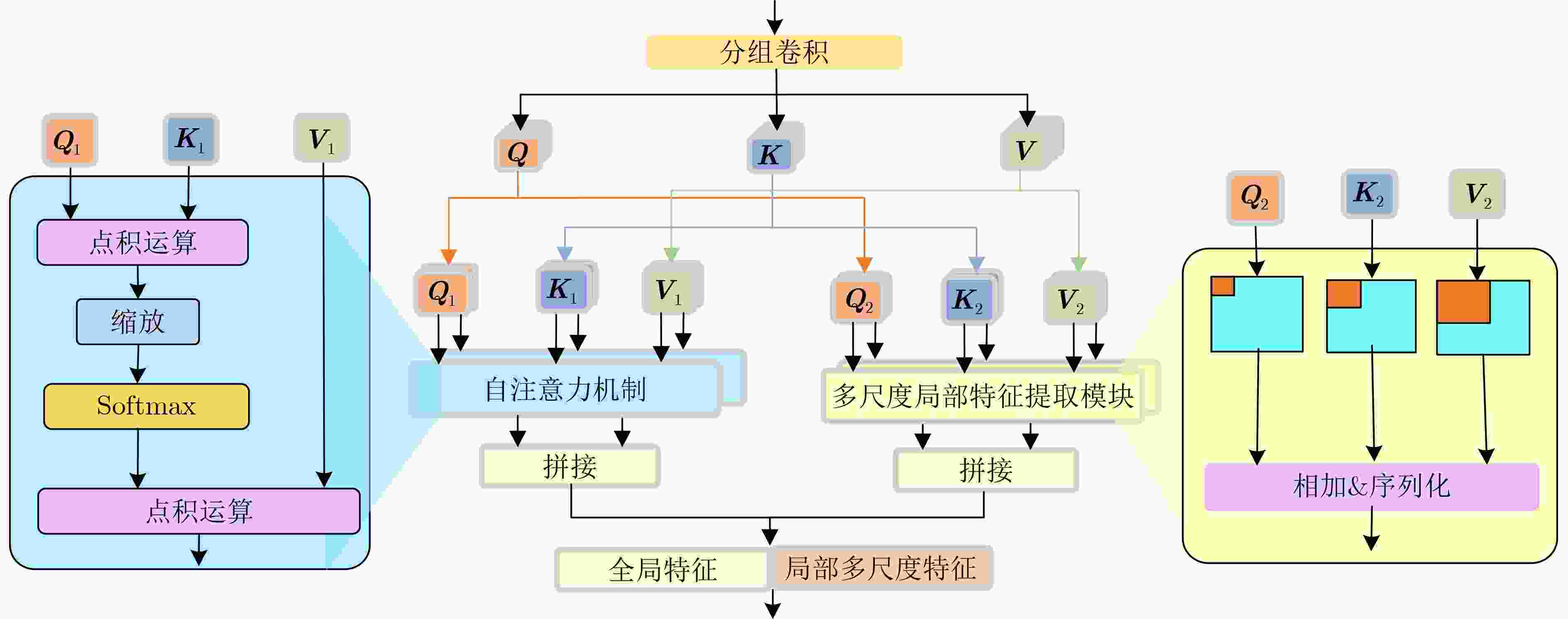

图 4 多尺度局部-全局注意力机制

下载: 全尺寸图片幻灯片

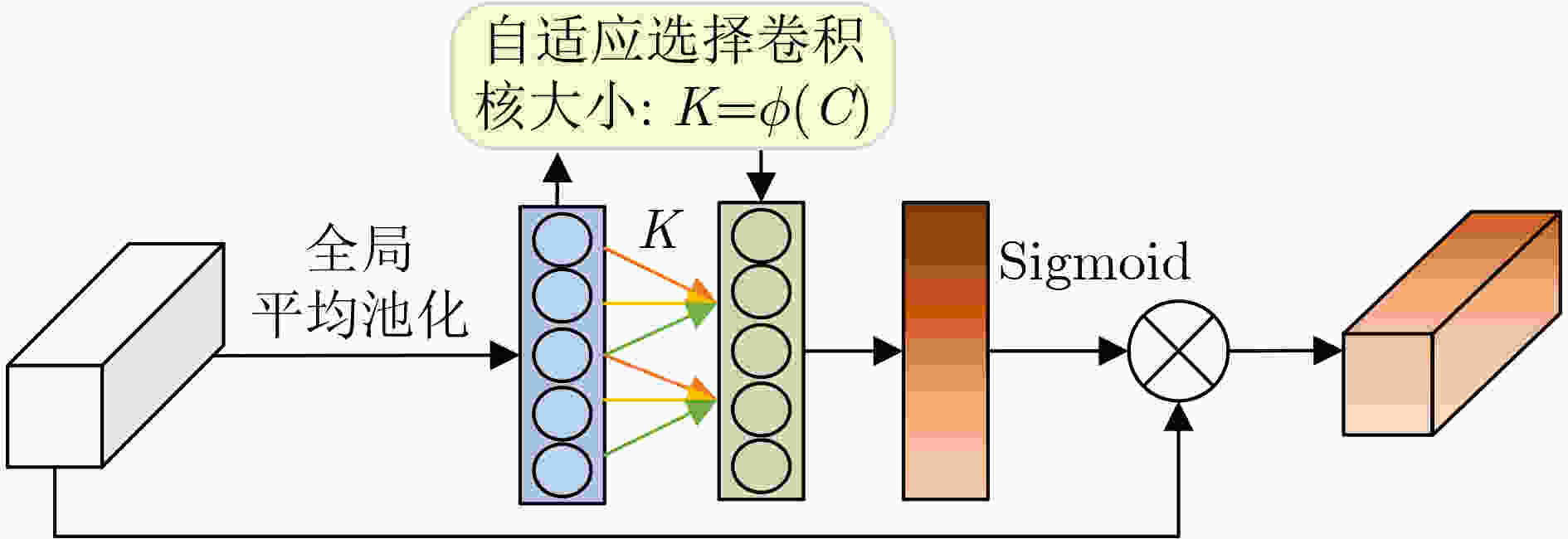

图 5 跨层特征融合模块

下载: 全尺寸图片幻灯片

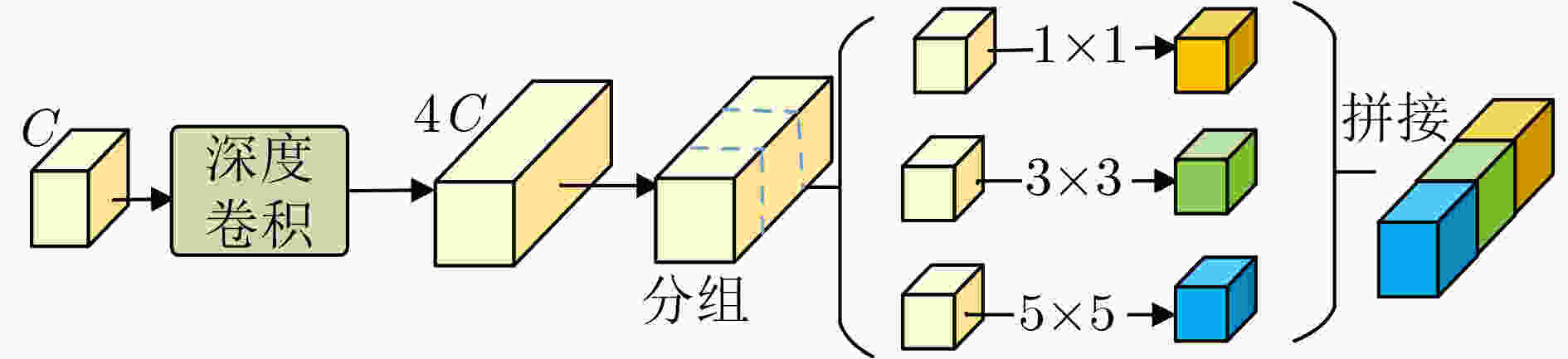

图 6 分组多尺度卷积模块

下载: 全尺寸图片幻灯片

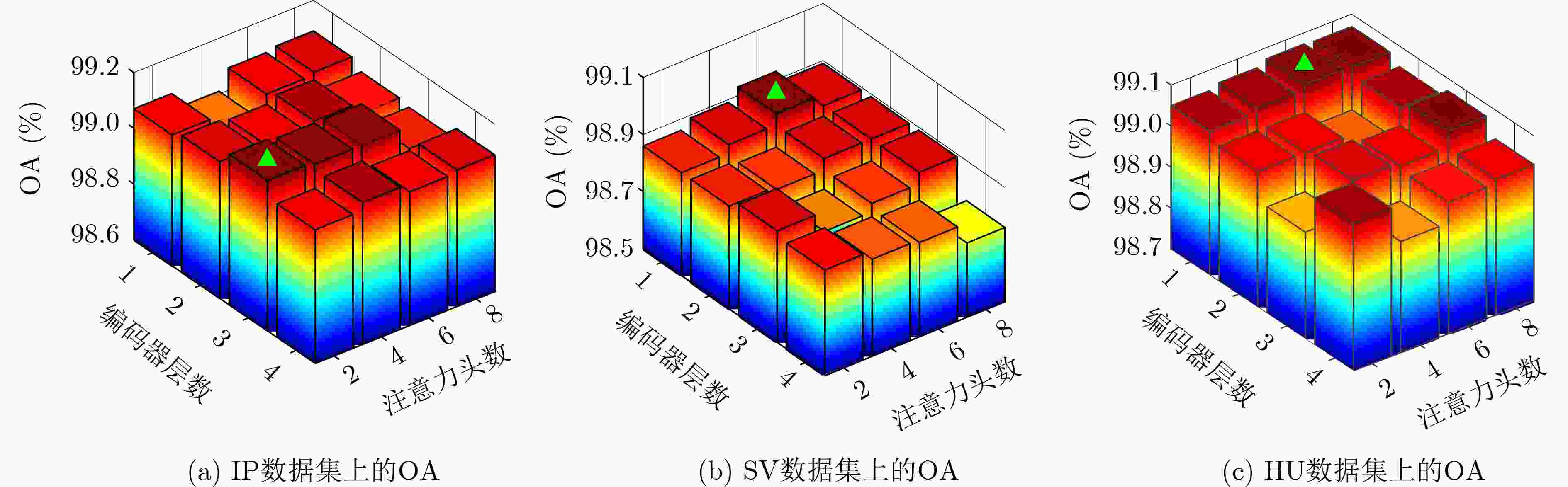

图 7 编码器层数和多头注意力头数对分类性能的影响

下载: 全尺寸图片幻灯片

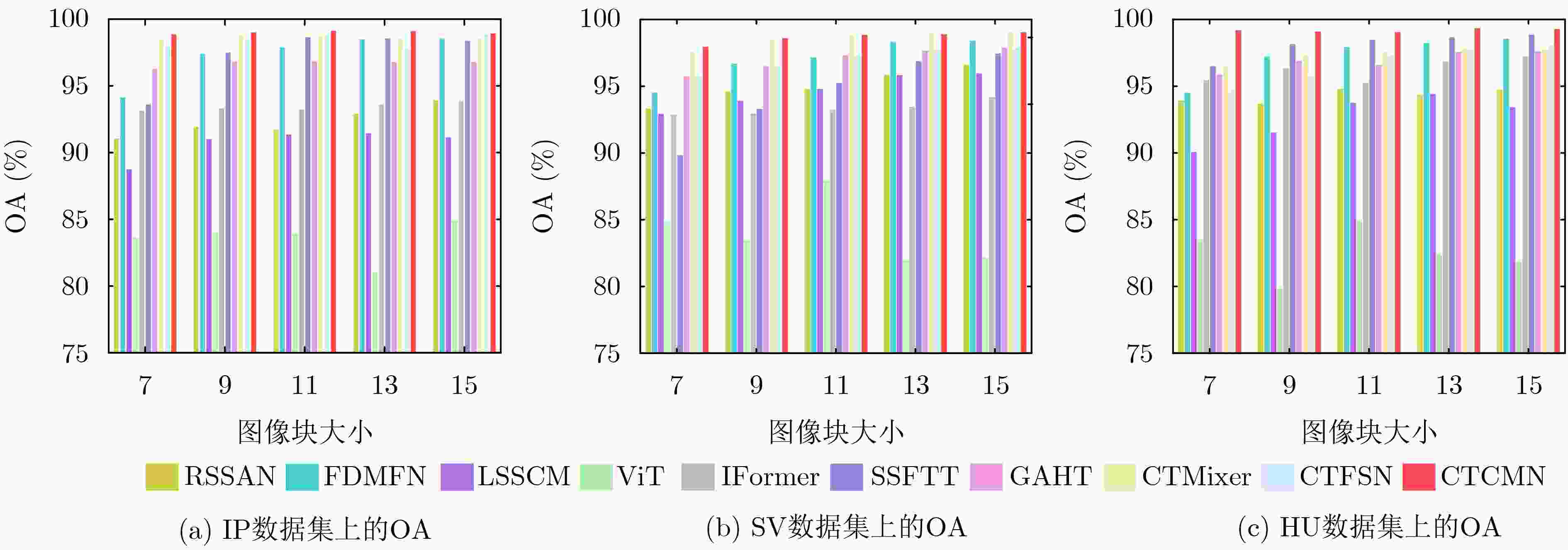

图 8 图像块大小对不同方法分类性能的影响

下载: 全尺寸图片幻灯片

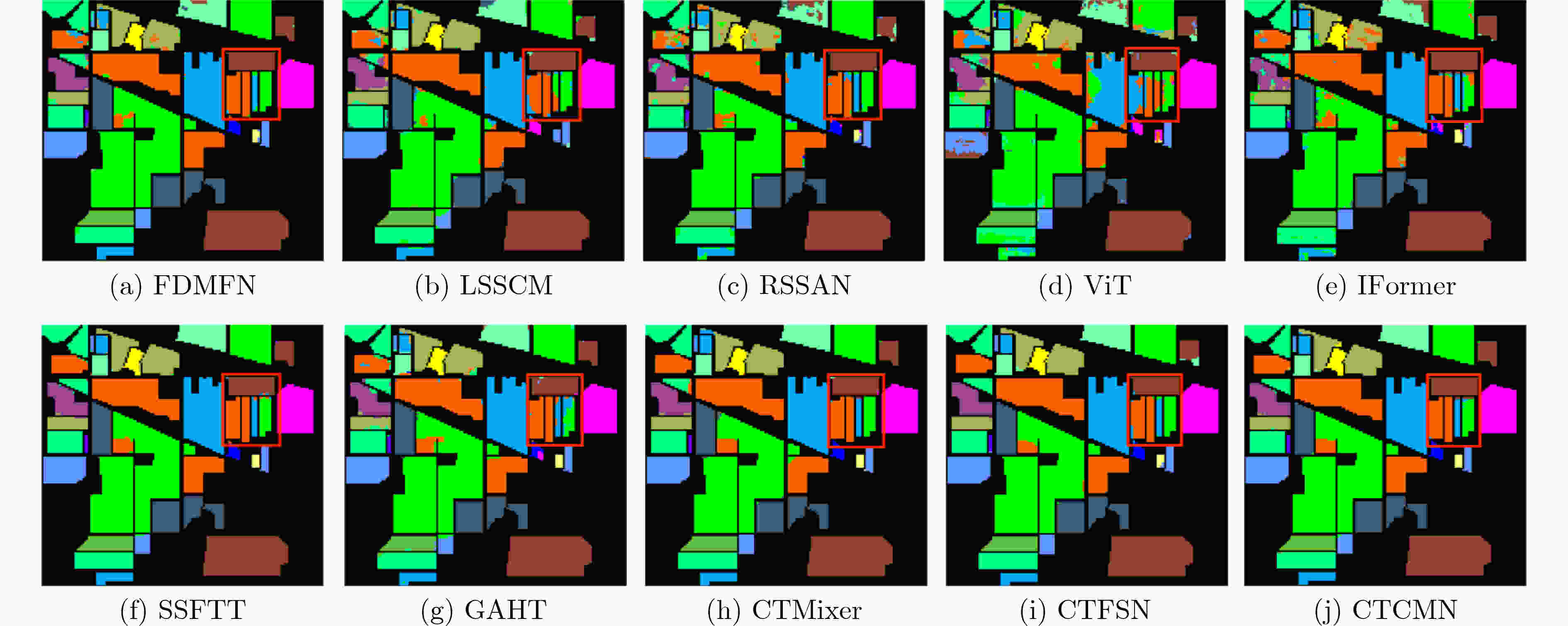

图 9 IP数据集上不同方法的分类结果图

下载: 全尺寸图片幻灯片

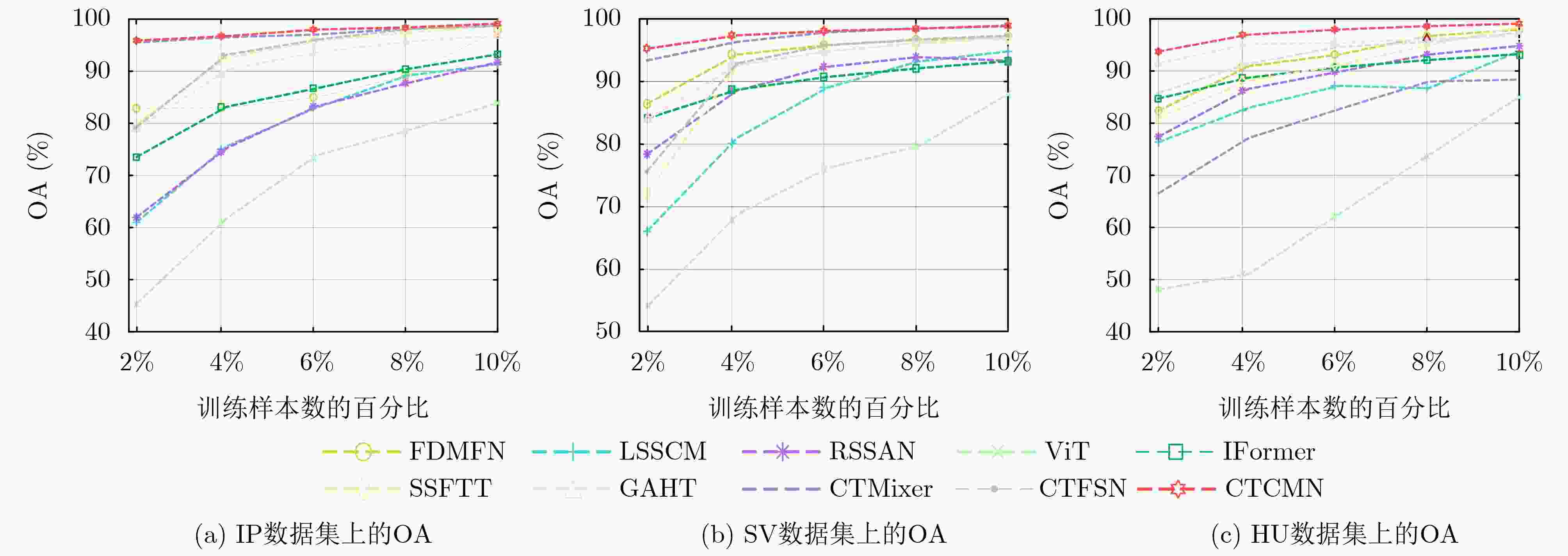

图 10 不同方法在不同训练样本数量下的总体精度

下载: 全尺寸图片幻灯片

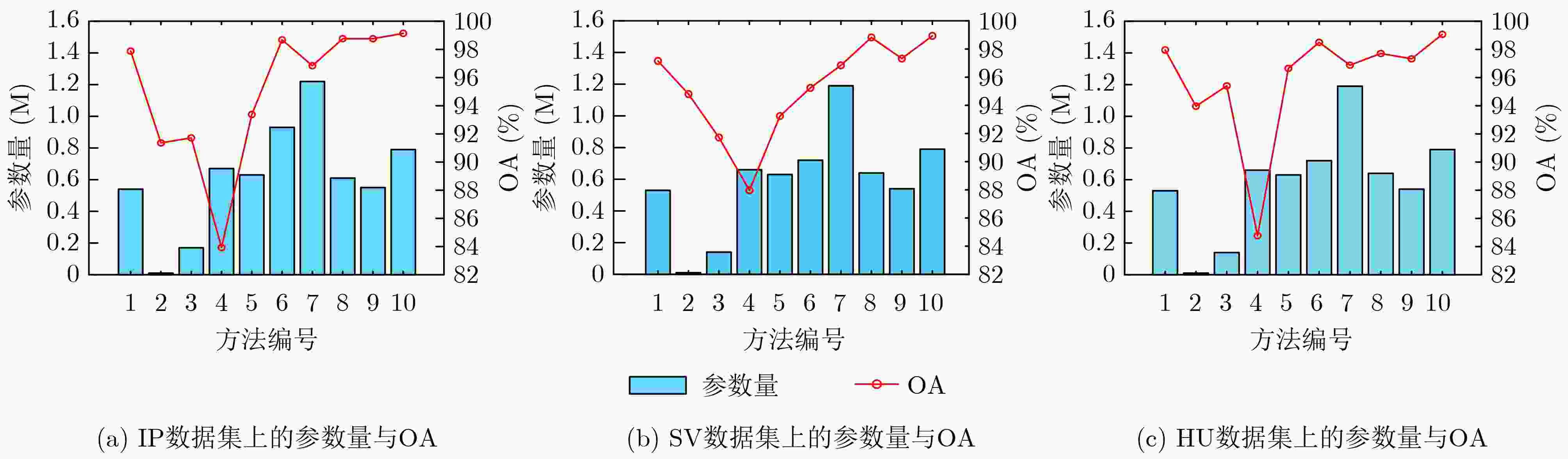

图 11 IP, SV和HU数据集上不同方法的参数量与OA

下载: 全尺寸图片幻灯片

表 1 IP, HU, SV数据集基本信息

数据集	尺寸	光谱范围(μm)	光谱维度	类别数目	采集设备
IP	145 × 145	0.45～2.5	200	16	AVIRIS
HU	349 × 1905	0.364～1.064	144	15	ITRES CASI-1500
SV	512 × 217	0.4～2.5	204	16	AVIRIS

下载: 导出CSV

表 2 不同模块对网络分类性能的影响(%)

数据集	评价指标	网络
数据集	评价指标	网络1	网络2	网络3	网络4	网络5	网络6
IP	OA	83.94 ± 2.51	89.57 ± 0.51	98.66 ± 0.38	98.83 ± 0.25	98.91 ± 0.33	99.13 ± 0.16
	AA	76.92 ± 4.70	83.09 ± 1.15	97.81 ± 1.48	97.90 ± 1.20	97.93 ± 1.06	98.38 ± 0.87
	Kappa	81.60 ± 2.90	88.06 ± 0.59	98.47 ± 0.29	98.76 ± 0.37	98.76 ± 0.37	99.01 ± 0.19
SV	OA	87.97 ± 1.80	91.06 ± 0.79	98.73 ± 0.32	98.80 ± 0.34	98.87 ± 0.29	98.89 ± 0.25
	AA	91.04 ± 1.71	94.46 ± 0.79	99.22 ± 0.16	99.24 ± 0.12	99.26 ± 0.20	99.30 ± 0.21
	Kappa	86.54 ± 2.03	90.03 ± 0.88	98.58 ± 0.36	98.65 ± 0.23	98.74 ± 0.33	98.77 ± 0.28
HU	OA	84.99 ± 2.23	94.61 ± 0.44	98.85 ± 0.42	98.88 ± 0.43	98.90 ± 0.53	99.07 ± 0.22
	AA	84.77 ± 2.31	93.38 ± 0.52	98.95 ± 0.37	98.96 ± 0.21	98.97 ± 0.49	99.09 ± 0.20
	Kappa	83.76 ± 2.41	94.17 ± 0.48	98.76 ± 0.45	98.82 ± 0.51	98.99 ± 0.32	98.99 ± 0.24

下载: 导出CSV

表 3 IP数据集上不同方法的分类性能(%)

类别	FDMFN^[10]	LSSCM^[12]	RSSAN^[11]	ViT^[15]	IFormer^[17]	SSFTT^[18]	GAHT^[19]	CTMixer^[20]	CTFSN^[21]	CTCMN
1	88.05	58.78	65.12	23.66	63.66	94.15	78.78	94.63	93.17	96.83
2	97.06	86.62	90.73	76.10	89.32	99.04	96.14	98.58	98.54	99.06
3	97.82	88.07	89.33	79.83	93.81	98.39	97.54	98.66	98.45	98.94
4	96.41	87.11	70.00	82.49	81.66	98.08	93.22	98.78	97.85	98.32
5	97.04	89.38	93.06	72.97	94.74	98.09	96.08	96.61	97.96	97.82
6	98.98	88.01	98.16	98.71	98.89	99.67	99.54	99.27	99.62	99.62
7	88.00	66.92	68.00	54.80	64.80	95.20	91.60	96.40	93.60	94.40
8	99.95	89.85	99.67	99.98	99.86	100.0	99.86	100.0	100.0	100.0
9	92.22	20.53	47.78	42.22	65.56	76.67	85.56	90.56	94.44	97.78
10	97.44	88.05	91.15	68.73	92.38	98.52	96.35	98.49	98.52	99.12
11	99.08	95.25	95.14	89.18	96.60	99.45	97.54	99.06	99.20	99.40
12	92.92	84.54	79.25	66.73	81.47	95.66	92.49	97.23	97.92	98.09
13	99.95	97.79	98.75	99.95	99.67	100.0	98.04	99.67	100.0	99.51
14	98.84	94.78	97.43	96.03	98.78	99.06	98.05	99.54	99.24	99.80
15	97.43	84.23	75.91	79.41	80.88	96.55	95.82	99.39	97.31	99.05
16	97.86	96.19	83.81	100.0	93.57	95.71	90.12	97.14	96.67	96.79
OA	97.88	91.36	91.72	83.93	93.38	98.68	96.84	98.76	98.76	99.14
AA	96.19	75.85	83.95	76.92	87.22	96.51	94.17	97.75	97.65	98.40
Kappa	97.58	90.14	90.54	81.60	92.43	98.50	96.39	98.58	98.58	99.02

下载: 导出CSV

表 4 SV数据集上不同方法的分类性能(%)

类别	FDMFN^[10]	LSSCM^[12]	RSSAN^[11]	ViT^[15]	IFormer^[17]	SSFTT^[18]	GAHT^[19]	CTMixer^[20]	CTFSN^[21]	CTCMN
1	99.79	97.83	99.40	98.20	99.71	98.71	78.78	100.0	99.94	100.0
2	99.99	99.85	99.50	99.95	99.98	99.53	96.14	100.0	100.0	100.0
3	99.26	88.93	97.08	78.28	99.98	98.45	97.54	99.96	99.83	99.98
4	99.21	99.30	98.43	97.53	98.64	98.88	93.22	98.57	98.89	98.95
5	99.51	97.36	98.54	92.56	98.79	99.15	96.08	99.03	99.67	99.22
6	100.0	99.95	99.97	100.0	100.0	99.94	99.54	99.99	100.0	100.0
7	99.98	99.72	98.94	96.03	99.05	98.93	91.60	99.98	99.97	99.98
8	92.52	90.61	90.90	89.17	88.43	90.29	99.86	97.14	93.02	97.11
9	99.99	99.99	99.89	99.97	100.0	99.70	85.56	100.0	100.0	100.0
10	97.91	93.93	96.35	91.16	96.75	97.41	96.35	98.60	97.95	99.01
11	98.01	90.02	92.78	80.45	95.75	95.90	97.54	99.90	99.82	99.81
12	99.95	99.38	99.53	97.92	99.83	100.0	92.49	99.97	99.99	99.98
13	99.97	97.81	98.80	98.68	99.65	99.40	98.04	99.59	99.92	99.68
14	99.44	98.59	97.21	95.73	97.79	97.87	98.05	99.01	99.67	99.01
15	92.84	86.85	82.77	49.05	72.10	84.88	95.82	97.30	92.49	97.74
16	98.18	95.32	95.07	91.97	98.42	97.19	90.12	99.75	99.46	99.76
OA	97.15	94.80	91.72	87.97	93.24	95.24	96.84	98.82	97.32	98.93
AA	98.53	95.96	83.95	91.04	96.49	97.26	94.17	99.29	98.78	99.38
Kappa	96.83	94.21	90.54	86.54	94.70	94.70	96.39	98.69	97.02	98.80

下载: 导出CSV

表 5 HU数据集上不同方法的分类性能(%)

类别	FDMFN^[10]	LSSCM^[12]	RSSAN^[11]	ViT^[15]	IFormer^[17]	SSFTT^[18]	GAHT^[19]	CTMixer^[20]	CTFSN^[21]	CTCMN
1	99.06	96.87	97.41	89.47	98.43	99.02	95.82	97.88	98.65	99.26
2	99.35	97.02	99.55	96.63	99.35	99.43	95.96	97.69	98.92	99.60
3	99.89	99.62	99.52	95.90	99.97	99.94	99.81	99.54	99.70	99.87
4	96.14	92.58	97.51	94.26	97.47	97.96	95.38	96.18	95.63	99.30
5	99.98	99.66	99.38	99.49	99.96	99.95	99.79	99.94	99.94	100.0
6	96.75	87.29	85.45	86.13	90.17	96.34	95.68	98.39	96.85	99.11
7	97.14	91.48	94.21	87.80	95.59	97.60	95.94	97.32	97.77	98.35
8	95.23	86.08	90.45	61.32	89.45	95.70	92.59	96.04	93.81	97.26
9	95.86	87.59	92.05	79.05	94.02	97.47	95.19	96.12	94.21	98.25
10	99.54	96.03	96.24	79.38	98.34	99.54	98.79	99.88	97.72	100.0
11	97.20	90.41	92.38	77.41	96.22	98.91	97.18	96.74	96.69	99.24
12	98.45	94.03	96.12	80.59	95.66	97.77	95.30	96.48	97.54	98.94
13	94.93	91.26	83.55	47.23	95.19	97.99	95.83	93.63	94.64	97.20
14	100.0	99.84	99.19	96.91	99.97	100.0	100.0	100.0	99.95	100.0
15	99.98	99.92	99.81	100.0	100.0	99.97	100.0	99.93	100.0	100.0
OA	97.96	93.97	95.41	84.77	96.65	98.50	96.88	97.71	97.33	99.07
AA	97.77	94.21	94.85	83.76	96.42	98.34	96.33	97.41	97.47	99.09
Kappa	98.90	96.87	95.04	89.47	98.43	98.92	95.82	97.88	97.12	98.99

下载: 导出CSV

表 6 IP, SV和HU数据集上不同方法的参数量、训练时间和测试时间

数据集	评价指标	FDMFN	LSSCM	RSSAN	ViT	IFormer	SSFTT	GAHT	CTMixer	CTFSN	CTCMN
IP	参数量(M)	0.54	0.01	0.17	0.68	0.63	0.93	1.22	0.61	0.55	0.79
	训练时间(s)	34.43	38.30	38.79	27.55	90.85	35.36	98.87	82.24	39.32	95.19
	测试时间(s)	1.92	1.73	1.95	2.06	6.35	2.40	6.99	5.22	2.41	6.29
SV	参数量(M)	0.54	0.01	0.17	0.68	0.62	0.95	0.97	0.61	0.54	0.77
	训练时间(s)	18.91	20.84	20.93	14.67	46.83	18.81	49.69	44.33	20.75	48.70
	测试时间(s)	12.20	10.29	10.80	10.94	29.31	13.11	28.52	28.24	11.88	23.80
HU	参数量(M)	0.53	0.01	0.14	0.66	0.63	0.72	1.19	0.64	0.54	0.79
	训练时间(s)	45.01	50.34	51.607	34.68	66.362	40.89	99.03	64.32	51.88	68.36
	测试时间(s)	52.90	50.46	57.57	54.43	68.274	57.39	116.52	69.27	63.11	89.09

下载: 导出CSV
