基于FPGA的卷积神经网络和视觉Transformer通用加速器

李天阳; 张帆; 王松; 曹伟; 陈立

doi:10.11999/JEIT230713

基于FPGA的卷积神经网络和视觉Transformer通用加速器

doi: 10.11999/JEIT230713

李天阳¹,
张帆^1, ,,
王松²,
曹伟³,
陈立¹

1.
信息工程大学信息技术研究所郑州 450002
2.
空军95072部队南宁 530000
3.
复旦大学大数据研究院上海 200433

基金项目: 国家重点研发计划(2022YFB4500900)

详细信息

作者简介:
李天阳：男，博士生，研究方向为高性能计算、可重构计算技术

张帆：男，副研究员，研究方向为高性能计算、大数据、片上系统芯片设计

王松：男，工程师，研究方向为信息安全

曹伟：男，讲师，研究方向为可重构计算技术、片上系统芯片设计

陈立：男，博士生，研究方向为先进计算与类脑智能、计算机视觉

通讯作者:
张帆　17034203@qq.com

中图分类号: TP331; TN47
计量
- 文章访问数: 645
- HTML全文浏览量: 310
- PDF下载量: 172
- 被引次数: 0
出版历程
- 收稿日期: 2023-07-15
- 修回日期: 2023-09-27
- 网络出版日期: 2023-10-08

FPGA-Based Unified Accelerator for Convolutional Neural Network and Vision Transformer

1.
Institute of Information Technology, Information Engineering University, Zhengzhou 450002, China
2.
The 95072 Unit of PLA Air Force, Nanning 530000, China
3.
Institute for Big Data, Fudan University, Shanghai 200433, China

Funds: National Key R&D Program of China (2022YFB4500900)

摘要

摘要: 针对计算机视觉领域中基于现场可编程逻辑门阵列(FPGA)的传统卷积神经网(CNN)络加速器不适配视觉Transformer网络的问题，该文提出一种面向卷积神经网络和Transformer的通用FPGA加速器。首先，根据卷积和注意力机制的计算特征，提出一种面向FPGA的通用计算映射方法；其次，提出一种非线性与归一化加速单元，为计算机视觉神经网络模型中的多种非线性和归一化操作提供加速支持；然后，在Xilinx XCVU37P FPGA上实现了加速器设计。实验结果表明，所提出的非线性与归一化加速单元在提高吞吐量的同时仅造成很小的精度损失，ResNet-50和ViT-B/16在所提FPGA加速器上的性能分别达到了589.94 GOPS和564.76 GOPS。与GPU实现相比，能效比分别提高了5.19倍和7.17倍；与其他基于FPGA的大规模加速器设计相比，能效比有明显提高，同时计算效率较对比FPGA加速器提高了8.02%～177.53%。
- 计算机视觉 /
- 卷积神经网络 /
- Transformer /
- FPGA /
- 硬件加速器
Abstract: Considering the problem that traditional Field Programmable Gate Array (FPGA)-based Convolutional Neural Network(CNN) accelerators in computer vision are not adapted to Vision Transformer networks, a unified FPGA accelerator for convolutional neural networks and Transformer is proposed. First, a generalized computation mapping method for FPGA is proposed based on the characteristics of convolution and attention mechanisms. Second, a nonlinear acceleration unit is proposed to provide acceleration support for multiple nonlinear operations in computer vision networks. Then, we implemented the accelerator design on Xilinx XCVU37P FPGA. Experimental results show that the proposed nonlinear acceleration unit improves the throughput while causing only a small accuracy loss. ResNet-50 and ViT-B/16 achieved 589.94 GOPS and 564.76 GOPS performance on the proposed FPGA accelerator. Compared to the GPU implementation, energy efficiency is improved by a factor of 5.19 and 7.17, respectively. Compared with other large FPGA-based designs, the energy efficiency is significantly improved, while the computing efficiency is increased by 8.02%～177.53% compared to other FPGA accelerators.
- Computer vision /
- Convolutional Neural Network (CNN) /
- Transformer /
- Field Programmable Gate Array (FPGA) /
- Hardware accelerator

HTML全文

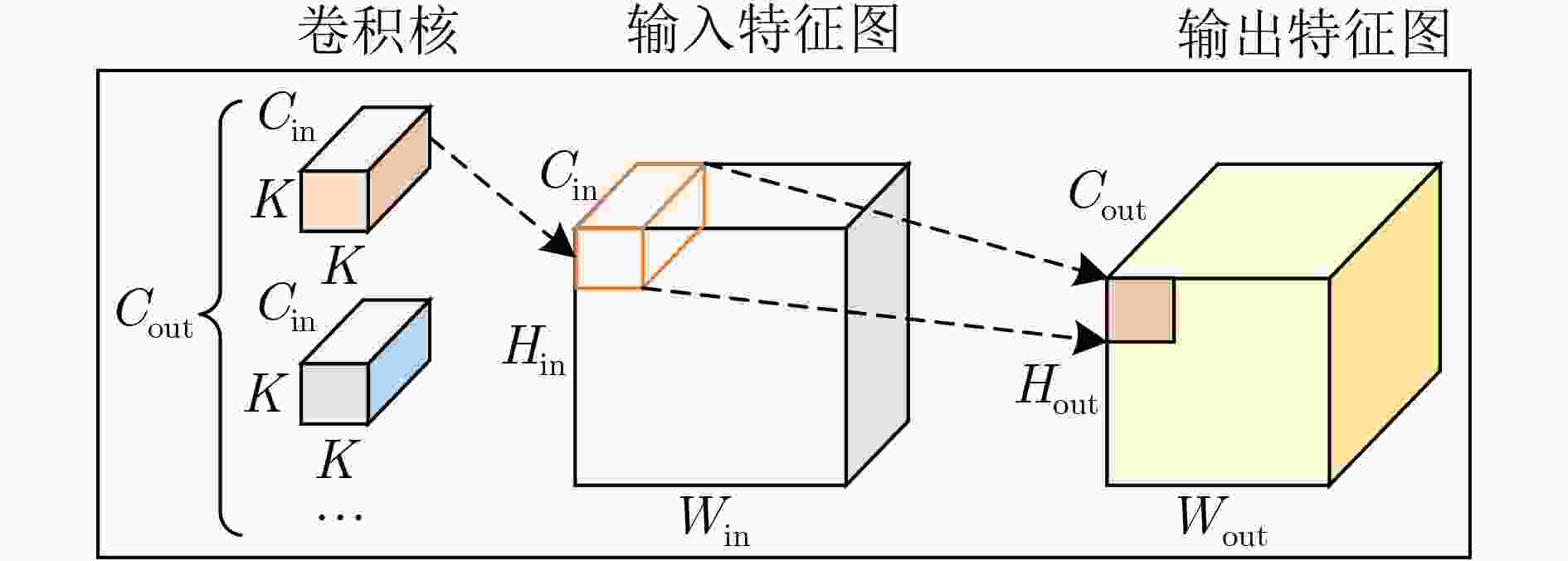

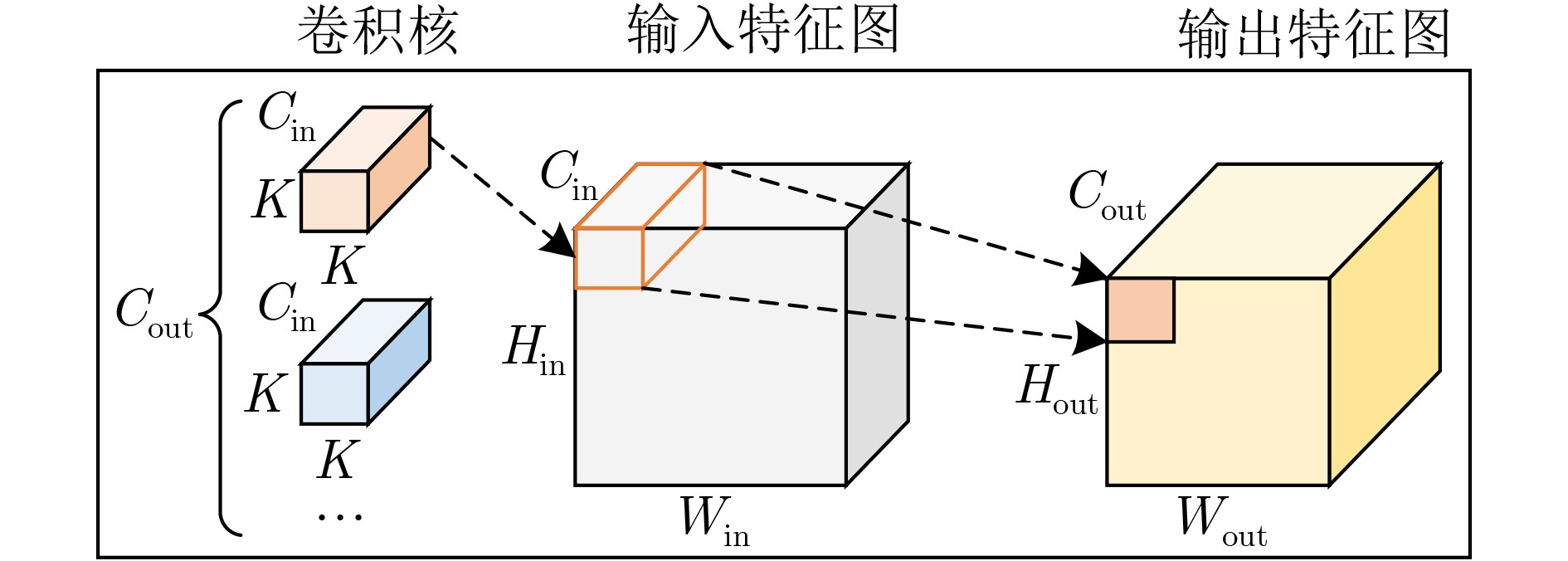

图 1 卷积示意图

下载: 全尺寸图片幻灯片

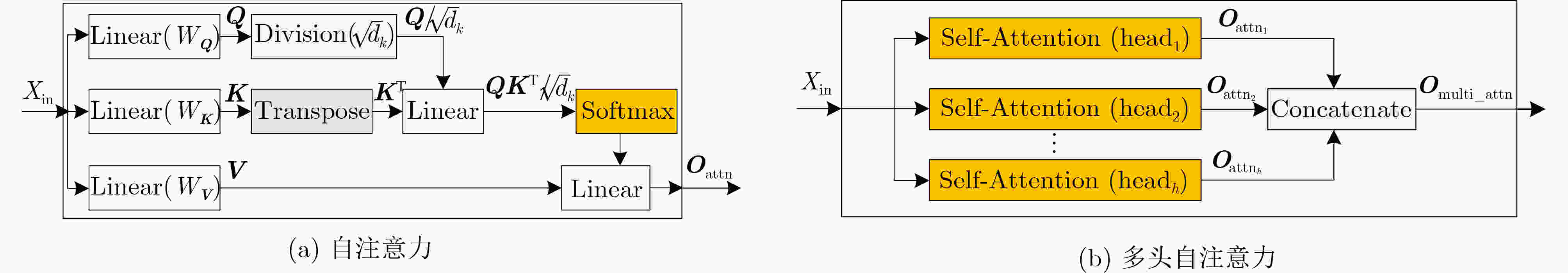

图 2 注意力计算过程

下载: 全尺寸图片幻灯片

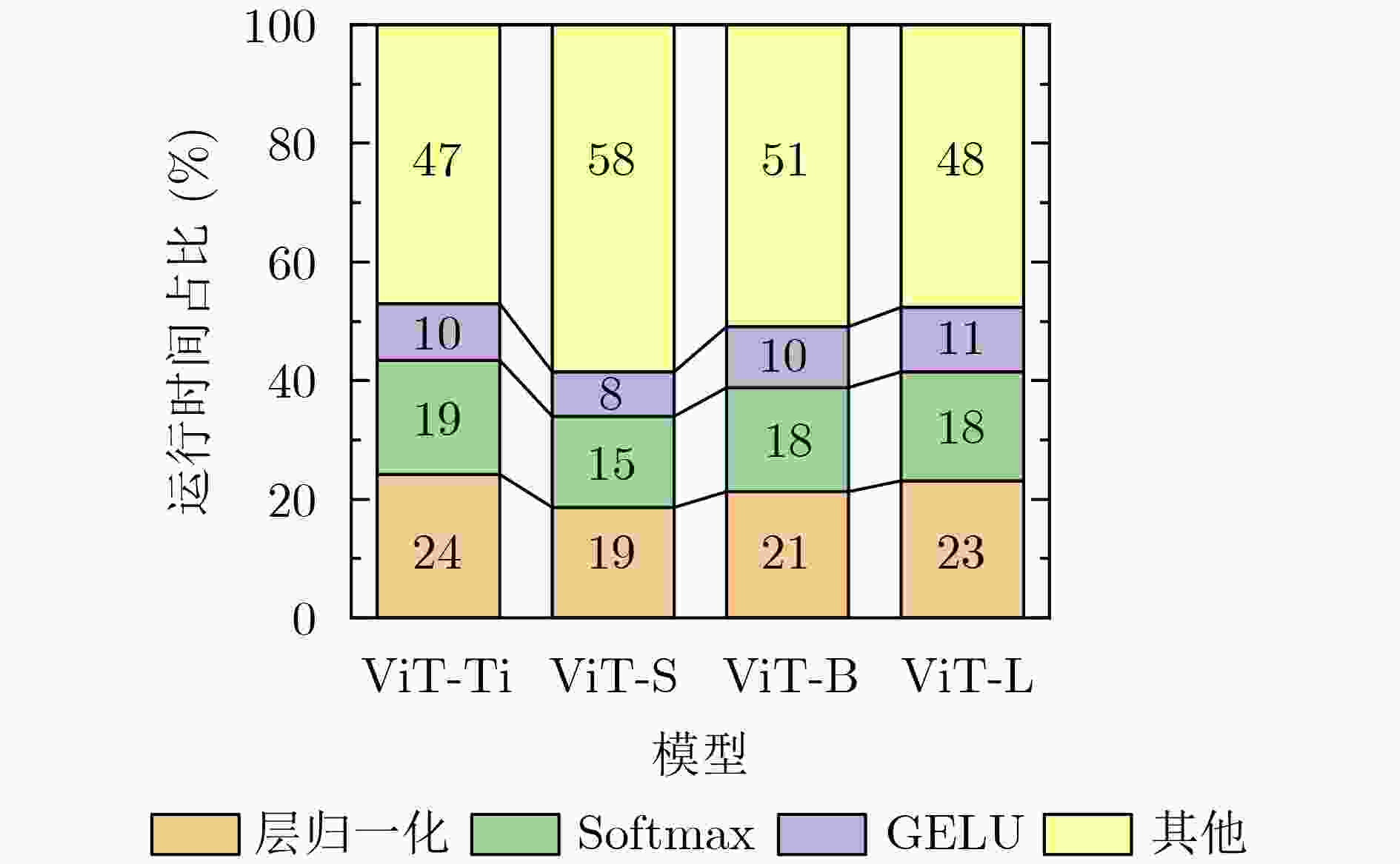

图 3 ViT各种配置下的运行时间占比

下载: 全尺寸图片幻灯片

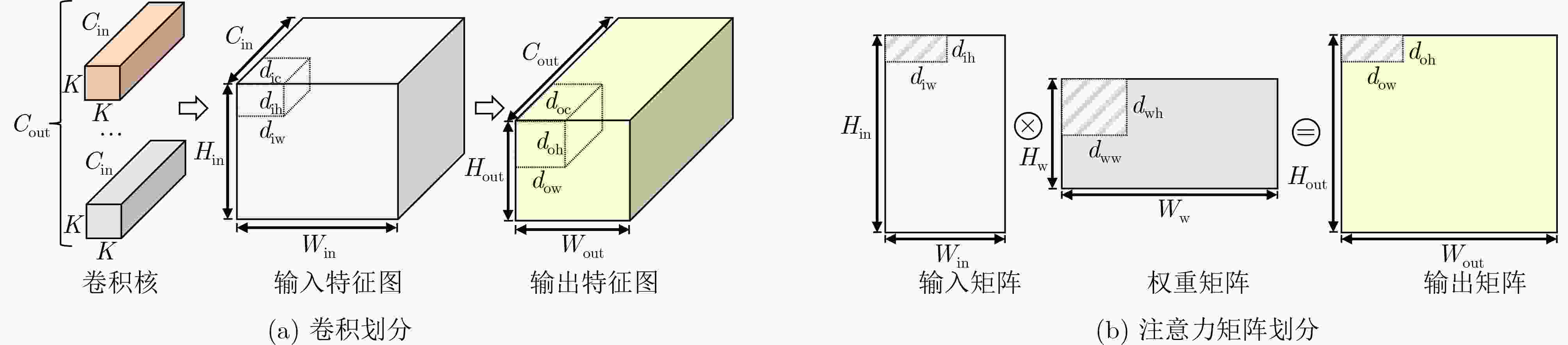

图 4 卷积和注意力矩阵乘法划分

下载: 全尺寸图片幻灯片

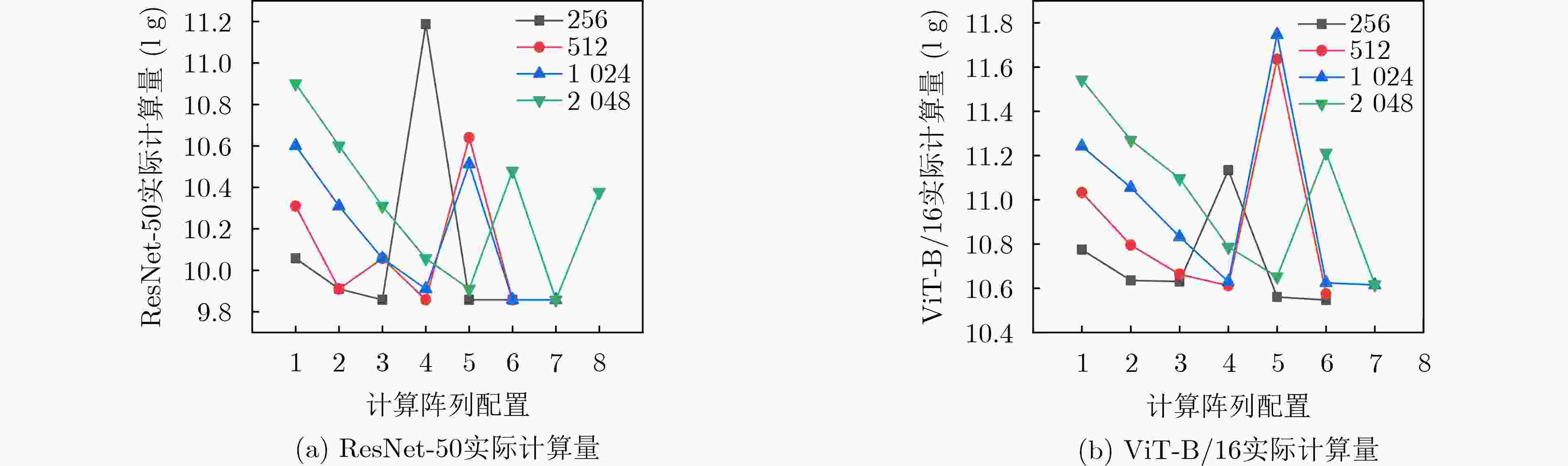

图 5 面向ResNet-50和ViT-B/16的计算阵列设计空间探索

下载: 全尺寸图片幻灯片

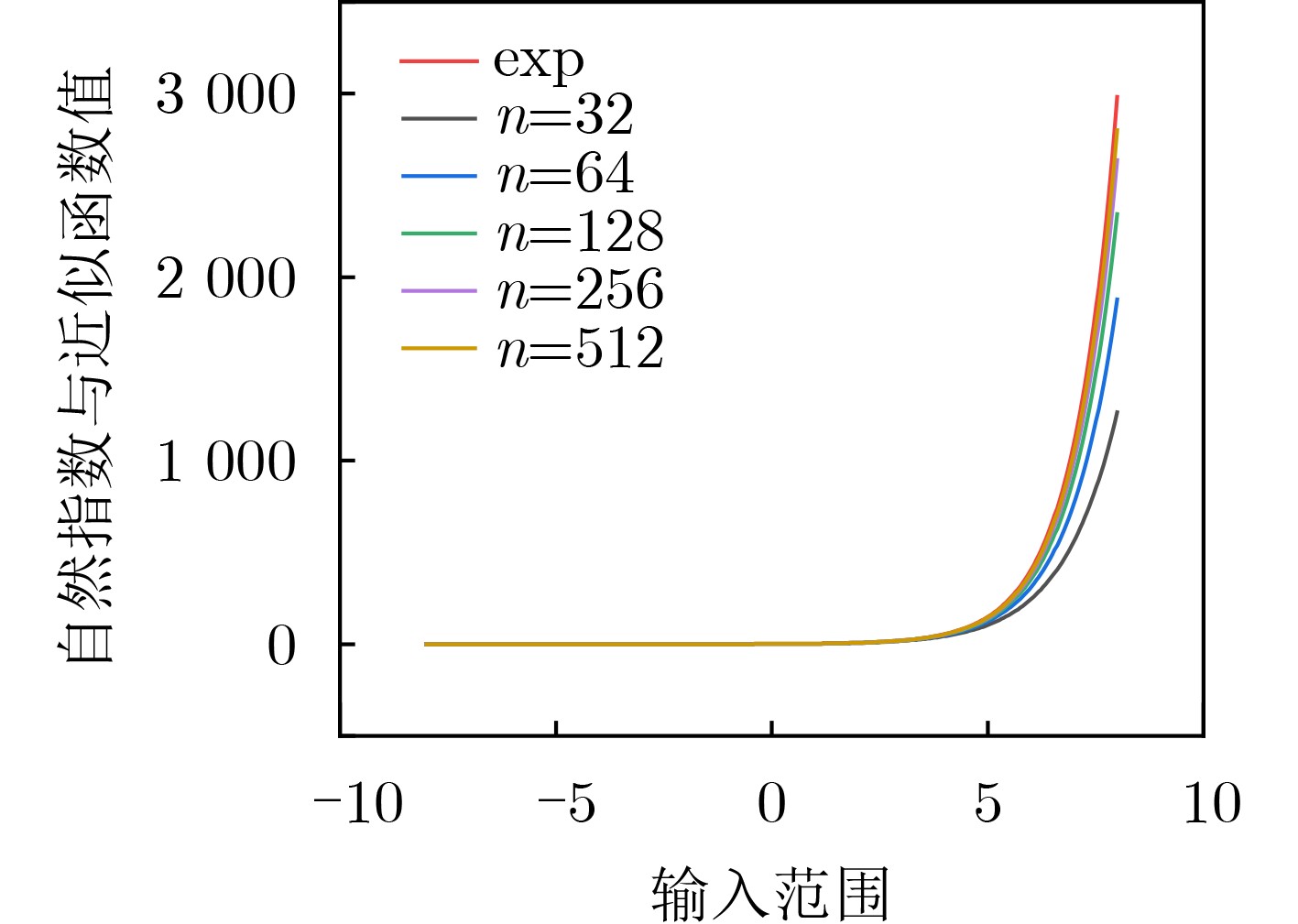

图 6 自然指数近似函数对比

下载: 全尺寸图片幻灯片

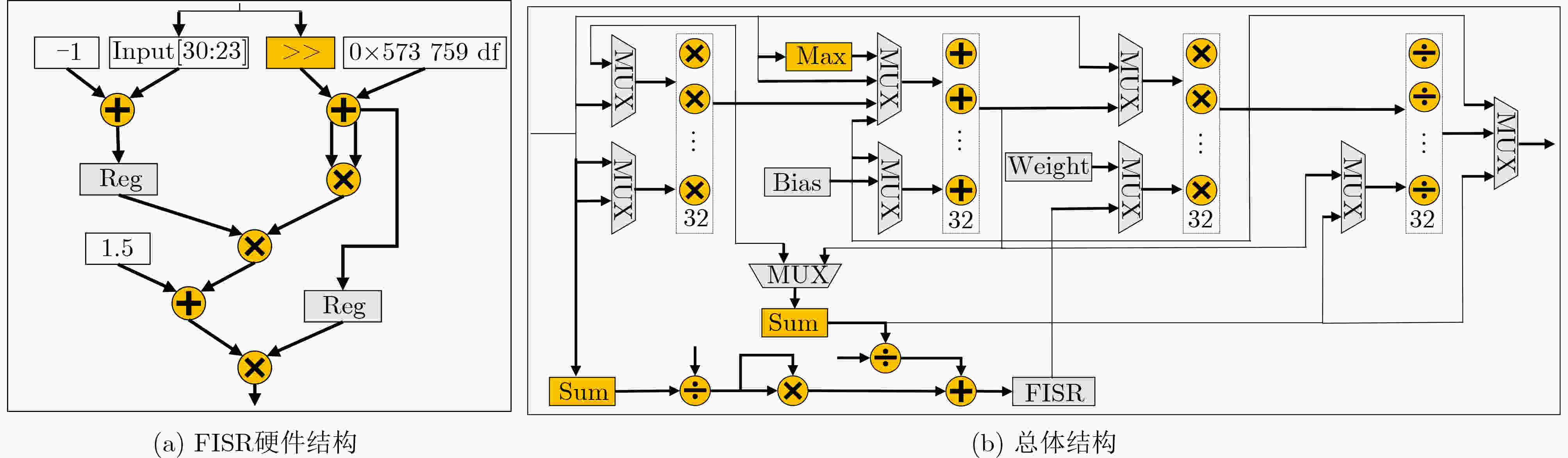

图 7 非线性与归一化加速单元

下载: 全尺寸图片幻灯片

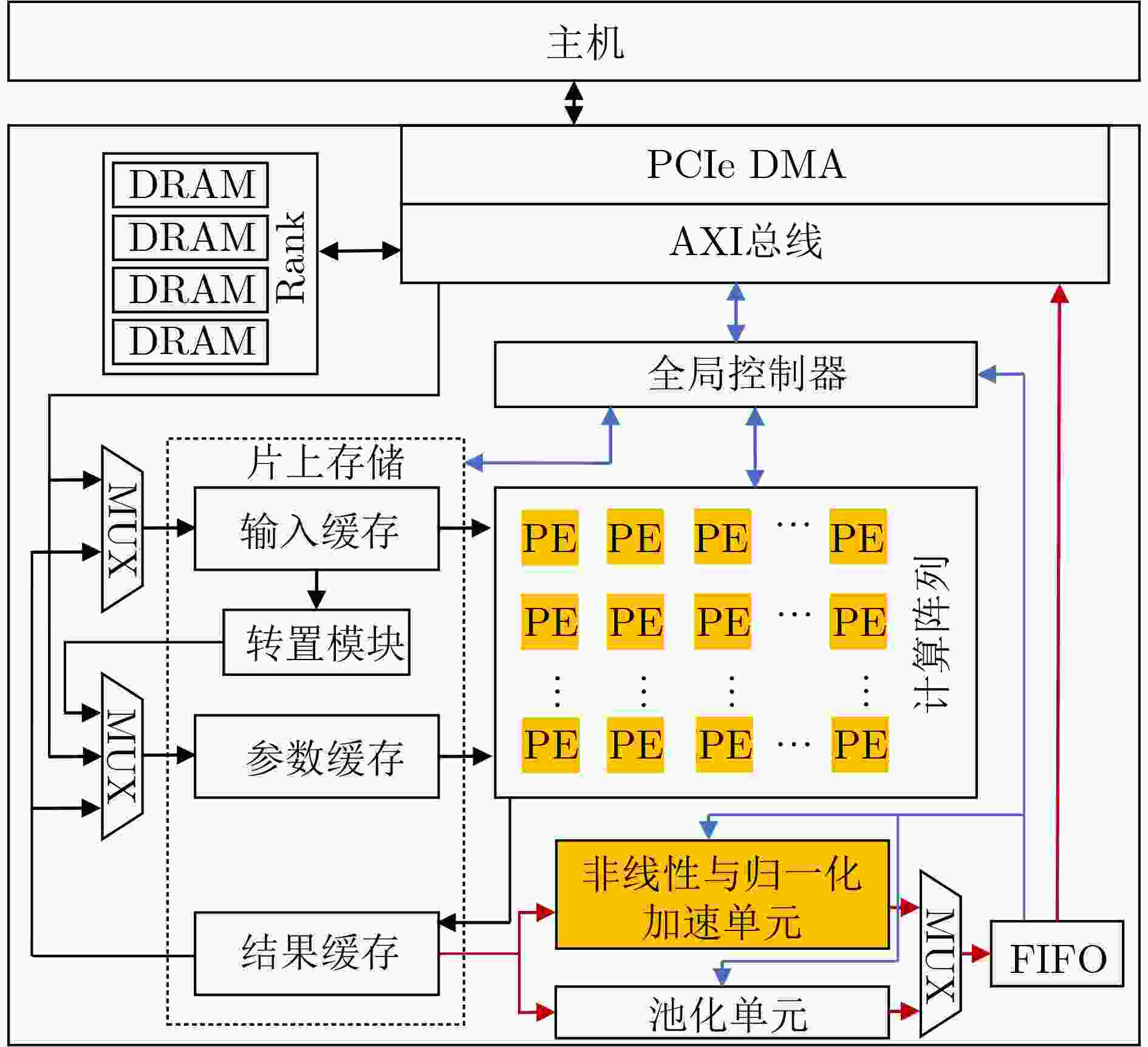

图 8 加速器架构

下载: 全尺寸图片幻灯片

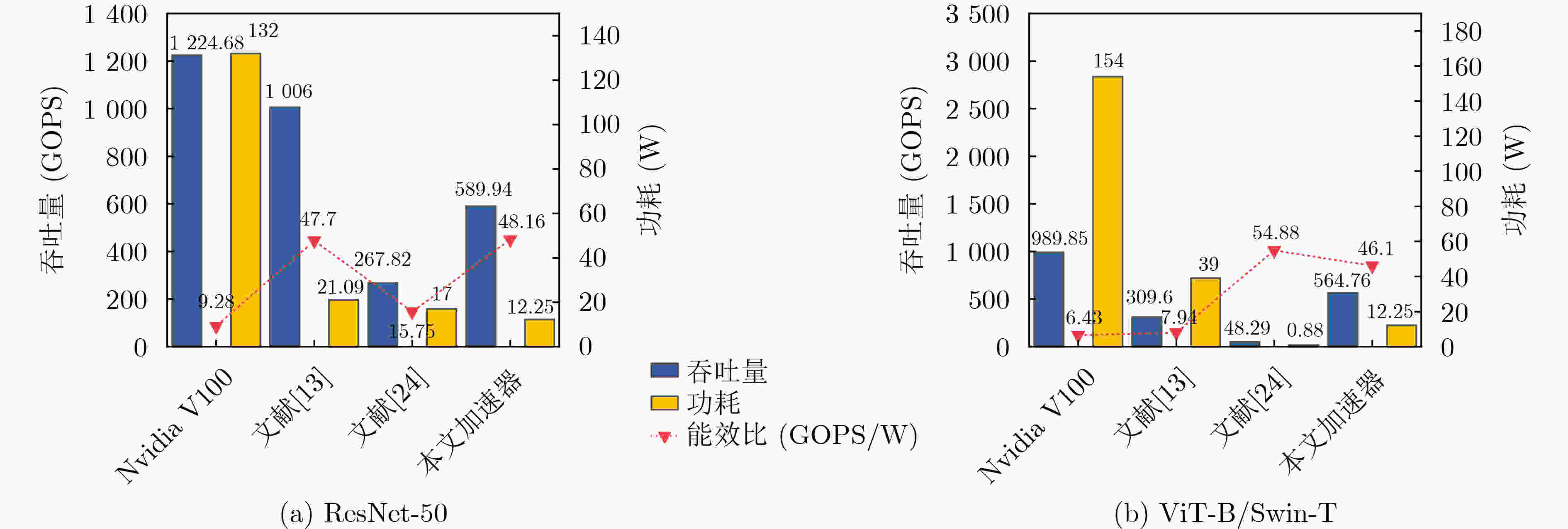

图 9 能效比对比

下载: 全尺寸图片幻灯片

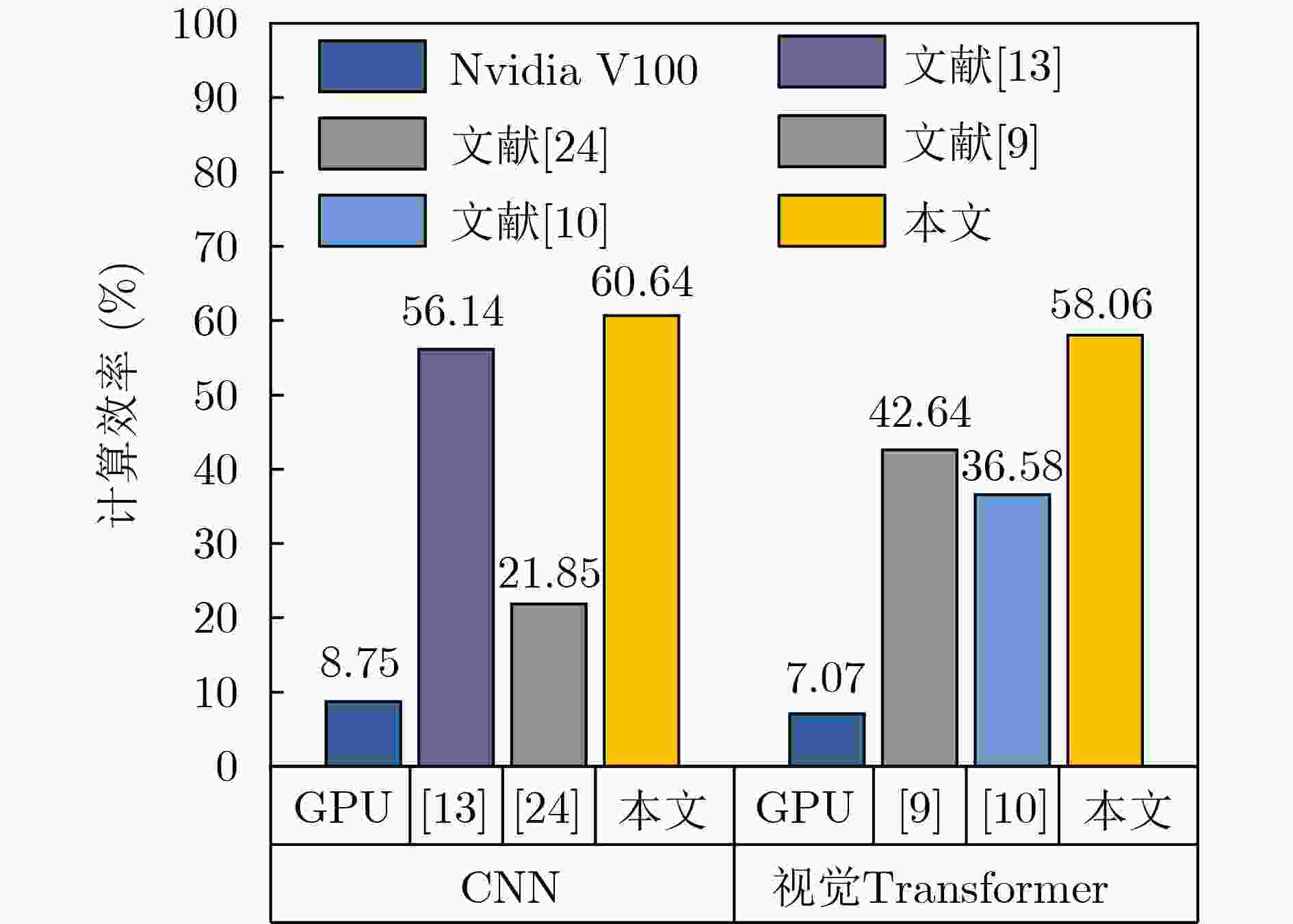

图 10 计算效率对比

下载: 全尺寸图片幻灯片

算法1 片上模型计算量穷举法
输入：神经网络模型Model, 乘法器数量$ {\text{Mul}}{{\text{t}}_{{\text{num}}}} $
输出：$({N_i},{N_o})$设计空间探索结果，片上模型计算量${\text{Com}}{{\text{p}}_{{\text{num}}}}$
(1) 初始化$({N_i},{N_o})$,${\text{Com}}{{\text{p}}_{{\text{num}}}}$
(2) for $i = 0$;$ i < \left\lfloor {\sqrt {{\text{Mul}}{{\text{t}}_{{\text{num}}}}} } \right\rfloor $;$i + + $ do:
(3) 　${n_i} = i + 1$ 　(4) 　${n_o} = \left\lfloor {\dfrac{ { {\text{Mul} }{ {\text{t} }_{ {\text{num} } } } } }{ { {n_i} } } } \right\rfloor$
(5) 　if $\text{mod} ({N_o},{N_i}) = = 0$ then
(6) 　　$({N_i},{N_o})$.append$({n_i},{n_o})$
(7) 　end if
(8) end for
(9) for each$({n_i},{n_o})$in$({N_i},{N_o})$do
(10) ${\text{com}}{{\text{p}}_{{\text{total}}}} = 0$
(11) for each layer in Model do
(12) ${\text{ic, oc, mad}}{{\text{d}}_{{\text{num}}}}$= layer.configuration 　(13) ${n_{{\text{iu}}}} = \text{mod} ({\text{ic}},{n_i}) = = 0{\text{ }}?{\text{ }}1{\text{ }}:{\text{ }}\dfrac{{\text{mod} ({\text{ic}},{n_i})}}{{{n_i}}}$
(14) $ {n_{{\text{ou}}}} = \text{mod} ({\text{oc}},{n_o}) = = 0{\text{ }}?{\text{ }}1{\text{ }}:{\text{ }}\dfrac{{\text{mod} ({\text{oc}},{n_o})}}{{{n_o}}} $
(15) ${\text{com}}{{\text{p}}_{{\text{total}}}} + = {\text{mad}}{{\text{d}}_{{\text{num}}}}/({n_{{\text{iu}}}} \times {n_{{\text{ou}}}})$
(16) end for
(17) ${\text{Com}}{{\text{p}}_{{\text{num}}}}$.append(${\text{com}}{{\text{p}}_{{\text{total}}}}$)
(18) end for
(19) return$({N_i},{N_o})$, $ {\text{Com}}{{\text{p}}_{{\text{num}}}} $

下载: 导出CSV

表 1 计算阵列有效配置

$({N_i},{N_o})$	256	512	1024	2048
1	(1, 256)	(1, 512)	(1, 1 024)	(1, 2 048)
2	(2, 128)	(2, 256)	(2, 512)	(2, 1 024)
3	(4, 64)	(4, 128)	(4, 256)	(4, 512)
4	(6, 42)	(8, 64)	(8, 128)	(8, 256)
5	(8, 32)	(13, 39)	(13, 78)	(16, 128)
6	(16, 16)	(16, 32)	(16, 64)	(26, 78)
7	/	/	(32, 32)	(32, 64)
8	/	/	/	(45, 45)

下载: 导出CSV

表 2 模型精度消融实验(%)

模型	模式	数据类型	Top-1 Accuracy	Top-5 Accuracy	Top-1 Diff	Top-5 Diff
DeiT-S/16	基线	FP32	79.834	94.950	/	/
	OS	FP16	79.814	94.968	–0.020	+0.018
	OG	FP16	79.812	94.952	–0.022	+0.002
	OL	FP16	79.816	94.948	–0.018	–0.002
	ALL	FP16	79.814	94.984	–0.020	+0.034
DeiT-B/16	基线	FP32	81.798	95.594	/	/
	OS	FP16	81.842	95.620	+0.044	+0.026
	OG	FP16	81.832	95.610	+0.034	+0.016
	OL	FP16	81.828	95.600	+0.030	+0.006
	ALL	FP16	81.824	95.634	+0.026	+0.040
ViT-B/16	基线	FP32	84.528	97.294	/	/
	OS	FP16	84.522	97.262	–0.006	–0.032
	OG	FP16	84.520	97.306	–0.008	+0.012
	OL	FP16	84.526	97.292	–0.002	–0.002
	ALL	FP16	84.524	97.262	–0.004	–0.032
ViT-L/16	基线	FP32	85.840	97.818	/	/
	OS	FP16	85.800	97.816	–0.040	–0.002
	OG	FP16	85.818	97.818	–0.022	0.000
	OL	FP16	85.820	97.818	–0.020	0.000
	ALL	FP16	85.784	97.81	–0.056	–0.008
Swin-T	基线	FP32	81.172	95.320	/	/
	OS	FP16	81.152	95.304	–0.020	–0.016
	OG	FP16	81.156	95.320	–0.016	0.000
	OL	FP16	81.164	95.322	–0.008	0.002
	ALL	FP16	81.148	95.300	–0.024	–0.02
Swin-S	基线	FP32	83.648	97.05	/	/
	OS	FP16	83.642	97.02	–0.006	–0.030
	OG	FP16	83.646	97.08	–0.002	0.030
	OL	FP16	83.638	97.04	–0.010	–0.010
	ALL	FP16	83.636	96.966	–0.012	–0.084

下载: 导出CSV

表 3 与相关FPGA加速器的比较结果

类别		文献[20]	文献[21]	文献[22]	文献[23]	本文
灵活性	Softmax	√	√	√	√	√
	GELU	×	×	×	√	√
	层归一化	×	×	×	×	√
资源占用	LUT	17870	2564	2229	324	52639
	Slice Register	16400	2794	224	318	24403
	DSP	0	0	8	1	0
FPGA设备		ZYNQ-7000	–	Kintex-7 KC705	Zynq-7000 ZC706	Kintex XCKU15P
频率 (MHz)		150	436	154	410	200
数据精度(bit)		32	16	16	9+12	16+32
吞吐量 (Gbit/s)		2.4	3.49	1.2	0.41	34.13
100 MHz下TPL(Mbit/s)		0.089	0.312	0.349	0.309	0.324

下载: 导出CSV

表 4 与GPU实现和其他文献FPGA加速器的比较结果

	GPU		文献[13]	文献[24]	文献[9]	文献[10]	本文
模型	ResNet-50	ViT-B/16	ResNet-50	ResNet-50	Swin-T	ViT-B/16	ResNet-50	ViT-B/16
计算平台	Nvidia V100		Xilinx KCU1500	Xilinx XCVU9P	Xilinx Alveo U50	Xilinx ZC7020	Xilinx XCVU37P
制程(nm)	12		20	16	16	28	16
频率(GHz)	1.46		200	125	300	150	200/400
数据类型	FP32		INT8	INT8	FP16	INT8	INT8	INT8+FP16
输入尺寸	224×224		256×256	224×224	224×224	224×224	224×224
GOP	7.74	17.56	11.76	7.74	–	17.56	7.74	17.56
DSP	–		2240	6005	2420	220	608
计算延迟(ms)	6.32	17.74	11.69	28.90	–	363.64	13.12	31.09
帧率(FPS)	158.19	56.37	85.54	34.60	–	2.75	76.22	32.16

下载: 导出CSV

参考文献(24)

[1]	SIMONYAN K and ZISSERMAN A. Very deep convolutional networks for large-scale image recognition[C]. 3rd International Conference on Learning Representations, San Diego, USA, 2015.
[2]	HE Kaiming, ZHANG Xiangyu, REN Shaoqing, et al. Deep residual learning for image recognition[C]. 2016 IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, USA, 2016: 770–778.
[3]	SZEGEDY C, LIU Wei, JIA Yangqing, et al. Going deeper with convolutions[C]. 2015 IEEE Conference on Computer Vision and Pattern Recognition, Boston, USA, 2015: 1–9.
[4]	VASWANI A, SHAZEER N, PARMAR N, et al. Attention is all you need[C]. The 31st International Conference on Neural Information Processing Systems, Long Beach, USA, 2017: 6000–6010.
[5]	DOSOVITSKIY A, BEYER L, KOLESNIKOV A, et al. An image is worth 16x16 words: transformers for image recognition at scale[C]. 9th International Conference on Learning Representations, 2021.
[6]	CARION N, MASSA F, SYNNAEVE G, et al. End-to-end object detection with transformers[C]. The 16th European Conference on Computer Vision, Glasgow, UK, 2020: 213–229.
[7]	陈莹, 匡澄. 基于CNN和TransFormer多尺度学习行人重识别方法[J]. 电子与信息学报, 2023, 45(6): 2256–2263. doi: 10.11999/JEIT220601 CHEN Ying and KUANG Cheng. Pedestrian re-identification based on CNN and Transformer multi-scale learning[J]. Journal of Electronics &Information Technology, 2023, 45(6): 2256–2263. doi: 10.11999/JEIT220601
[8]	ZHAI Xiaohua, KOLESNIKOV A, HOULSBY N, et al. Scaling vision transformers[C]. 2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition, New Orleans, USA, 2022: 1204–1213.
[9]	WANG Teng, GONG Lei, WANG Chao, et al. ViA: A novel vision-transformer accelerator based on FPGA[J]. IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, 2022, 41(11): 4088–4099. doi: 10.1109/TCAD.2022.3197489
[10]	NAG S, DATTA G, KUNDU S, et al. ViTA: A vision transformer inference accelerator for edge applications[C]. 2023 IEEE International Symposium on Circuits and Systems, Monterey, USA, 2023: 1–5.
[11]	LI Zhengang, SUN Mengshu, LU A, et al. Auto-ViT-Acc: an FPGA-aware automatic acceleration framework for vision transformer with mixed-scheme quantization[C]. 2022 32nd International Conference on Field-Programmable Logic and Applications, Belfast, UK, 2022: 109–116.
[12]	吴瑞东, 刘冰, 付平, 等. 应用于极致边缘计算场景的卷积神经网络加速器架构设计[J]. 电子与信息学报, 2023, 45(6): 1933–1943. doi: 10.11999/JEIT220130 WU Ruidong, LIU Bing, FU Ping, et al. Convolutional neural network accelerator architecture design for ultimate edge computing scenario[J]. Journal of Electronics &Information Technology, 2023, 45(6): 1933–1943. doi: 10.11999/JEIT220130
[13]	NGUYEN D T, JE H, NGUYEN T N, et al. ShortcutFusion: from tensorflow to FPGA-based accelerator with a reuse-aware memory allocation for shortcut data[J]. IEEE Transactions on Circuits and Systems I:Regular Papers, 2022, 69(6): 2477–2489. doi: 10.1109/TCSI.2022.3153288
[14]	LI Tianyang, ZHANG Fan, FAN Xitian, et al. Unified accelerator for attention and convolution in inference based on FPGA[C]. 2023 IEEE International Symposium on Circuits and Systems, Monterey, USA, 2023: 1–5.
[15]	LOMONT C. Fast inverse square root[EB/OL]. http://lomont.org/papers/2003/InvSqrt.pdf, 2023.
[16]	WU E, ZHANG Xiaoqian, BERMAN D, et al. A high-throughput reconfigurable processing array for neural networks[C]. 27th International Conference on Field Programmable Logic and Applications, Ghent, Belgium, 2017: 1–4.
[17]	FU Yao, WU E, SIRASAO A, et al. Deep learning with INT8 optimization on Xilinx devices[EB/OL]. Xilinx. https://www.origin.xilinx.com/content/dam/xilinx/support/documents/white_papers/wp486-deep-learning-int8.pdf, 2017.
[18]	ZHU Feng, GONG Ruihao, YU Fengwei, et al. Towards unified INT8 training for convolutional neural network[C]. 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Seattle, USA, 2020: 1966–1976.
[19]	JACOB B, KLIGYS S, CHEN Bo, et al. Quantization and training of neural networks for efficient integer-arithmetic-only inference[C]. 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Salt Lake City, USA, 2018: 2704–2713.
[20]	SUN Qiwei, DI Zhixiong, LV Zhengyang, et al. A high speed SoftMax VLSI architecture based on basic-split[C]. 2018 14th IEEE International Conference on Solid-State and Integrated Circuit Technology, Qingdao, China, 2018: 1–3.
[21]	WANG Meiqi, LU Siyuan, ZHU Danyang, et al. A high-speed and low-complexity architecture for softmax function in deep learning[C]. 2018 IEEE Asia Pacific Conference on Circuits and Systems, Chengdu, China, 2018: 223–226.
[22]	GAO Yue, LIU Weiqiang, and LOMBARDI F. Design and implementation of an approximate softmax layer for deep neural networks[C]. 2020 IEEE International Symposium on Circuits and Systems, Seville, Spain, 2020: 1–5.
[23]	LI Yue, CAO Wei, ZHOU Xuegong, et al. A low-cost reconfigurable nonlinear core for embedded DNN applications[C]. 2020 International Conference on Field-Programmable Technology, Maui, USA, 2020: 35–38.
[24]	HADJIS S and OLUKOTUN K. TensorFlow to cloud FPGAs: Tradeoffs for accelerating deep neural networks[C]. 29th International Conference on Field Programmable Logic and Applications, Barcelona, Spain, 2019: 360–366.
