多目标跟踪中基于次模优化的轨迹片段生成方法

孙瑾; 杜官明

doi:10.11999/JEIT230208

多目标跟踪中基于次模优化的轨迹片段生成方法

doi: 10.11999/JEIT230208

孙瑾^,,
杜官明

南京航空航天大学民航学院南京 211106

基金项目: 国家自然科学基金(61702260)

详细信息

作者简介:
孙瑾：女，副教授，研究方向为计算机视觉、图像处理与分析

杜官明：男，硕士生，研究方向为视频信息处理

通讯作者:
孙瑾　sunjinly@nuaa.edu.cn

中图分类号: TN919.5; TP391.41
计量
- 文章访问数: 210
- HTML全文浏览量: 103
- PDF下载量: 81
- 被引次数: 0
出版历程
- 收稿日期: 2023-03-30
- 修回日期: 2023-11-06
- 网络出版日期: 2023-11-14
- 刊出日期: 2024-03-27

Tracklet Generation Method by Submodular Optimization for Multi-Object Tracking

SUN Jin^,,
DU Guanming

College of Aviation, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China

Funds: The National Natural Science Foundation of China (61702260)

摘要

摘要: 作为智能视觉任务的基础工作，多目标跟踪(MOT)一直是计算机视觉领域具有挑战性的课题之一。遮挡是影响跟踪准确性的主要因素，为此该文采用基于检测跟踪的思想，以轨迹片段为基础进行关联获取目标的完整轨迹；同时，为提高跟踪鲁棒性，该文将轨迹片段的生成问题转化为运筹学中的设施选址问题，并进而提出基于次模优化的轨迹片段生成方法。该方法融合梯度(HOG)和颜色(CN)两个互补特征进行目标表征，并根据运动信息设计权重系数提高目标匹配准确度，最后提出具有约束的次模最大化算法实现全局范围内的数据关联生成轨迹片段。通过在多个基准数据集上的对比实验，表明该文算法在保证性能的同时能有效处理遮挡问题。
- 多目标跟踪 /
- 轨迹片段 /
- 数据关联 /
- 次模优化
Abstract: As the basis of many intelligent visual tasks, Multi-Object Tracking (MOT) is a challenging problem in computer vision. Occlusion is a main factor affecting the tracking accuracy. To solve the occlusion problem, in this paper, the strategy of tracking-by-detection is adopted to obtain complete trajectories of targets based on associating tracklets. Meanwhile, to improve the tracking robustness, the tracklet generation problem is transformed into the facility location problem in operations research area and further a submodular optimization based tracklet generation method is proposed. In this method, two complementary features including Histogram of Oriented Gradient (HOG)and Color Name (CN) are integrated to describe the target appearance, and a weighting coefficient is also designed by motion information to improve the matching accuracy. At length, a submodular maximization algorithm with constraints is developed to achieve the global data association by selecting the targets to form the tracklets. By comparative experiments on the benchmark datasets, the proposed method can solve the occlusion problem effectively with guaranteed performance.
- Multi-Object Tracking (MOT) /
- Tracklet /
- Data association /
- Submodular optimization

HTML全文

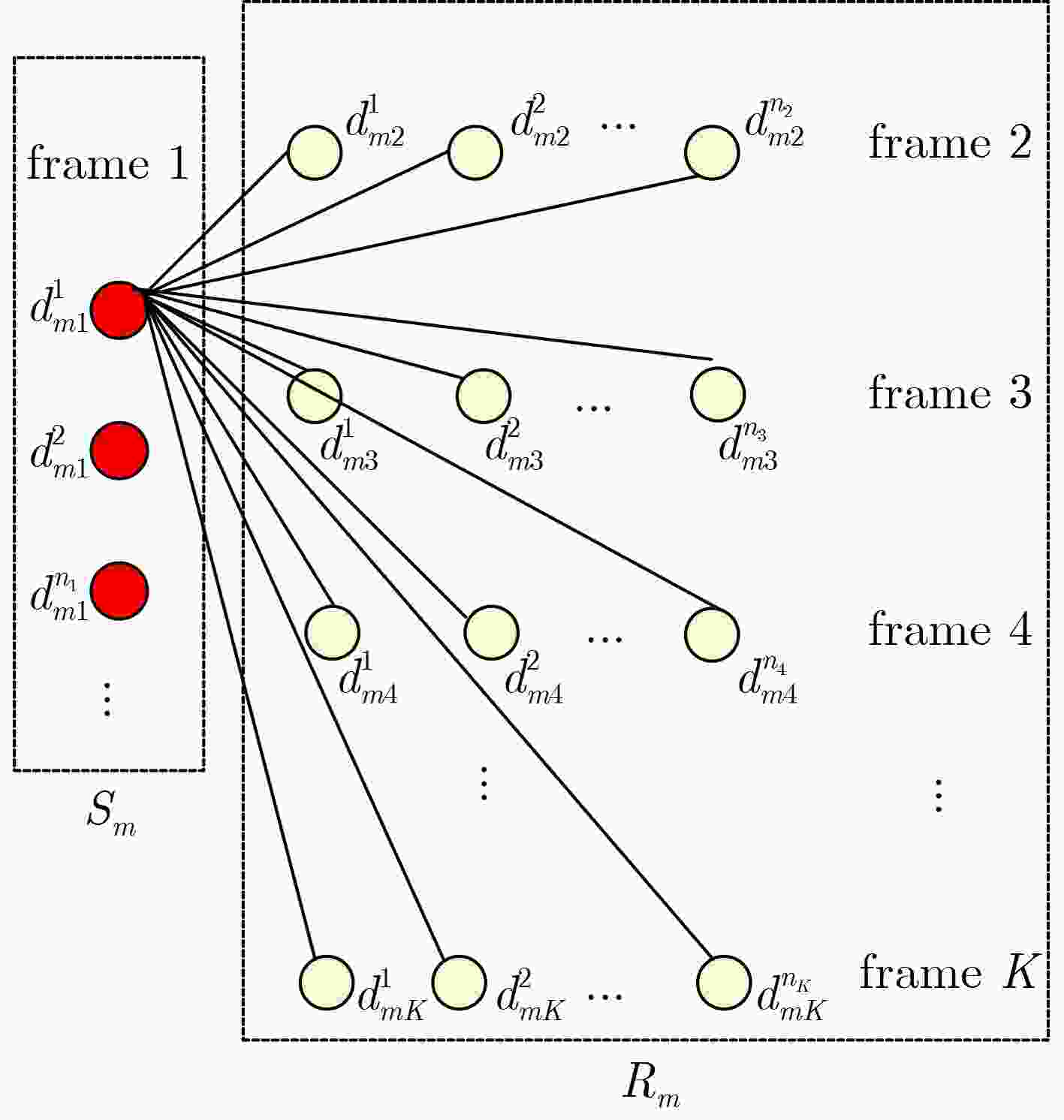

图 1 局部和全局数据关联说明

下载: 全尺寸图片幻灯片

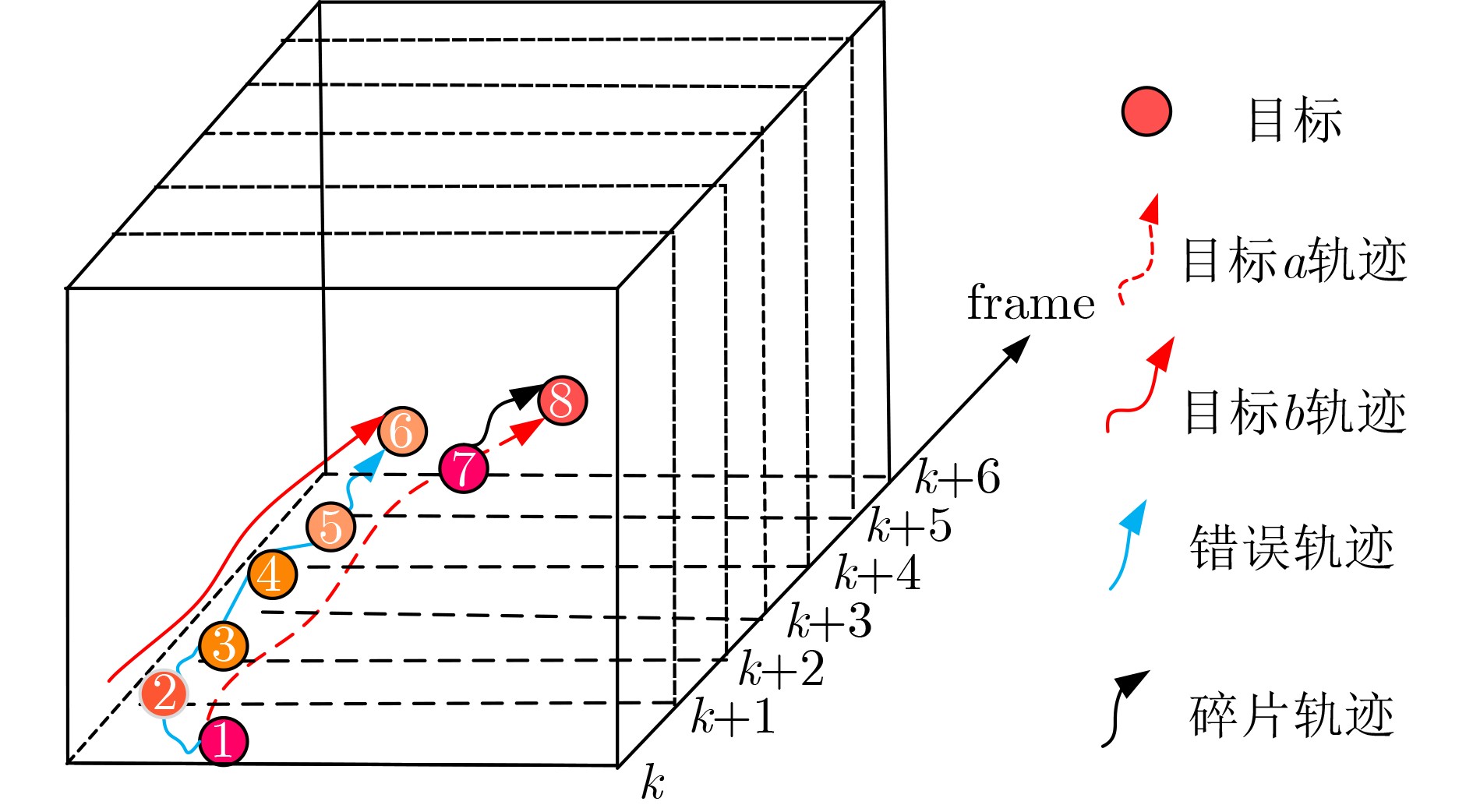

图 2 轨迹片段生成过程示意图

下载: 全尺寸图片幻灯片

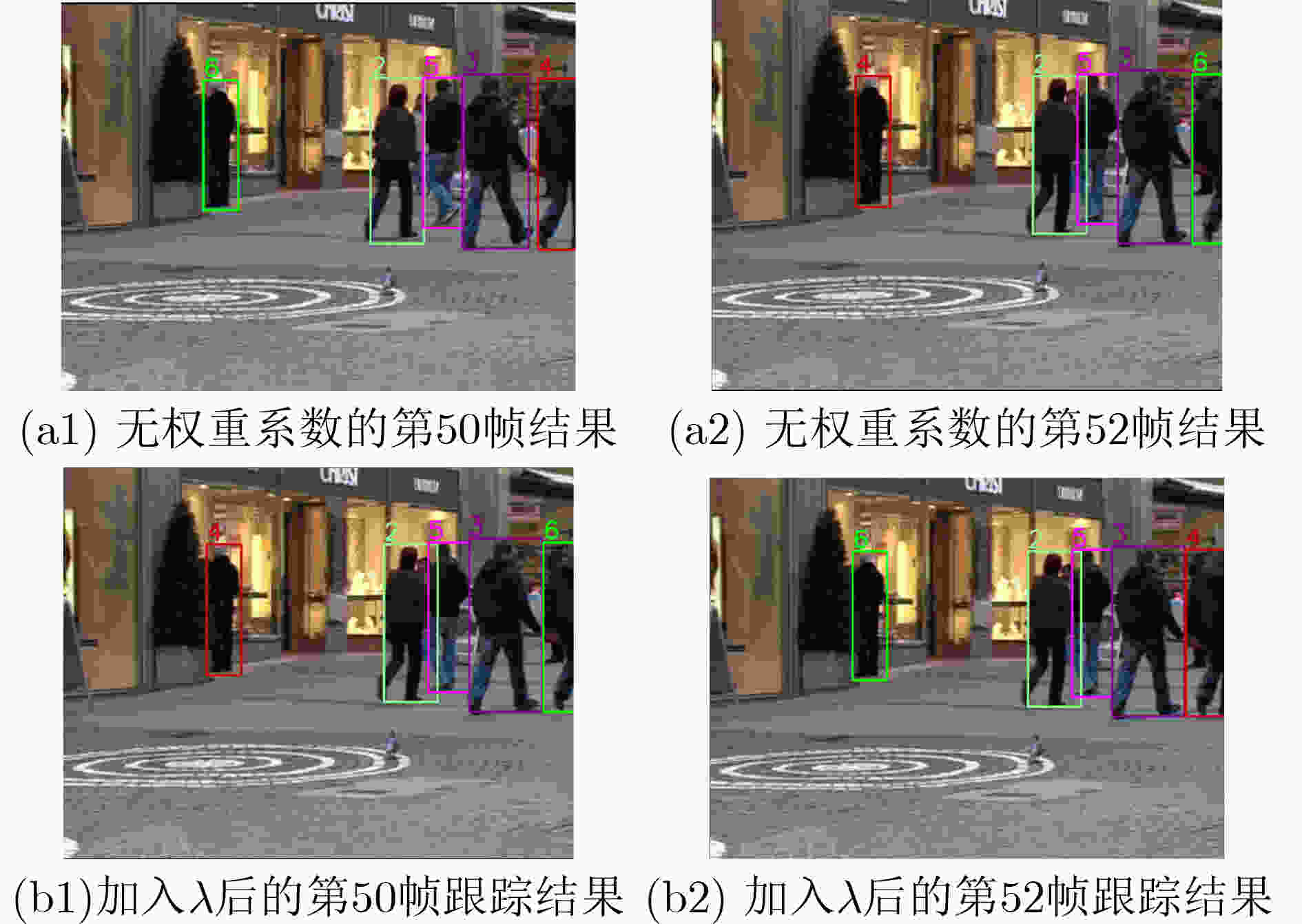

图 3 权重系数λ加入前后跟踪结果对比

下载: 全尺寸图片幻灯片

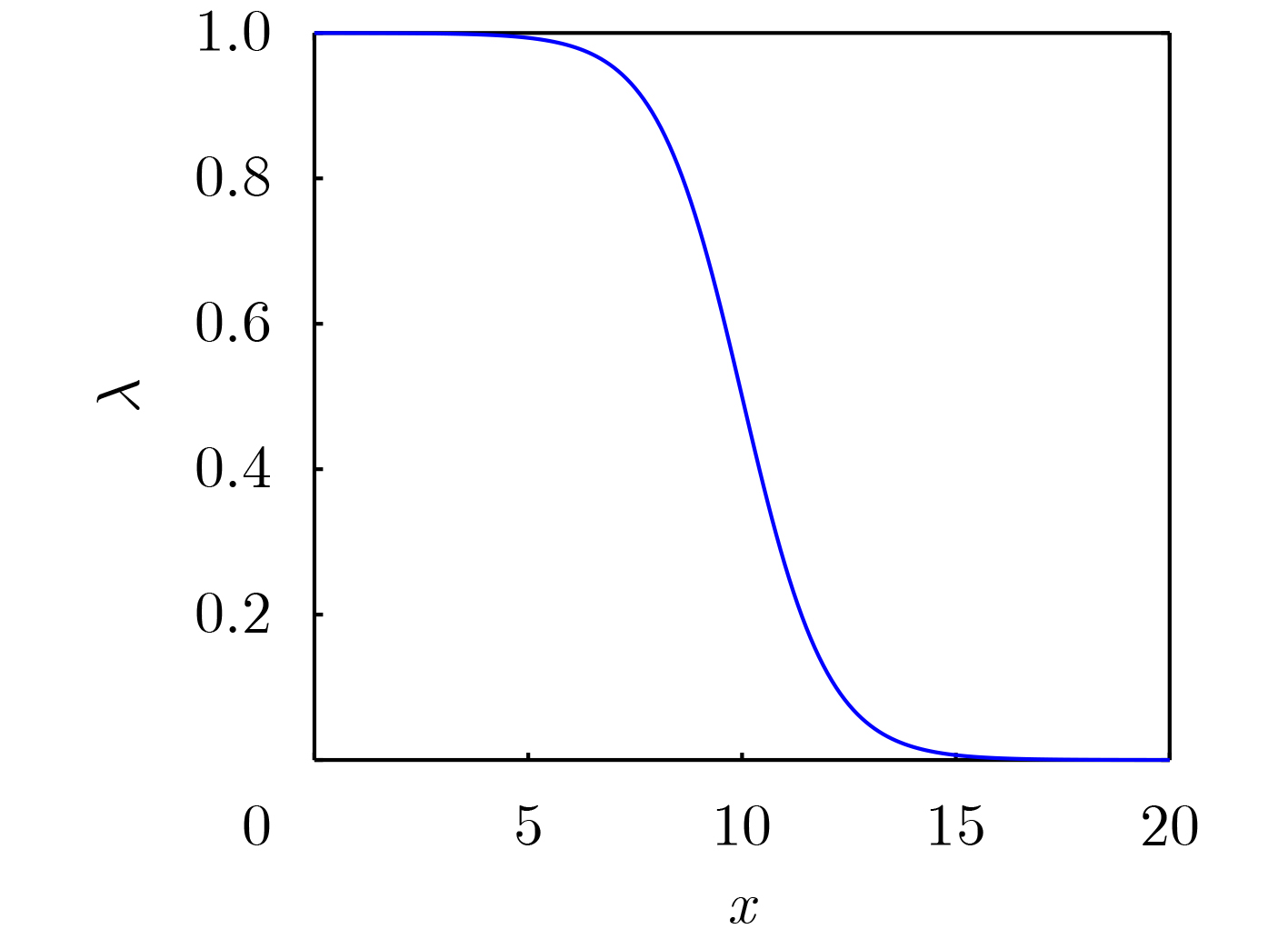

图 4 相似度权重系数λ

下载: 全尺寸图片幻灯片

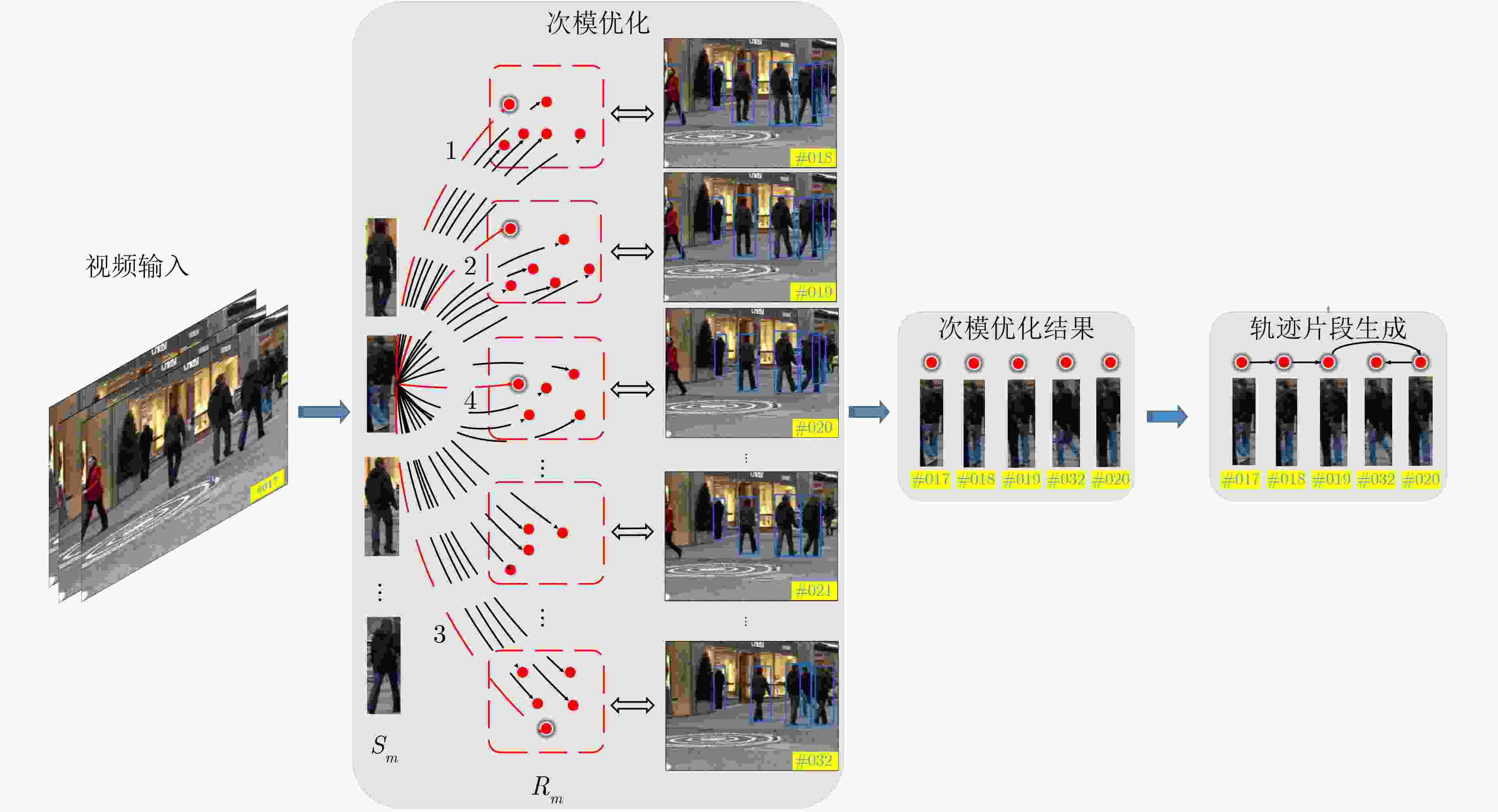

图 5 基于次模优化的轨迹片段生成流程图

下载: 全尺寸图片幻灯片

图 6 MOT17-02数据集实验结果对比

下载: 全尺寸图片幻灯片

图 7 TUD-Crossing数据集实验结果对比

下载: 全尺寸图片幻灯片

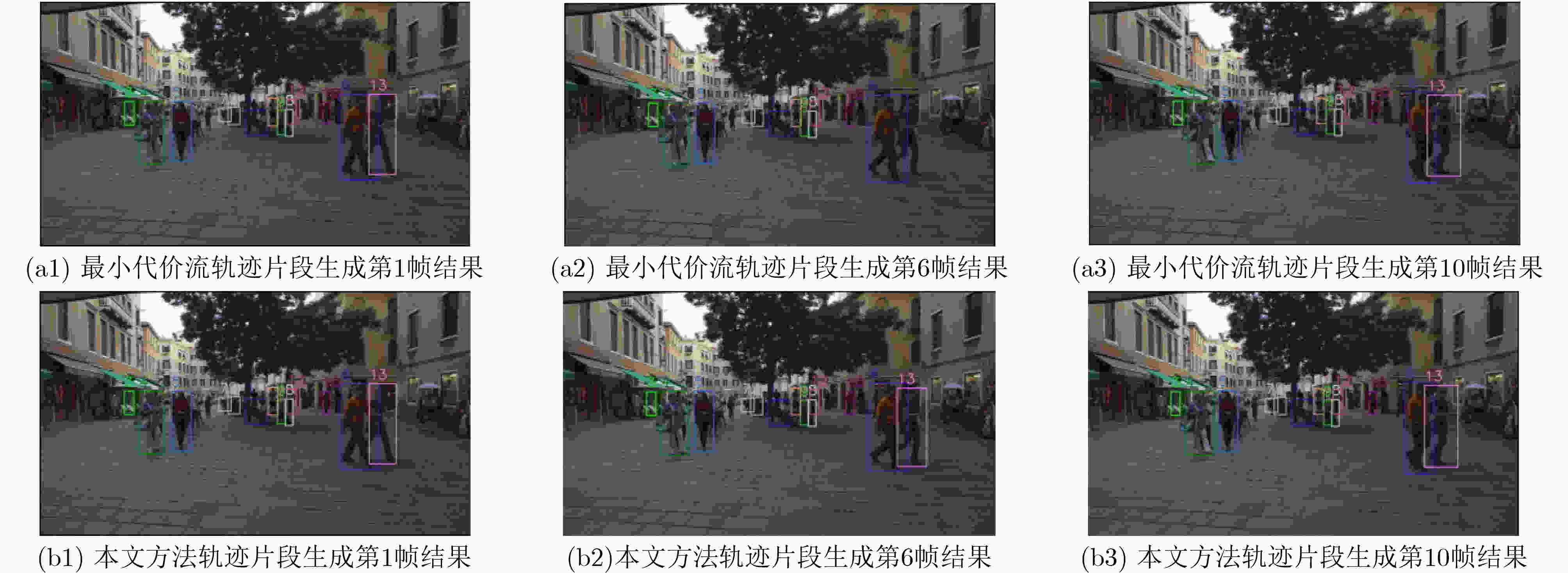

图 8 PETS09-S2L1数据集实验结果对比

下载: 全尺寸图片幻灯片

算法1 基于次模优化的轨迹片段生成
输入: 视频片段 V_m，该视频片段包含K个图像帧
输出: 生成的轨迹片段集合T_m={$ t_1^m $, $ t_2^m $, ···}
初始化：i=1,j=1,k=1,α=0.85；T_m=Ø; 检测目标集D_m=S_m∪R_m，其中初始目标集$ {S_m} = \{ d_{mk}^1,d_{mk}^2, \cdots ,d_{mk}^{{n_k}}\} $，候选集目标集　${R_m} = \{ d_{m(k + 1)}^1, \cdots ,d_{m(k + 1)}^{{n_{k + 1}}}, \cdots ,d_{mK}^1, \cdots ,d_{mK}^{{n_K}}\} $
执行：
(1) 提取D_m中每个检测目标的HOG和CN特征；
(2) while k<=K
(3) 　　根据式(14)计算初始目标集S_m与候选目标集R_m中目标间的相似度
(4) 　　while i<=n_i
(5) 　　　　$ t^i_m $ = Ø
(6) 　　　　while j<K
(7) 　　　　　在候选目标集R_m中选择与初始目标$ d^i_{mk} $具有最大相似度的目标$ d^p_{mr} $，对应相似度为s_ip
(8) 　　　　　if (s_ip > w)
(9) 　　　　　　$ t^i_m $ ← {$ d^p_{mr}$}∪ $t^i_m $
(10) 　　　　　从候选目标集中删除$ d^p_{mr} $所在第r帧的其他目标
(11) 　　　　　 j++
(12) 　　　　 end if
(13) 　　　 end while
(14) 　　　 i++
(15) 　　　 T_m ← {$ t^i_m $}∪T_m
(16) 　 end while
(17) 　　 k=k+1
(18) 　　将第k帧中未被匹配关联的目标组成初始目标集合$ {S_m} = \{ d_{mk}^1,d_{mk}^2, \cdots ,d_{mk}^{{n_k}}\} $
(19) end while

下载: 导出CSV

表 1 PETS09-S2L1和TUD数据集跟踪性能对比

数据集	算法	MOTA(%)↑	MOTP(%)↑	MT(%)↑	ML(%)↓	IDS↓
PETS09-S2L1	Intra Track^[29]	81.6	79.4	–	–	684
	R1TA Track^[30]	96.0	82.0	100.0	0	14
	DSC^[31]	90.0	56.8	89.5	0	15
	本文方法	96.3	72.3	96.2	0	12
TUD-Stadtmitte	GMMCP^[12]	82.4	73.9	–	0	3
	CNNTCM^[27]	80.8	–	90.0	0	–
	R1TA Track^[30]	84.8	89.6	70.0	–	–
	DSC^[31]	72.4	52.6	60.0	0	10
	本文方法	90.6	87.6	90.0	0	0
TUD-Crossing	GMMCP^[12]	91.9	70.0	–	0	7
	SUBM^[16]	60.2	77.2	15.4	7.7	32
	本文方法	92.4	75.6	18.6	0	2

下载: 导出CSV

表 2 MOT17数据集跟踪性能对比

算法	MOTA(%)↑	IDF1↑	MOTP(%)↑	MT(%)↑	ML(%)↓	IDS↓
IOU^[11]	45.5	39.4	76.9	15.7	40.5	5988
EDMT^[32]	50.0	51.3	77.3	21.6	36.3	2264
jCC^[33]	51.2	54.5	75.9	20.9	37.0	1802
LPT^[9]	57.3	57.7	–	23.3	36.9	1424
MPNTrack^[34]	58.8	61.7	–	28.8	33.5	1185
JBNOT^[35]	52.6	50.8	77.1	19.7	35.8	3050
TT17^[36]	54.9	63.1	–	24.4	38.1	1088
Deep-TAMA^[37]	50.3	53.5	–	19.2	37.5	2192
本文方法	56.4	58.2	78.1	21.1	32.8	1097

下载: 导出CSV
