基于逆序层优先的柔性综合调度算法

谢志强; 王茜

doi:10.11999/JEIT211378

基于逆序层优先的柔性综合调度算法

doi: 10.11999/JEIT211378

谢志强^,,
王茜

哈尔滨理工大学计算机科学与技术学院哈尔滨 150000

基金项目: 国家自然科学基金(61772160)

详细信息

作者简介:
谢志强：男，1962年生，教授，研究方向为智能计算与调度优化

王茜：女，1984年生，博士生，研究方向为智能计算与调度优化

通讯作者:
谢志强　xiezhiqiang@hrbust.cdu.cn

中图分类号: TP278
计量
- 文章访问数: 275
- HTML全文浏览量: 137
- PDF下载量: 44
- 被引次数: 0
出版历程
- 收稿日期: 2021-11-30
- 修回日期: 2022-04-01
- 录用日期: 2022-04-02
- 网络出版日期: 2022-04-10
- 刊出日期: 2022-05-25

Flexible Integrated Scheduling Algorithm Based on Reverse Order Layer Priority

XIE Zhiqiang^,,
WANG Qian

School of Computer Science and Technology, Harbin University of Science and Technology, Harbin 150000, China

Funds: The National Natural Science Foundation of China (61772160)

摘要

摘要: 针对以往柔性综合调度算法均考虑正向调度，导致需要考虑目标工序的多紧前工序约束条件，难以合理安排相关工序进而影响产品完工时间的问题，该文提出一种基于逆序层优先的柔性综合调度算法。首先，提出逆序层优先策略，将各工序分配至逆序层待调度工序集；其次，提出动态拟长路径策略，确定各逆序层待调度工序集中工序的调度顺序；然后，分别提出设备选择策略和设备抢占策略以确定目标工序的加工设备以及加工时间；最后，提出基于完工时间翻转的调度方案转换策略，将逆序调度方案转换为正序调度方案。实例表明，和已有主流算法相比，该算法在不提高算法复杂度的前提下能够缩短产品完工时间。
- 综合调度 /
- 逆序层优先 /
- 复杂产品 /
- 柔性设备 /
- 动态长路径
Abstract: In view of the previous flexible integrated scheduling algorithms that consider forward scheduling, so that it is necessary to consider the multiply predecessors’ constraints of the target operation, which makes it difficult to arrange rationally the relevant operations and affect the product completion time. A flexible integrated scheduling algorithm based on reverse order layer priority is proposed. Firstly, a reverse-order layer priority strategy is proposed, and each operation is allocated to the set of operations to be scheduled in the reverse-order layer; Secondly, a dynamic pseudo-long path strategy is proposed to determine the scheduling sequence of the centralized operation of each reverse-order layer to be scheduled; Then, the equipment selection strategy and the equipment preemption strategy are proposed to determine the processing equipment and processing time of the target operation. Finally, a scheduling plan conversion strategy based on the completion time flip is proposed, which converts the reverse order scheduling scheme into a positive order scheduling scheme. The example shows that compared with the existing mainstream algorithms, this algorithm can shorten the product completion time without increasing the complexity of the algorithm.
- Integrated scheduling algorithm /
- Reverse order layer priority /
- Complex product /
- Flexible equipment /
- Dynamic pseudo-long path

HTML全文

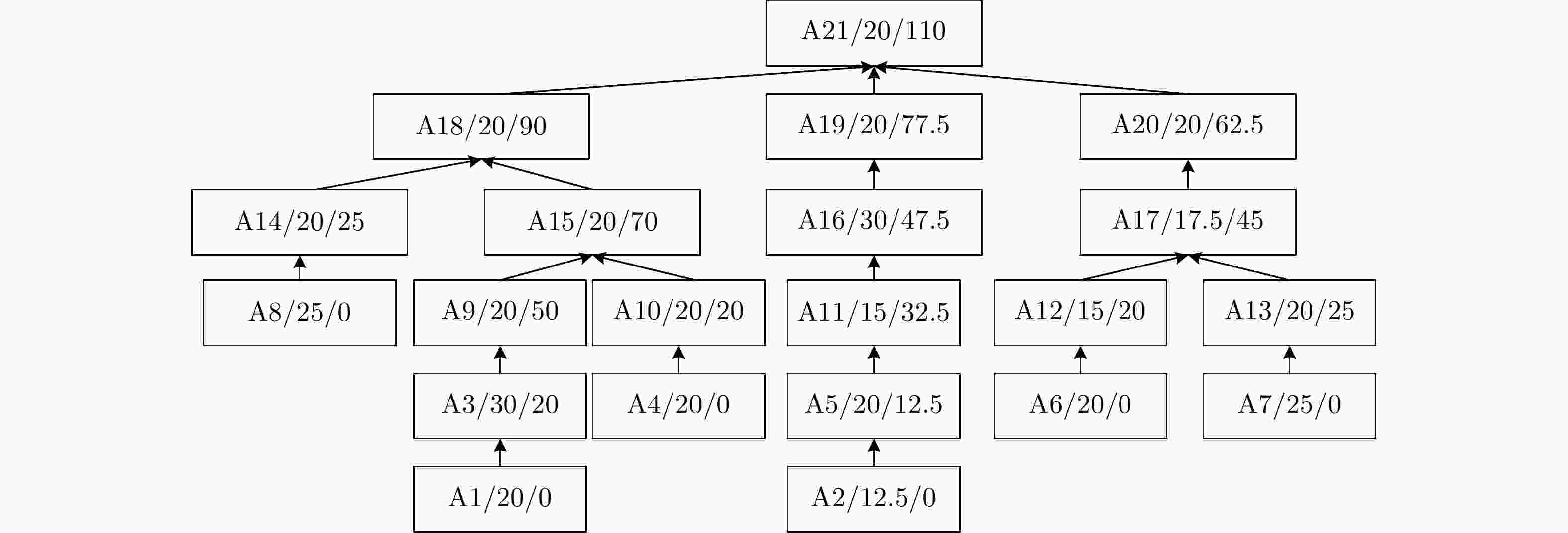

图 1 产品A加工工艺树

下载: 全尺寸图片幻灯片

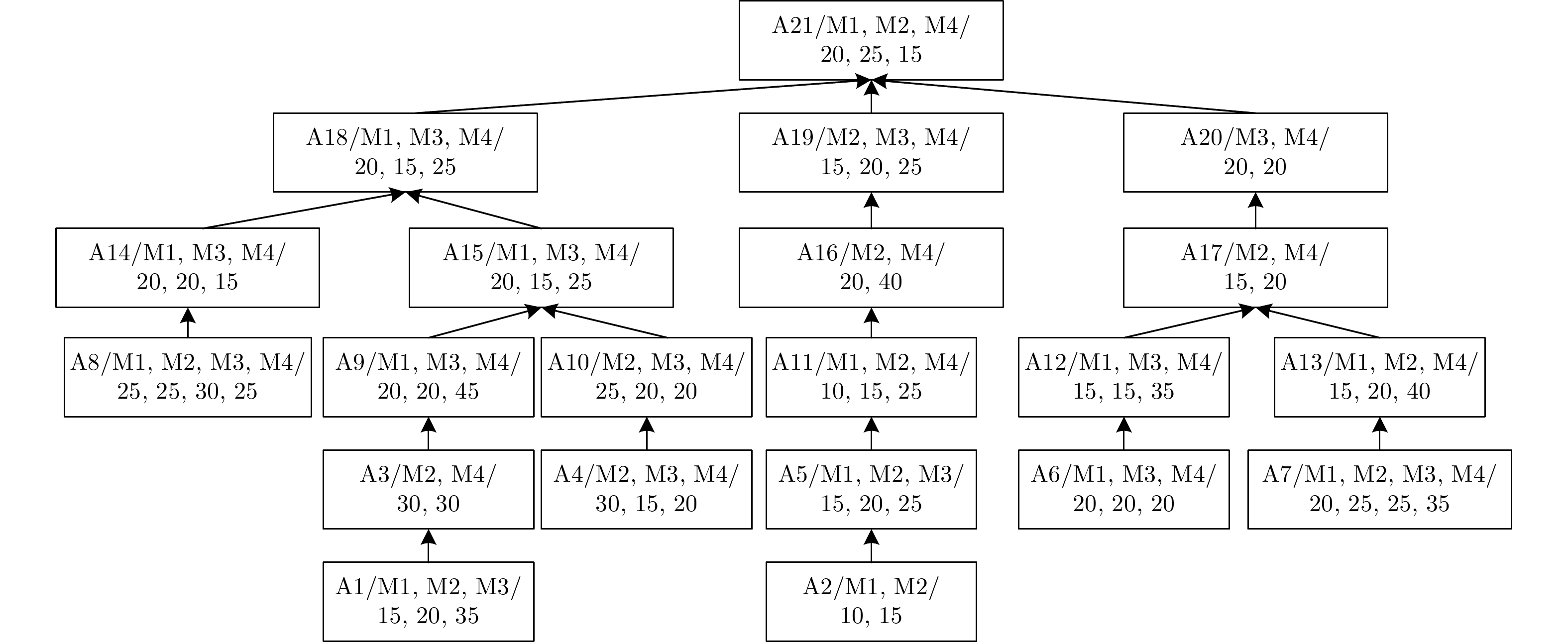

图 2 图1所示产品各工序拟加工时间和伪紧后路径长度

下载: 全尺寸图片幻灯片

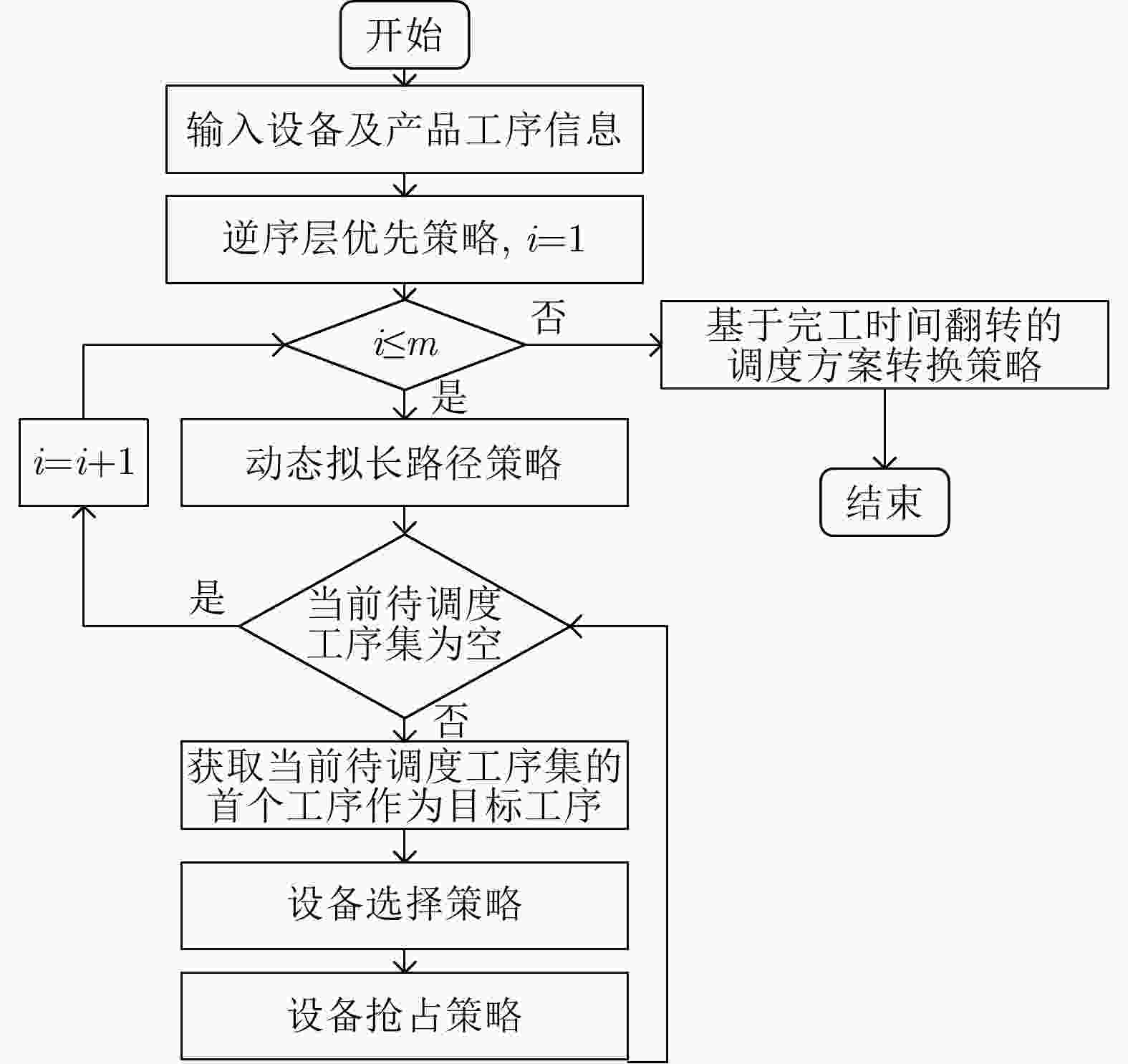

图 3 算法总体流程图

下载: 全尺寸图片幻灯片

图 4 应用本文所提算法产生的逆序调度方案

下载: 全尺寸图片幻灯片

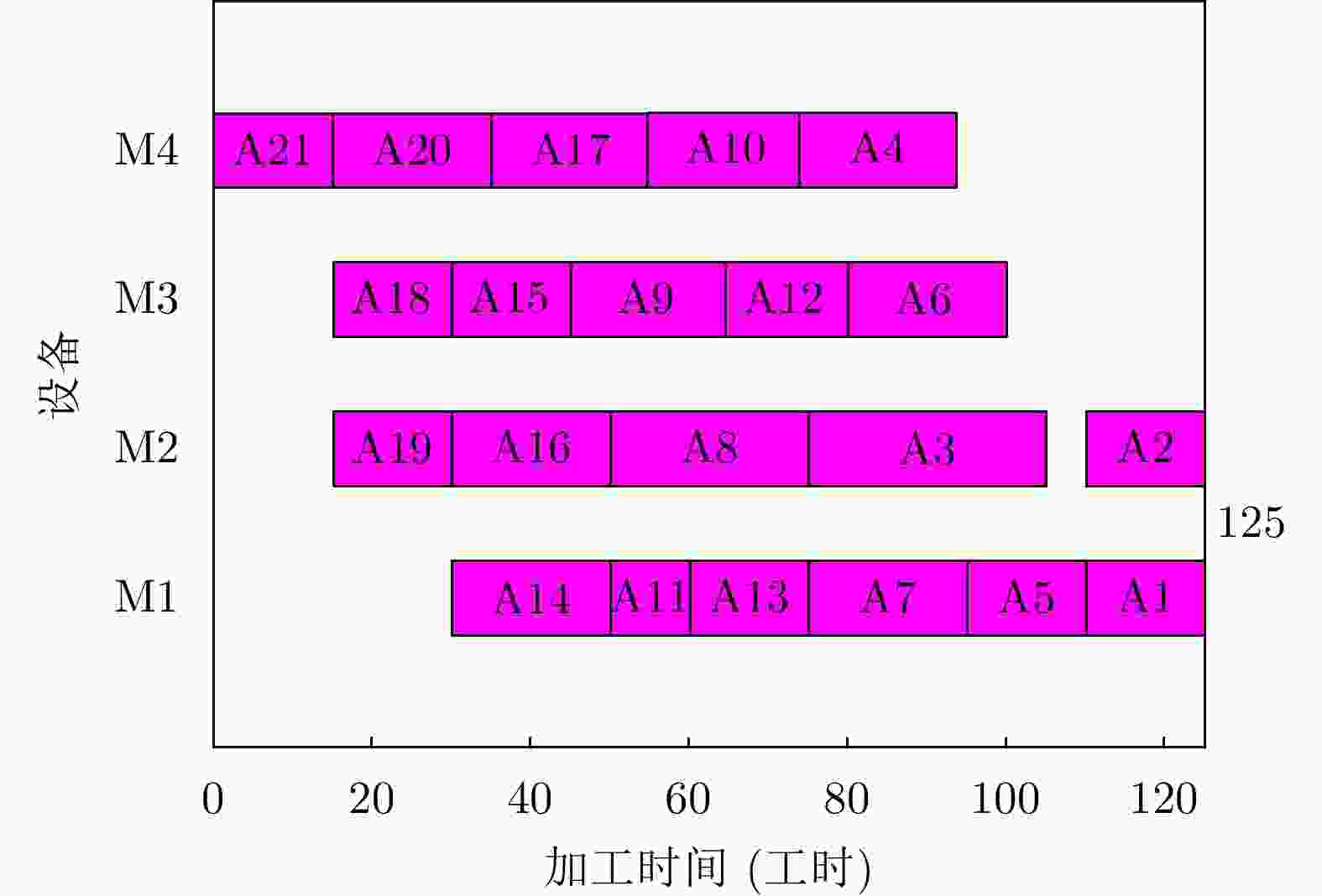

图 5 应用本文所提算法产生的正序调度方案

下载: 全尺寸图片幻灯片

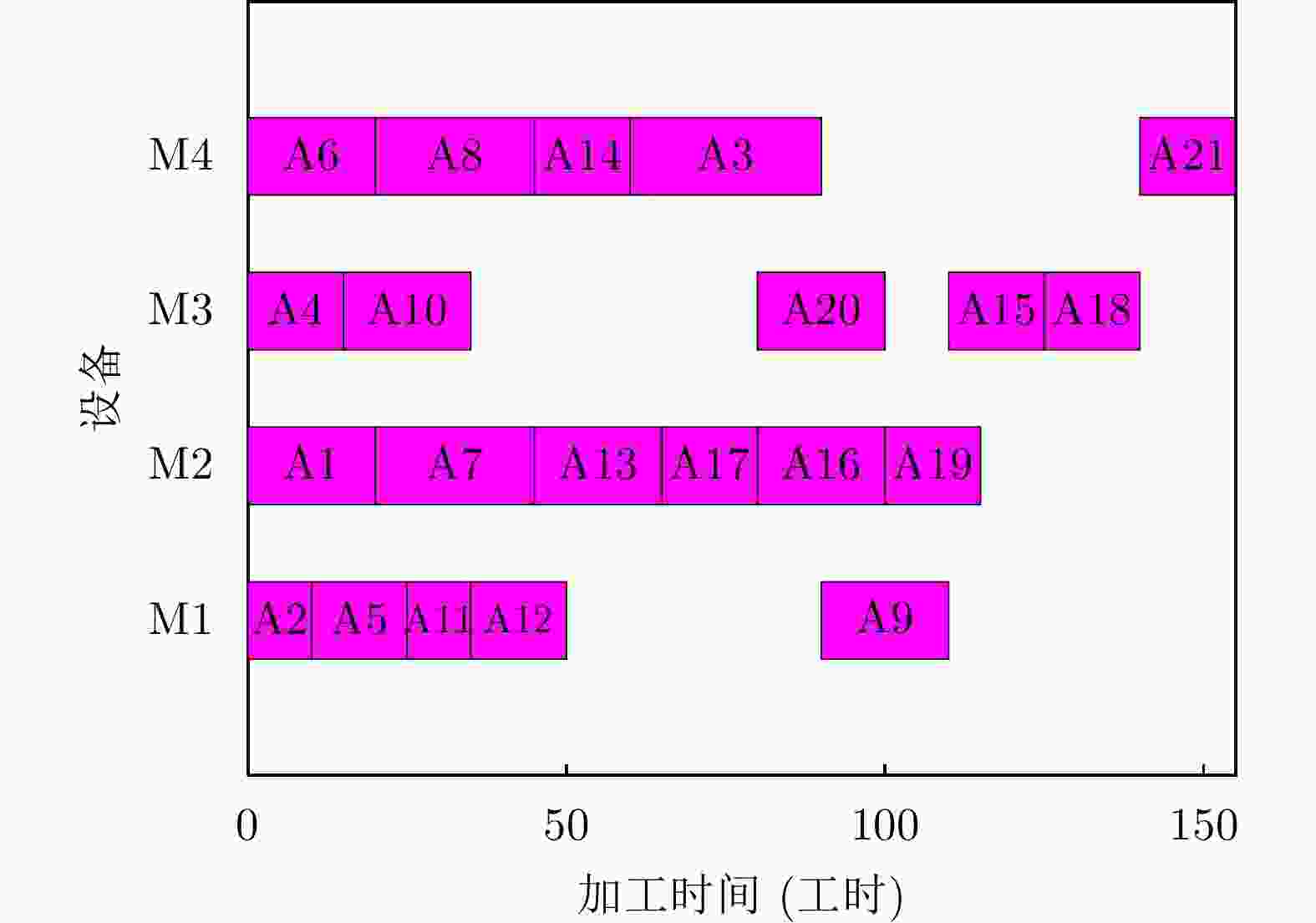

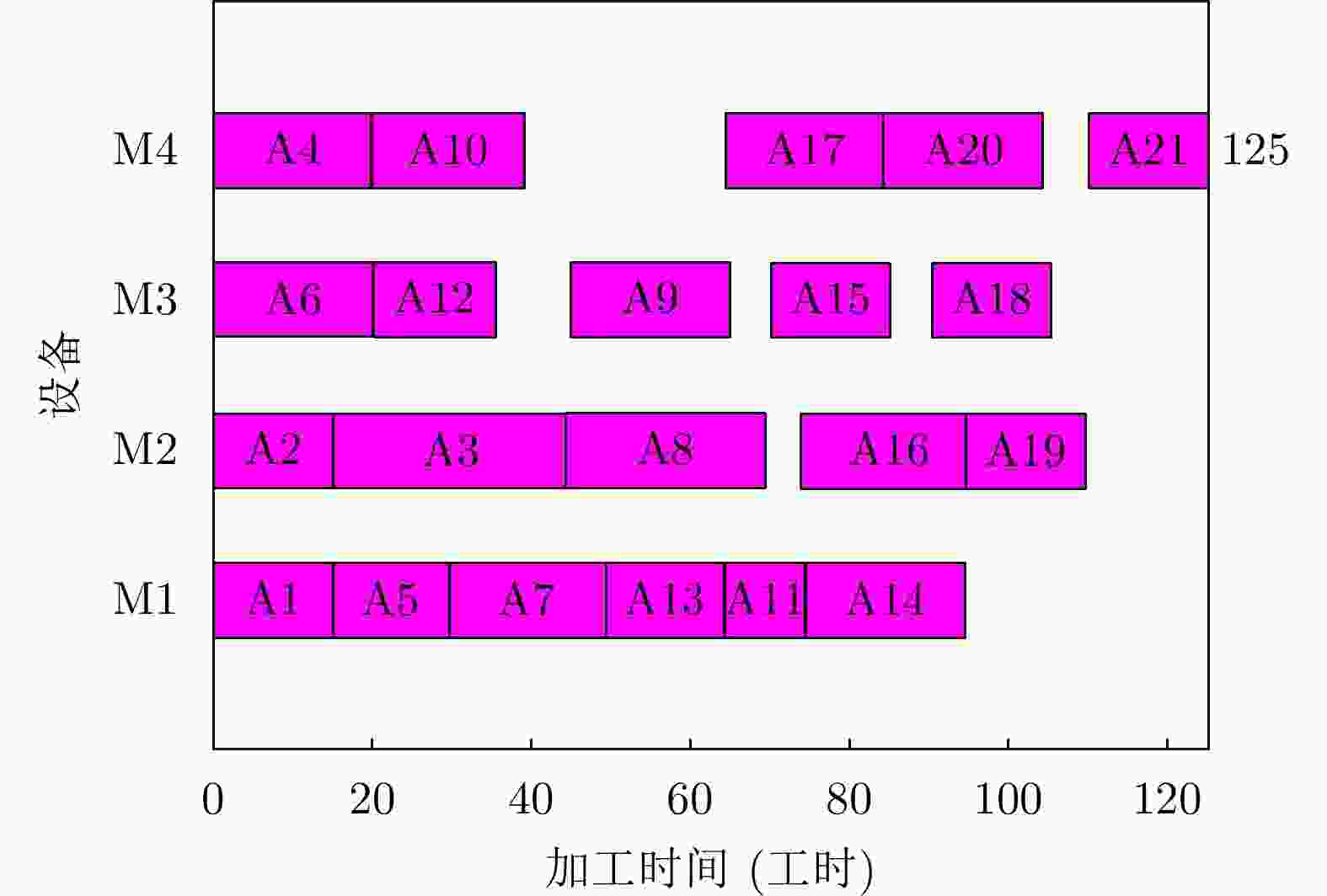

图 6 基于设备驱动的综合柔性调度冲突调解算法调度结果甘特图

下载: 全尺寸图片幻灯片

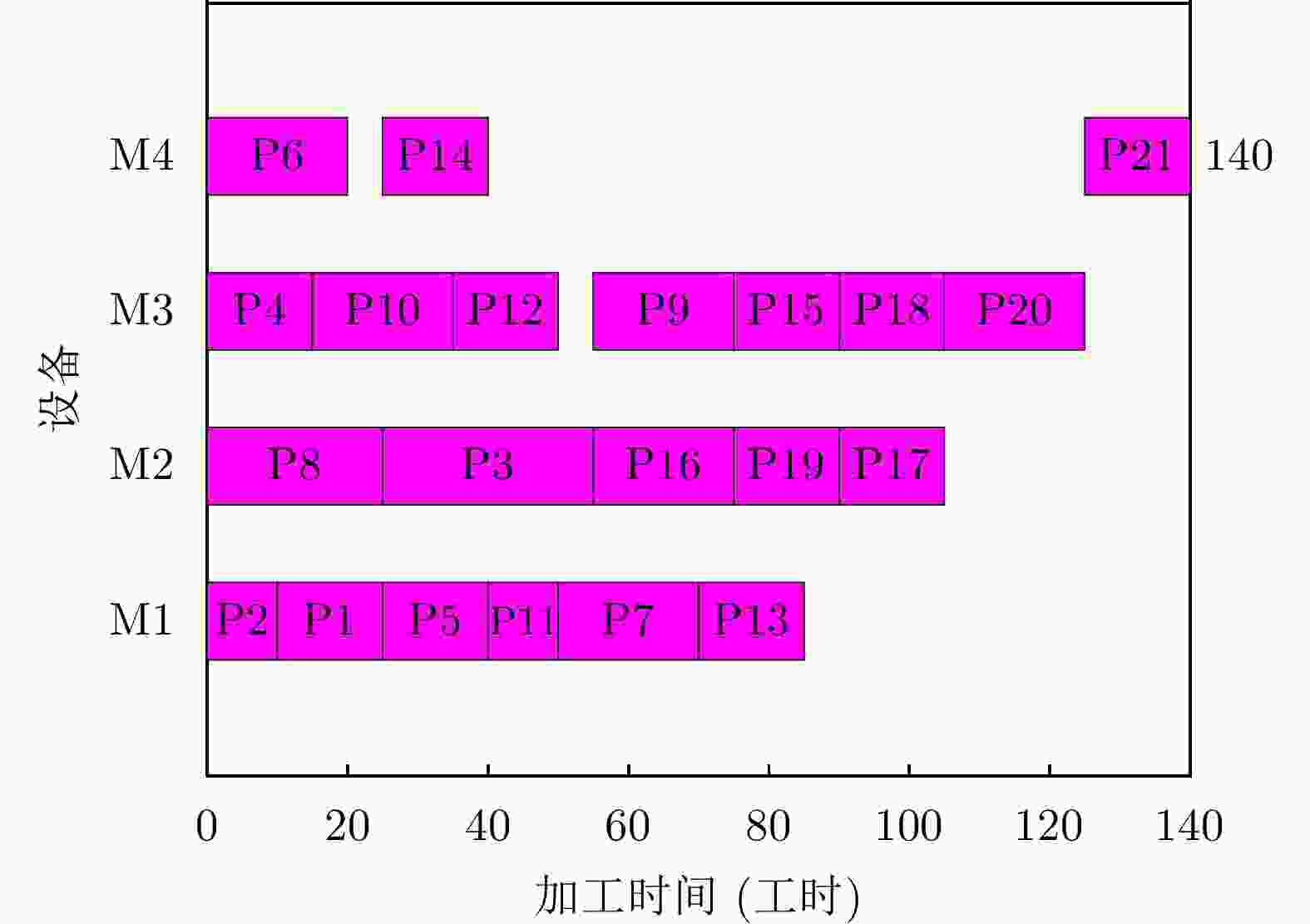

图 7 基于设备驱动和实质路径的动态并行综合柔性调度算法调度结果甘特图

下载: 全尺寸图片幻灯片

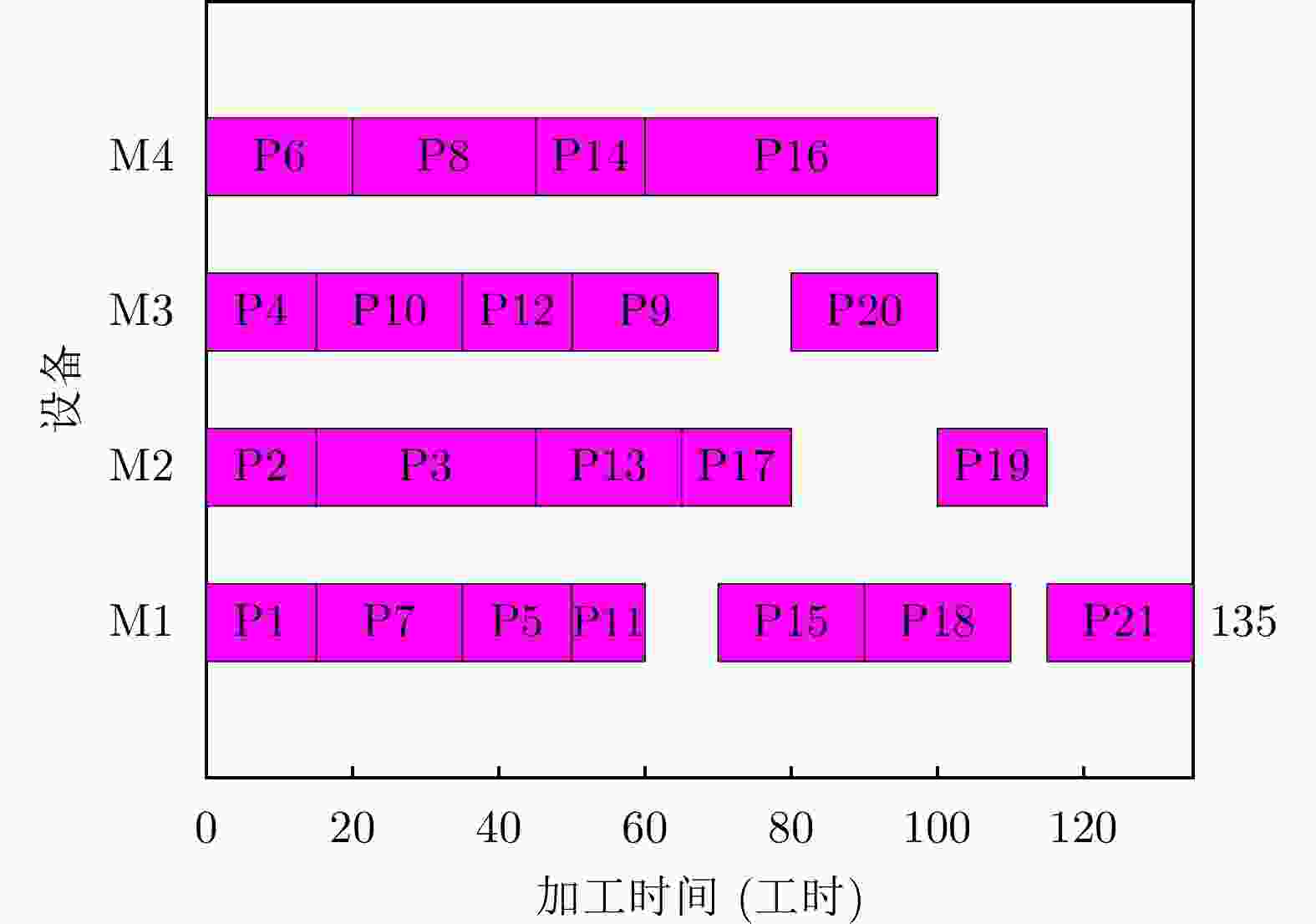

图 8 基于链表调度的柔性综合调度算法调度结果甘特图
