显著性背景感知的多尺度红外行人检测方法

赵斌; 王春平; 付强

doi:10.11999/JEIT190761

显著性背景感知的多尺度红外行人检测方法

doi: 10.11999/JEIT190761

陆军工程大学石家庄校区电子与光学工程系石家庄 050003

详细信息

作者简介:
赵斌：男，1990年生，博士生，研究方向为深度学习、目标检测

王春平：男，1965年生，博士生导师，研究方向为图像处理、火力控制理论与应用

付强：男，1981年生，讲师，博士，研究方向为计算机视觉、网络化火控与指控技术

通讯作者:
王春平　wang_c_p@163.com

中图分类号: TN215
计量
- 文章访问数: 2271
- HTML全文浏览量: 1957
- PDF下载量: 114
- 被引次数: 0
出版历程
- 收稿日期: 2019-09-30
- 修回日期: 2020-05-13
- 网络出版日期: 2020-05-20
- 刊出日期: 2020-10-13

Multi-scale Pedestrian Detection in Infrared Images with Salient Background-awareness

Department of Electronic and Optical Engineering, Shijiazhuang Campus of Army Engineering University, Shijiazhuang 050003, China

摘要

摘要: 超大视场(U-FOV)红外成像系统探测范围大、不受光照限制，但存在尺度多样、小目标丰富的特点。为此该文提出一种具备背景感知能力的多尺度红外行人检测方法，在提高小目标检测性能的同时，减少冗余计算。首先，构建了4尺度的特征金字塔网络分别独立预测目标，补充高分辨率细节特征。其次，在特征金字塔结构的横向连接中融入注意力模块，产生显著性特征，抑制不相关区域的特征响应、突出图像局部目标特征。最后，在显著性系数的基础上构建了锚框掩膜生成子网络，约束锚框位置，排除平坦背景，提高处理效率。实验结果表明，显著性生成子网络仅增加5.94%的处理时间，具备轻量特性；超大视场(U-FOV)红外行人数据集上的识别准确率达到了93.20%，比YOLOv3高了26.49%；锚框约束策略能节约处理时间18.05%。重构模型具有轻量性和高准确性，适合于检测超大视场中的多尺度红外目标。
- 红外行人检测 /
- 超大视场 /
- 卷积神经网络 /
- 背景感知 /
- 多尺度
Abstract: The infrared imaging system of Ultrawide Field Of View (U-FOV) has large monitoring range and is not limited by illumination, but there are diverse scales and abundant small objects. For accurately detecting them, a multi-scale infrared pedestrian detection method is proposed with the ability of background-awareness, which can improve the detection performance of small objects and reduce the redundant computation. Firstly, a four scales feature pyramid network is constructed to predict object independently and supplement detail features with higher resolution. Secondly, attention module is integrated into the horizontal connection of feature pyramid structure to generate salient features, suppress feature response of irrelevant areas and enhance the object features. Finally, the anchor mask generation subnetwork is constructed on the basis of salient coefficient to the location of the anchors, to eliminate the flat background, and to improve the processing efficiency. The experimental results show that the salient generation subnetwork only increases the processing time by 5.94%, and has the lightweight characteristic. The Average-Precision is 93.20% on the U-FOV infrared pedestrian dataset, 26.49% higher than that of YOLOv3. Anchor box constraint strategy can save 18.05% of processing time. The proposed method is lightweight and accurate, which is suitable for detecting multi-scale infrared objects in the U-FOV camera.
- Infrared pedestrian detection /
- Ultrawide Field Of View(U-FOV) /
- Convolutional Neural Network(CNN) /
- Background-awareness /
- Multi-scale

HTML全文

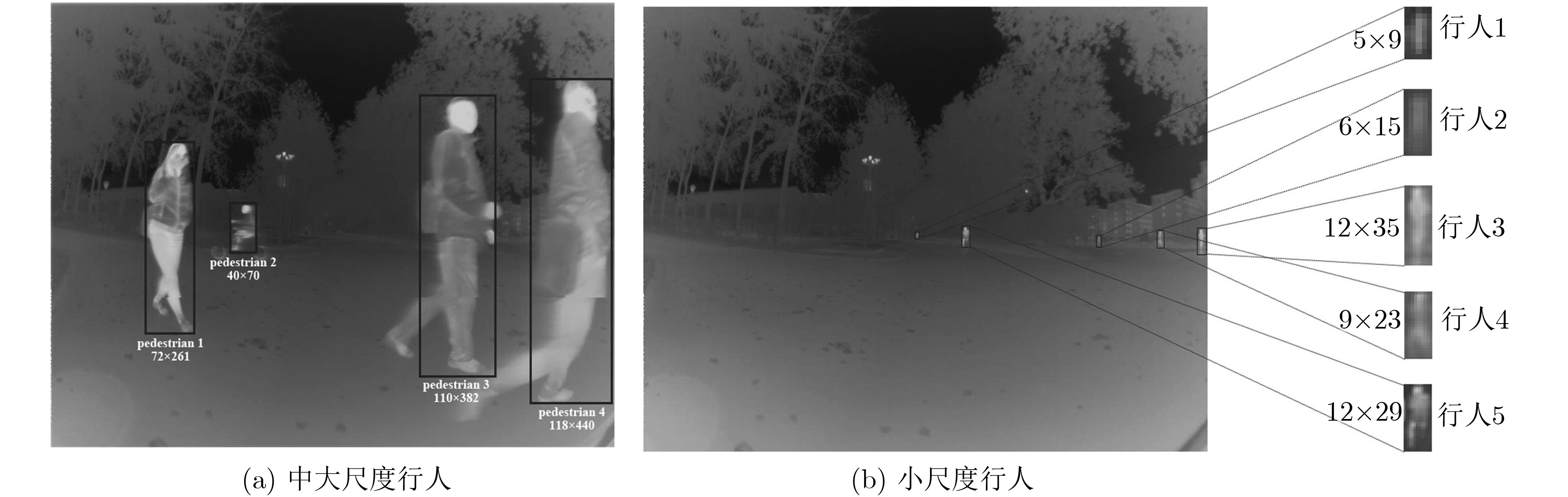

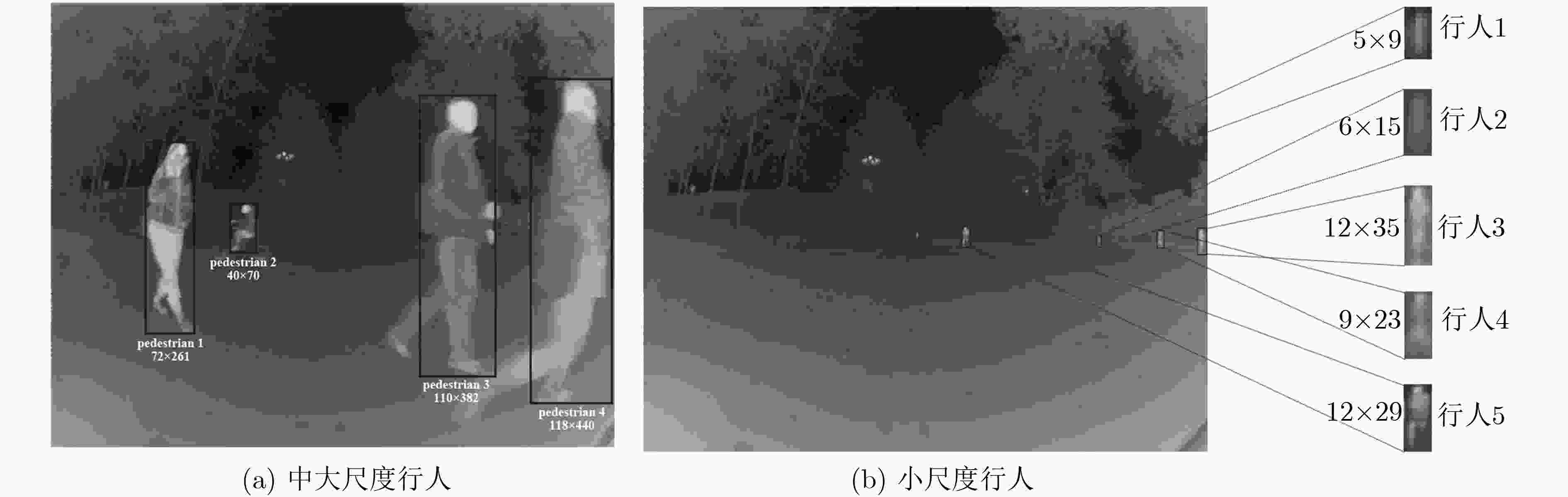

图 1 超大视场红外图像行人特性

下载: 全尺寸图片幻灯片

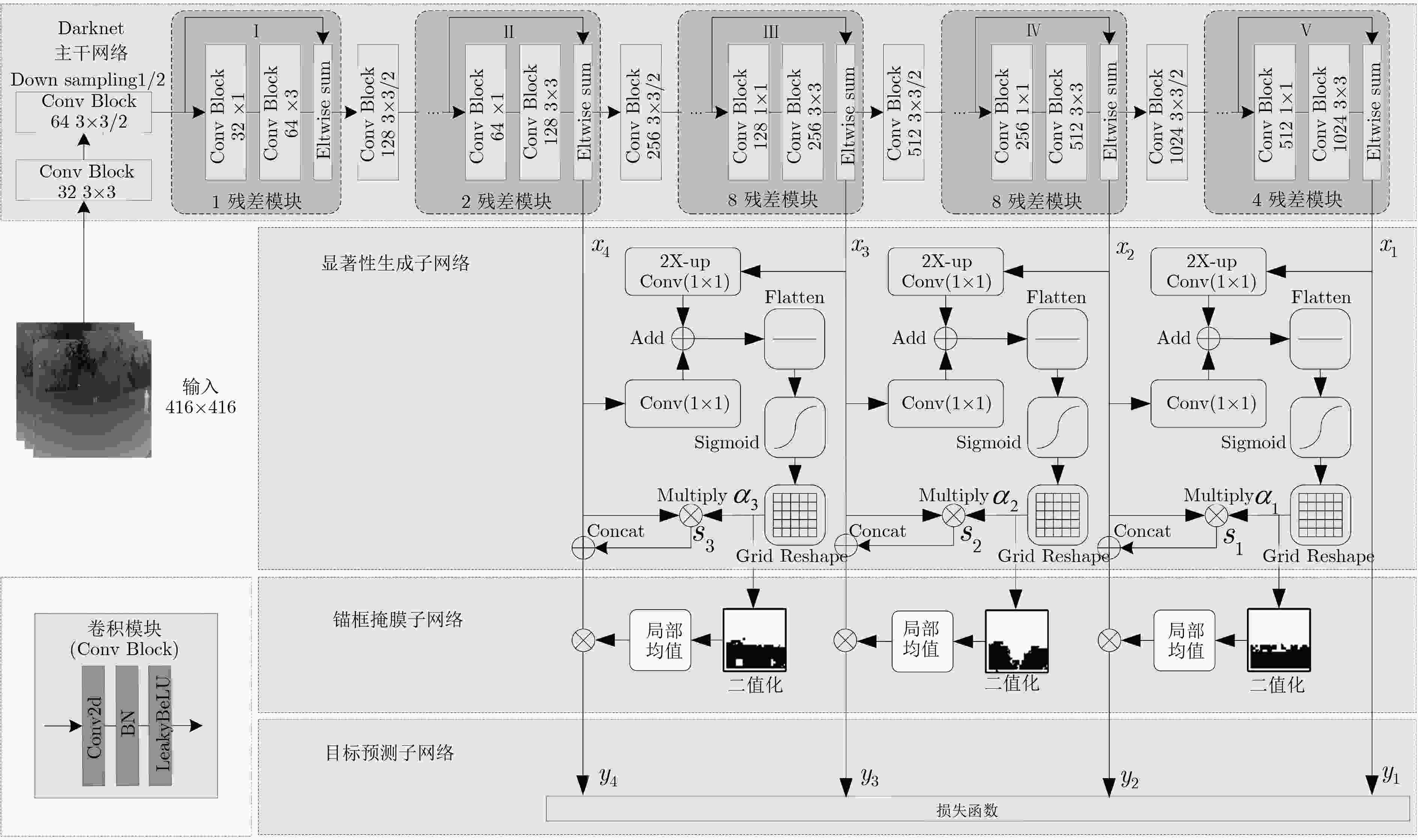

图 2 多尺度红外行人检测网络结构

下载: 全尺寸图片幻灯片

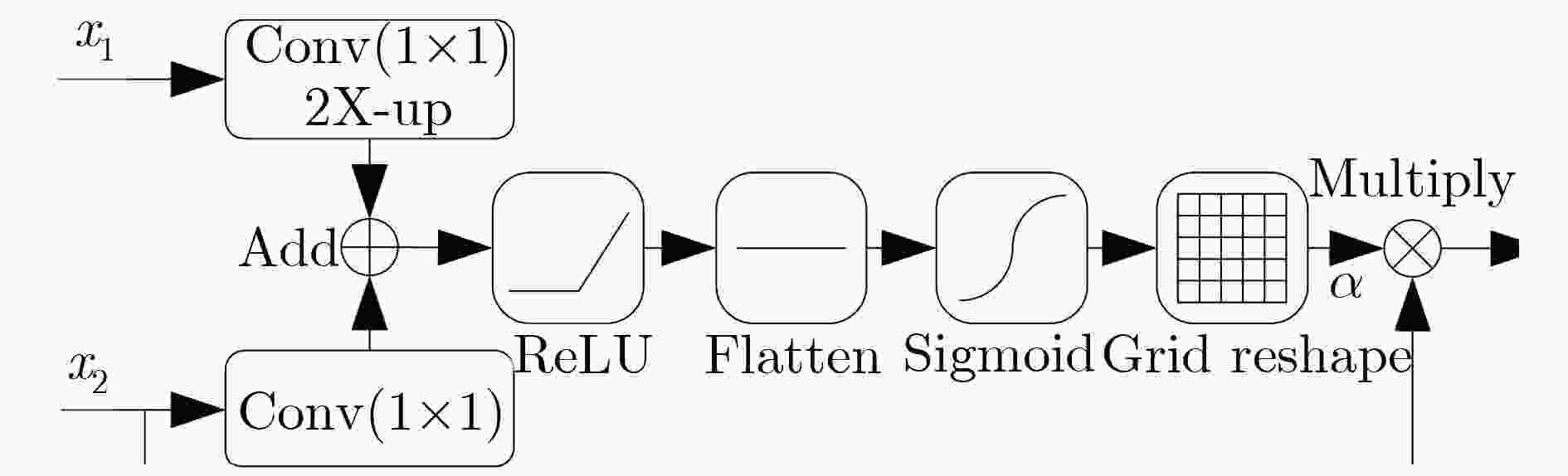

图 3 注意力模块结构

下载: 全尺寸图片幻灯片

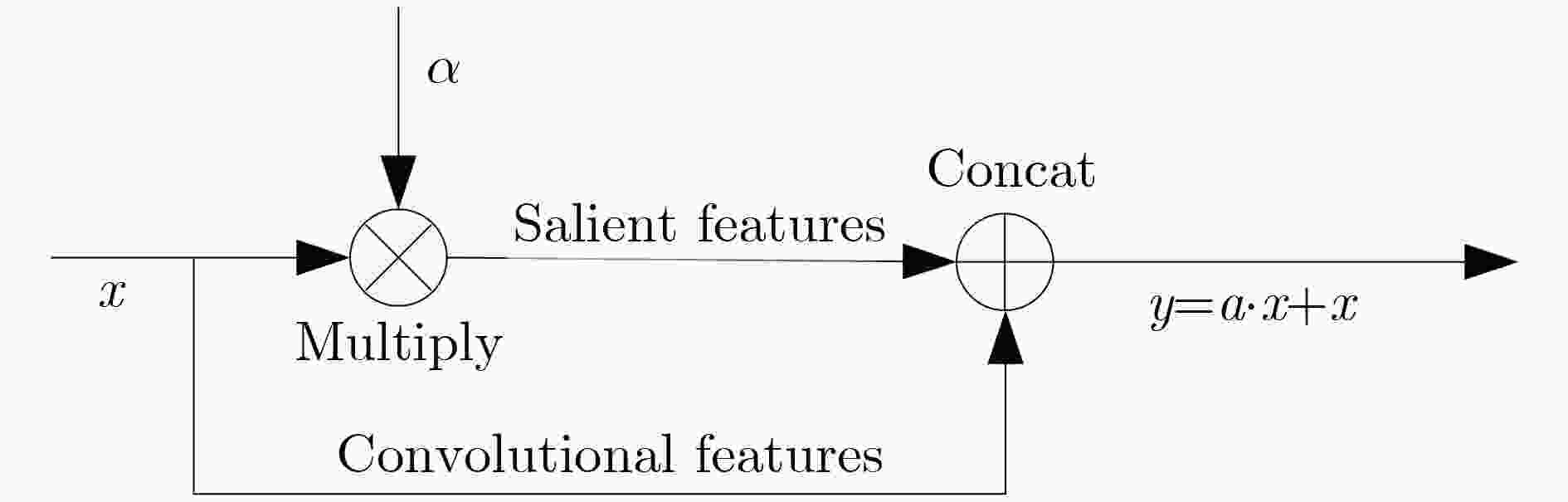

图 4 显著性特征与卷积特征融合方法

下载: 全尺寸图片幻灯片

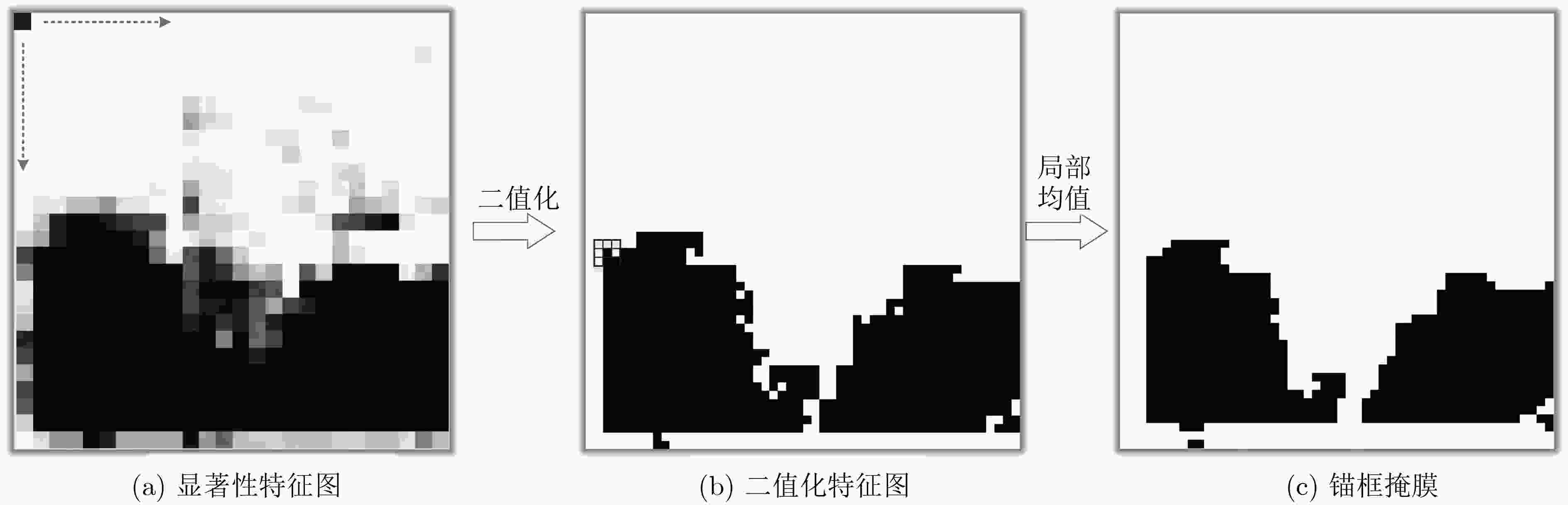

图 5 锚框掩膜生成过程

下载: 全尺寸图片幻灯片

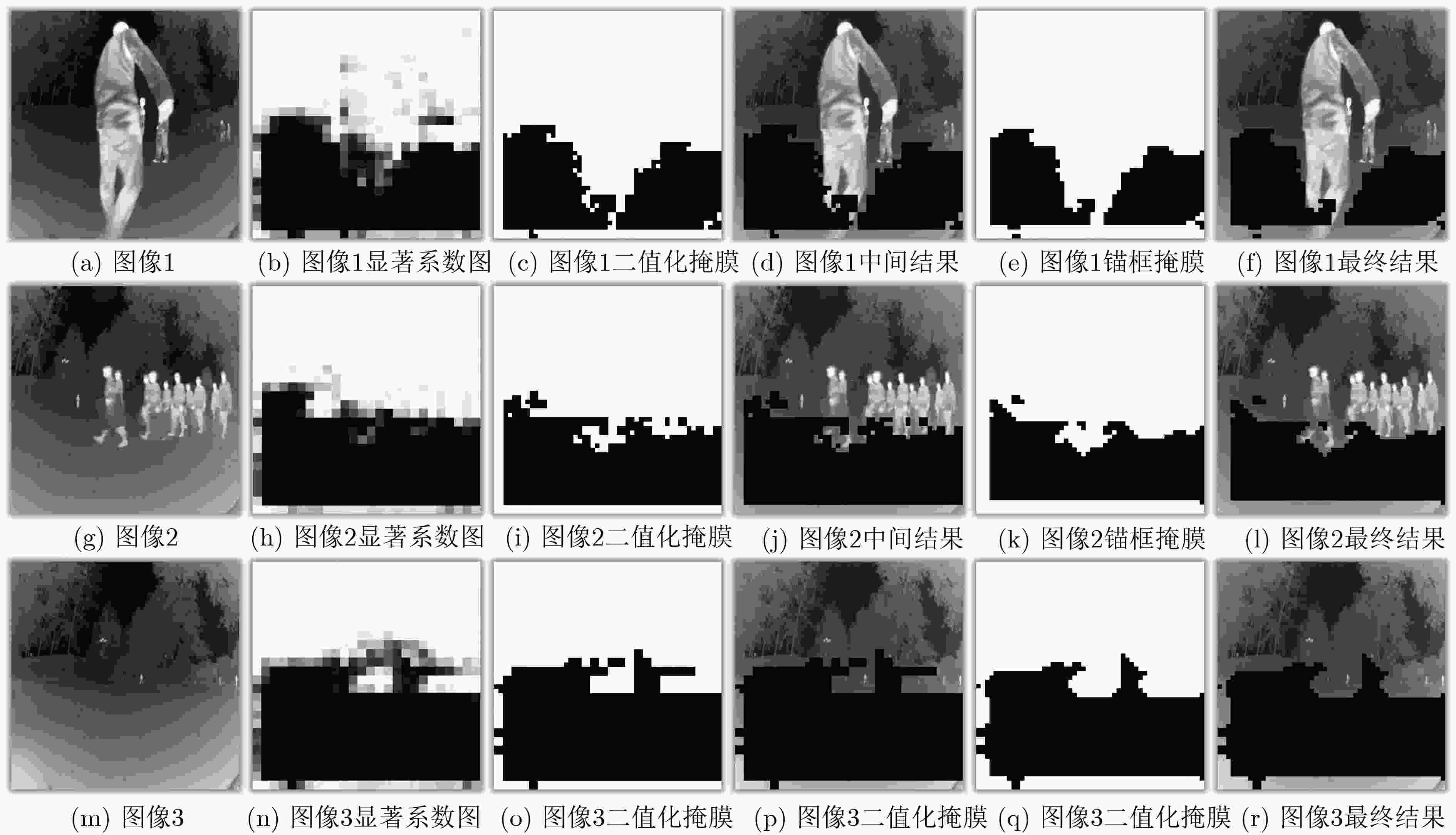

图 6 不同输入图像的锚框掩膜

下载: 全尺寸图片幻灯片

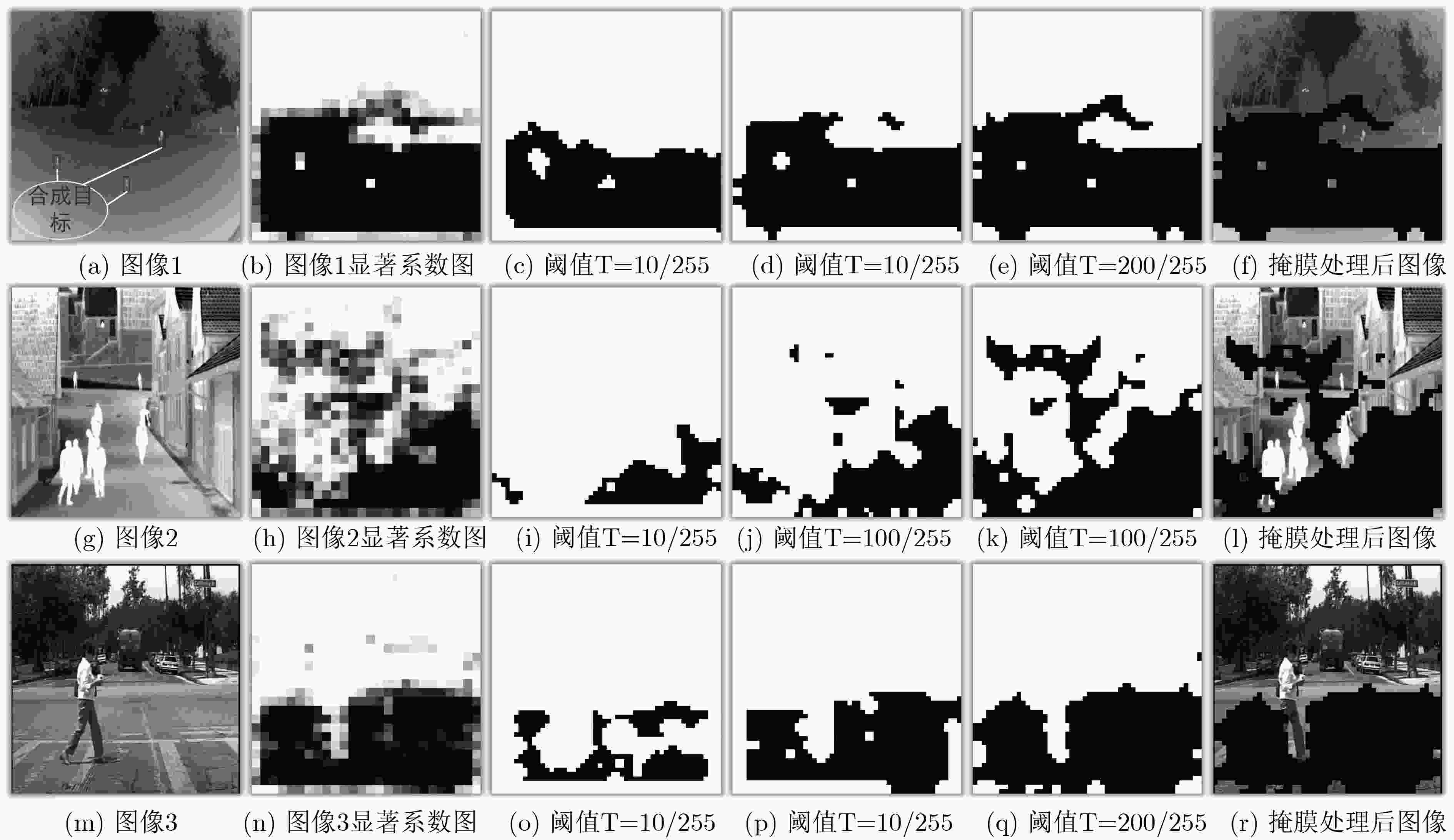

图 7 不同二值化阈值下的锚框掩膜

下载: 全尺寸图片幻灯片

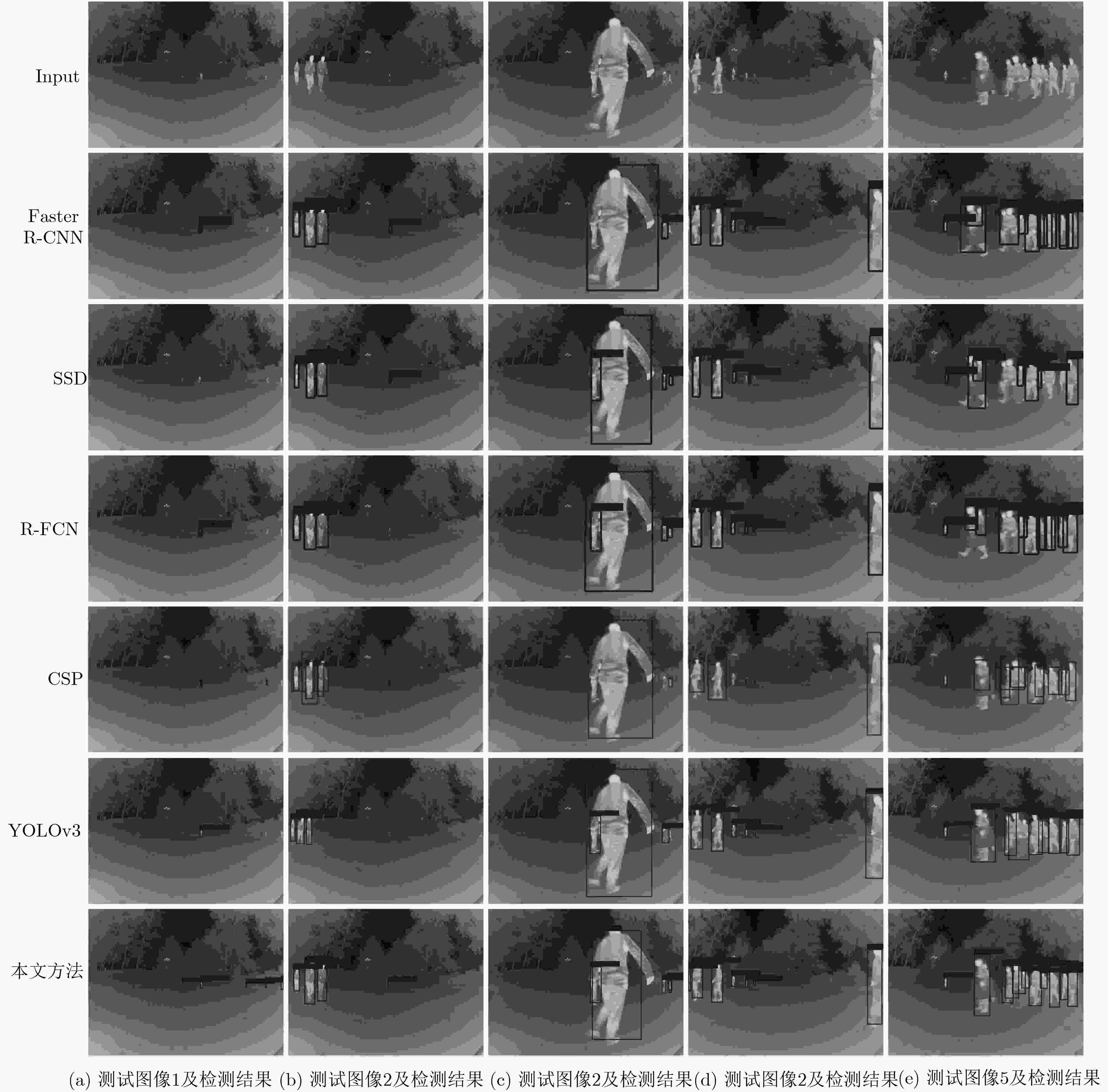

图 8 红外行人检测可视化结果
