Adaptive Image Dehazing Algorithm Based on Mean Unequal Relation Optimization
-
摘要:

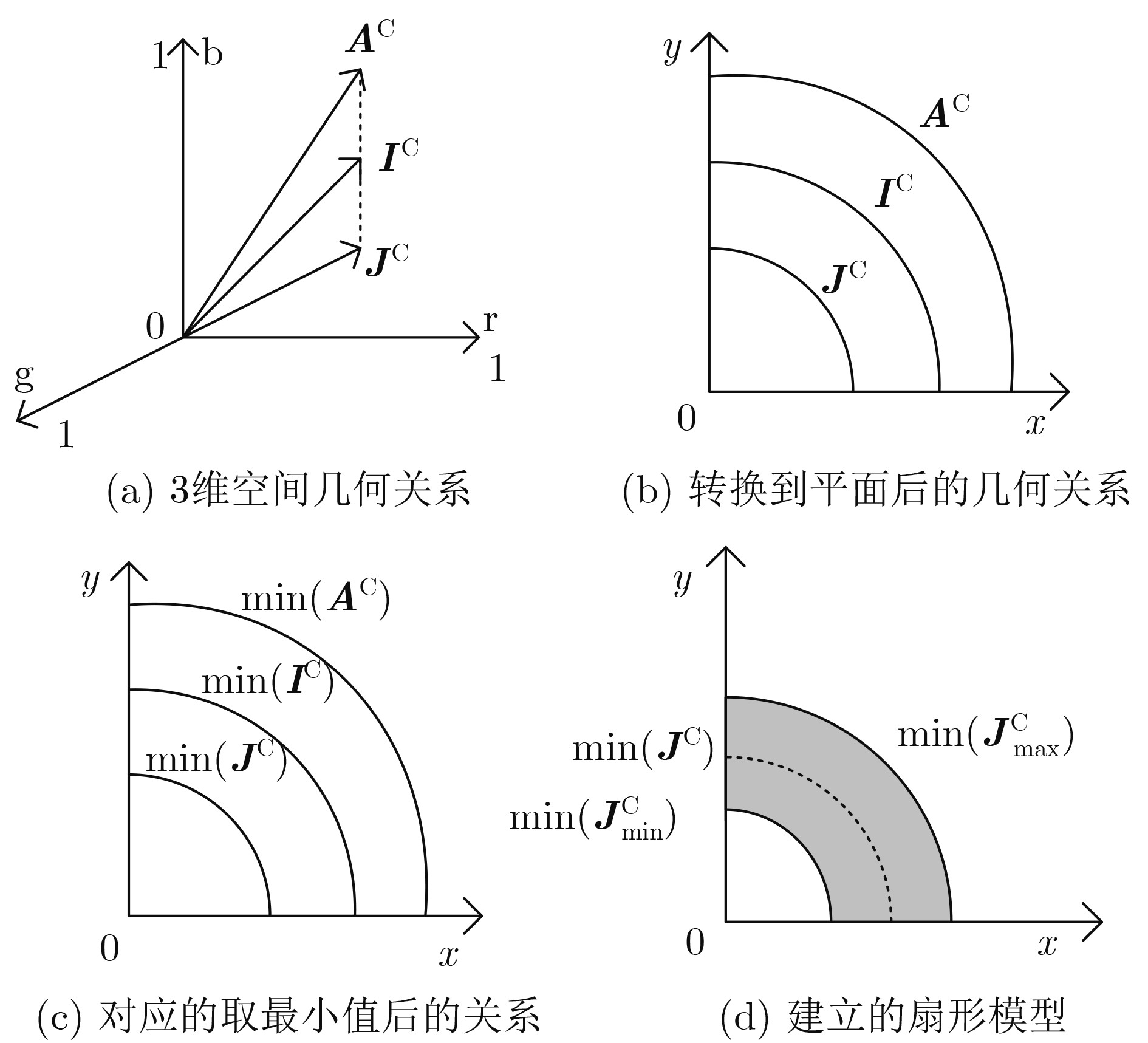

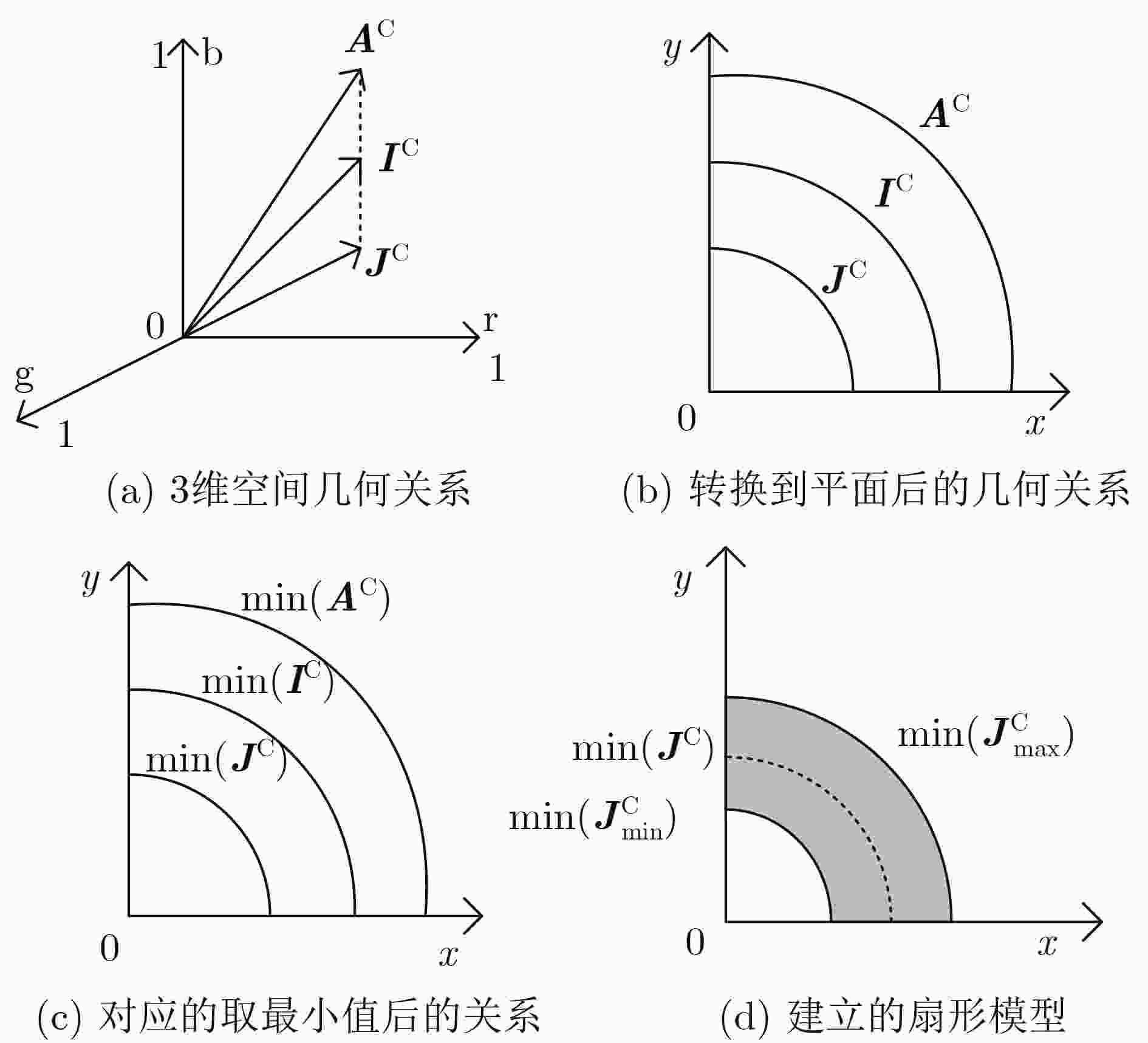

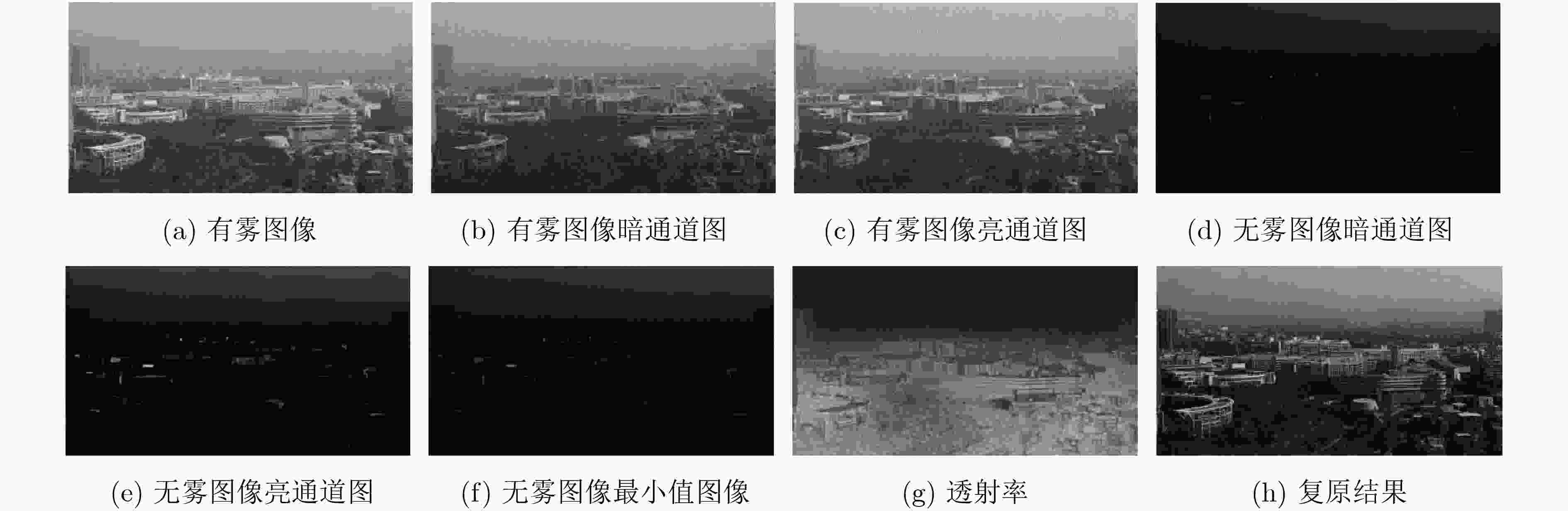

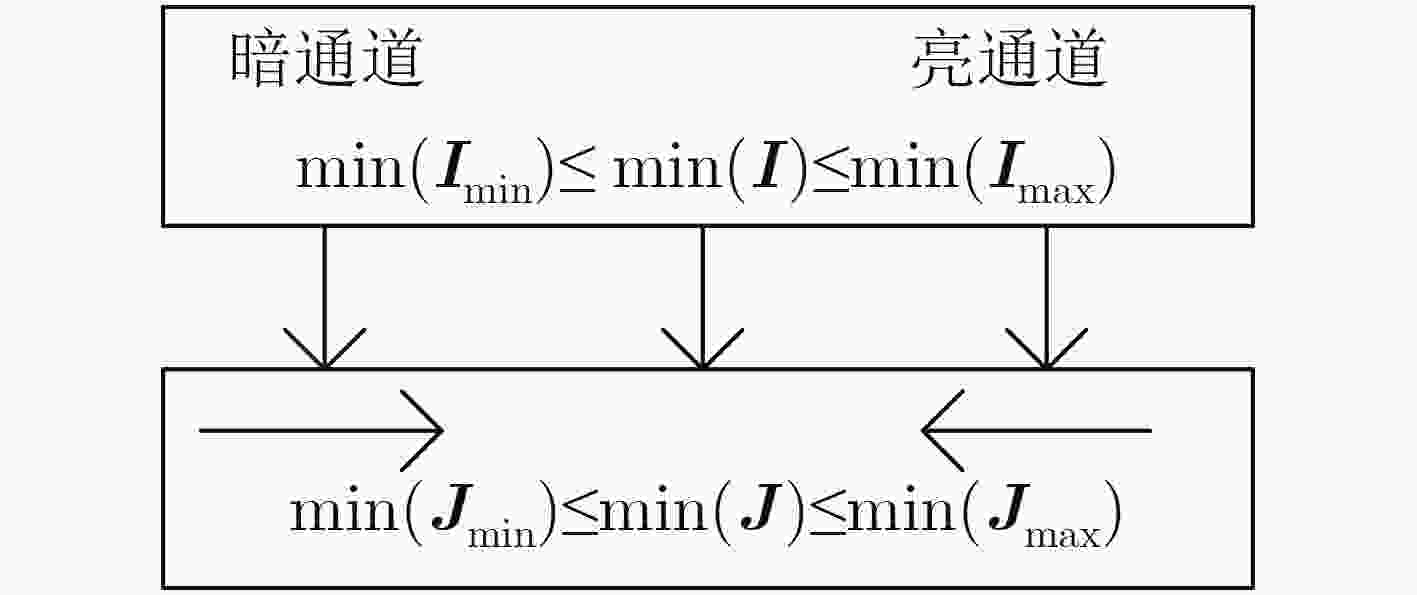

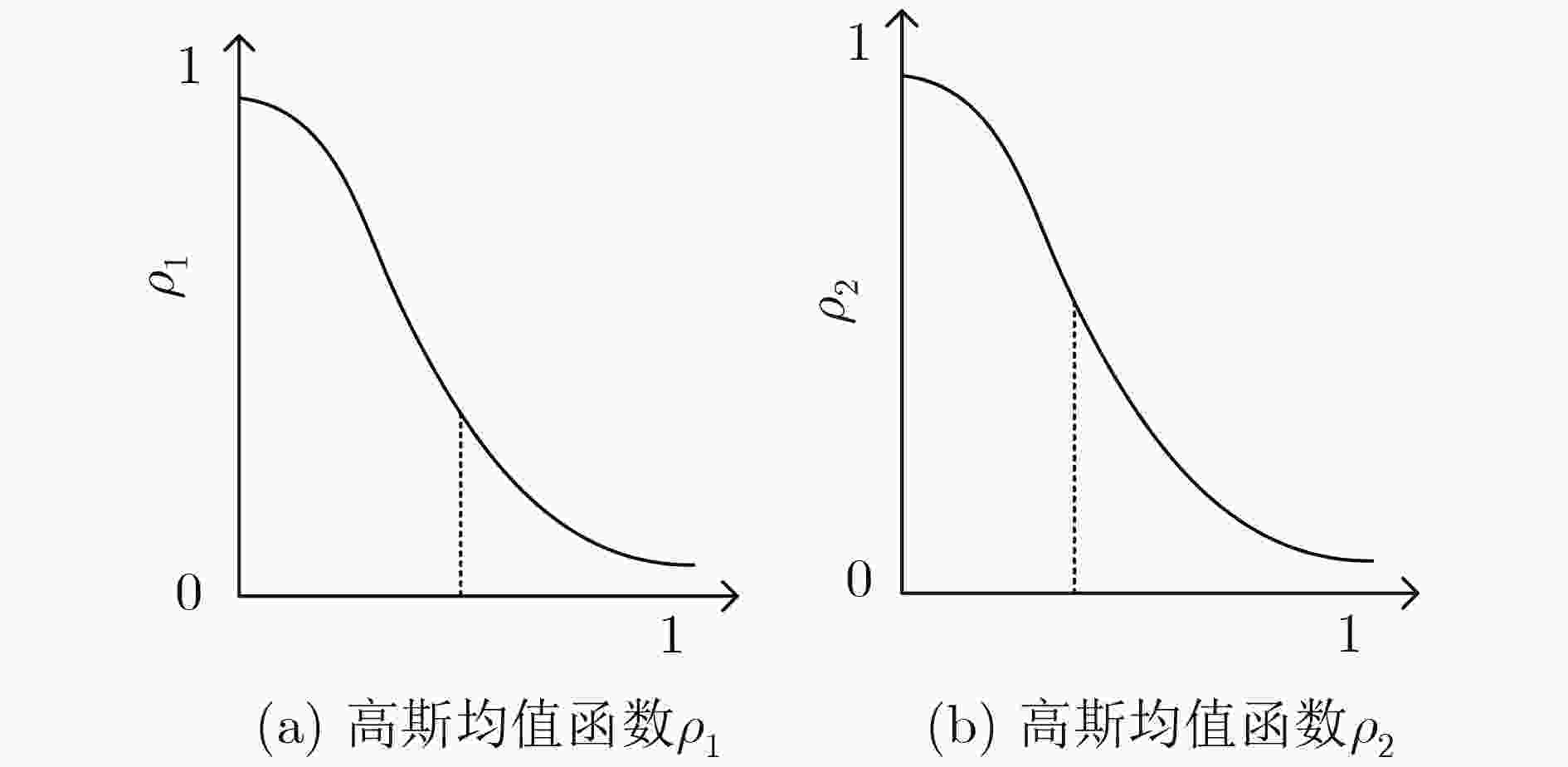

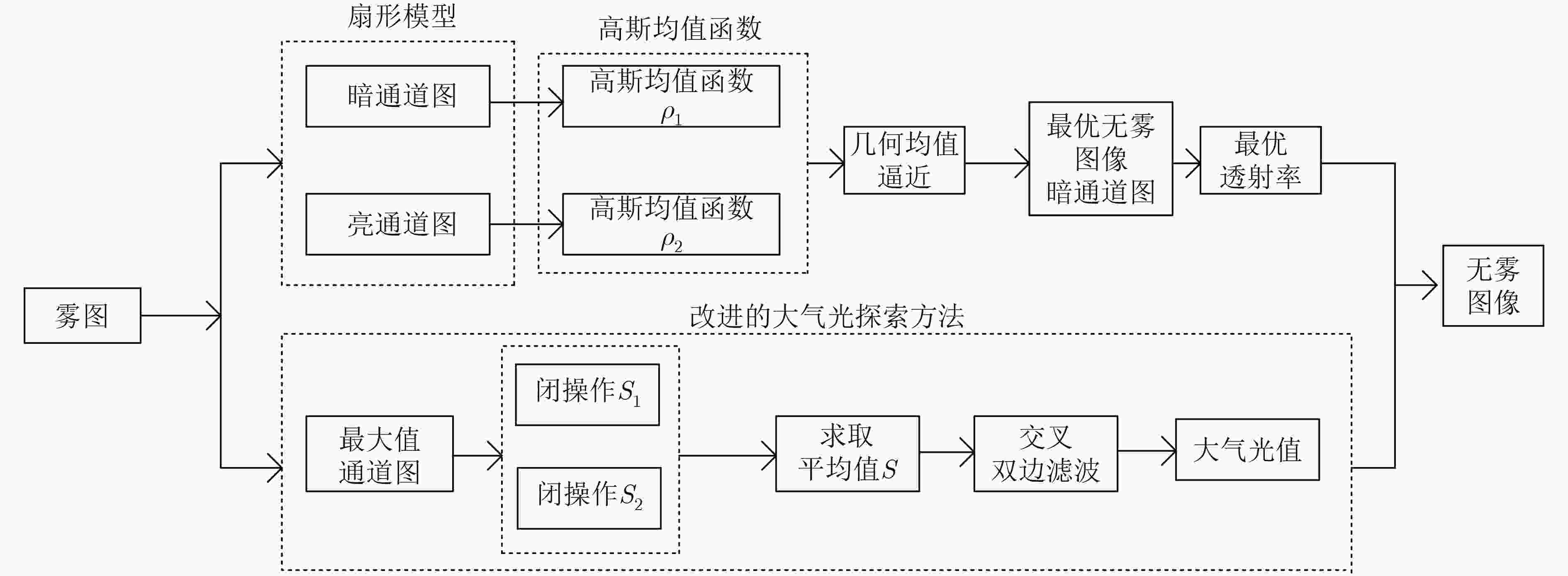

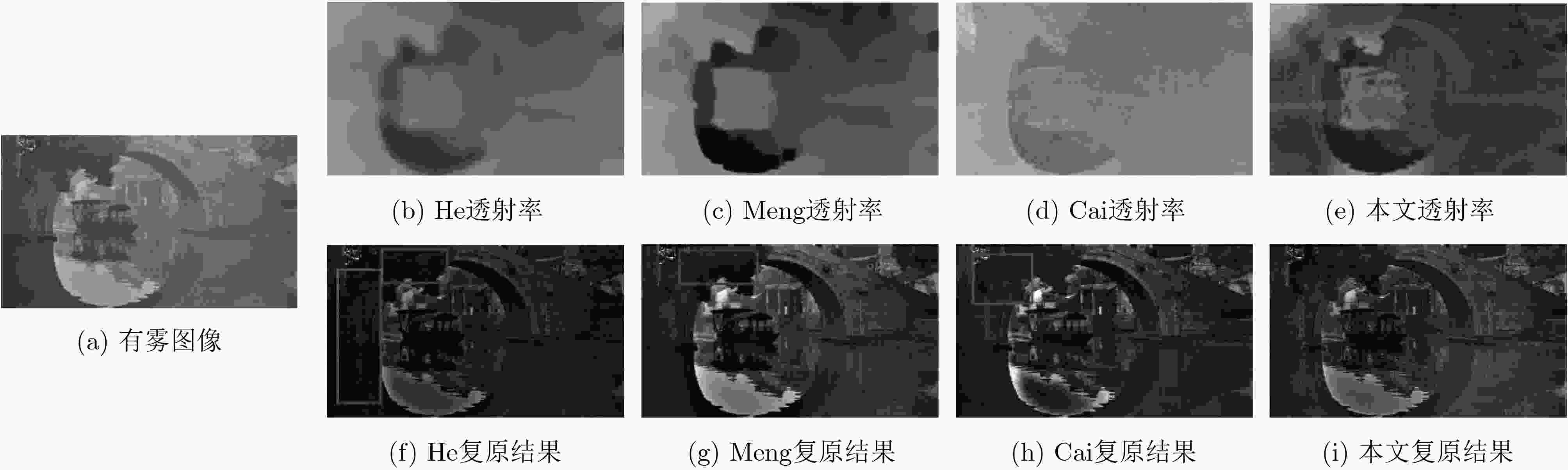

针对暗通道先验去雾算法的不足，如天空区域透射率估计过小和在景深突变处易发生光晕效应，该文提出一种新颖且高效的去雾算法。首先通过几何分析建立雾图对应无雾图像暗通道图的平面扇形模型，然后设定一种新型的高斯均值函数，对其标准差进行自适应处理，用以估计扇形模型的上下边界值，通过引入均值不等关系对两侧边界进行逼近，拟合出最优无雾图像暗通道图，进一步求得最佳透射率，同时也改进局部大气光的探索方法并复原出最终结果。实验表明，与其它一些经典算法相比较，所提算法能广泛适用于各类图像，去雾程度彻底且效果清晰自然，具有较低的时间复杂度，有利于实时处理。
Abstract:In view of shortcomings of dark channel prior dehazing methods, such as transmission in sky areas is small and halo effects are prone to occur in the edges, this paper proposes a novel and efficient dehazing algorithm. Firstly, the fan-shaped model with dark channel map of haze-free image is established by geometric analysis. Then a new Gaussian mean function is set to estimate the boundary values of the model and its standard deviation is adaptive processing. Mean-value unequal relationship is also introduced to approximate the two-sided boundary, which is used to fit the most excellent dark channel map of haze-free, further obtains the best transmission. At the same time the local atmospheric light is improved to recover the final result. Experimental results show that the proposed method can be widely applied to all kinds of images compared with other classical algorithms. The degree of dehazing is thorough, final result is clear and natural. More importantly, it is favorable for real-time processing that has low time complexity.
-
Key words:
- Image restoration /
- Dehazing /
- Dark Channel Prior (DCP) /
- Transmission /
- Atmospheric scattering model
-

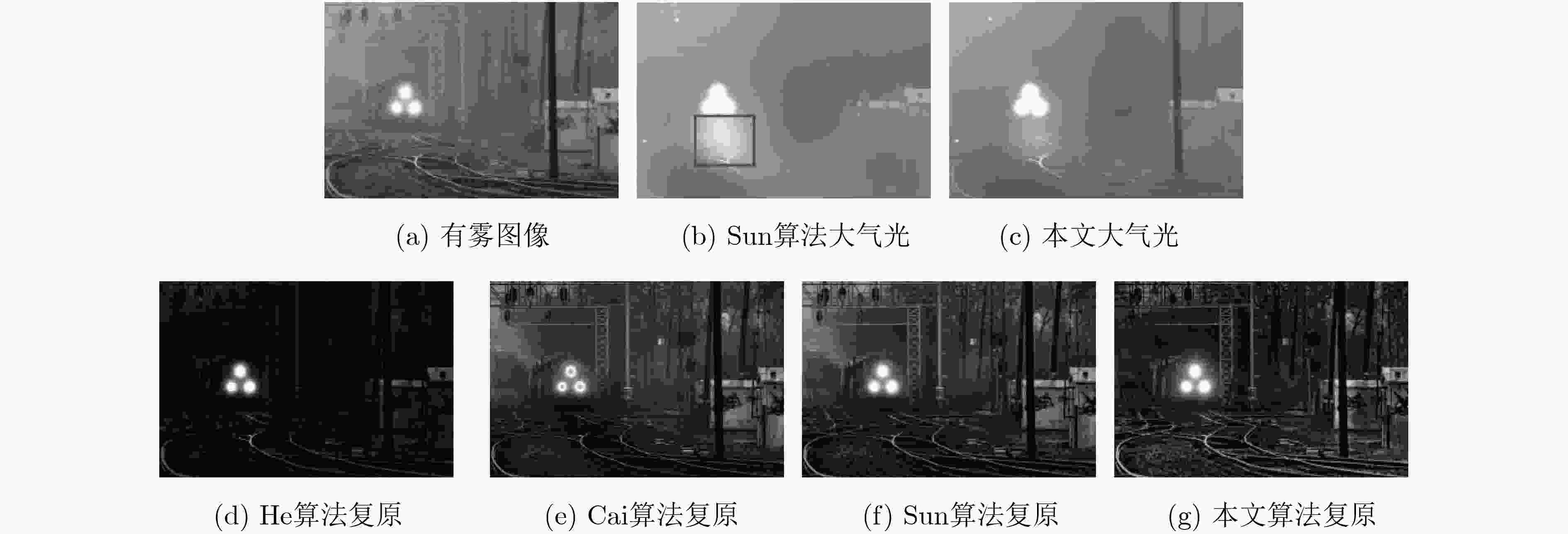

表 1 改进的大气光探索方法
输入：有雾图像${{I}^c}(x)$； 步骤 1 找出有雾图像的3颜色通道的最大值${A}_{\max }^c(x) = \mathop {\max }\limits_{c \in \{\rm r,g,b\} } {{I}^c}(x)$ 步骤 2 进行形态学闭操作，滤波核尺寸分别为${r_1} = \min [w,h]/5$, ${r_2} = \min [w,h]/20$，得到两次闭操作结果${s_1}$和${s_2}$； 步骤 3 求取两次闭操作的平均值，$s = ({s_1} + {s_2})/2$ ； 步骤 4 进行交叉滤波平滑处理，得到最后的结果${{A}^c}$。
下载: 导出CSV

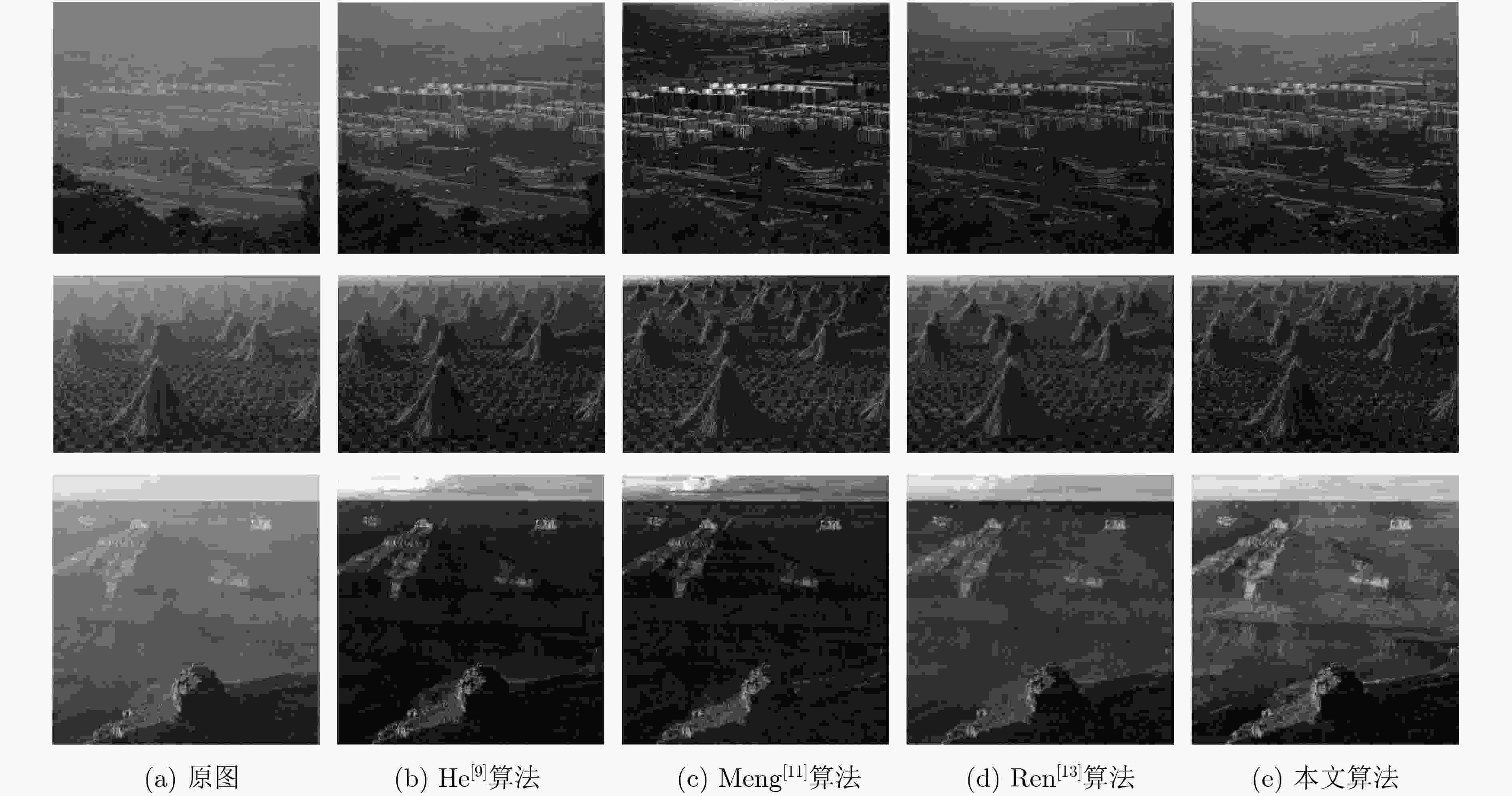

表 2 各个算法的
$e$ 和$r$ 指标对比图像 He[9]算法 Meng[11]算法 Ren[13]算法 Cai[12]算法 Sun[16]算法 本文算法 e r e r e r e r e r e r 1 4.50 1.28 5.82 1.79 7.55 1.47 2.76 1.08 6.44 1.22 9.01 1.41 2 8.44 1.69 5.36 2.48 20.71 1.52 17.87 1.56 15.74 1.49 18.68 1.81 3 13.89 1.70 22.56 2.59 10.82 1.97 9.11 1.47 11.22 2.01 21.83 2.01 4 10.83 1.48 24.93 3.77 27.00 3.01 9.87 1.36 12.74 1.99 22.63 2.22 5 6.87 1.28 12.12 1.69 15.61 1.76 11.10 1.28 17.25 2.06 17.18 1.64 6 26.23 1.73 31.11 1.90 31.36 2.60 18.85 1.30 22.75 1.94 30.04 2.38 7 15.51 1.85 38.03 4.12 20.35 2.55 14.53 1.63 24.74 2.98 18.47 2.95 8 3.69 1.41 3.12 1.58 8.94 1.79 2.49 1.13 6.33 1.74 8.56 1.42 均值 11.24 1.55 17.88 2.49 17.79 2.08 11.82 1.35 14.65 1.93 18.30 1.98
下载: 导出CSV
表 3 各个算法的
$\theta $ 和$T(s)$ 指标对比图像 He[9]算法 Meng[11]算法 Ren[13]算法 Cai[12]算法 Sun[16]算法 本文算法 $\theta $ T $\theta $ T $\theta $ T $\theta $ T $\theta $ T $\theta $ T 1 0.00018 2.51 0.00651 3.80 0 4.27 0.00931 3.01 0.00347 2.47 0.00001 2.65 2 0.00022 2.56 0.00355 3.16 0 3.05 0 2.87 0.00019 2.67 0.00001 2.04 3 0.00031 2.38 0.00066 3.08 0 3.78 0.00197 2.94 0.00162 2.01 0 2.06 4 0 2.61 0.00003 4.54 0 4.60 0.00126 2.98 0.00276 2.39 0 2.07 5 0.00036 2.46 0.00004 3.50 0.00013 2.67 0 4.01 0 2.00 0 2.07 6 0.00161 2.80 0 4.40 0 3.36 0.00118 3.68 0.00019 2.17 0 2.09 7 0.00009 3.02 0.00014 5.10 0 3.22 0 3.31 0 2.57 0 2.43 8 0.00294 3.94 0.00079 6.55 0.00018 3.34 0.00169 7.34 0.00024 2.77 0.00016 2.55 均值 0.00071 2.78 0.00146 4.27 0.00003 3.53 0.00192 3.77 0.00105 2.38 0.00002 2.25
下载: 导出CSV
-
周妍, 李庆武, 霍冠英. 基于非下采样Contourlet变换系数直方图匹配的自适应图像增强[J]. 光学 精密工程, 2014, 22(8): 2214–2222. doi: 10.3788/OPE.20142208.2214ZHOU Yan, LI Qingwu, and HUO Guanying. Adaptive image enhancement based on NSCT coefficient histogram matching[J]. Optics and Precision Engineering, 2014, 22(8): 2214–2222. doi: 10.3788/OPE.20142208.2214 CHEN Yang, LI Dan, and ZHANG Jianqiu. Complementary color wavelet: A novel tool for the color image/video analysis and processing[J]. IEEE Transactions on Circuits and Systems for Video Technology, 2019, 29(1): 12–27. doi: 10.1109/TCSVT.2017.2776239 刘海波, 杨杰, 吴正平, 等. 基于暗通道先验和Retinex理论的快速单幅图像去雾方法[J]. 自动化学报, 2015, 41(7): 1264–1273. doi: 10.16383/j.aas.2015.c140748LIU Haibo, YANG Jie, WU Zhengping, et al. A fast single image dehazing method based on dark channel prior and Retinex theory[J]. Acta Automatica Sinica, 2015, 41(7): 1264–1273. doi: 10.16383/j.aas.2015.c140748 SCHECHNER Y Y, NARASIMHAN S G, and NAYAR S K. Polarization-based vision through haze[J]. Applied Optics, 2003, 42(3): 511–525. doi: 10.1364/AO.42.000511 NARASIMHAN S G and NAYAR S K. Interactive (de) weathering of an image using physical models[C]. 2003 IEEE Workshop on Color and Photometric Methods in Computer Vision, Nice, France, 2003: 1–8. TAN R T. Visibility in bad weather from a single image[C]. 2008 IEEE Conference on Computer Vision and Pattern Recognition, Anchorage, USA, 2008: 1–8. doi: 10.1109/CVPR.2008.4587643. FATTAL R. Single image dehazing[J]. ACM Transactions on Graphics, 2008, 27(3): 72. doi: 10.1145/1360612.1360671 TAREL J P and HAUTIÈRE N. Fast visibility restoration from a single color or gray level image[C]. The 12th IEEE International Conference on Computer Vision, Kyoto, Japan, 2009: 2201–2208. HE Kaiming, SUN Jian, and TANG Xiaoou. Single image haze removal using dark channel prior[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2011, 33(12): 2341–2353. doi: 10.1109/TPAMI.2010.168 ZHU Qingsong, MAI Jiaming, and SHAO Ling. A fast single image haze removal algorithm using color attenuation prior[J]. IEEE Transactions on Image Processing, 2015, 24(11): 3522–3533. doi: 10.1109/TIP.2015.2446191 MENG Gaofeng, WANG Ying, DUAN Jiangyong, et al. Efficient image dehazing with boundary constraint and contextual regularization[C]. 2013 IEEE International Conference on Computer Vision, Sydney, Australia, 2013: 617–624. CAI Bolun, XU Xiangmin, JIA Kui, et al. DehazeNet: An end-to-end system for single image haze removal[J]. IEEE Transactions on Image Processing, 2016, 25(11): 5187–5198. doi: 10.1109/TIP.2016.2598681 REN Wenqi, LIU Si, ZHANG Hua, et al. Single image dehazing via multi-scale convolutional neural networks[C]. The 14th European Conference on Computer Vision, Amsterdam, The Netherlands, 2016: 154–169. 江巨浪, 孙伟, 王振东, 等. 基于透射率权值因子的雾天图像融合增强算法[J]. 电子与信息学报, 2018, 40(10): 2388–2394. doi: 10.11999/JEIT171032JIANG Julang, SUN Wei, WANG Zhendong, et al. Integrated enhancement algorithm for hazy image using transmittance as weighting factor[J]. Journal of Electronics &Information Technology, 2018, 40(10): 2388–2394. doi: 10.11999/JEIT171032 HE Kaiming, SUN Jian, and TANG Xiaoou. Guided image filtering[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2013, 35(6): 1397–1409. doi: 10.1109/TPAMI.2012.213 SUN Wei, WANG Hao, SUN Changhao, et al. Fast single image haze removal via local atmospheric light veil estimation[J]. Computers & Electrical Engineering, 2015, 46: 371–383. doi: 10.1016/j.compeleceng.2015.02.009 MIN Xiongkuo, ZHAI Guangtao, GU Ke, et al. Objective quality evaluation of dehazed images[J]. IEEE Transactions on Intelligent Transportation Systems, 2019, 20(8): 2879–2892. doi: 10.1109/TITS.2018.2868771 杨爱萍, 王南, 庞彦伟, 等. 人工光源条件下夜间雾天图像建模及去雾[J]. 电子与信息学报, 2018, 40(6): 1330–1337. doi: 10.11999/JEIT170704YANG Aiping, WANG Nan, PANG Yanwei, et al. Nighttime haze removal based on new imaging model with artificial light sources[J]. Journal of Electronics &Information Technology, 2018, 40(6): 1330–1337. doi: 10.11999/JEIT170704 -
