A Motion Error Estimation Method Joint Envelope and Phase for 10 GHz Ultra-wideband Microwave Photonic-based SAR Image
-
摘要:

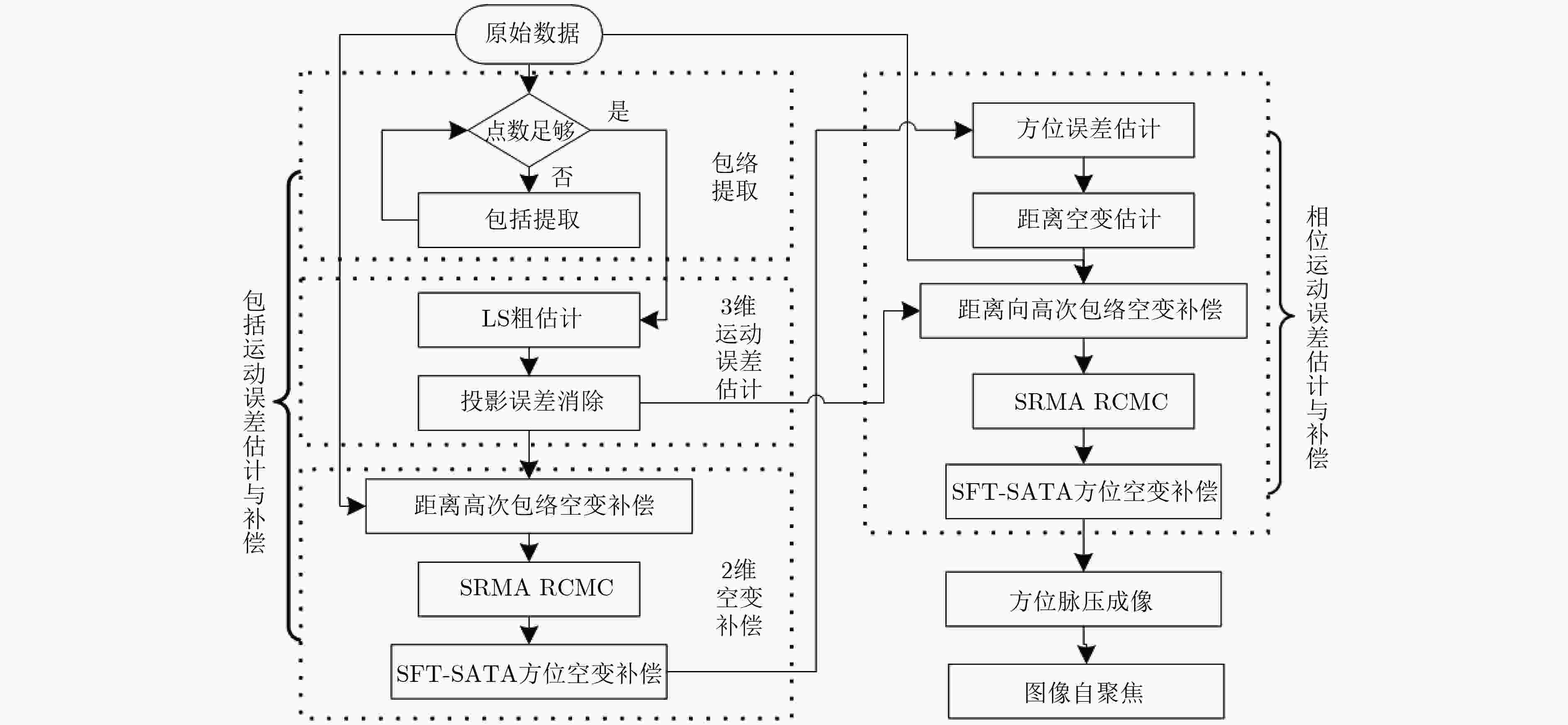

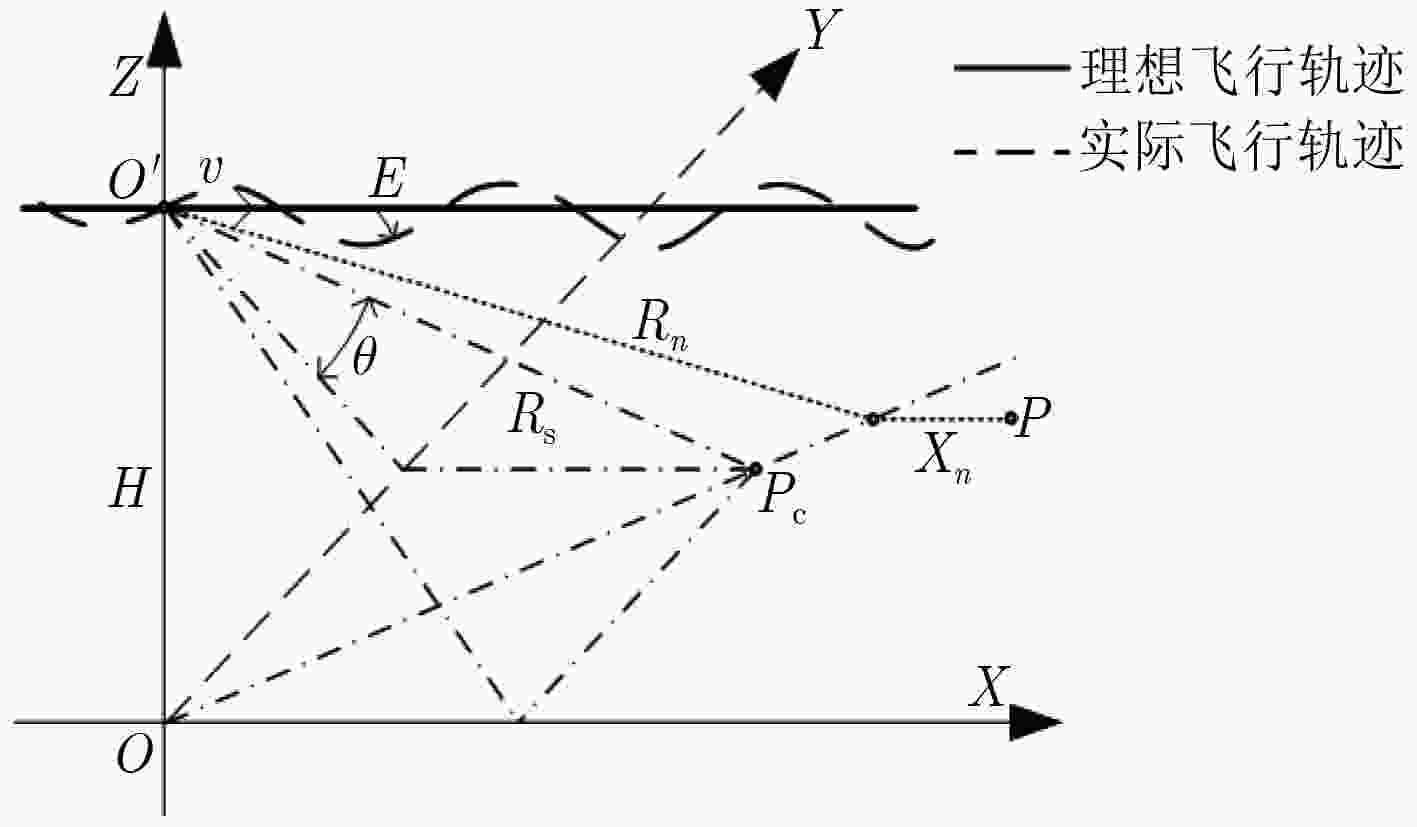

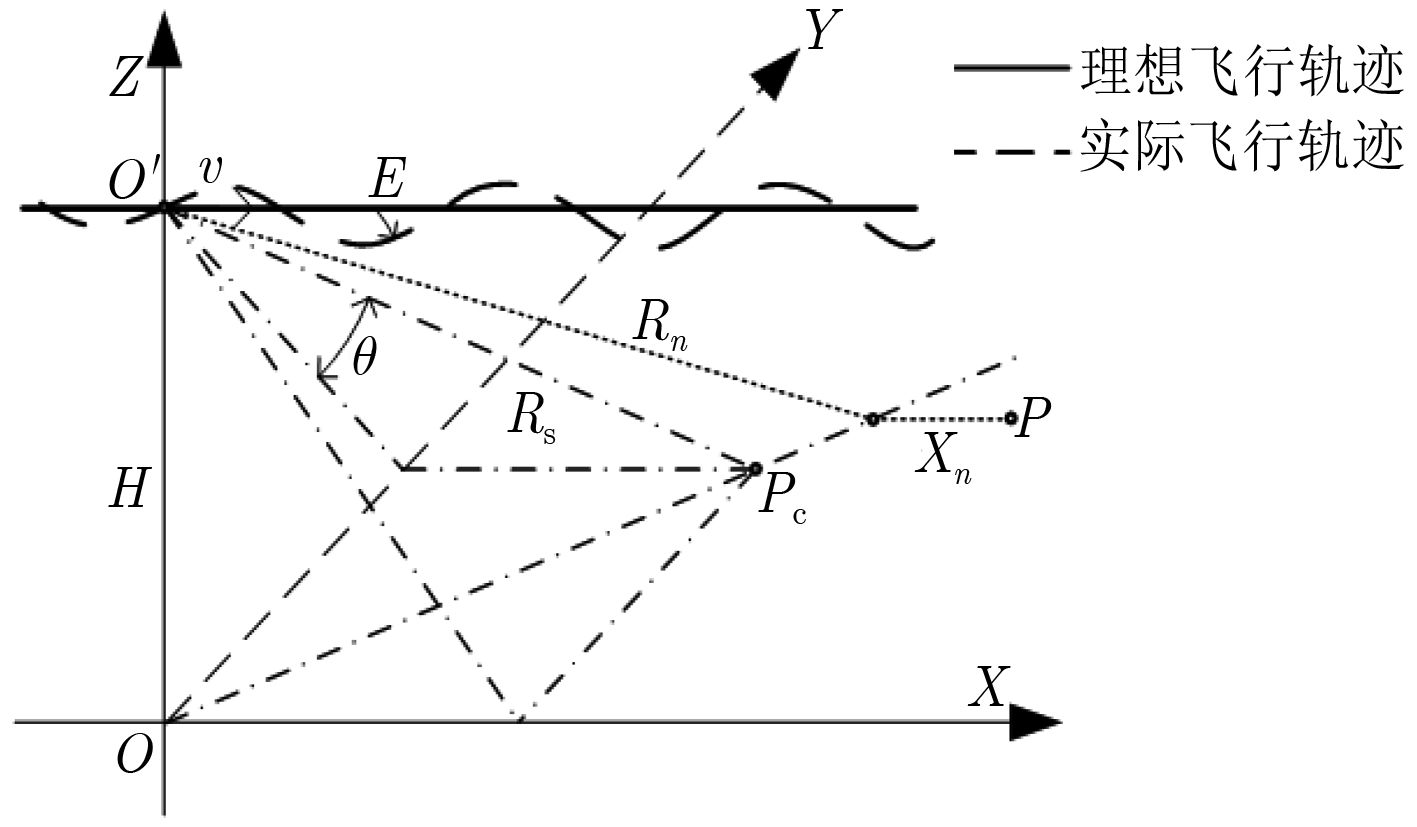

由于运动误差严重的2维空变性，对于10 GHz超宽带微波光子SAR，传统的直接从相位进行运动误差估计的方法估计精度不高。因此，该文提出一种包络与相位联合的超高分辨运动误差估计方法，能够在没有惯导信息时实现运动误差的精确估计。该方法首先在距离徙动矫正(RCMC)之前，通过对包络对齐算法(RAA)提取的包络信息采用最小二乘算法(LSA)与梯度下降算法(GDA)获得近似的3维运动误差。接着，对粗补偿与RCMC之后的数据，先消除方位相位空变，然后采用两维空变的相位误差估计方法获得剩余运动误差的精确估计。仿真和车载微波光子雷达实测数据验证了该方法的有效性。

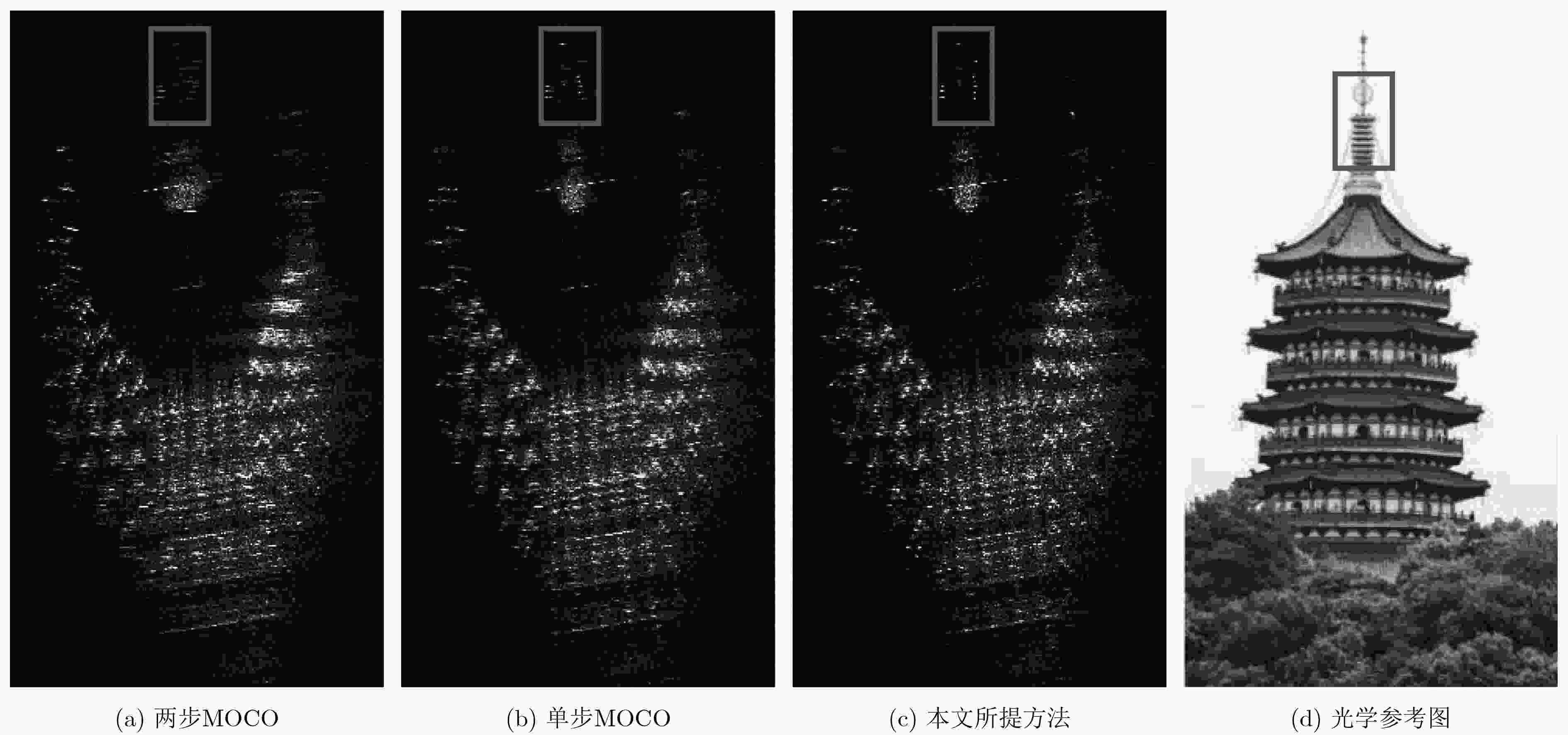

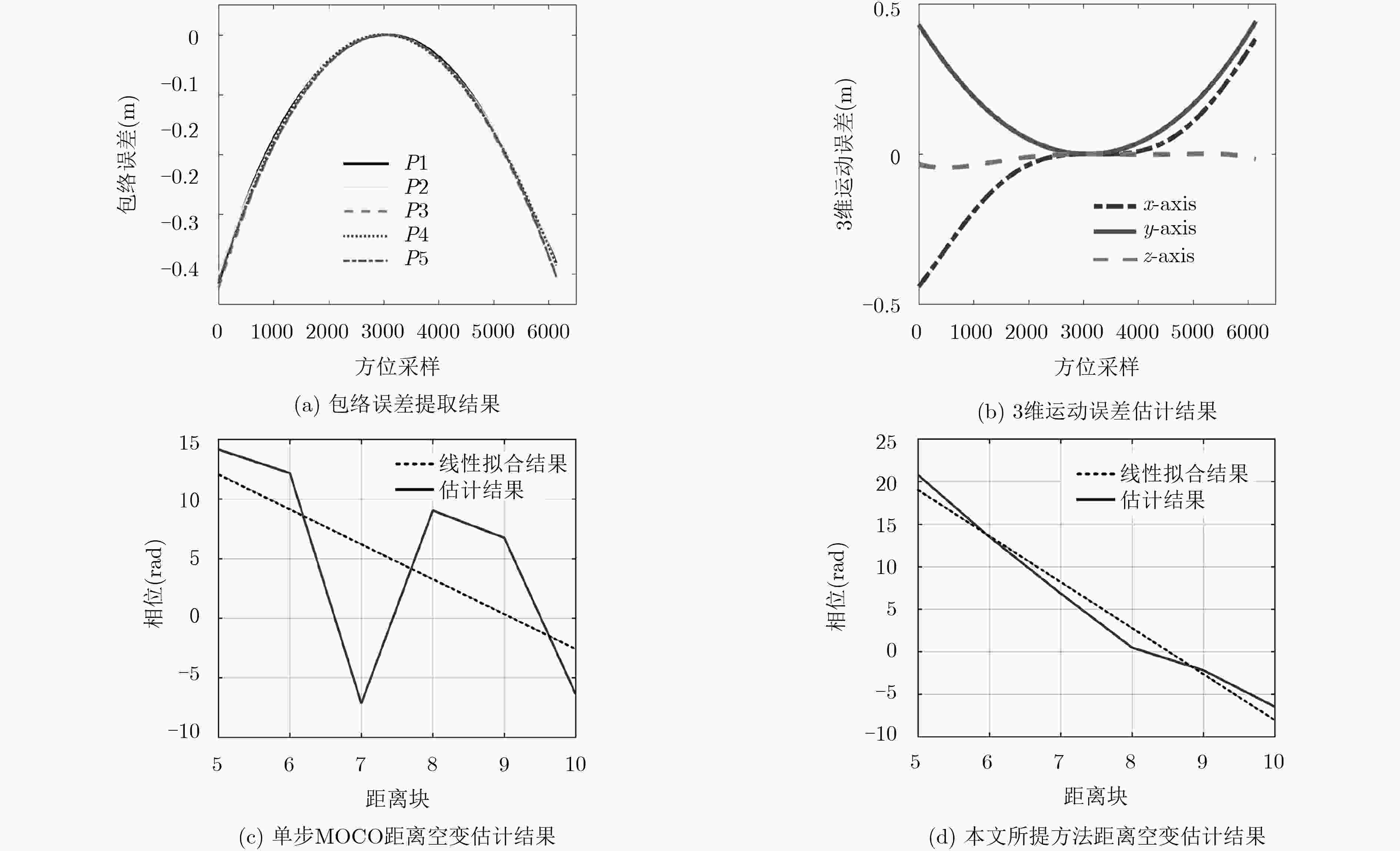

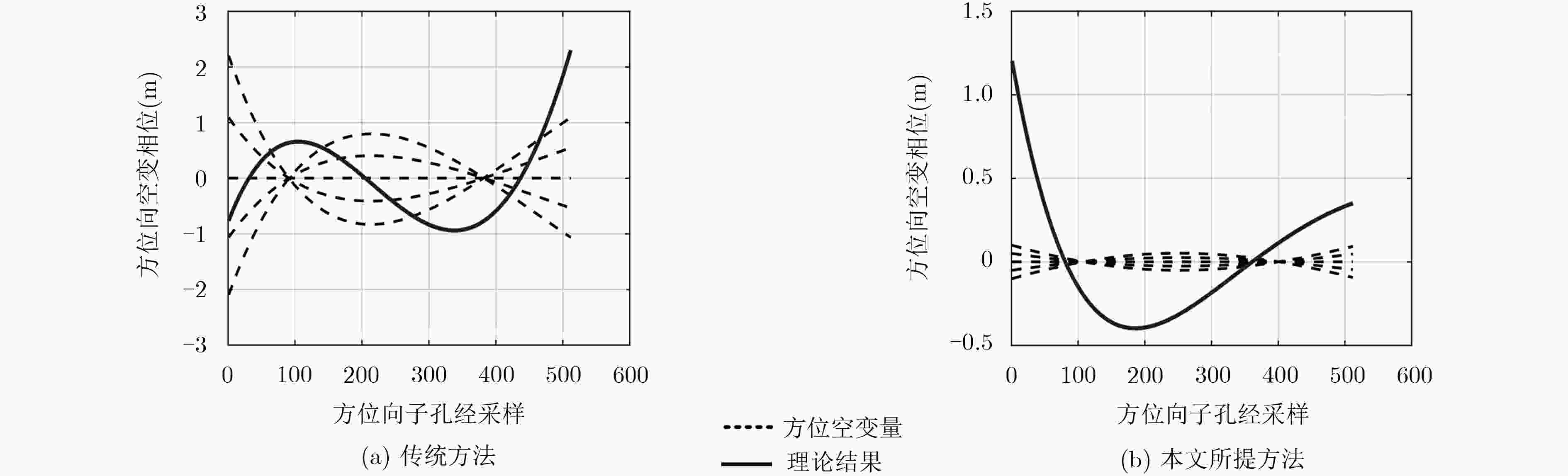

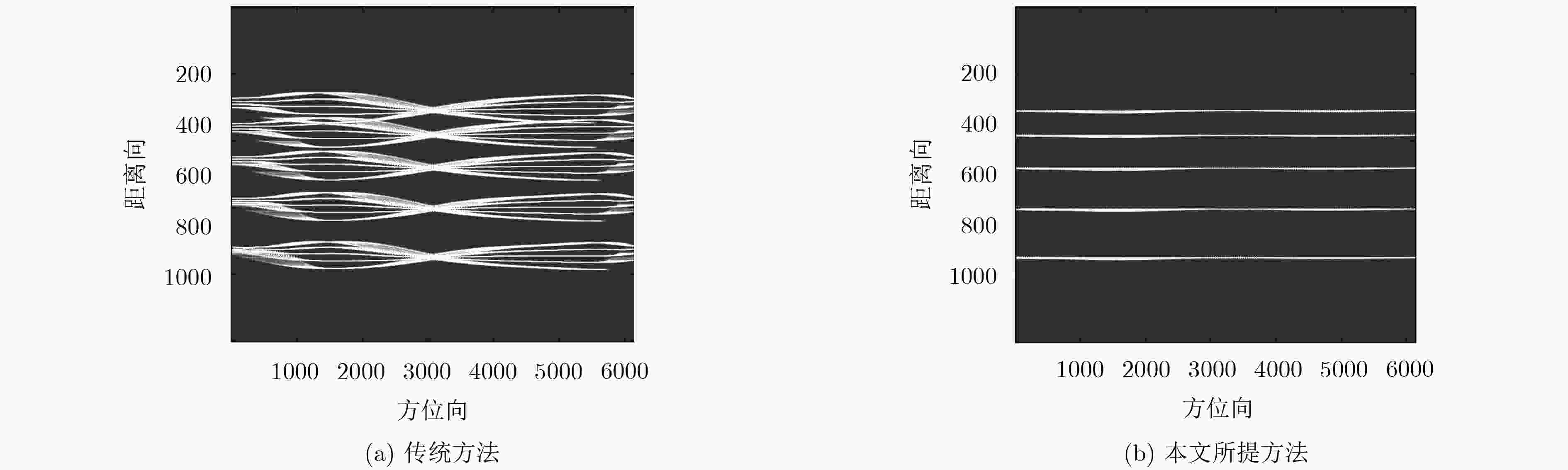

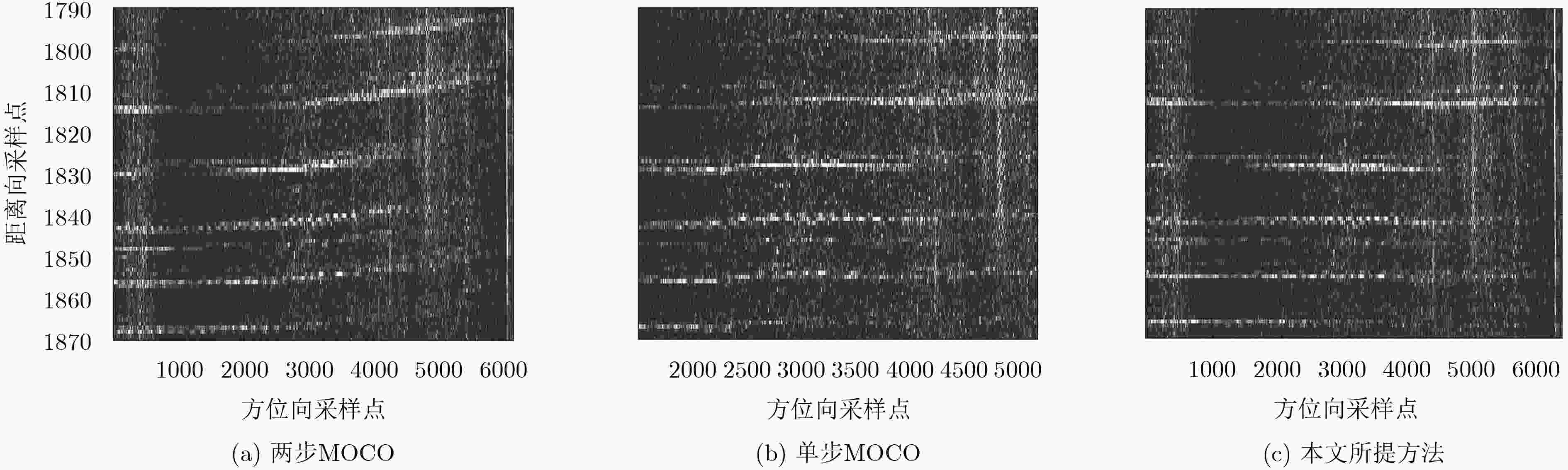

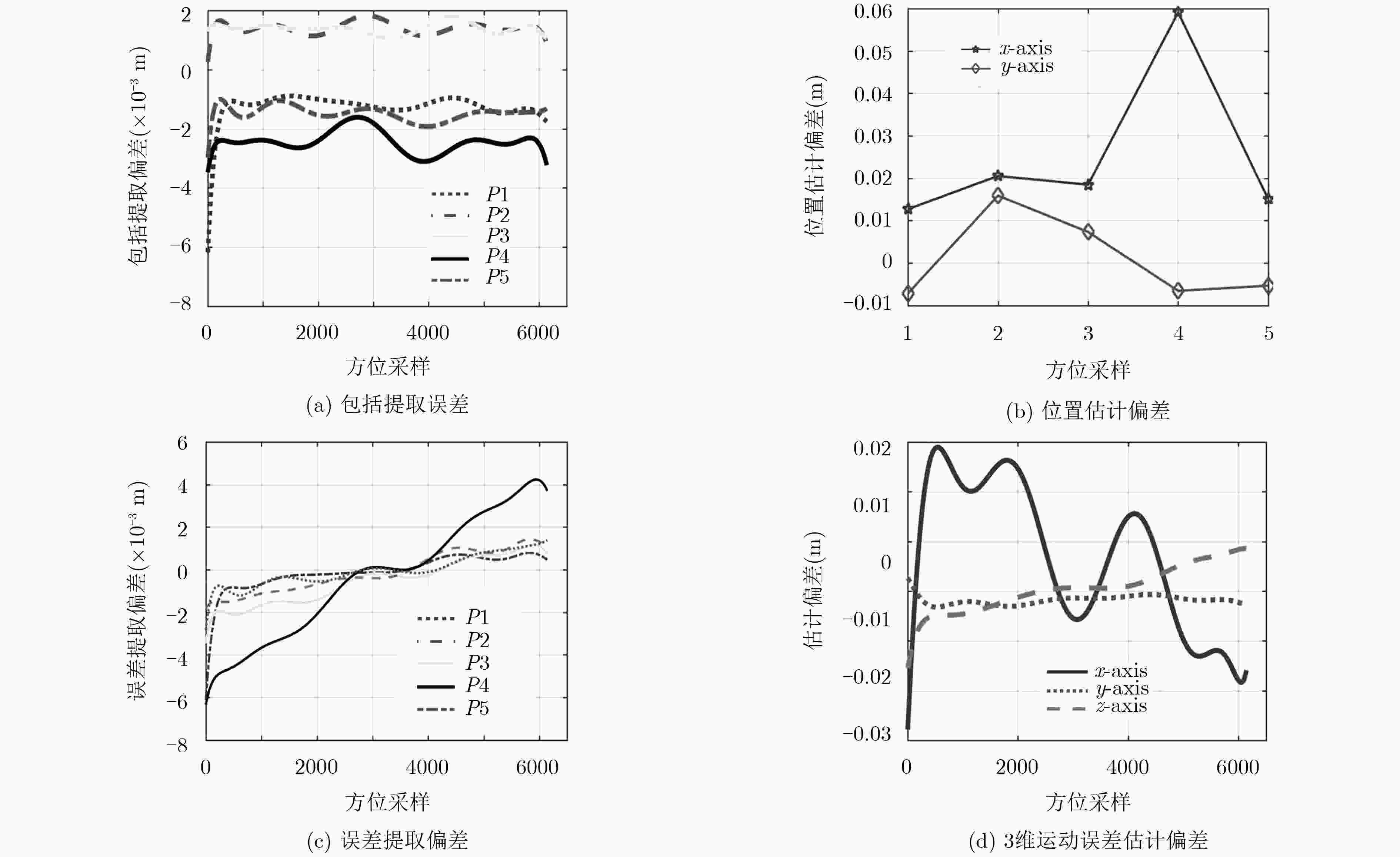

Abstract:Due to the 2-D vacancies with serious motion errors when processing 10 GHz ultra-wideband microwave photonic-based SAR, current motion error estimation methods directly estimating with phase error can not obtain correct estimation result in this paper. An ultra-high resolution SAR motion error estimation method jointing envelope and phase is proposed, which can realize accurate estimation of motion error without inertial information. Firstly, the approximate 3-D motion error is obtained by applying the Least Squares Algorithm (LSA) and the Gradient Descent Algorithm (GDA) to the envelope information extracted by the Range Alignment Algorithm (RAA) before Range Curve Migration Correction (RCMC). Then, phase-based motion error estimation is performed on the data after rough compensation and RCMC. After eliminating the azimuth variant phase error, the 2-D space-variant phase error estimation method is used to obtain accurate estimation of residual motion error. Processing of simulated data and real data acquired from vehicle-borne microwave photonic-based radar validates the effectiveness of the proposed method.
-

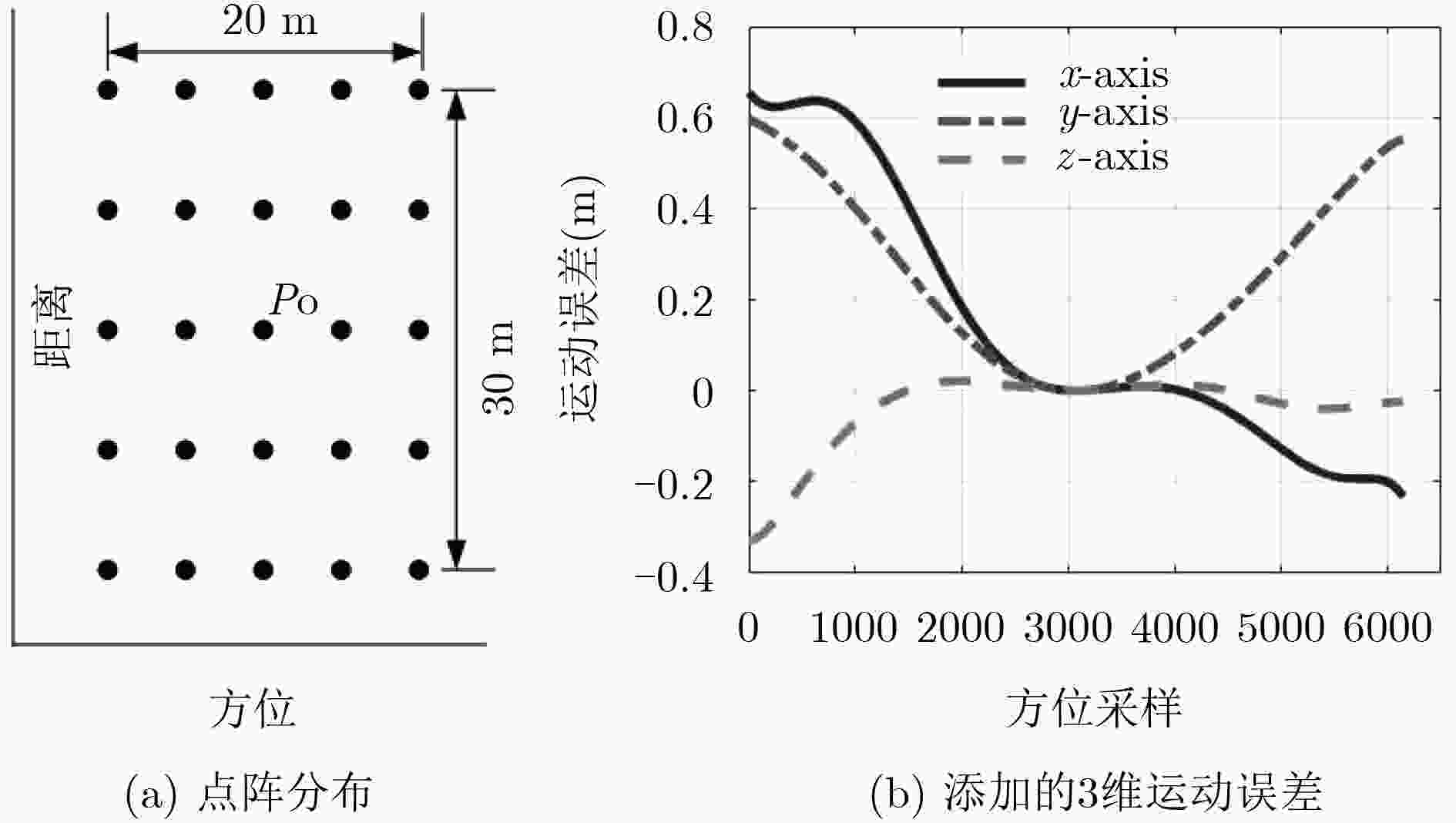

表 1 雷达系统参数
参数 值 参数 值 中心频率(GHz) 35 飞行速度(km/h) 10 带宽(GHz) 10 俯仰角(°) 13 采用频率(MHz) 500 距离分辨率(cm) 1.5 脉冲重复频率(Hz) 666 方位分辨率(cm) 2.5 中心斜距(m) 150
下载: 导出CSV
-
FORNARO G. Trajectory deviations in airborne SAR: Analysis and compensation[J]. IEEE Transactions on Aerospace and Electronic Systems, 1999, 35(3): 997–1009. doi: 10.1109/7.784069 FORNARO G, FRANCESCHETTI G, and PERNA S. On center-beam approximation in SAR motion compensation[J]. IEEE Geoscience and Remote Sensing Letters, 2006, 3(2): 276–280. doi: 10.1109/lgrs.2005.863391 MAO Xinhua, ZHU Daiyin, and ZHU Zhaoda. Polar format algorithm wavefront curvature compensation under arbitrary radar flight path[J]. IEEE Geoscience and Remote Sensing Letters, 2012, 9(3): 526–530. doi: 10.1109/lgrs.2011.2173291 YANG Lei, XING Mengdao, WANG Yong, et al. Compensation for the NsRCM and phase error after polar format resampling for airborne spotlight SAR raw data of high resolution[J]. IEEE Geoscience and Remote Sensing Letters, 2013, 10(1): 165–169. doi: 10.1109/lgrs.2012.2196676 MAO Xinhua, HE Xueli, DING Lan, et al. Ultra-high resolution (0.05 m) SAR image formation processing[C]. IEEE ISAP, Phuket, Thailand, 2017: 1–2. BERNNER A. Ultra-high resolution airborne SAR imaging of vegetation and man-made objects based on 40-relative bandwidth in X-band[C]. IGARSS, Munich, Germany, 2012: 7397–7400. ZHANG Lei, WANG Guanyong, QIAO Zhijun, et al. Azimuth motion compensation with improved subaperture algorithm for airborne SAR imaging[J]. IEEE Journal of Selected Topics in Applied Earth Observation and Remote Sensing, 2017, 10(1): 184–193. doi: 10.1109/jstars.2016.2577588 CHEN Jianlai, XING Mengdao, SUN Guangcai, et al. A 2-D space-variant motion estimation and compensation method for ultrahigh-resolution airborne stepped-frequency SAR with long integration time[J]. IEEE Transactions on Geoscience and Remote Sensing, 2017, 55(11): 6390–6401. doi: 10.1109/tgrs.2017.2727060 CANTALLOUBE H. SAR retrieval of a ship vertical profile from her roll and pitch motion[C]. European Conference on Synthetic Aperture Radar, Offenbach, Germany, 2014: 1–4. YANG Mingdong, ZHU Daiyin, and SONG Wei. Comparison of two-step and one-step motion compensation algorithms for airborne synthetic aperture radar[J]. Electronics Letters, 2015, 51(14): 1108–1110. doi: 10.1049/el.2015.1350 REIGBER A, ALIVIZATOS E, POTSIS A, et al. Extended wavenumber-domain synthetic aperture radar focusing with integrated motion compensation[J]. IEE Proceedings - Radar, Sonar and Navigation, 2006, 153(3): 301–310. doi: 10.1049/ip-rsn:20045087 XU Gang, XING Mengdao, ZHANG Lei, et al. Robust autofocusing approach for highly squinted SAR imagery using the extended wavenumber algorithm[J]. IEEE Transactions on Geoscience and Remote Sensing, 2013, 51(10): 5031–5046. doi: 10.1109/tgrs.2013.2276112 HONGBON J. Aperture synthesis with a non-regular distribution of interferometer baselines[J]. Astronomy and Astrophysics Supplement series, 1974, 15(3): 417–426. ZHOU Song, YANG Lei, ZHAO Lifan, et al. Forward velocity extraction from UAV raw SAR data based on adaptive notch filtering[J]. IEEE Geoscience and Remote Sensing Letters, 2016, 13(9): 1211–1215. doi: 10.1109/lgrs.2016.2576359 WEHNER D. High Resolution Radar[M]. Norwood: Ma Artech House Inc P, 1987. CHEN Chungching and ANDREWS C. Target-motion-induced radar imaging[J]. IEEE Transactions on Aerospace and Electronic Systems, 1980, 16(1): 2–14. doi: 10.1109/taes.1980.308873 WANG Kun, LUO Lin, and BAO Zhen. Global optimum method for alignment in ISAR imagery[C]. Radar Systems, Edinburgh, Britain, 1997: 233–235. WO Jianghai, WANG anle, ZHANG Jin, et al. Wideband tunable microwave generation using a dispersion compensated optoelectronic oscillator[C]. IEEE OECC and PGC, 2017: 1–2. LAGHEZZA F, SCOTTI F, ONORI D, et al. ISAR imaging of non-cooperative targets via dual band photonics-based radar system[C]. IEEE International Radar Symposium, Philadelphia, American, 2016: 1–4. -
