基于Mann-Whitney秩和检验的无线局域网室内映射与定位方法

周牧; 王烟濛; 袁慧; 田增山

doi:10.11999/JEIT180392

基于Mann-Whitney秩和检验的无线局域网室内映射与定位方法

doi: 10.11999/JEIT180392

重庆邮电大学通信与信息工程学院重庆 400065

基金项目: 国家自然科学基金(61771083, 61704015)，重庆市研究生科研创新项目(CYS17221, CYS18240)，长江学者和创新团队发展计划(IRT1299)，重庆市科委重点实验室专项经费，重庆市基础与前沿研究计划基金资助项目（cstc2017jcyjAX0380，cstc2015jcyjBX0065），重庆市高校优秀成果转化(KJZH17117)

详细信息

作者简介:
周牧：男，1984年生，教授，研究方向为无线定位技术、机器学习与人工智能、凸优化理论

王烟濛：女，1994年生，硕士生，研究方向为室内WLAN定位技术、定位性能评估技术

袁慧：女，1994年生，硕士，研究方向为室内Wi-Fi定位技术、定位网络优化

田增山：男，1968年生，教授，博士生导师，研究方向为移动通信、个人通信、GPS及蜂窝网定位技术

通讯作者:
王烟濛　hiwangym@gmail.com

中图分类号: TN929.5
计量
- 文章访问数: 1830
- HTML全文浏览量: 677
- PDF下载量: 72
- 被引次数: 0
出版历程
- 收稿日期: 2018-04-26
- 修回日期: 2019-03-08
- 网络出版日期: 2019-03-28
- 刊出日期: 2019-07-01

Mann-Whitney Rank Sum Test Based Wireless Local Area Network Indoor Mapping and Localization Approach

School of Communication and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China

Funds: The National Natural Science Foundation of China (61771083, 61704015), The Postgraduate Scientific Research and Innovation Project of Chongqing (CYS17221, CYS18240), The Program for Changjiang Scholars and Innovative Research Team in University (IRT1299), The Fundamental and Frontier Research Project of Chongqing (cstc2017jcyjAX0380, cstc2015jcyjBX0065), The University Outstanding Achievement Transformation Project of Chongqing (KJZH17117)

摘要

摘要: 该文提出一种基于Mann-Whitney秩和检验的无线局域网(WLAN)室内映射与定位方法。该方法首先根据实际定位精度需求对目标区域中的运动路径进行分段，同时基于Mann-Whitney秩和检验方法合并相似运动路径片段；然后，利用一种基于相似接收信号强度(RSS)序列片段的信号聚类算法，保证同一聚类中RSS样本的物理邻接关系；最后，通过骨干节点的扩散映射，建立物理与信号空间的映射关系，实现对运动用户的定位。实验结果表明，相比于已有WLAN室内映射与定位方法，该文方法在无需运动传感器辅助和构建位置指纹数据库的条件下，能够实现更高的映射与定位精度。
- 无线局域网 /
- 室内定位 /
- 行为分析 /
- Mann-Whitney秩和检验 /
- 空间映射
Abstract: The Mann-Whitney rank sum test based Wireless Local Area Network (WLAN) indoor mapping and localization approach is proposed. Firstly, according to the localization accuracy requirement, this approach performs the motion paths segmentation in target area, and meanwhile merges the similar motion path segments based on the Mann-Whitney rank sum test. Then, a signal clustering algorithm based on the similar Received Signal Strength (RSS) sequence segments is adopted to guarantee the physical adjacency of the RSS samples in the same cluster. Finally, the backbone nodes based diffusion mapping is used to construct the mapping relations between the physical and signal spaces, and the motion user localization is consequently achieved. The experimental results indicate that compared with the existing WLAN indoor mapping and localization approaches, the proposed one is able to achieve higher mapping and localization accuracy without motion sensor assistance or location fingerprint database construction.
- Wireless Local Area Network (WLAN) /
- Indoor localization /
- Behavior analysis /
- Mann-Whitney rank sum test /
- Space mapping

HTML全文

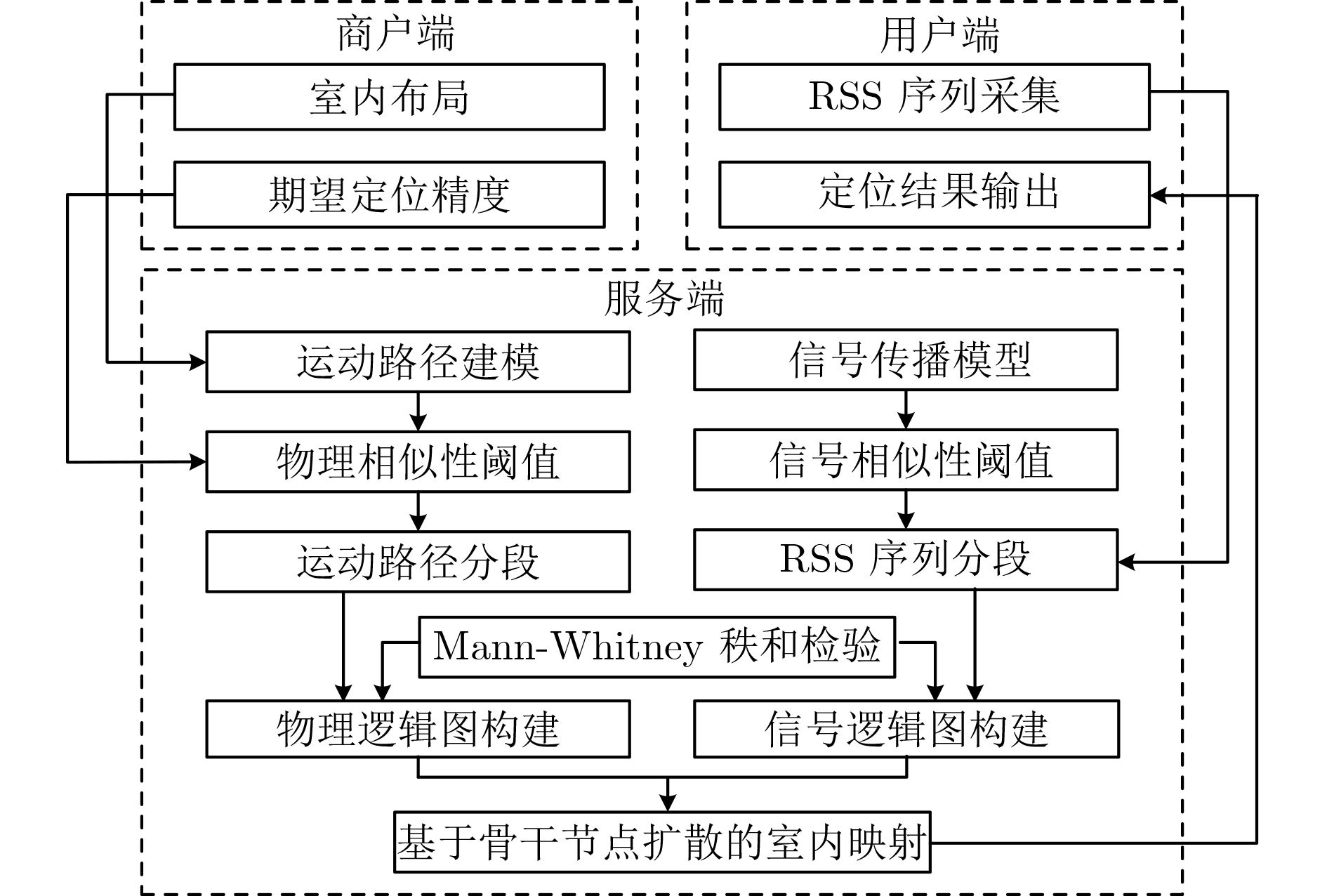

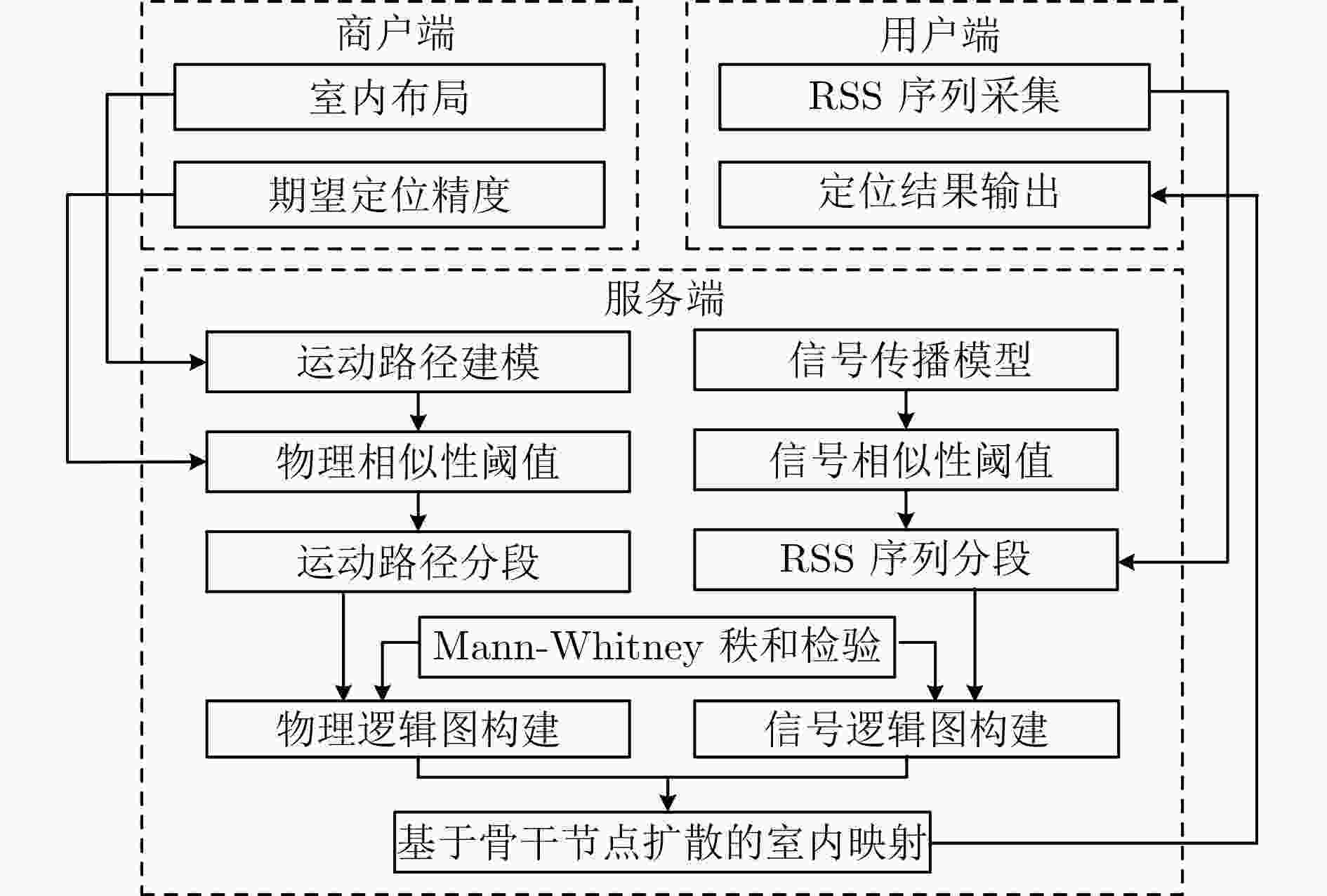

图 1 系统架构

下载: 全尺寸图片幻灯片

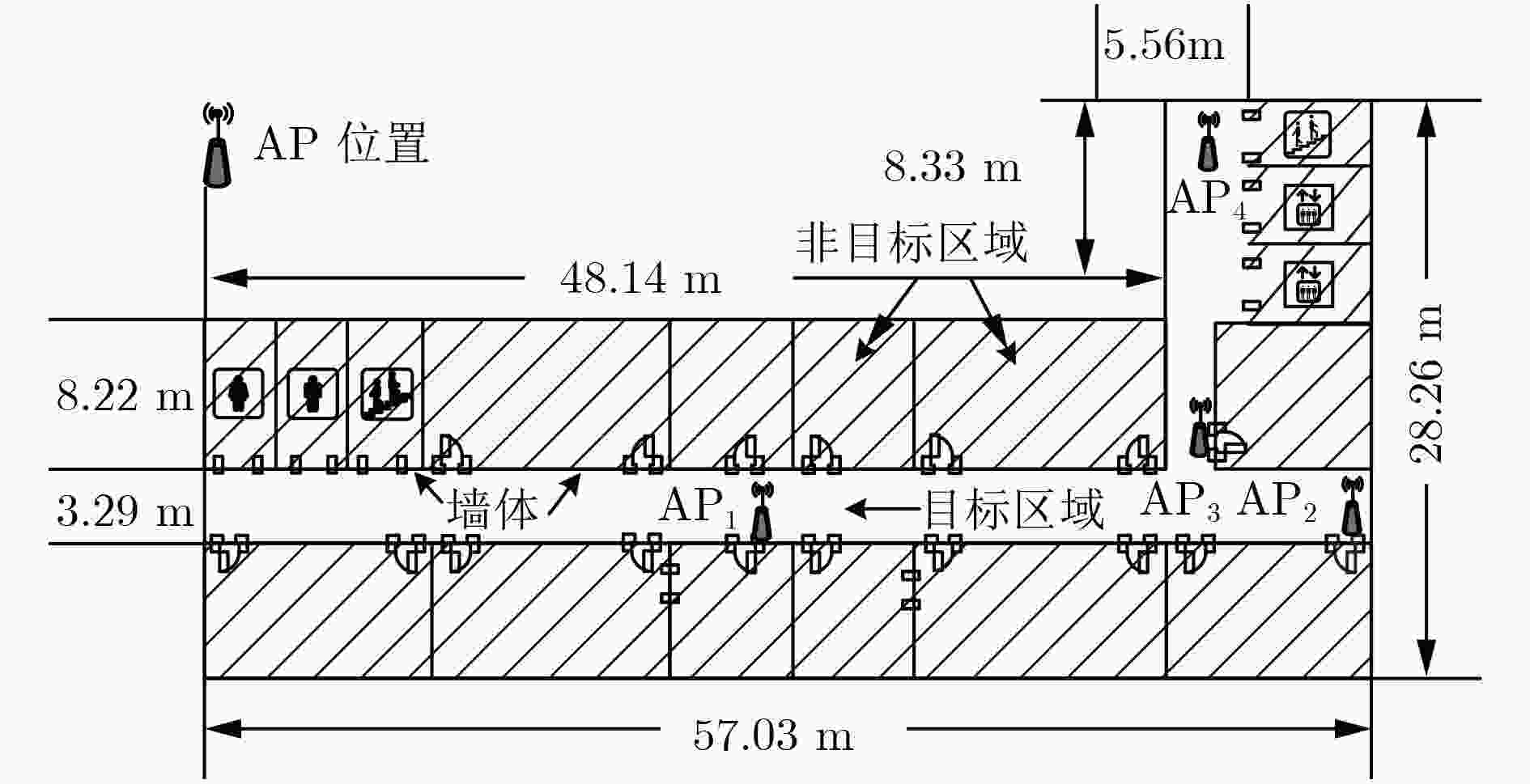

图 2 目标区域结构图

下载: 全尺寸图片幻灯片

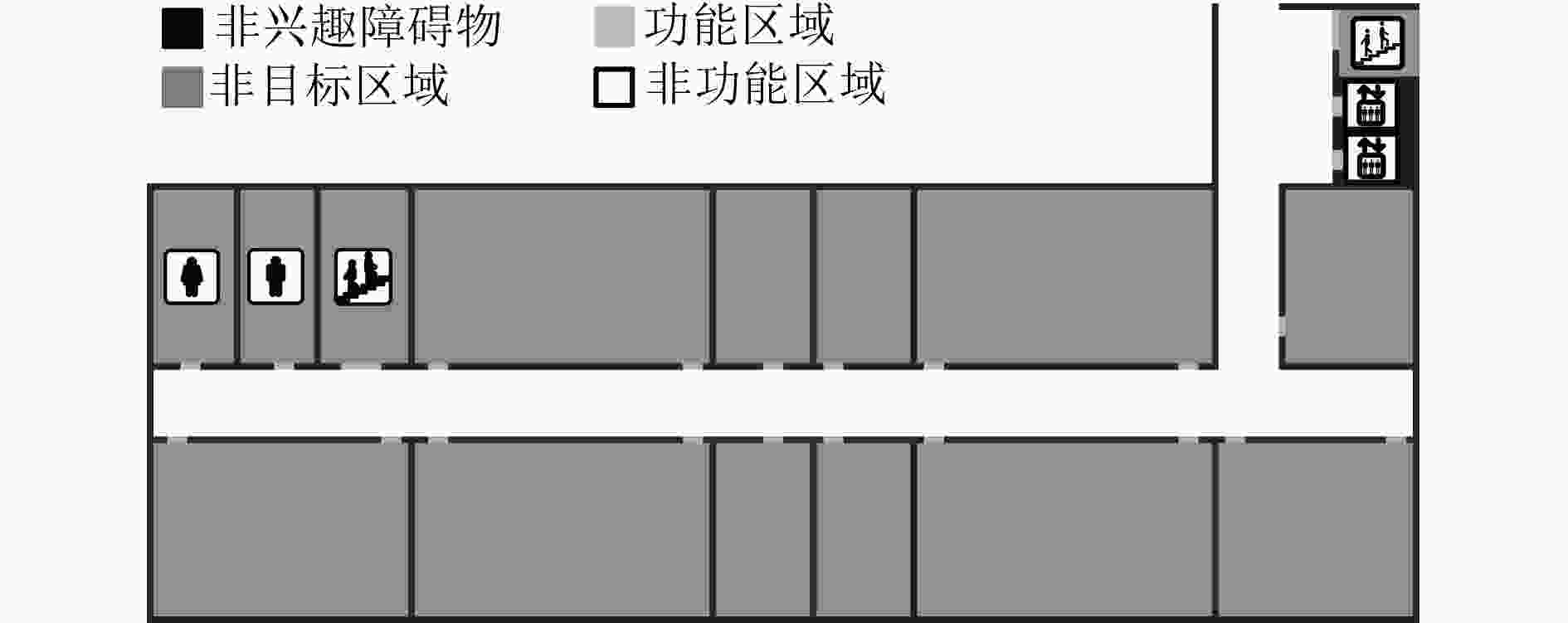

图 3 目标区域图像

下载: 全尺寸图片幻灯片

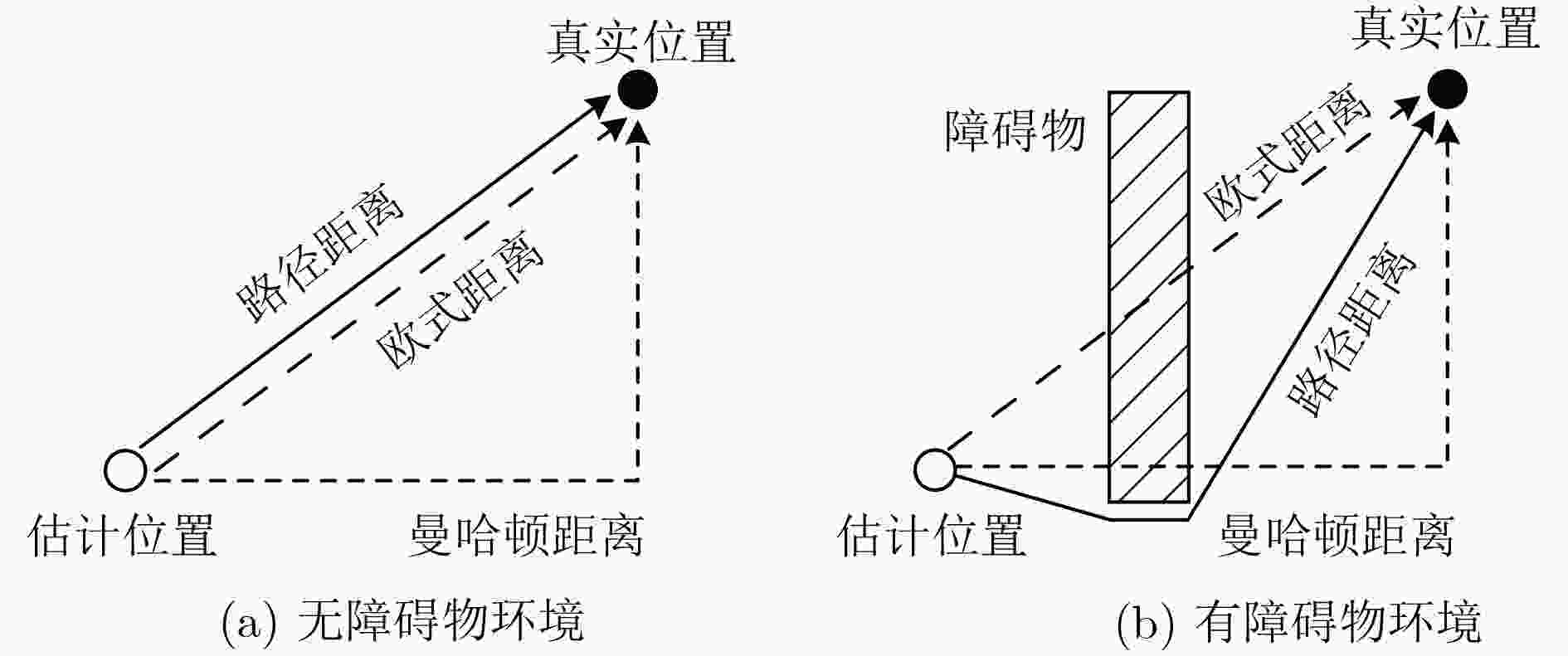

图 4 不同环境中的距离度量比较

下载: 全尺寸图片幻灯片

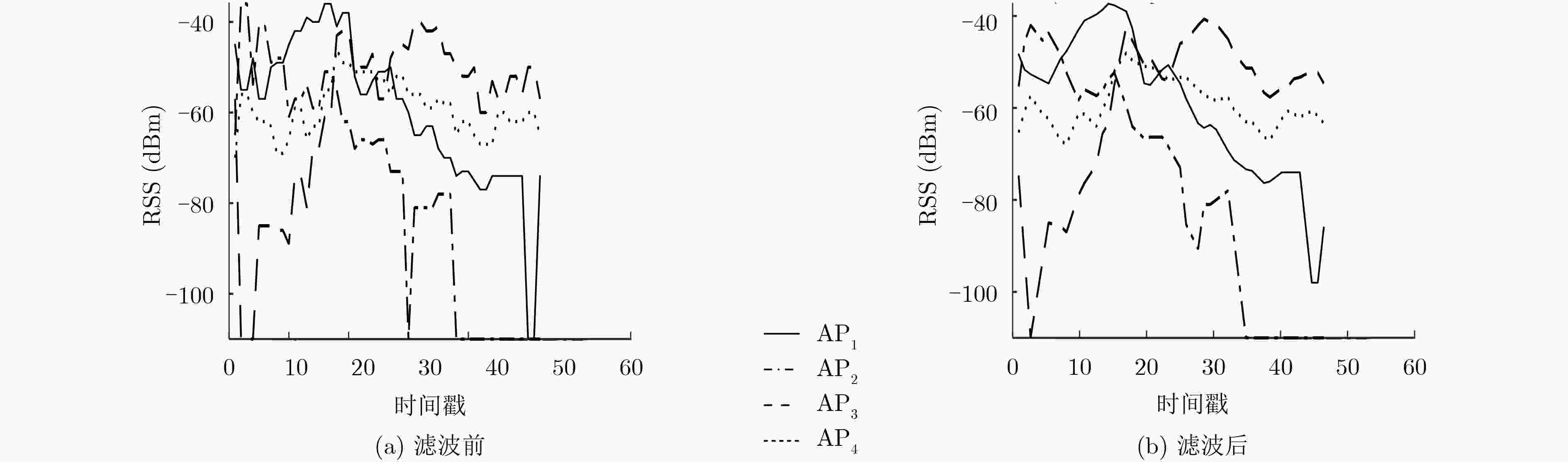

图 5 某一RSS序列均值滤波结果

下载: 全尺寸图片幻灯片

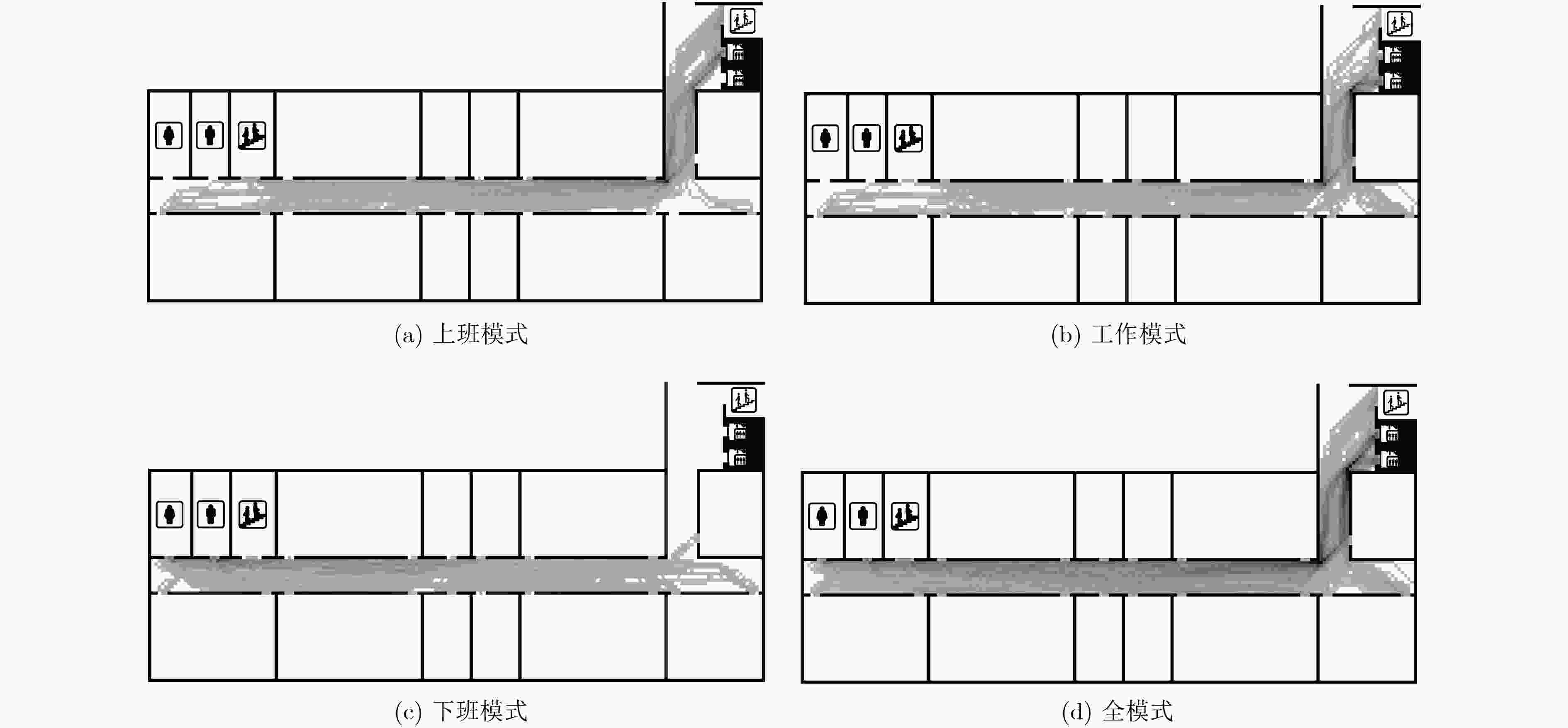

图 6 不同假设模式下的运动路径仿真结果

下载: 全尺寸图片幻灯片

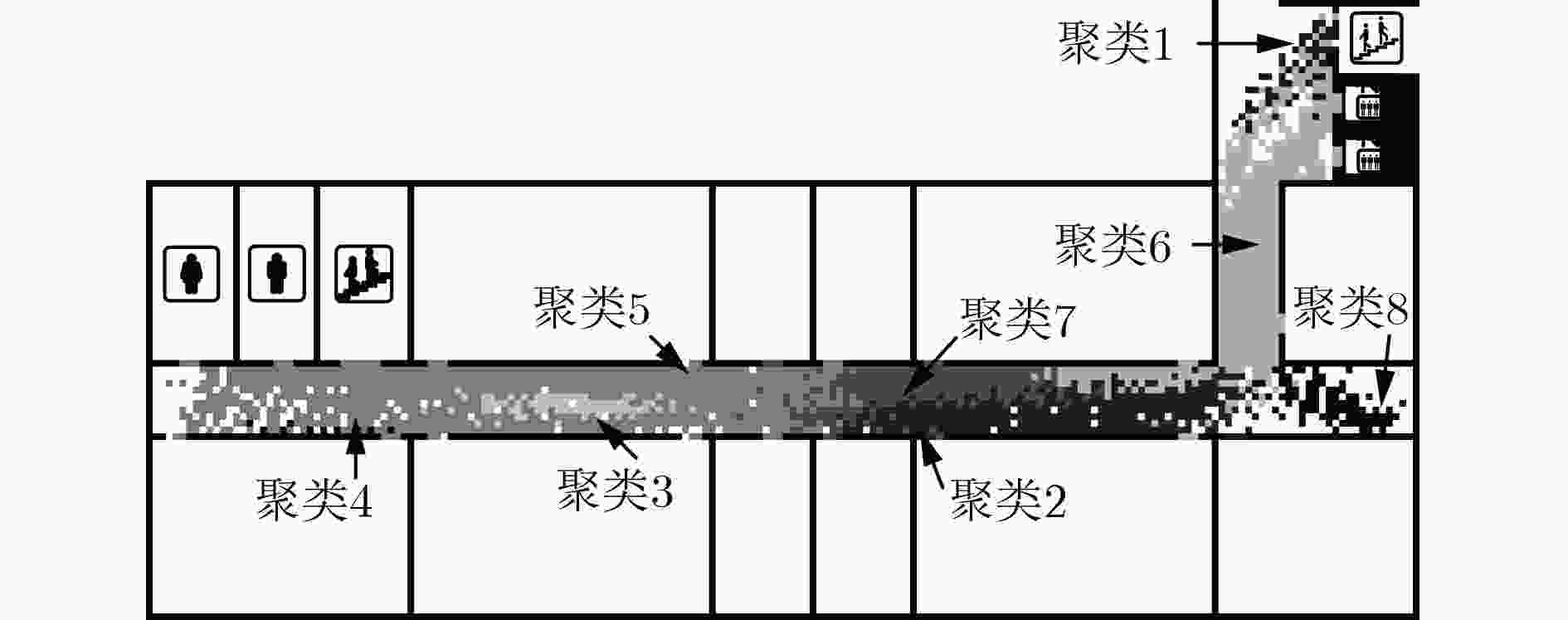

图 7 运动路径片段聚类结果

下载: 全尺寸图片幻灯片

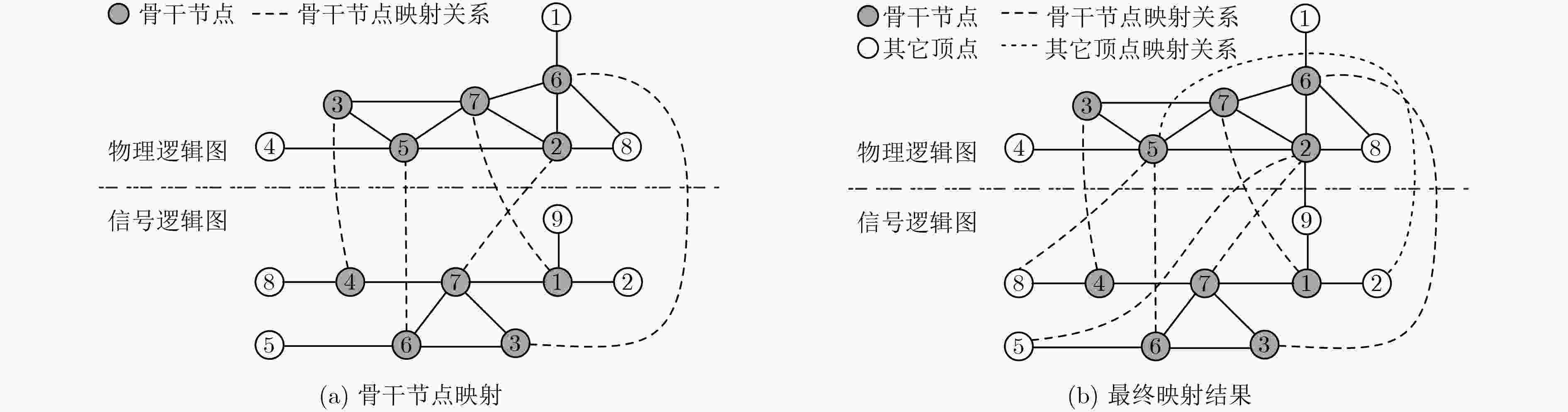

图 9 物理与信号逻辑图映射关系

下载: 全尺寸图片幻灯片

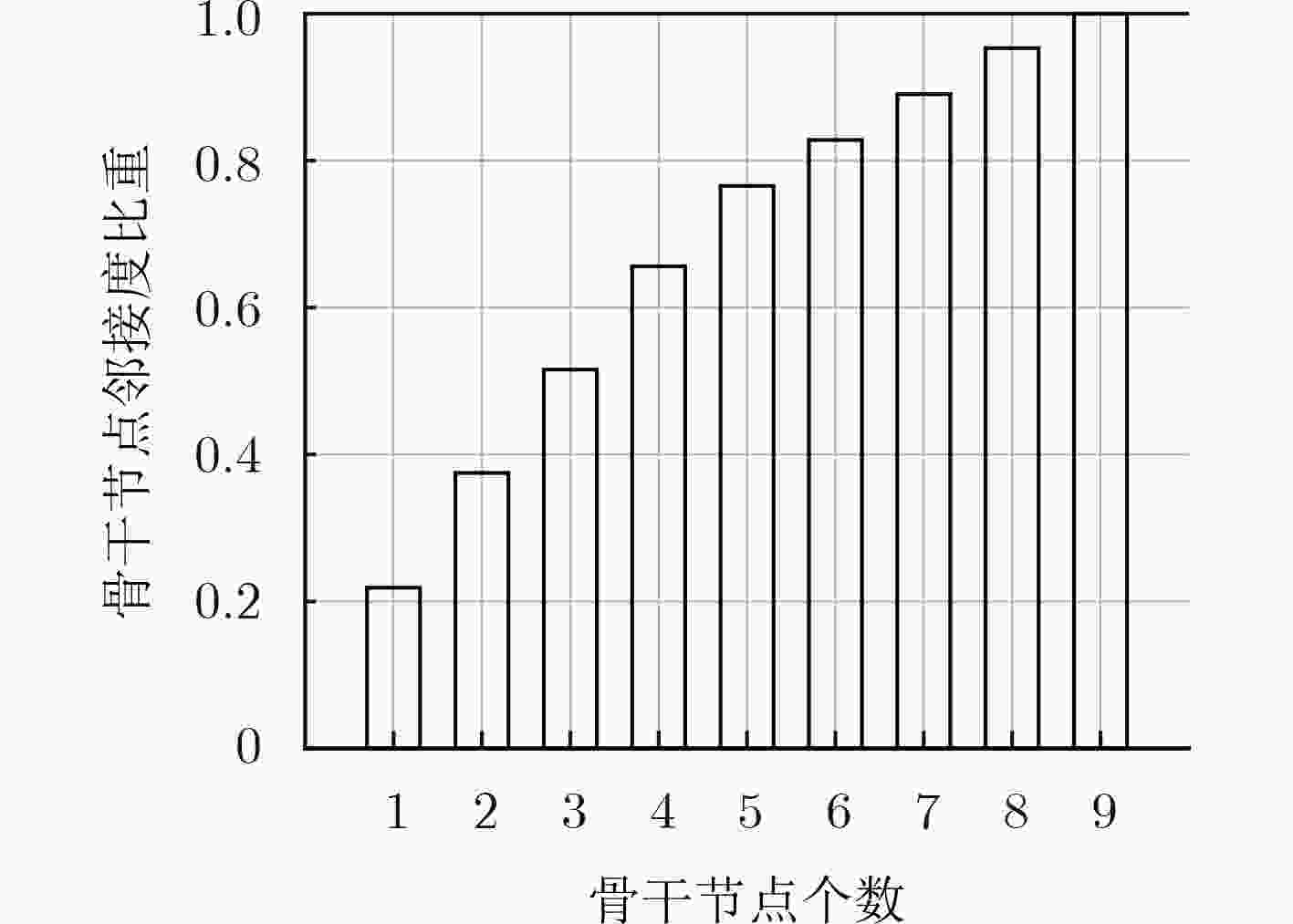

图 8 骨干节点集合重要性对比

下载: 全尺寸图片幻灯片

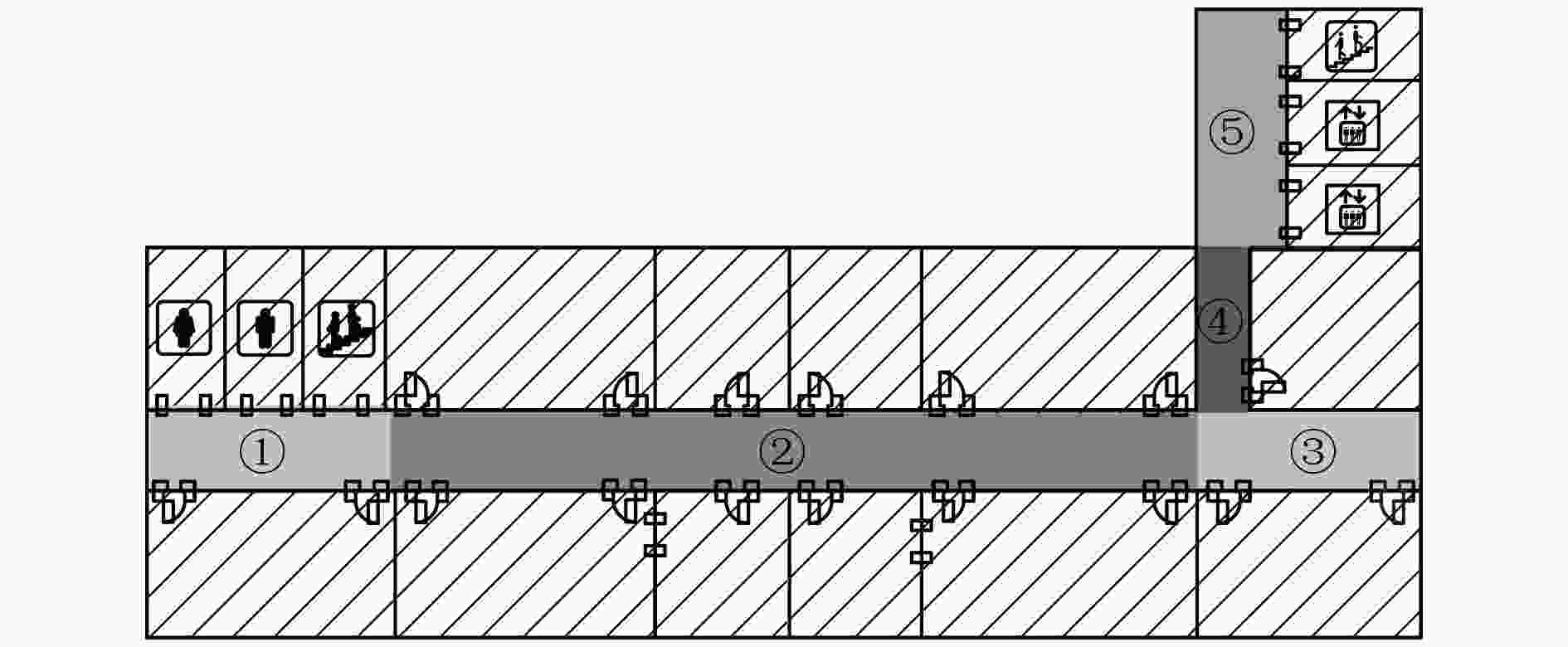

图 10 目标区域划分结果

下载: 全尺寸图片幻灯片

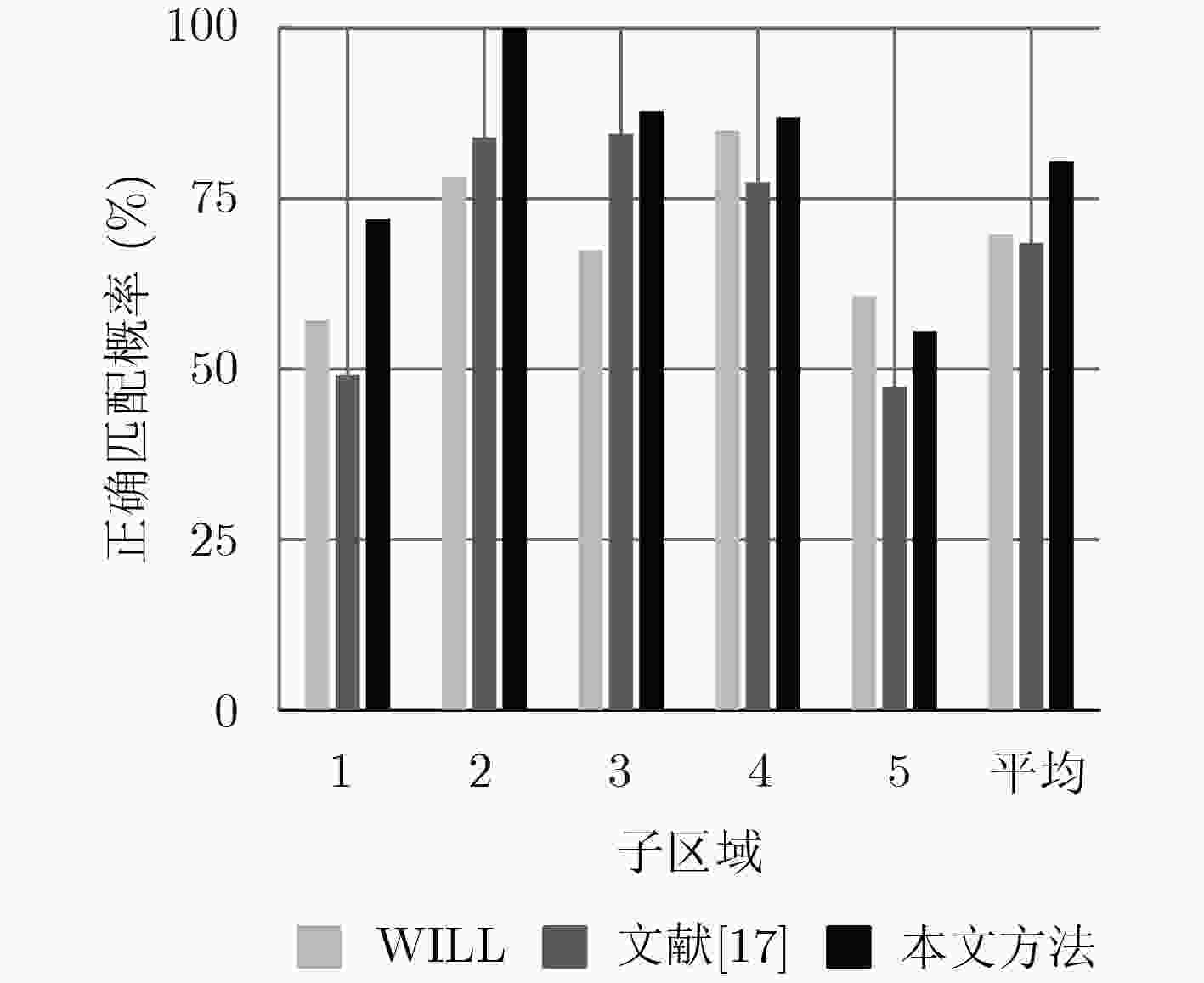

图 11 映射精度对比

下载: 全尺寸图片幻灯片

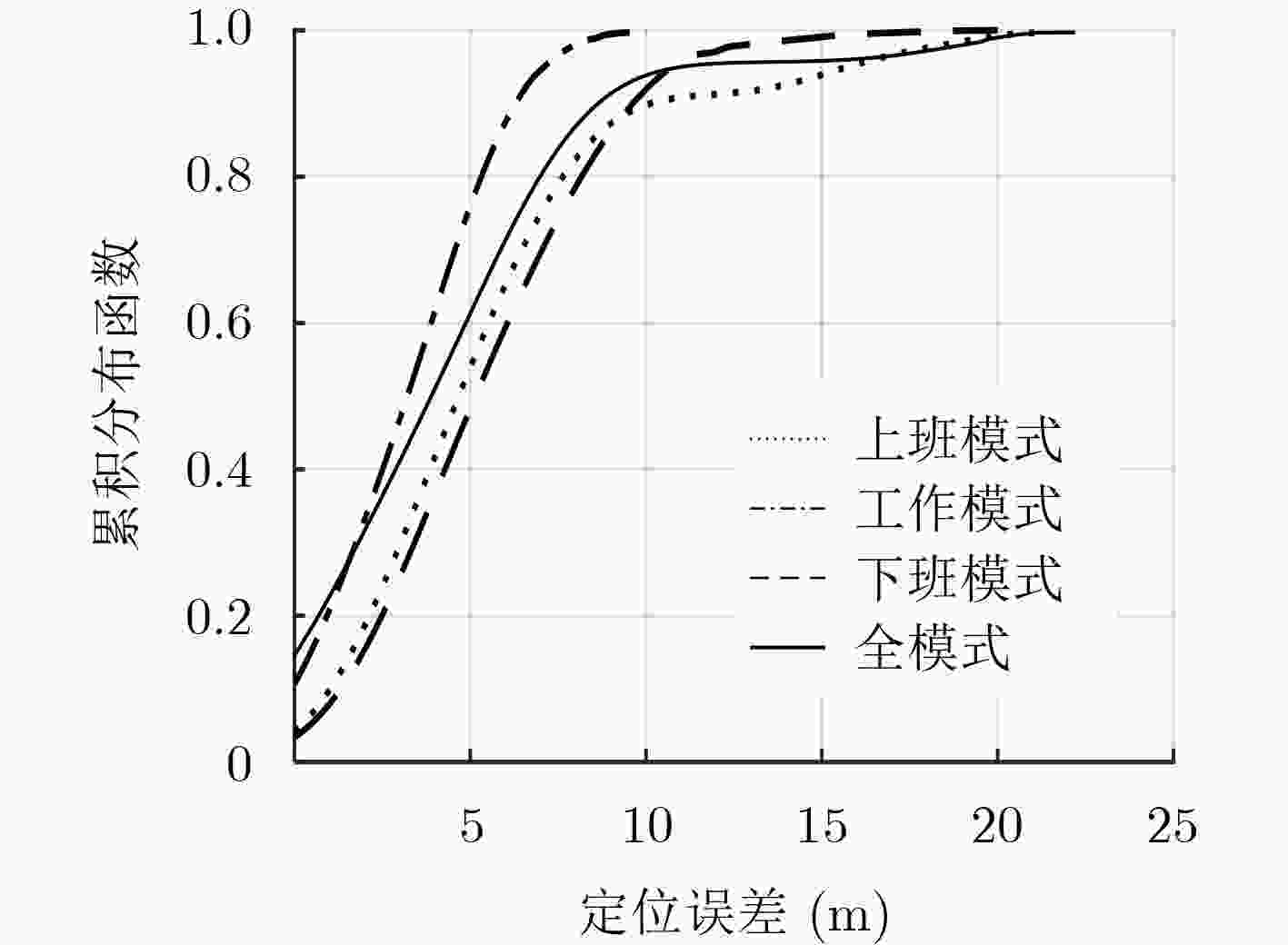

图 12 不同假设模式下的定位误差

下载: 全尺寸图片幻灯片

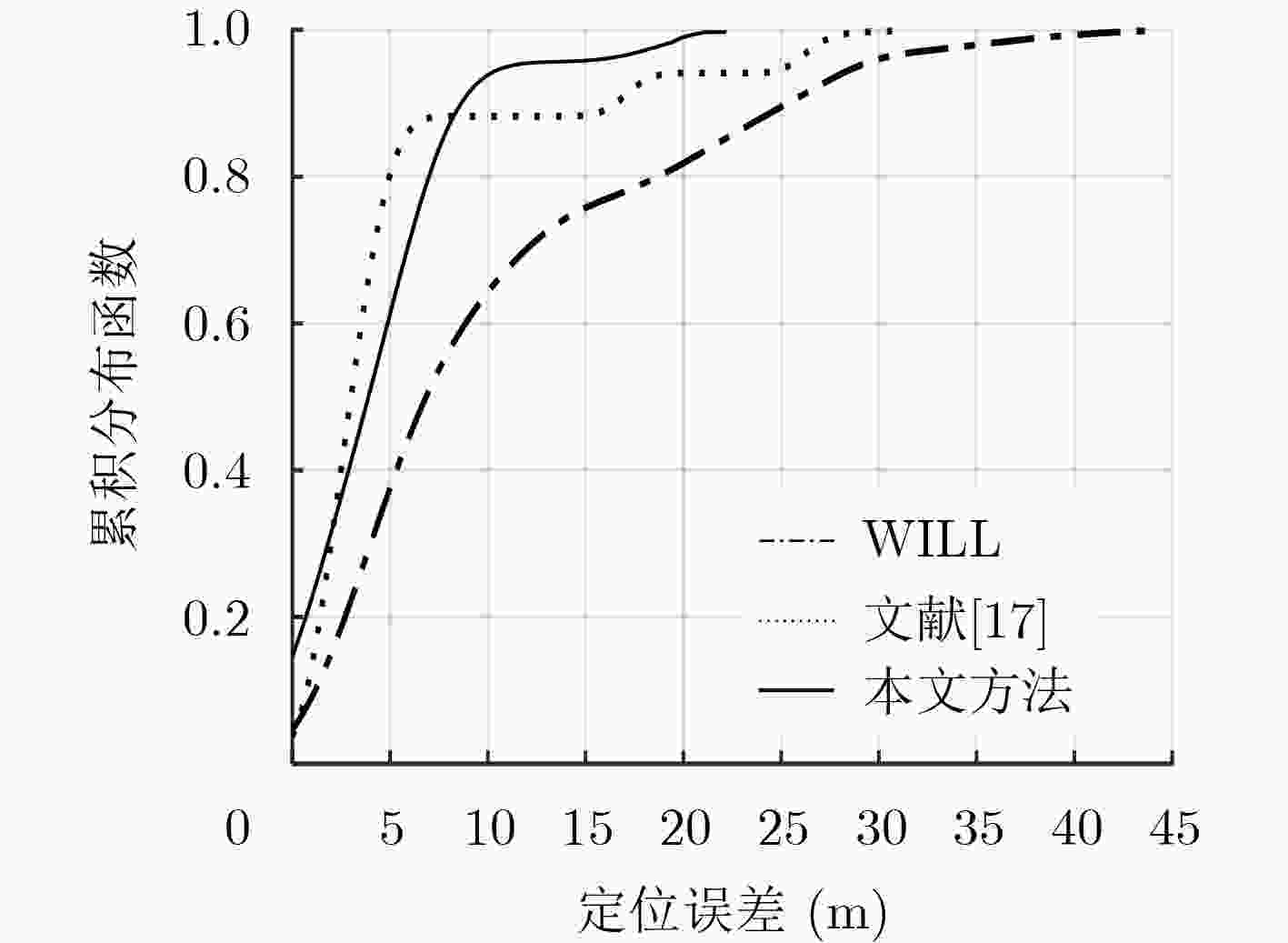

图 13 不同系统的定位误差

下载: 全尺寸图片幻灯片

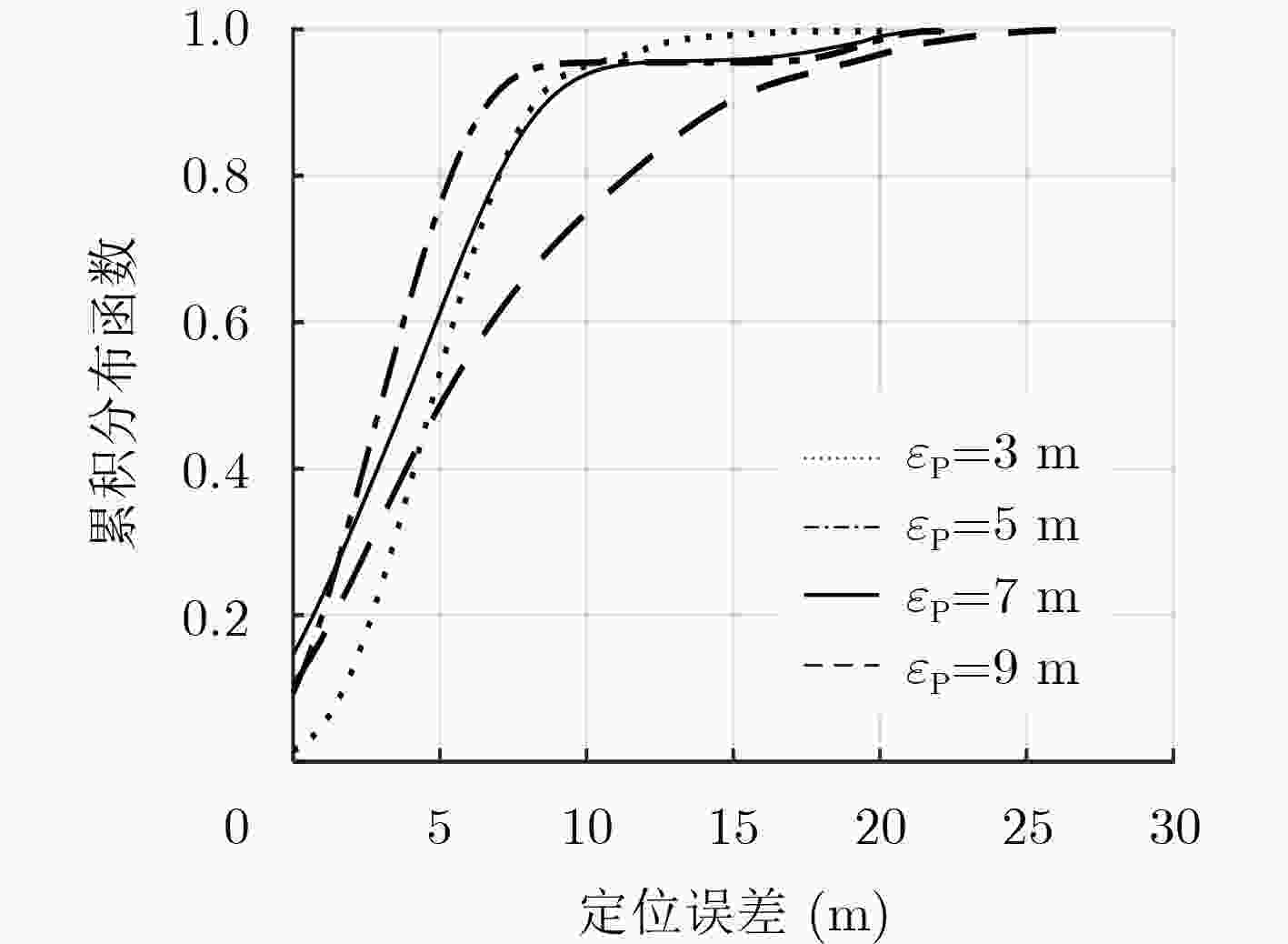

图 14 不同物理相似度阈值下的定位误差

下载: 全尺寸图片幻灯片

参考文献(32)

WANG Xuyu, GAO Lingjun, and MAO Shiwen. Phasefi: Phase fingerprinting for indoor localization with a deep learning approach[C]. 2015 IEEE Global Communications Conference, San Diego, USA, 2015: 1–6.

RADU V, LI Jiwei, KRIARA L, et al. Poster: A hybrid approach for indoor mobile phone localization[C]. Proceedings of the 10th International Conference on Mobile Systems, Applications, and Services, Low Wood Bay, UK, 2012: 527–528. doi: 10.1145/2307636.2307717.

YAELI A, BAK P, FEIGENBLAT G, et al. Understanding customer behavior using indoor location analysis and visualization[J]. IBM Journal of Research and Development, 2014, 58(5/6): 3:1–3:12. doi: 10.1147/JRD.2014.2337552

BAHL P and PADMANABHAN V N. RADAR: An in-building RF-based user location and tracking system[C]. Proceedings of IEEE INFOCOM 2000. Conference on Computer Communications. Nineteenth Annual Joint Conference of the IEEE Computer and Communications Societies, Tel Aviv, Israel, 2000: 775–784. doi: 10.1109/INFCOM.2000.832252.

YOUSSEF M and AGRAWALA A. The Horus WLAN location determination system[C]. The 3rd International Conference on Mobile Systems, Applications, and Services, Seattle, USA, 2015: 205–218.

KOWEERAWONG C, WIPUSITWARAKUN K, and KAEMARUNGSI K. Indoor localization improvement via adaptive RSS fingerprinting database[C]. 2013 International Conference on Information Networking, Bangkok, Thailand, 2013: 412–416. doi: 10.1109/ICOIN.2013.6496414.

DURRANT-WHYTE H and BAILEY T. Simultaneous localization and mapping: Part I[J]. IEEE Robotics & Automation Magazine, 2006, 13(2): 99–110. doi: 10.1109/MRA.2006.1638022

WU Chenshu, YANG Zheng, LIU Yunhao, et al. WILL: Wireless indoor localization without site survey[J]. IEEE Transactions on Parallel and Distributed Systems, 2013, 24(4): 839–848. doi: 10.1109/TPDS.2012.179

WU Chenshu, YANG Zheng, LIU Yunhao, et al. WILL: Wireless indoor localization without site survey[C]. 2012 Proceedings IEEE INFOCOM, Orlando, USA, 2012: 64–72. doi: 10.1109/INFCOM.2012.6195809.

LI Chao, JIANG Zhuqing, HUANG Chengkai, et al. A smartphone-based indoor positioning system using fuzzy theory and WLAN mapping algorithm[C]. 2015 IEEE 26th Annual International Symposium on Personal, Indoor, and Mobile Radio Communications, Hong Kong, China, 2015: 2177–2181. doi: 10.1109/PIMRC.2015.7343658.

NAIK K K and PRASAD M N G. A system for locating users of WLAN using dynamic mapping in indoor and outdoor environment-LOIDS[C]. 2008 11th International Conference on Computer and Information Technology, Khulna, Bangladesh, 2008: 156–160. doi: 10.1109/ICCITECHN.2008.4802971.

SHIN H, CHON Y, and CHA H. Unsupervised construction of an indoor floor plan using a smartphone[J]. IEEE Transactions on Systems, Man, and Cybernetics, Part C: Applications and Reviews, 2012, 42(6): 889–898. doi: 10.1109/TSMCC.2011.2169403

HARDEGGER M, ROGGEN D, MAZILU S, et al. ActionSLAM: Using location-related actions as landmarks in pedestrian SLAM[C]. 2012 International Conference on Indoor Positioning and Indoor Navigation, Sydney, Australia, 2012: 1–10. doi: 10.1109/IPIN.2012.6418932.

BRUNO L and ROBERTSON P. WiSLAM: Improving footSLAM with WiFi[C]. 2011 International Conference on Indoor Positioning and Indoor Navigation, Guimaraes, Portugal, 2011: 1–10. doi: 10.1109/IPIN.2011.6071916.

MIROWSKI P, HO T K, YI S, et al. SignalSLAM: Simultaneous localization and mapping with mixed WiFi, Bluetooth, LTE and magnetic signals[C]. International Conference on Indoor Positioning and Indoor Navigation, Montbeliard-Belfort, France, 2013: 1–10. doi: 10.1109/IPIN.2013.6817853.

ZHANG Xiuming, JIN Yunye, TAN H X, et al. CIMLoc: A crowdsourcing indoor digital map construction system for localization[C]. IEEE 9th International Conference on Intelligent Sensors, Sensor Networks and Information Processing, Singapore, 2014: 1–6. doi: 10.1109/ISSNIP.2014.6827640.

ZHOU Mu, ZHANG Qiao, WANG Yu, et al. Hotspot ranking based indoor mapping and mobility analysis using crowdsourced Wi-Fi signal[J]. IEEE Access, 2017, 5: 3594–3602. doi: 10.1109/ACCESS.2017.2674798

ZHOU Mu, ZHANG Qiao, TIAN Zengshan, et al. Indoor WLAN localization using high-dimensional manifold alignment with limited calibration load[C]. 2017 IEEE International Conference on Communications, Paris, France, 2017: 1–6. doi: 10.1109/ICC.2017.7997042.

WANG Lin, LIU Wenyuan, JING Nan, et al. Simultaneous navigation and pathway mapping with participating sensing[J]. Wireless Networks, 2015, 21(8): 2727–2745. doi: 10.1007/s11276-015-0944-x

MUTHUKRISHNAN K, VAN DER ZWAAG B J, and HAVINGA P. Inferring motion and location using WLAN RSSI[C]. Proceedings of the 2nd International Workshop on Mobile Entity Localization and Tracking in GPS-less Environments, Orlando, USA, 2009: 163–182.

SHIN H and CHA H. Wi-Fi fingerprint-based topological map building for indoor user tracking[C]. 2010 IEEE 16th International Conference on Embedded and Real-Time Computing Systems and Applications, Macau, China, 2010: 105–113. doi: 10.1109/RTCSA.2010.23.

HART P E, NILSSON N J, and RAPHAEL B. A formal basis for the heuristic determination of minimum cost paths[J]. IEEE Transactions on Systems Science and Cybernetics, 1968, 4(2): 100–107. doi: 10.1109/TSSC.1968.300136

YU Jie, AMORES J, SEBE N, et al. Distance learning for similarity estimation[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2008, 30(3): 451–462. doi: 10.1109/TPAMI.2007.70714

MANN H B and WHITNEY D R. On a test of whether one of two random variables is stochastically larger than the other[J]. The Annals of Mathematical Statistics, 1947, 18(1): 50–60. doi: 10.1214/aoms/1177730491

吴喜之, 赵博娟. 非参数统计[M]. 第4版, 北京: 中国统计出版社, 2013: 52–56.

WU Xizhi and ZHAO Bojuan. Nonparametric Test[M]. 4th ed., Beijing: China Statistics Press, 2013: 52–56.

王星, 褚挺进. 非参数统计[M]. 第2版, 北京: 清华大学出版社, 2014: 332–334.

WANG Xing and CHU Tingjin. Non-Parametric Statistics[M]. 2nd ed., Beijing: Tsinghua University Press, 2014: 332–334.

HATA M. Empirical formula for propagation loss in land mobile radio services[J]. IEEE Transactions on Vehicular Technology, 1980, 29(3): 317–325. doi: 10.1109/T-VT.1980.23859

RIRI P C, KRISTALINA P, and SUDARSONO A. Cluster-based pathloss exponential modeling for indoor positioning in wireless sensor network[C]. 2016 International Conference on Knowledge Creation and Intelligent Computing, Manado, Indonesia, 2016: 53–59. doi: 10.1109/KCIC.2016.7883625.

ZHOU Mu, ZHANG Qiao, TIAN Zengshan, et al. IMLours: Indoor mapping and localization using time-stamped WLAN received signal strength[C]. 2015 IEEE Wireless Communications and Networking Conference, New Orleans, USA, 2015: 1817–1822.

刘东海, 陆丽宇. 小概率事件与实际问题例谈[J]. 科技经济导刊, 2018, 26(12): 114.

LIU Donghai and LU Liyu. Small probability events and examples of practical problems[J]. Technology and Economic Guide, 2018, 26(12): 114.

肖莉. 基于路径损耗的WiFi室内定位系统[D]. [硕士论文], 西安电子科技大学, 2017: 19–31.

XIAO Li. The WiFi indoor positioning system based on path loss model[D]. [Master dissertation], Xidian University, 2017: 19–31.

张文君, 顾行发, 陈良富, 等. 基于均值-标准差的K均值初始聚类中心选取算法[J]. 遥感学报, 2006, 10(5): 715–721. doi: 10.3321/j.issn:1007-4619.2006.05.017

ZHANG Wenjun, GU Xingfa, CHEN Liangfu, et al. An algorithm for initilizing of K-means clustering based on mean-standard deviation[J]. Journal of Remote Sensing, 2006, 10(5): 715–721. doi: 10.3321/j.issn:1007-4619.2006.05.017
